33CE004 TV Ceiling Mount for 32 to 88 inch, Rotate and Adjustable Mast

800-585-8795
Monday Through Friday 9:00 to 4:00 Central

$159.95 USD

~~$189.95 USD~~ $159.95 USD

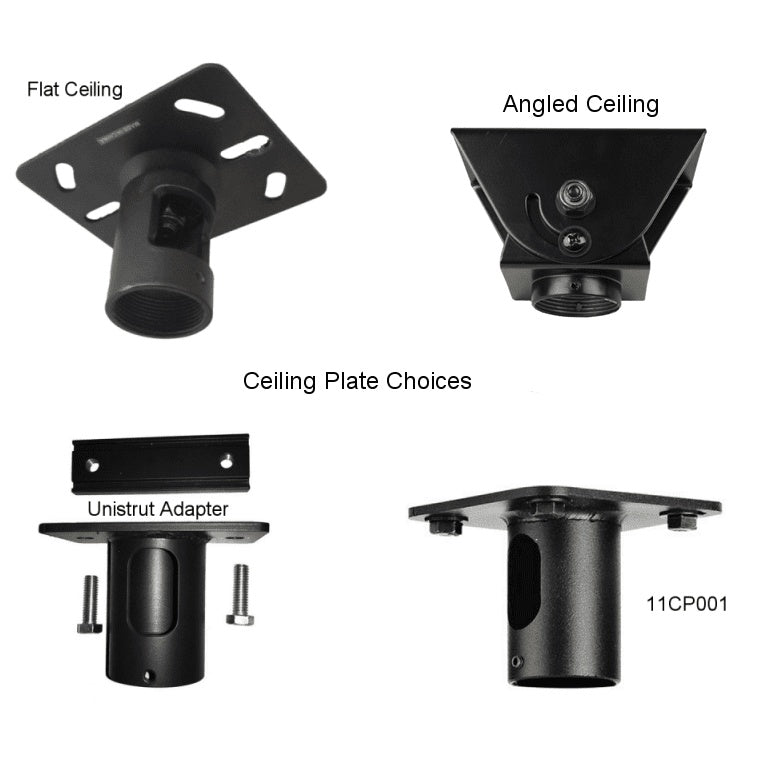

Flat Ceiling Plate
This is the default choice that most people need.
Angled Ceiling Plate
You would choose this to mount to a ceiling that is angled, sloped, or cathedral.
Adapter for Unistrut
Unistrut is a U-Shaped metal channel commonly used in construction.
11CP001 Ceiling Plate
This plate is welded steel construction, made in USA and has a large pass through hole in the top, making it easier to pass cables through.
Call or email us if you need help picking, or possibly a different solution.

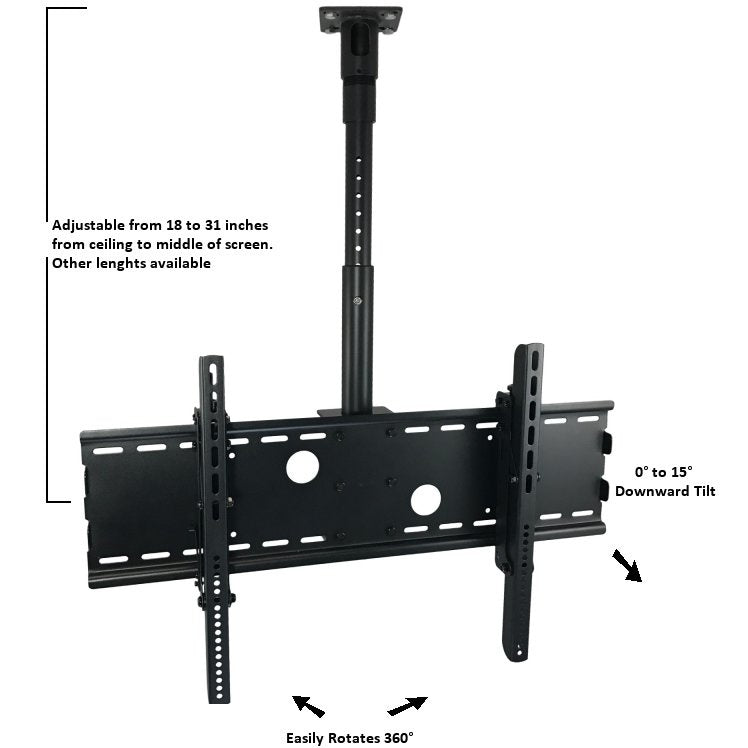

All measurements are measured from where the top plate mounts down to the about the middle of the TV screen.

The default length is 18 to 31 inches, this configuration uses this 20-33 Adjustable Pipe that is adjustable in 1 inch increments.
10 to 18 Inches uses this 12-20 Adjustable Pipe that is adjustable in 1 inch increments.
18 to 41 Inches uses the 20-33 Adjustable Mast with the 10 Inch Extension and is adjustable in 1 inch increments.
38 to 51 Inches uses the 20-33 Adjustable Mast with the 20 Inch Extension and is adjustable in 1 inch increments.
48 to 61 Inches uses the 20-33 Adjustable Mast with the 30 Inch Extension and is adjustable in 1 inch increments.
No Mast: You would choose this option if providing your own pipe or using a custom combination of other pipes we sell. Keep in mind, the mount and the ceiling plate subtract 2 inches of distance down and you NEED a threaded pipe to connect them together. This subtraction instead of addition is because the pipe comes down pas the middle of the screen. Please call us or email us and we can help you get the right parts.

55 to 760 mm Wide
65 to 470 mm
High

Product Details

Recommended for Screens Sized: 32 to 88 inches
Maximum Weight: 165 lbs
Tilt: 15° down
This mount fits screens with mounting holes on the back that fall within the following range:
- Horizontal (Left to Right) Hole Spacing
  Between 55 mm (2.2 inches) and 760 mm (29.9 inches)
- Vertical (Top to Bottom) Hole Spacing
  Between 65 mm (2.6 inches) and 470 mm (18.5 inches)
Fits VESA Standards (Width X Height) in mm: 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400
Distance From Top of Mast to Center of Screen: 18" to 31"
Manufacturer: Expert Mounts
May also be sold under these part numbers: 33CE004B
