Ceiling Mount Extension Kit, Adds 10" (Pipe + Coupler)
SKU 10-inch-extension
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

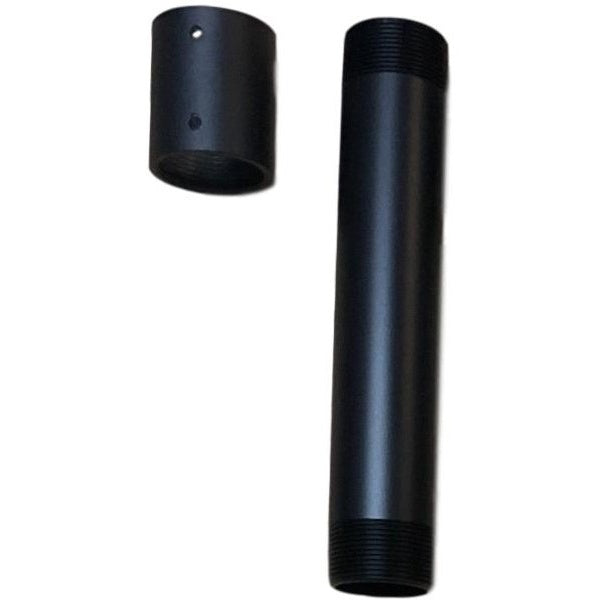

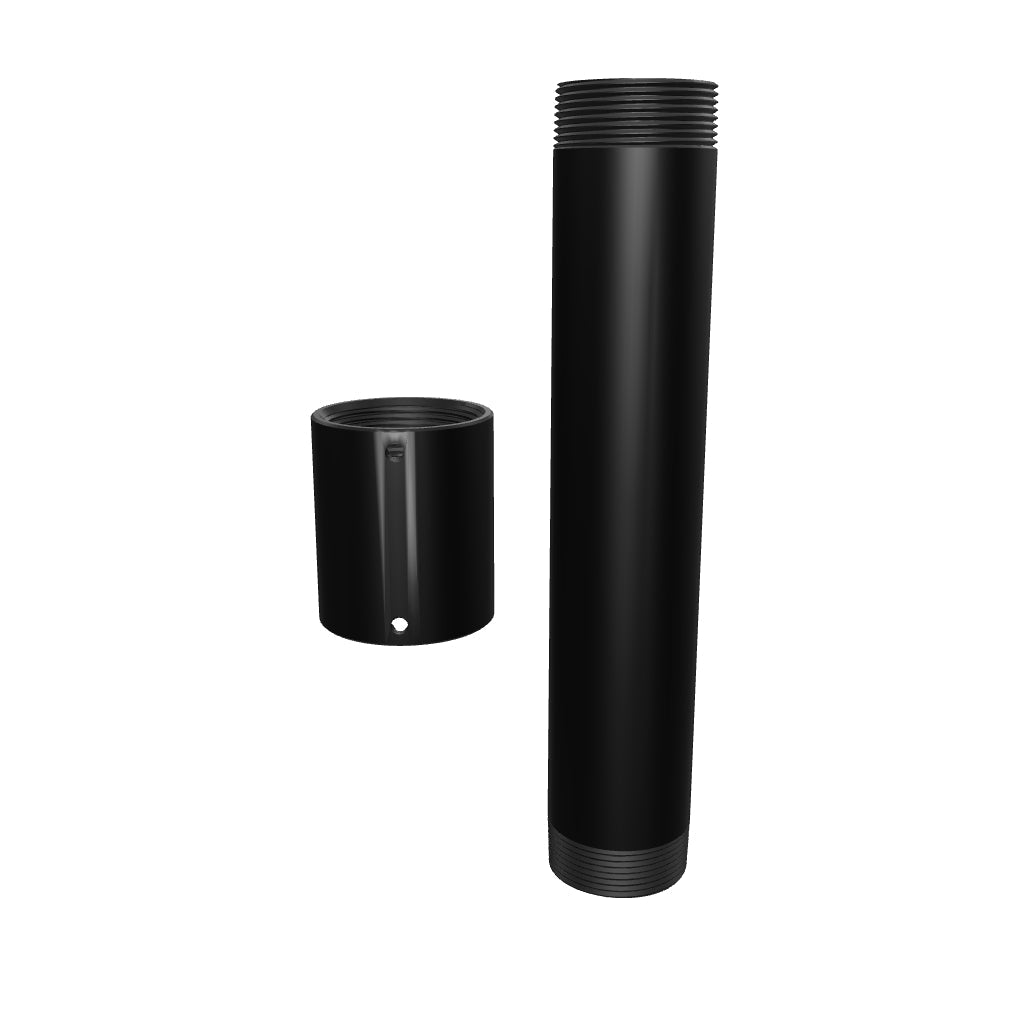

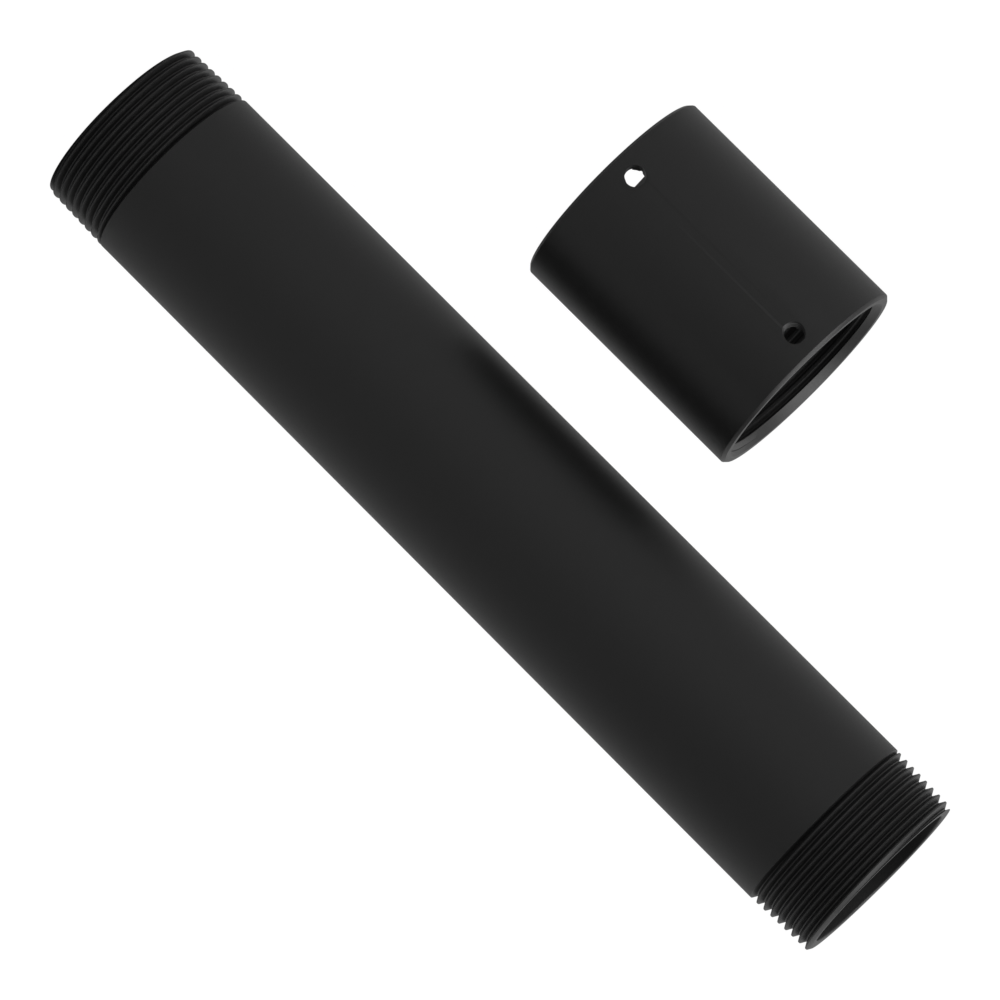

Extend an existing ceiling mount by 10 inches. This kit includes one 10" 6061-T6 aluminum 1-1/2" (1.5", 1½") NPT pipe plus an aluminum coupler, everything you need to add 10" of drop and thread into any 1.5 inch NPT system.
- Adds 10" of drop
- Includes one 10" aluminum pipe (precision machined and manufactured in the USA) + one aluminum coupler
- Holds up to 500 lb
- 1-1/2" NPT thread, 11.5 TPI (11.5 threads per inch), both ends
- Finish: Outdoor Rated Black Powdercoat (indoor & outdoor)
Designed for professional and commercial use, and excellent for home use. Works with TV ceiling mounts, projector mounts, digital signage, lighting, and stage truss, great in bars, restaurants, airports, home theaters, patios, gazebos, bowling alleys, schools, hospitals, and more.
Expert Mounts manufacturer spec sheet
View full details
Build a TV Ceiling Mount using our 1 1/2 inch pipe system
