Fixed Flat Panel Mount for TV's 25" - 40"

SKU 22FW001

$59.95
$59.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

1-800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

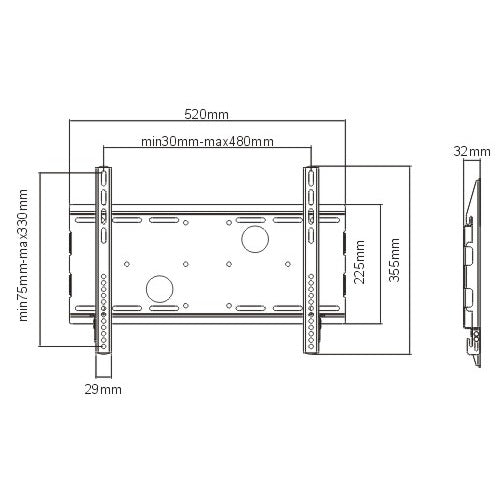

This universal design allows installation of virtually any 25" to 40" flat panel in just minutes. Low profile design keeps your flat panel just 1.25" from the wall.

  • Double Stud Mounting Bracket
  • Includes all hardware necessary to install the mount.
  • Durable silver powdercoat finish
  • Supports 100lbs
  • 19' Maximum horizontal mounting hole dimension. 13" Maximum vertical mounting hole dimension.
  • VESA Mounting Standards:
    • 75 x 75 mm
    • 100 x 100 mm
    • 200 x 100 mm
    • 200 x 200 mm
    • 300 x 300 mm
    • 400 x 200 mm
    • 400 x 300 mm

Product details

Screen size 25–40″
Max weight 100 lb · 45 kg
Mount distance 1.25″ from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline — any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we’ll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 63 to 482 mm wide and 69 to 330 mm tall, shown to scale on an approximately 40 inch 16:9 display.
69–330 mm 2.7–13″
63–482 mm 2.5–19″

shown to scale on a ≈40″ screen (16:9)

63–482 mm wide · 69–330 mm tall(2.5–19″ wide · 2.7–13″ tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches

Common standards within this hole range — not an exhaustive list.

Will my TV fit?

round to the nearest inch — close is fine, we’ll match it to the standard size

enter your TV’s spacing to check

How do I find my TV’s pattern?

Find the four threaded holes on the back of your TV and measure between them — left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV’s manual, or search “[your model] VESA pattern”.

Can’t find it or not sure? Call us at 1-800-585-8795 or email sales@videomountstore.com — we can usually look up your TV’s pattern faster than you can.
