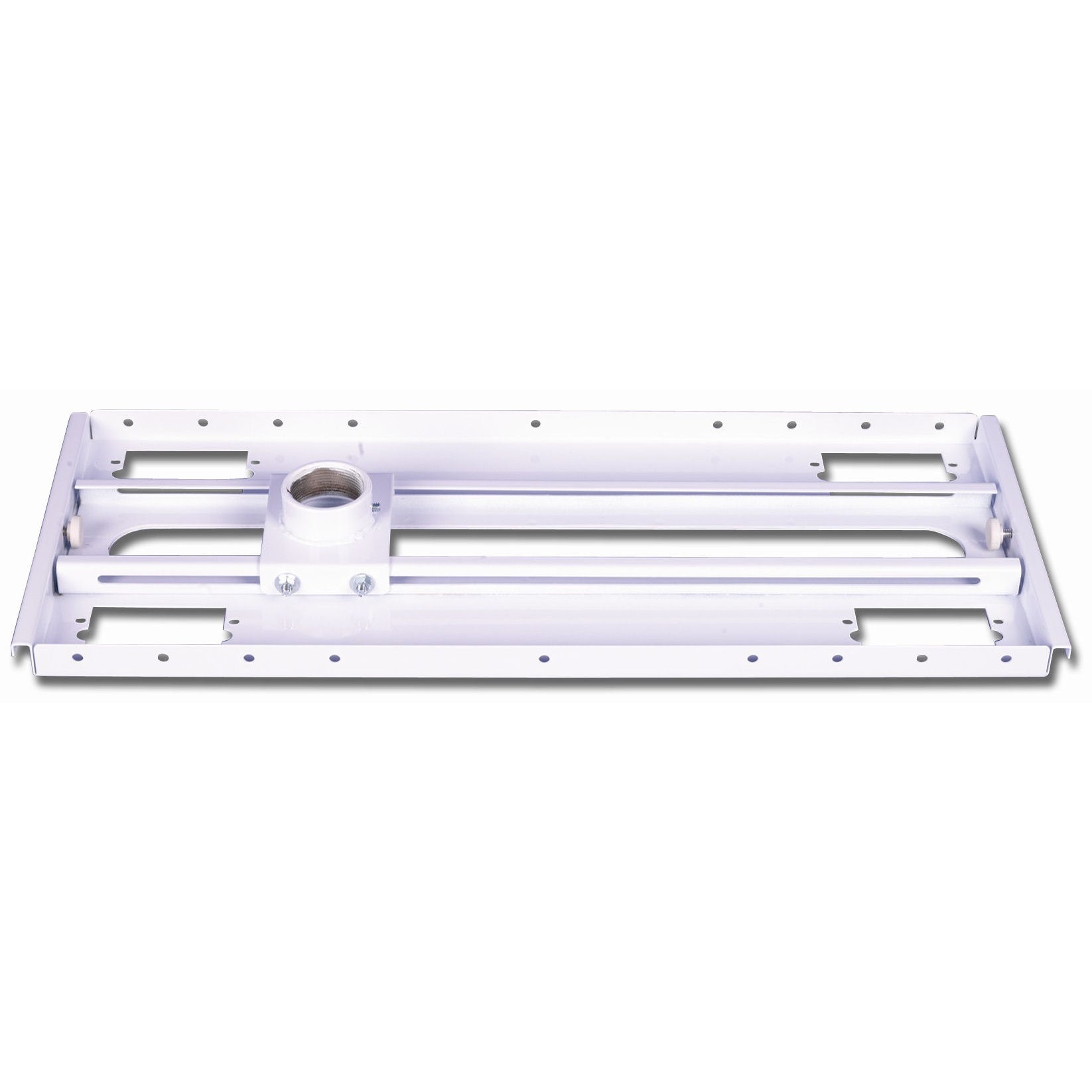

VMP Suspended Ceiling Mount

The VMP SCM-1 Suspended Ceiling Adaptor lets you mount a projector or display from a drop ceiling by resting a steel tray on the ceiling grid. It works with 2 ft by 2 ft or 2 ft by 4 ft tiles and accepts a VMP ceiling mast or standard 1.5 inch NPT pipe, so you only need to cut a hole in the tile for the mast to pass through. The tray supports up to 75 lbs and the mount position can be set anywhere along its full length.

• VMP model SCM-1 Suspended Ceiling Adaptor
• For use with 2 ft by 2 ft or 2 ft by 4 ft suspended ceiling tiles
• Accepts VMP ceiling masts or standard 1.5 inch NPT pipe
• Mount can be positioned anywhere along the full length of the tray
• Load capacity of 75 lbs
• Includes 20 ft of tie wire plus hardware to attach it to common surfaces above the ceiling
• 4 standard electrical knockouts for junction boxes
• Primarily formed steel construction with spot welds
• White powder coat finish
