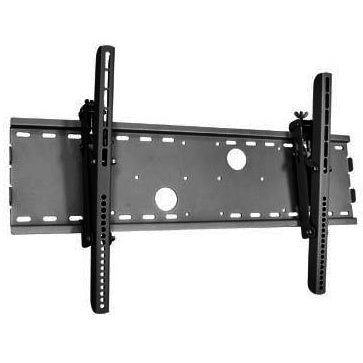

Tilting Flat Panel Mount for 37" to 86" TV's

1 2

Item Number:
SKU:33TW001

$69.95 USD

~~$109.95 USD~~ $69.95 USD

Usually ships the next business day

Fast & easy low profile tilt mount with Lift-and-Lock installation

Tilt (0° to -15°) and sliding lateral on-wall adjustment

Mounts to any stud separation up to 30.5”

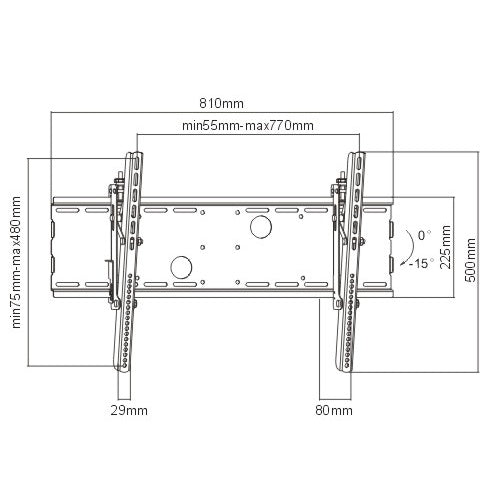

TV mounting width adjusts from 2.5" to 30.5", height adjusts from 2.75" to 18.5"

Low mounting profile, only 3.25"

Available in Black

165 lb. maximum weight capacity

Complete hardware package included. Includes screws to go to TV and wall mounting hardware for either wood studs or masonry wall installation.

Instructions

Product Details:

Recommended for Screens Sized

37 to 86 inches

Maximum Weight

165 lbs

Tilt

0° to -15°

Mounting Hole Range

63 to 774 mm Wide
69 to 469 mm
High

This mount fits screens with mounting holes on the back that fall within the following range:

Horizontal (Left to Right) Hole Spacing
Between 63 mm (2.5 inches) and 774 mm (30.5 inches)

Vertical (Top to Bottom) Hole Spacing
Between 69 mm (2.7 inches) and 469 mm (18.5 inches)

Fits VESA Standards
Width X Height in mm 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400

Distance From Wall to Back of Screen 3.25"

Manufacturer Expert Mounts

May also be sold under these part numbers 33TW001B,33TW001S

Related Items and Accessories

Glass Shelf for TV Mounts - Hooks on Mount

Suggested Retail: ~~$69.95~~

Our Price: $39.95

Product Details

Recommended for Screens Sized: 37 to 86 inches
Maximum Weight: 165 lbs
Tilt: 0° to -15°
This mount fits screens with mounting holes on the back that fall within the following range:
- Horizontal (Left to Right) Hole Spacing
  Between 63 mm (2.5 inches) and 774 mm (30.5 inches)
- Vertical (Top to Bottom) Hole Spacing
  Between 69 mm (2.7 inches) and 469 mm (18.5 inches)
Fits VESA Standards (Width X Height) in mm: 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400
Distance From Wall to Back of Screen: 3.25"
Manufacturer: Expert Mounts
May also be sold under these part numbers: 33TW001B,33TW001S
