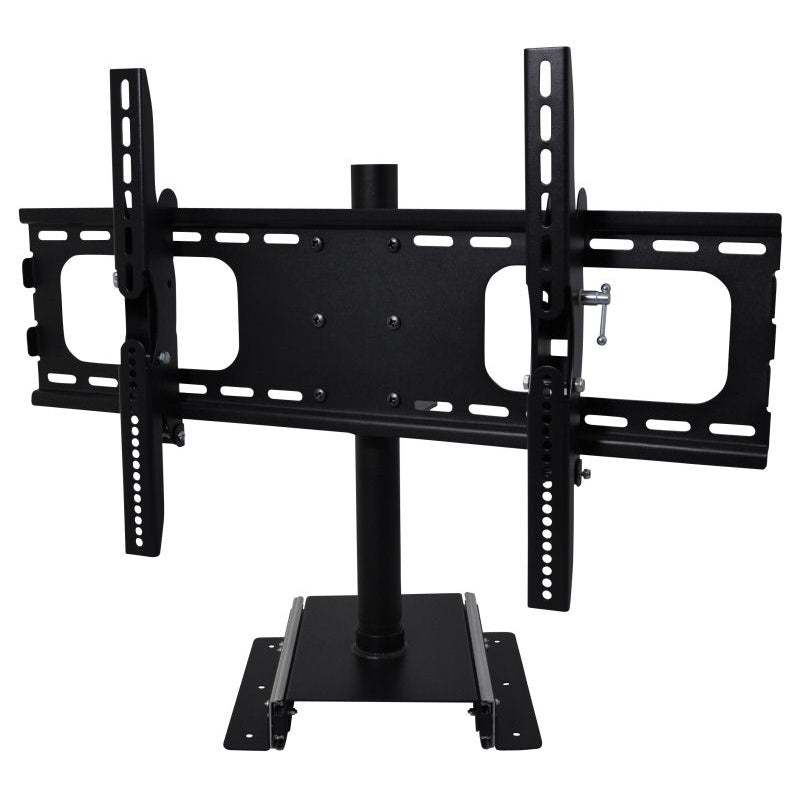

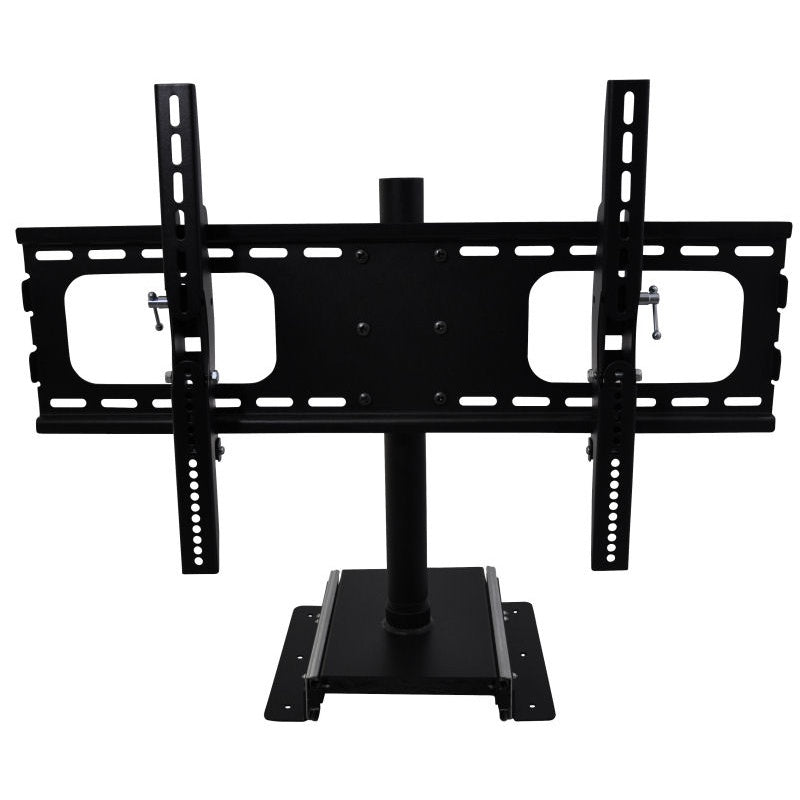

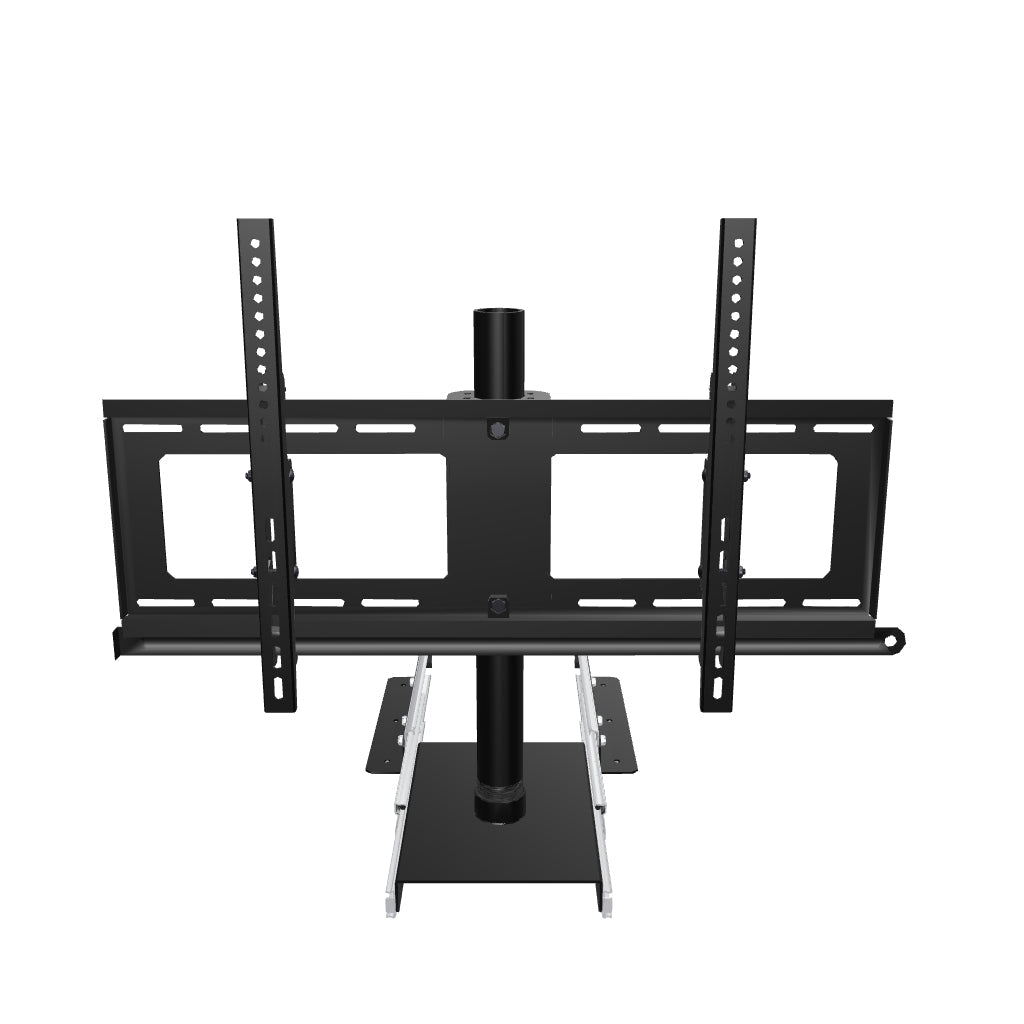

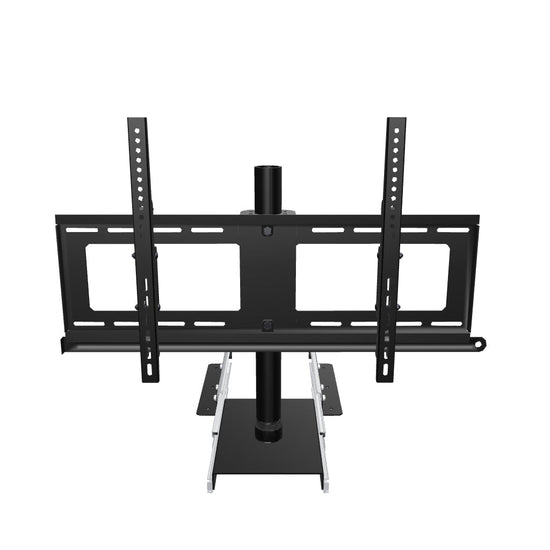

  • 33SL001 slide-out swivel mount, front view of the twin tilting VESA rails on a swivel pole rising from a square base plate set on drawer slides

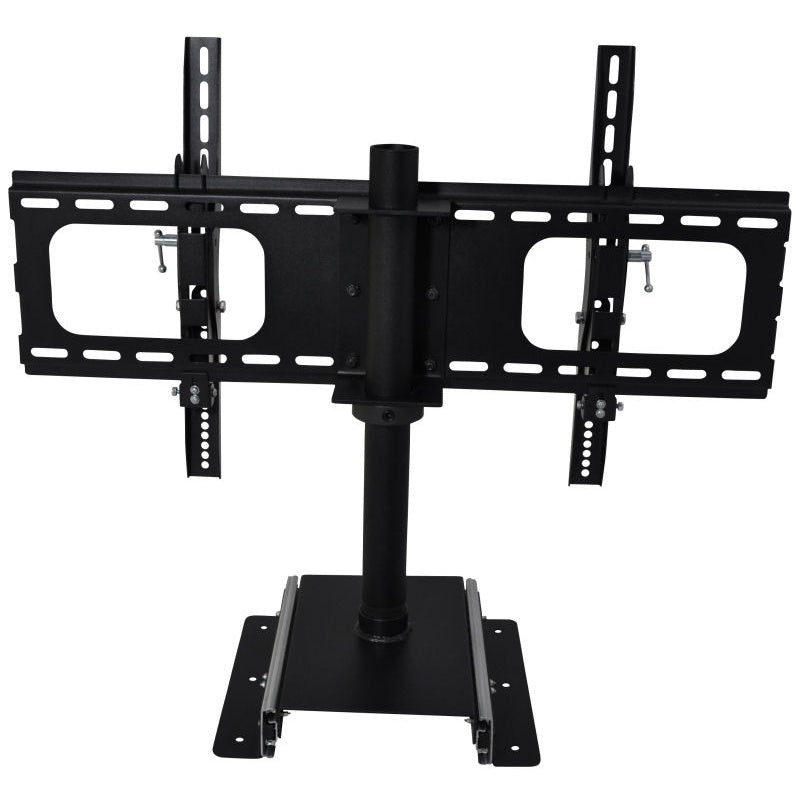

  • 33SL001 slide-out swivel mount, rear view showing the vertical swivel pole, tilt bracket bolts, and the base plate on its ball-bearing slides

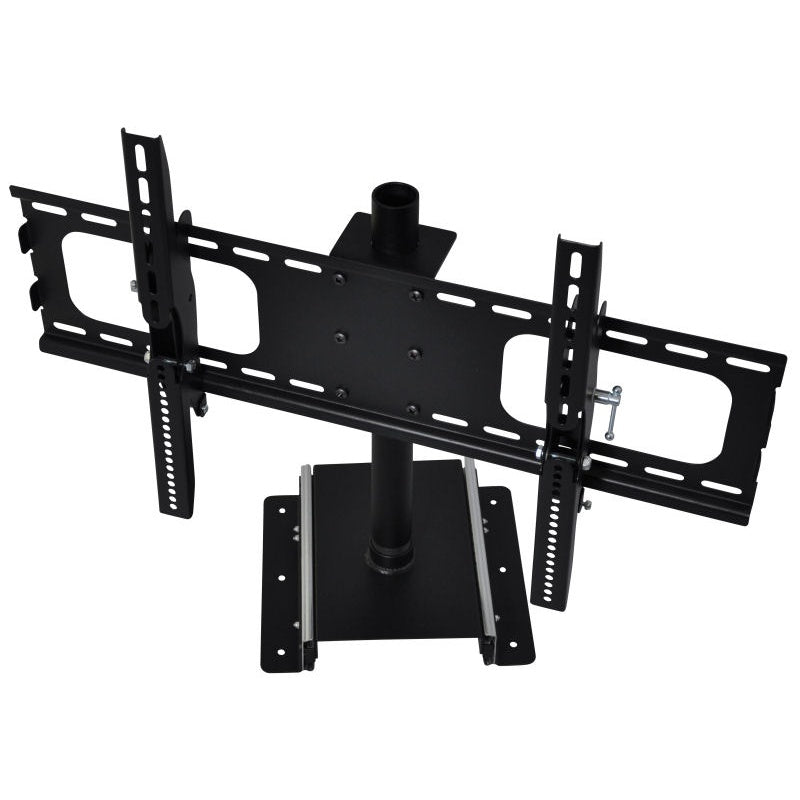

  • 33SL001 slide-out swivel mount, angled view with the two VESA rails tilted forward on the swivel pole above the slide-out base

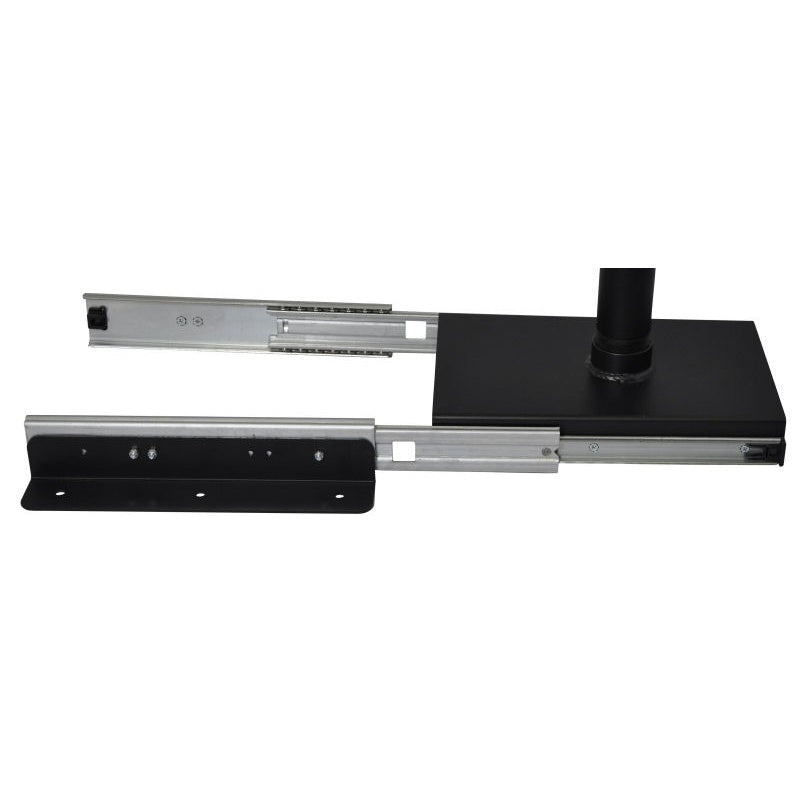

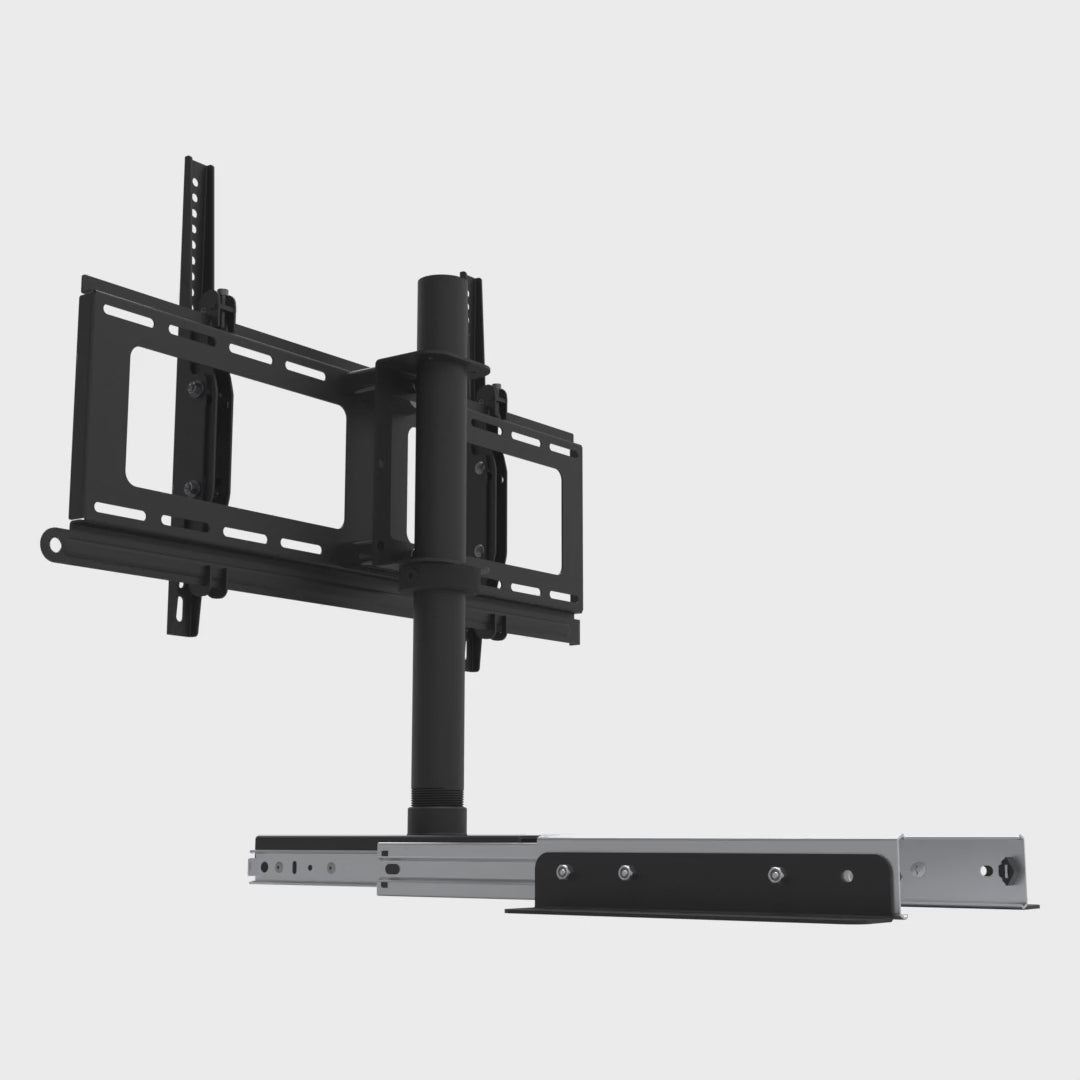

  • 33SL001 slide-out mechanism detail: the base plate pulled forward on paired ball-bearing drawer slides that let the TV extend out from the cabinet

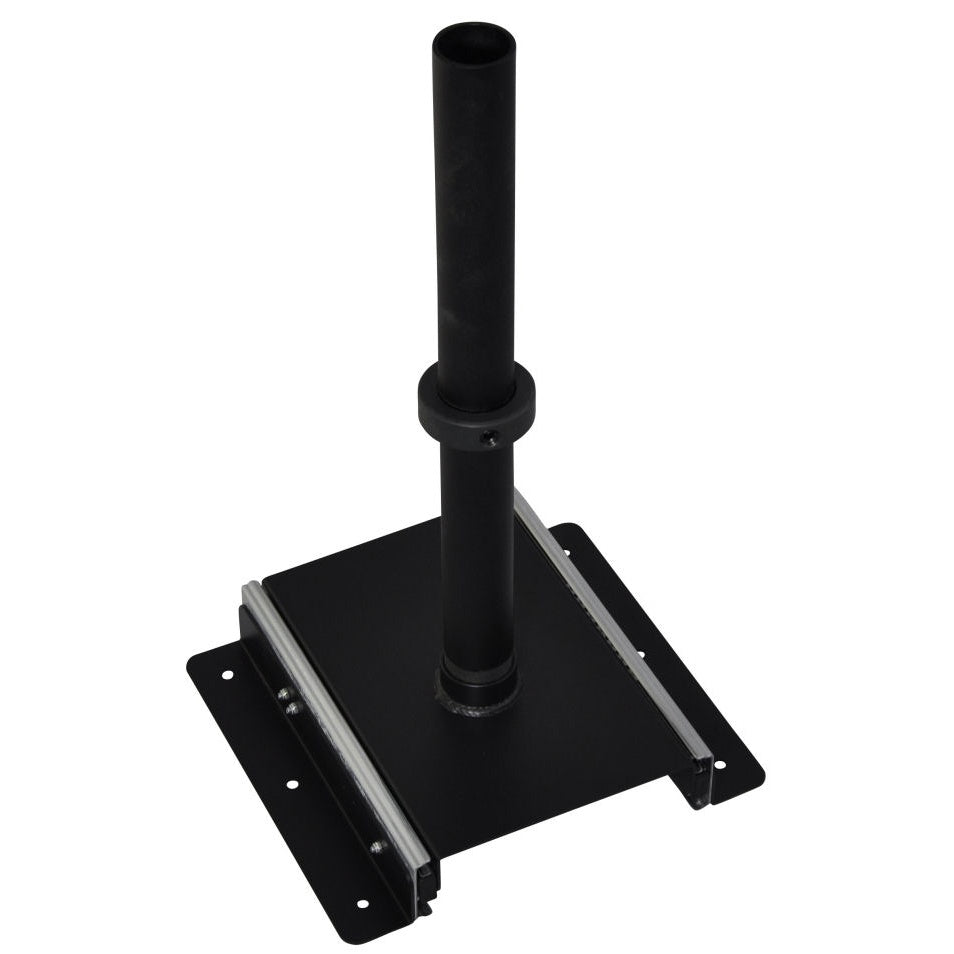

  • 33SL001 base plate and swivel pole detail, pole seated in a set-screw collar on the slide-out plate, viewed from above

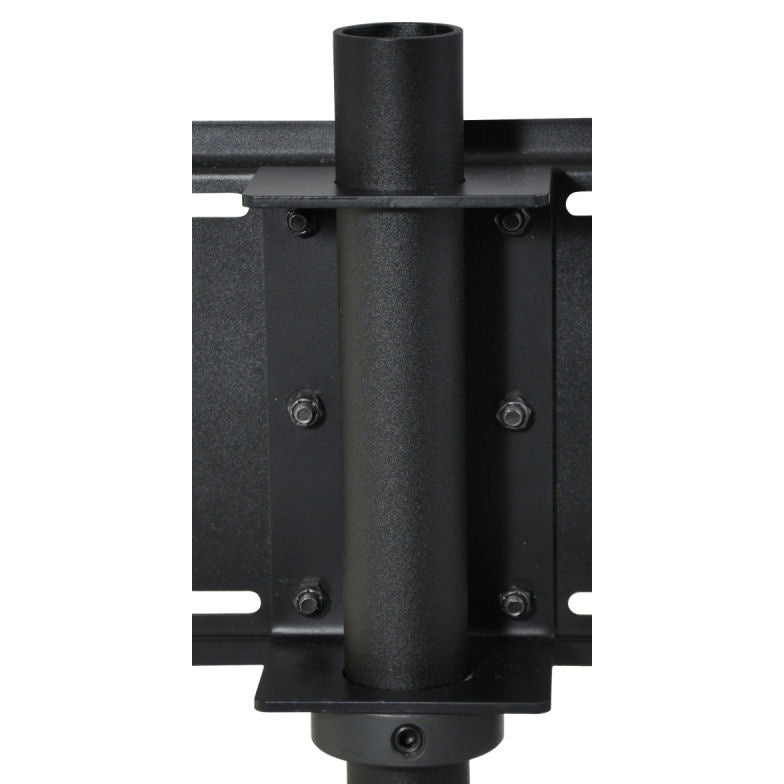

  • 33SL001 close-up of the swivel pole socket and the bolt pattern joining the crossbar to the pole, set screw at the base of the collar
1 7

Cabinet/Furniture Slide Out Swivel TV Mount for up to 65 Inch

SKU 33SL001

$159.95
$199.95 $159.95
Save $40.00 (20%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

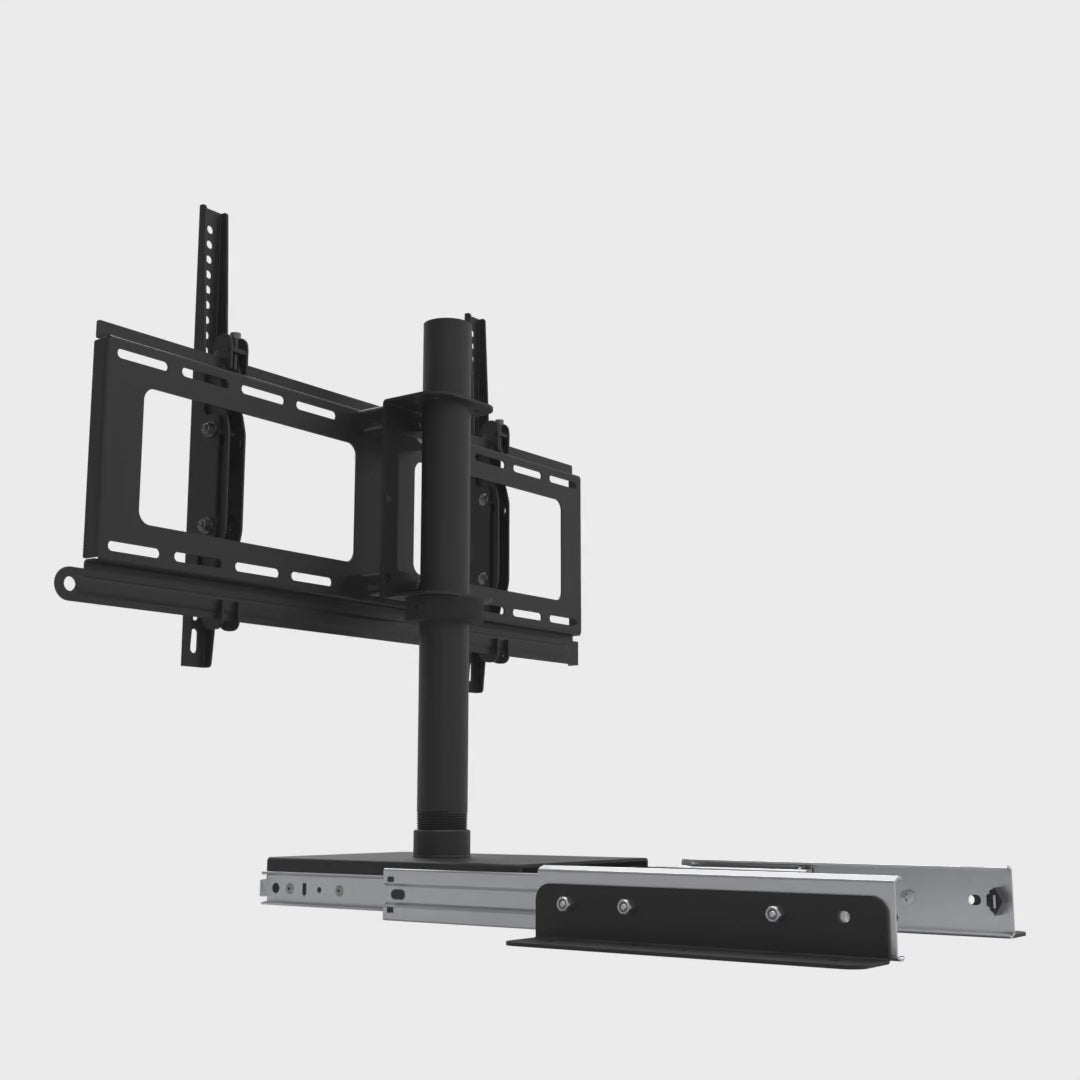

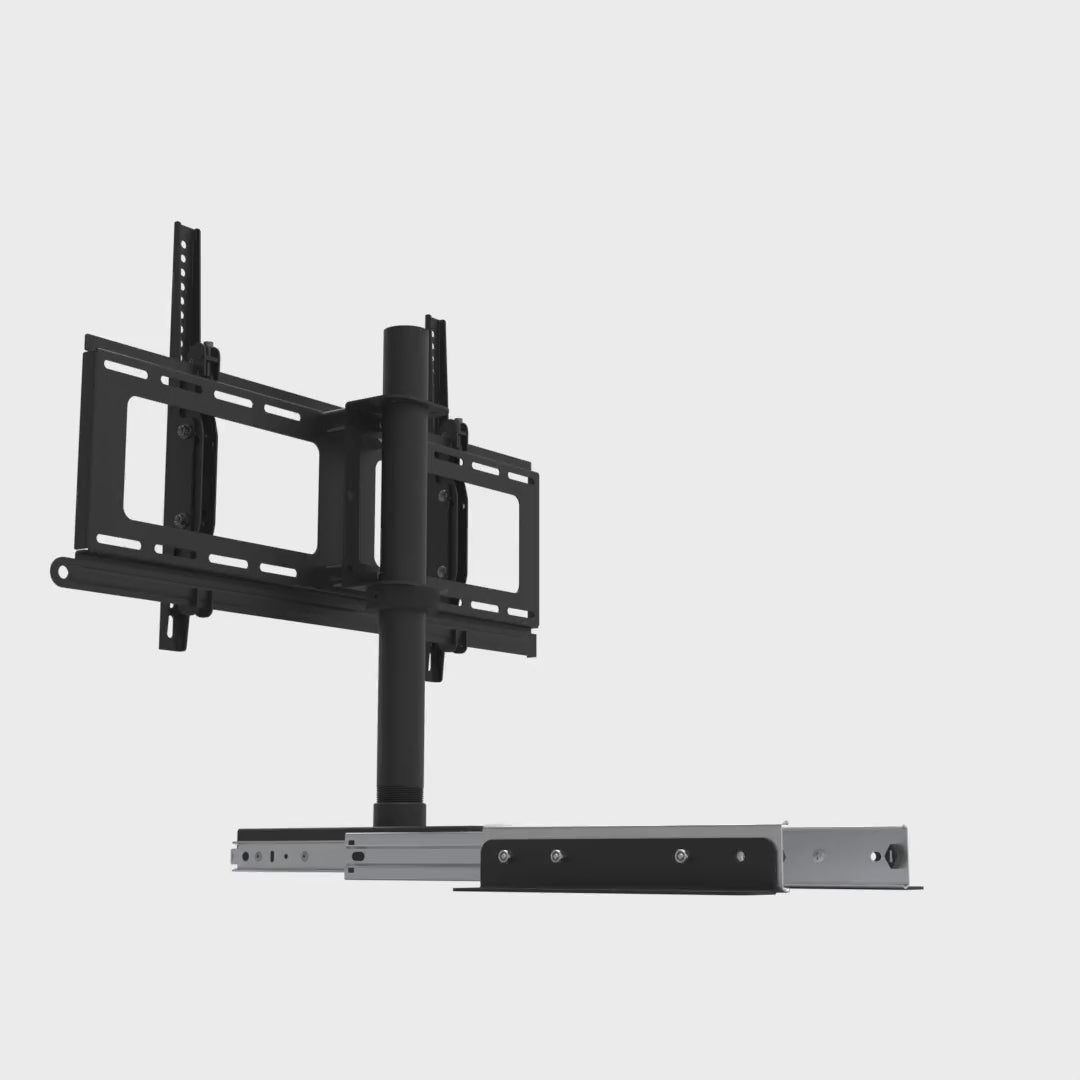

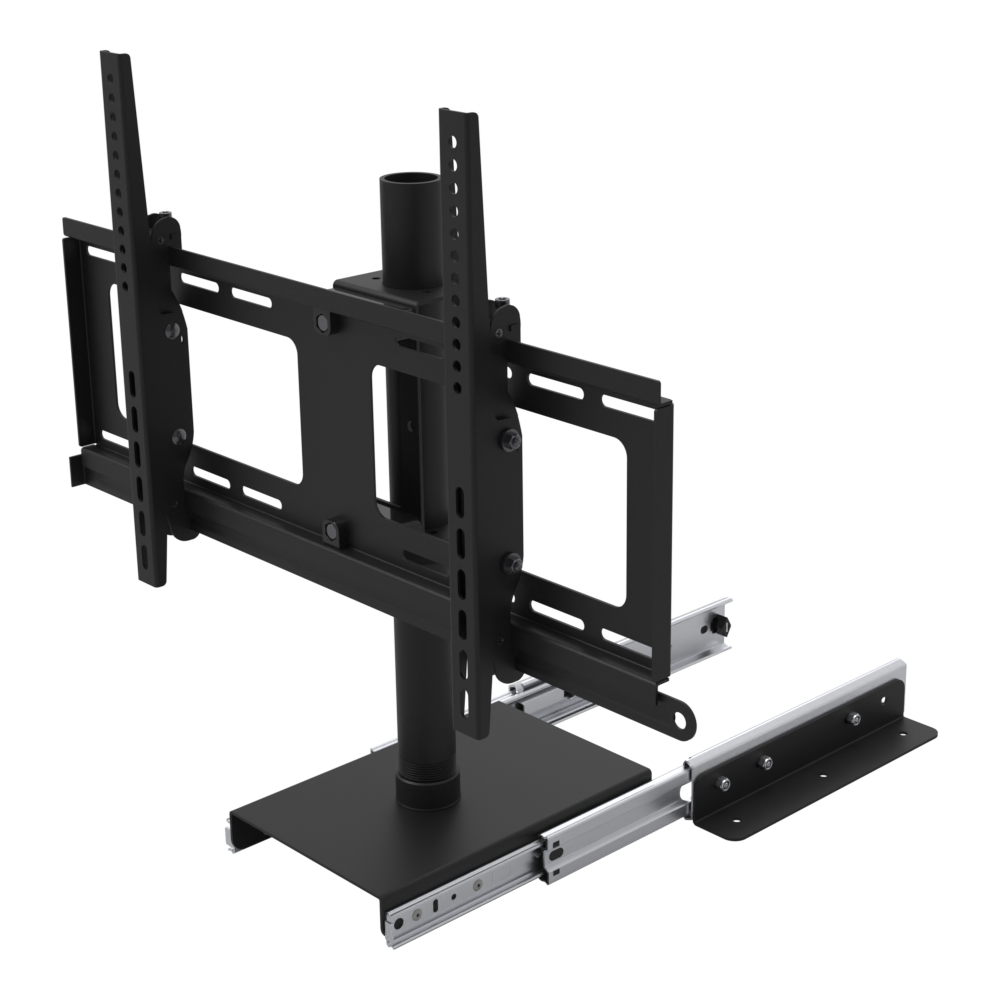

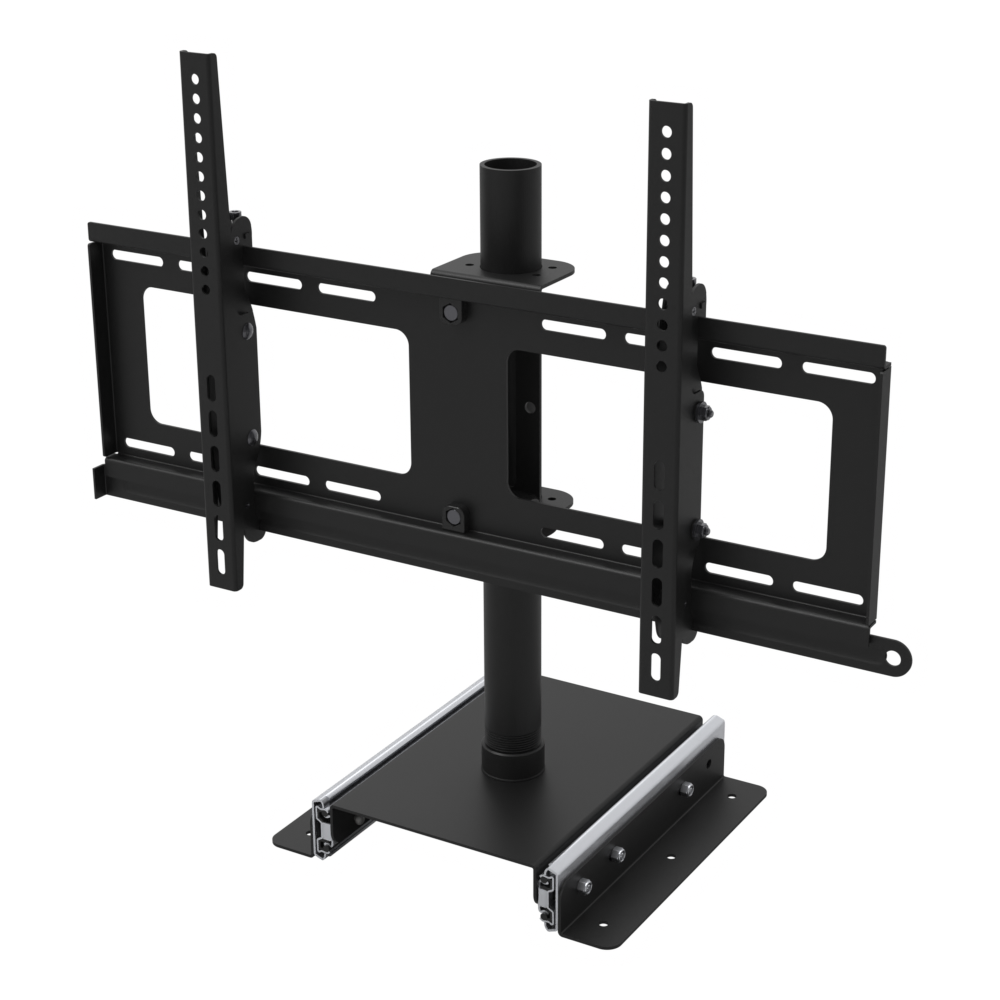

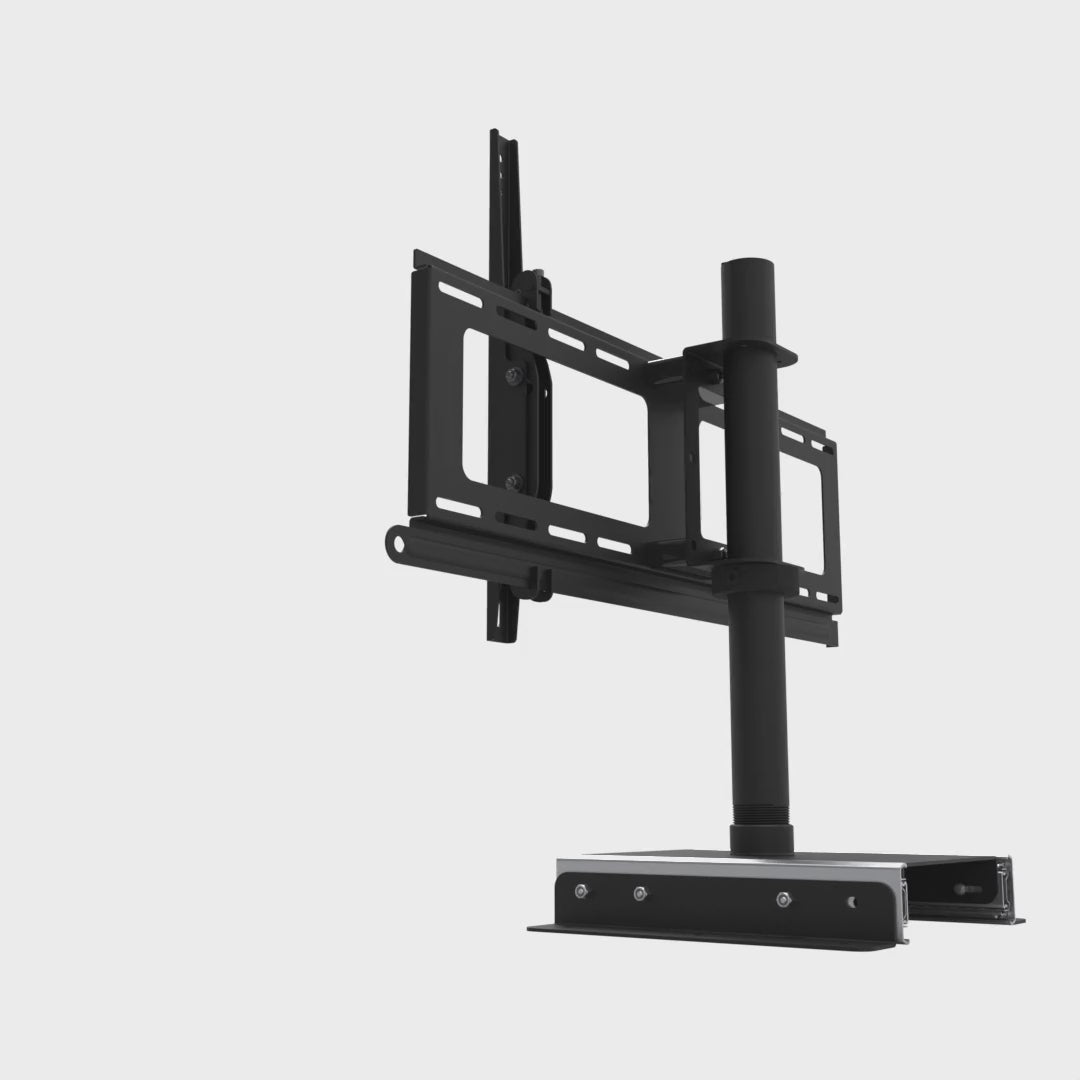

The 33SL001 slide out TV mount lets a TV live inside a cabinet, armoire, niche or alcove and still be watchable from anywhere in the room. It pulls the screen out about 13 inches on ball bearing slides, rotates a full 360 degrees so you can aim it where you are sitting, then pushes back in when you are done.

It holds flat panels up to 65 inches and up to 100 pounds. The frame is heavy gauge steel with a black powder coat. This is a permanent install: the bracket bolts to the back of your TV, and the base bolts to a horizontal surface inside your furniture or opening.

You would choose this if

  • Your TV lives in an armoire, cabinet, entertainment center, niche, nook or alcove.
  • You watch from more than one spot in the room, so the screen needs to turn.
  • Your TV is wider than the opening. Mount it flush with the front and the TV covers the hole.
  • You want the screen tucked out of sight when it is off.

Specifications

  • Screen size: flat panels up to 65 inches
  • Weight capacity: up to 100 pounds
  • Extension: about 13 inches out from the closed position
  • Rotation: a full 360 degrees
  • Slides: smooth glide ball bearing
  • Construction: heavy gauge steel, black powder coat

Keep in mind: the fasteners that attach the base to your horizontal surface are not included, because we do not know what you are bolting into. Whatever you use, that shelf or base has to be solid. As the TV slides out, its weight moves forward and away from the anchors, so the surface carries more than the sitting weight of the screen. If you are not sure your shelf will take it, call us before you buy.

Slide out TV mount FAQ

How far does the 33SL001 slide out?

About 13 inches from the closed position, on smooth glide ball bearing slides.

Does it rotate?

Yes. It rotates a full 360 degrees once the TV is pulled out, so you can aim the screen at a couch, a kitchen, or a bed without moving the furniture.

What size and weight TV does it hold?

Flat panels up to 65 inches, and up to 100 pounds.

What if my TV is bigger than the cabinet opening?

That is one of the most common reasons people buy this mount. Mount it flush with the front of the opening and the TV covers the hole.

Is mounting hardware included?

The mount ships with its standard hardware for attaching to the TV. The fasteners that hold the base to your horizontal surface are not included, since they depend on what you are fastening into.

Can I mount it to the ceiling or a wall?

No. This one mounts to a horizontal surface inside furniture or a niche. For a ceiling install, see our TV ceiling mounts.

Not sure it will fit your cabinet or your TV? Send us the opening dimensions and your TV model and we will check it. Call or email us if you need help picking, or possibly a different solution. 800-585-8795 or sales@videomountstore.com.

Expert Mounts manufacturer spec sheet

Product details

Screen size 32-65"
Max weight 165 lb · 75 kg
Tilt 15° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 63 to 774 mm wide and 69 to 469 mm tall, shown to scale on an approximately 65 inch 16:9 display.
69-469 mm 2.7-18.5"
63-774 mm 2.5-30.5"

shown to scale on a ~65" screen (16:9)

63-774 mm wide · 69-469 mm tall(2.5-30.5" wide · 2.7-18.5" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
