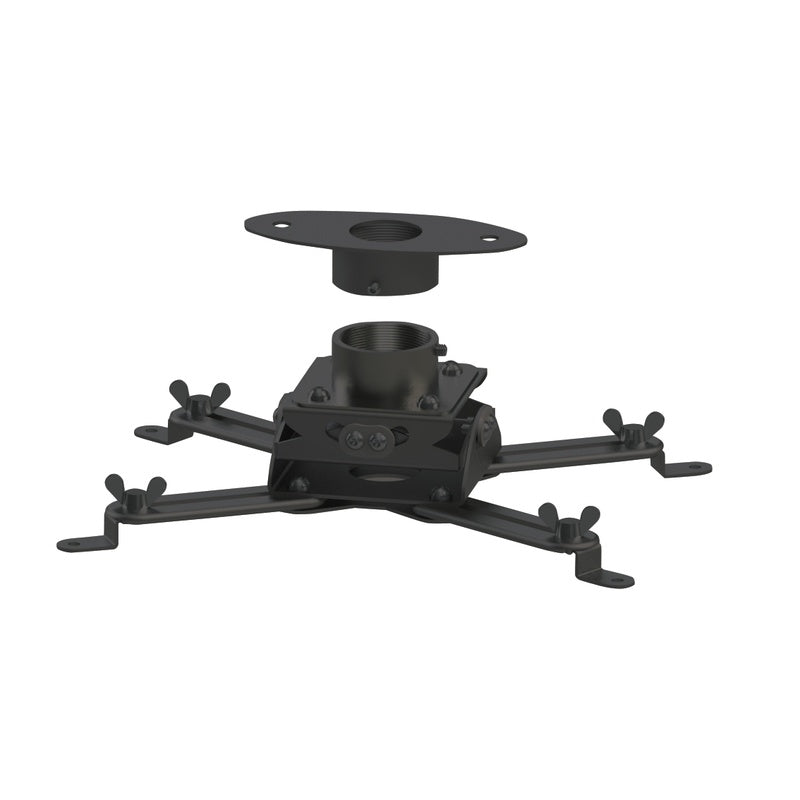

Yokeless Low Profile Projector Mount

The VMP PM-LPMB is a yokeless, low profile projector mount that holds most projectors close to the ceiling for a clean, unobtrusive install. It fits projectors with mounting holes inside a 14.5 inch diameter and adjusts for tilt, pitch, and full rotation so you can square up the image after mounting. The mount is primarily formed steel with arc welds and a black powder coat finish, and routes cables through the center for a tidy look.

• VMP model PM-LPMB, yokeless low profile projector mount
• Fits most projectors with mounting holes inside a 14.5 inch diameter
• Load capacity up to 75 lbs
• Adjustable tilt of plus or minus 20 degrees and adjustable pitch of plus or minus 15 degrees
• Adjustable yaw (rotation) of plus or minus 180 degrees for a full 360 degrees of aiming
• Low 2.625 inch mounting profile, including the mounting feet
• Cable management routed through the center of the mount
• Primarily formed steel construction with arc welds and a black powder coat finish
• Ceiling plate and mounting screws included
• Accepts standard 1.5 inch NPT masting (pipe not included)

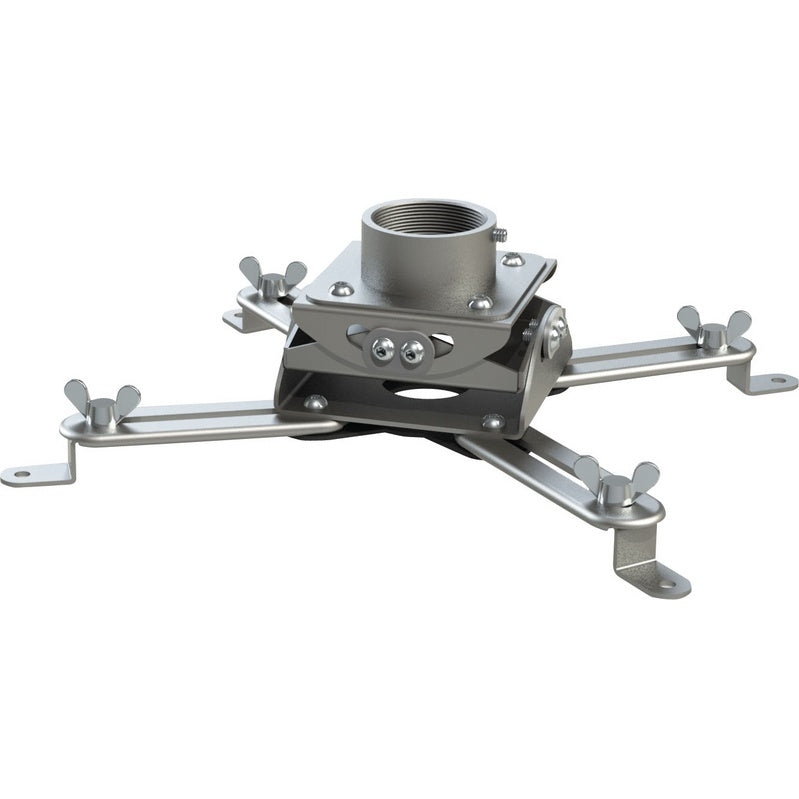

• To find the drop from the ceiling, add 4 inches to your 1.5 inch pipe length. For example, a 12 inch pipe positions the projector about 16 inches below the ceiling. Also available in a silver powder coat finish (PM-LPM).
