TV Ceiling Mount with Shelf for 32 to 70 with Adjustable Mast
Flat Ceiling Recommended
The default choice that most people need — mounts flush against a standard flat ceiling.
Ceiling Plate for 1 1/2 Pipe →
Angled Ceiling
Choose this to mount to a ceiling that is angled, sloped, or cathedral.
Angled Ceiling Adapter →
Unistrut
Mounts to Unistrut — the U-shaped metal channel commonly used in construction.
Unistrut Adapter for 1 1/2 Inch NPT Pipe →
11CP001
Welded steel, made in USA, with a large pass-through hole on top so cables route cleanly.
Ceiling Plate for 1 1/2 Inch Pipe →18 to 34 Inches Recommended
10 to 18 Inches
No Mast Heads up
This option is not a complete mount - you'll still need a mast or extension to connect the mount to the ceiling plate. On this mount the pipe runs past the middle of the screen, so the mount + plate actually subtract ~2" - and the mast or extension you supply must be at least ~9" long to function.
Shop masts & extensions →Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

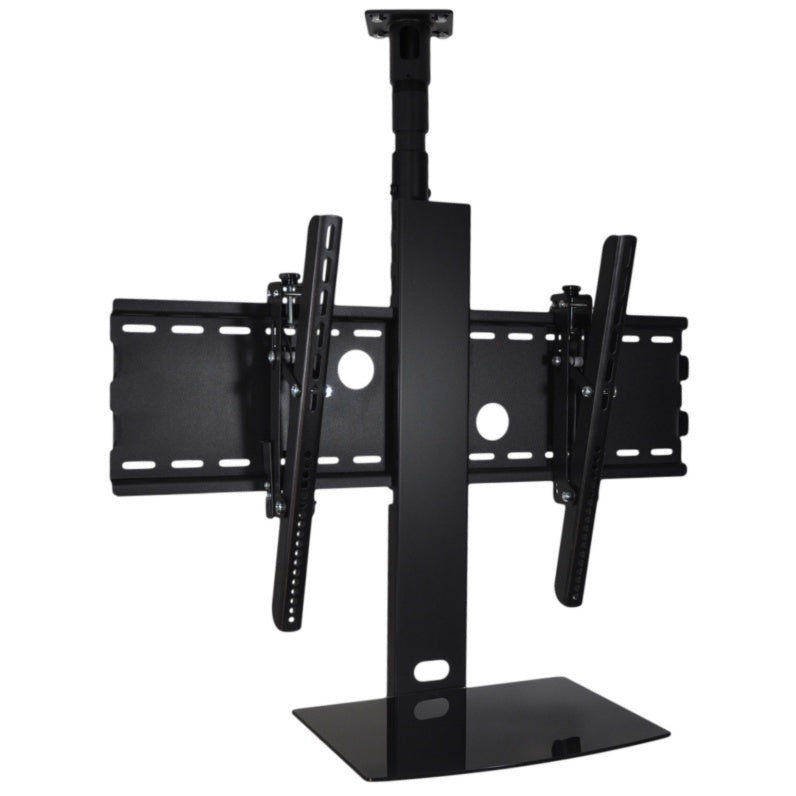

A 32 to 70 inch ceiling mount with a built-in glass shelf: hang the TV and put the cable box, streaming device, or DVD player right underneath it, no furniture required.
- Fits screens 32 to 70 inches, up to 165 lb
- Fits VESA patterns up to 600 x 400. VESA is the industry standard spacing for the screw holes on the back of a TV.
- Tilts up to 15° down; easily rotates 360°
- Glass shelf measures 15 inches wide by 11 inches deep
- Shelf height adjusts from 14.5 to 19.5 inches below the center of the screen
- Constructed of heavy-gauge metal
- Uses the 1-1/2 inch (1.5 inch) NPT pipe system for the mast. NPT is a standard threaded pipe size.
- Excellent cable management: cables enter the bottom of the mast and exit through the side or top of the ceiling plate
- Includes everything you need to attach the TV. Ceiling anchoring hardware not included
Will it fit your TV? Screen sizes are a guideline to get you close to the right mount. The real test is the mounting pattern and the weight: if your TV's mounting holes fit this mount and the TV weighs less than the rated capacity, it will work, even if the screen is larger than the listed range.
Perfect for classrooms, conference rooms, churches, and waiting rooms where the source device has to live with the display.
Explore the full 1-1/2" NPT ceiling system: ceiling mounts | ceiling plates | mount heads | extension pipes
Built to order: choose the ceiling plate that matches your ceiling (flat, angled/cathedral, Unistrut, or heavy-duty) and the total drop you need using the options above. Need a longer drop than the listed lengths? The 1-1/2" NPT pipe system extends to virtually any ceiling height - add an extension, call 800-585-8795, or send us a message and we'll spec it for you.
Expert Mounts manufacturer spec sheet
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~70" screen (16:9)
150-774 mm wide · 69-469 mm tall(5.9-30.5" wide · 2.7-18.5" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
