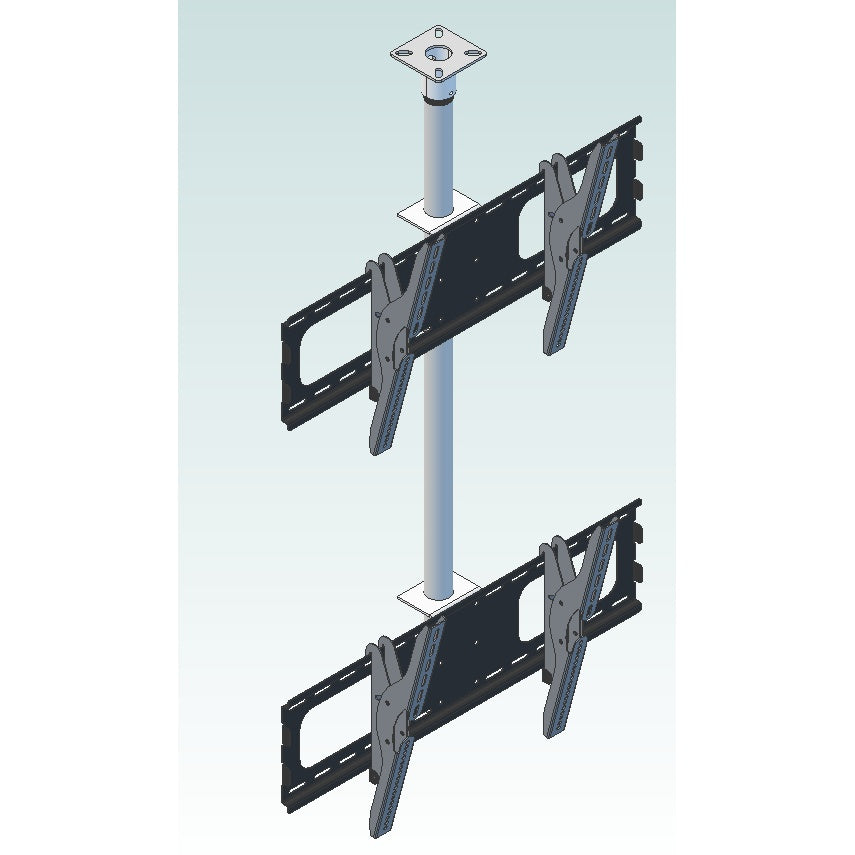

Double Stack TV Ceiling Mount - Two or More Screens
Flat Ceiling Recommended
Welded steel, made in USA, with a large pass-through hole on top so cables route cleanly.
Ceiling Plate for 1 1/2 Inch Pipe →
Angled Ceiling
Choose this to mount to a ceiling that is angled, sloped, or cathedral.
Angled Ceiling Adapter →
Unistrut
Mounts to Unistrut — the U-shaped metal channel commonly used in construction.
Unistrut Adapter for 1 1/2 Inch NPT Pipe →
Unistrut w/ Beam Clamp
Clamps to an exposed beam — includes two beam clamps, an 18″ strut, and the Unistrut adapter. Fits beams 2.5 to 14.5 inches wide.
Beam Clamp for 1-1/2 Inch Pipe →Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal
Stack two (or more) TVs on a single ceiling pole — each screen sets to its own height and tilts independently. Built to order for sports bars, fitness floors, airports, and control rooms.
- Holds two or more screens, 37 to 75 inches, up to 300 lb total
- Each mount head tilts up to 15° down and sets at its own height on the pole
- Plate options include flat, angled, Unistrut — and this is our only mount with a direct beam-clamp option for exposed I-beams
- Constructed of heavy-gauge metal
- Uses the 1-1/2 inch NPT pipe system for the mast
Will it fit your TV? Screen sizes are a guideline to get you close to the right mount. The real test is the mounting pattern and the weight: if your TV’s mounting holes fit this mount and the TV weighs less than the rated capacity, it will work — even if the screen is larger than the listed range.
Standard configuration includes a 48 inch pipe, which puts the center of the bottom TV at a maximum of about 46 inches down.
This is not a one-size-fits-all product: screen sizes, spacing, and total drop interact. Choose your ceiling plate above, then call 1-800-585-8795, email sales@videomountstore.com, or send us a message and we’ll configure the pole, heads, and extensions for exactly the screens you’re hanging.
Explore the full 1-1/2″ NPT ceiling system: ceiling mounts · ceiling plates · mount heads · extension pipes
Expert Mounts manufacturer spec sheet
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~75" screen (16:9)
55-760 mm wide · 65-470 mm tall(2.2-29.9" wide · 2.6-18.5" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
