Double Stack TV Ceiling Mount - Two Screens, Tilt and Rotate
Flat Ceiling Recommended
Welded steel, made in USA, with a large pass-through hole on top so cables route cleanly.
Ceiling Plate for 1 1/2 Inch Pipe →

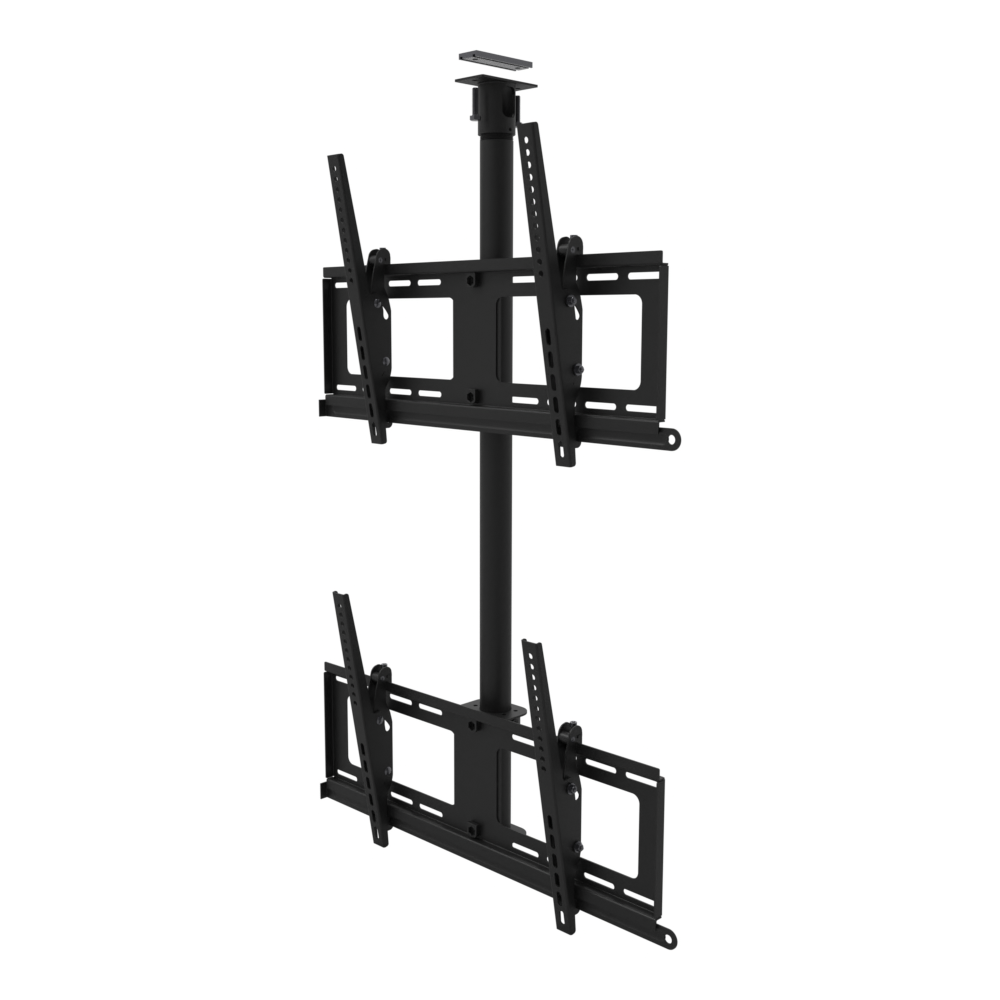

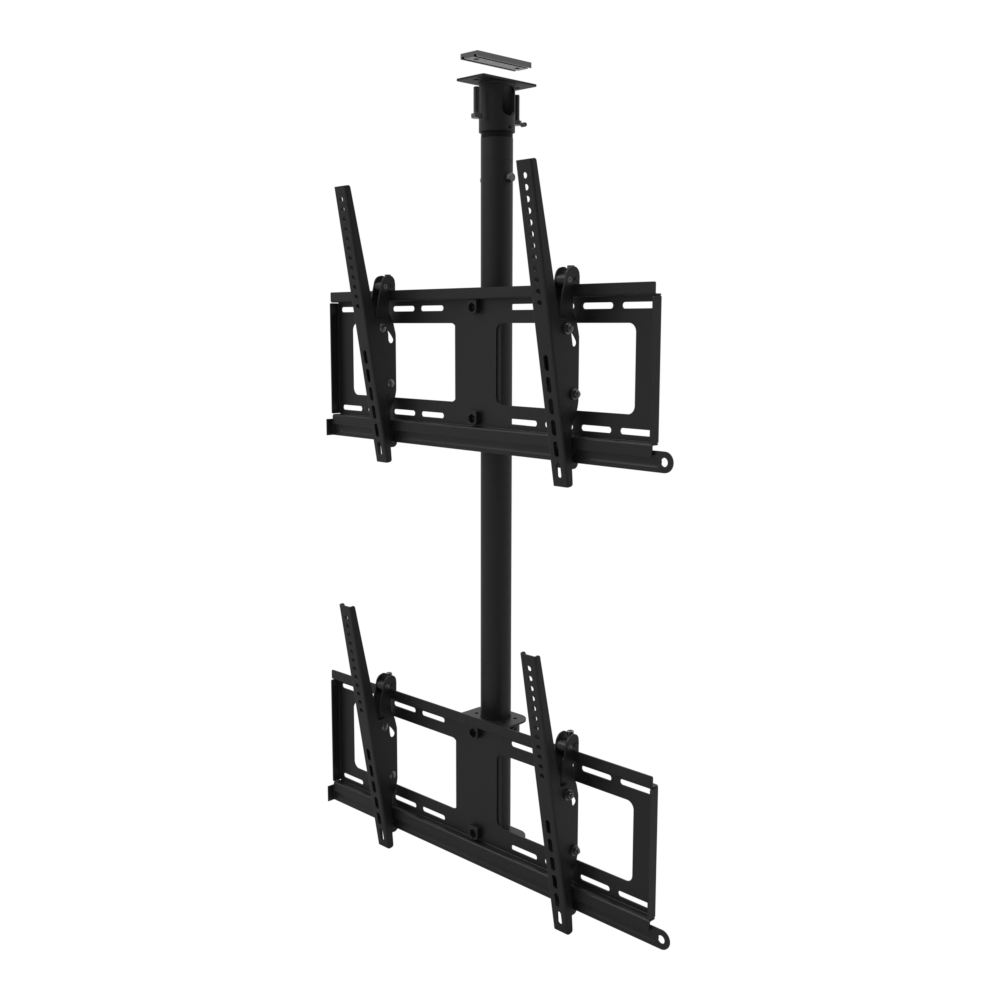

Unistrut
Mounts to Unistrut - the U-shaped metal channel commonly used in construction.
Unistrut Adapter for 1 1/2 Inch NPT Pipe →

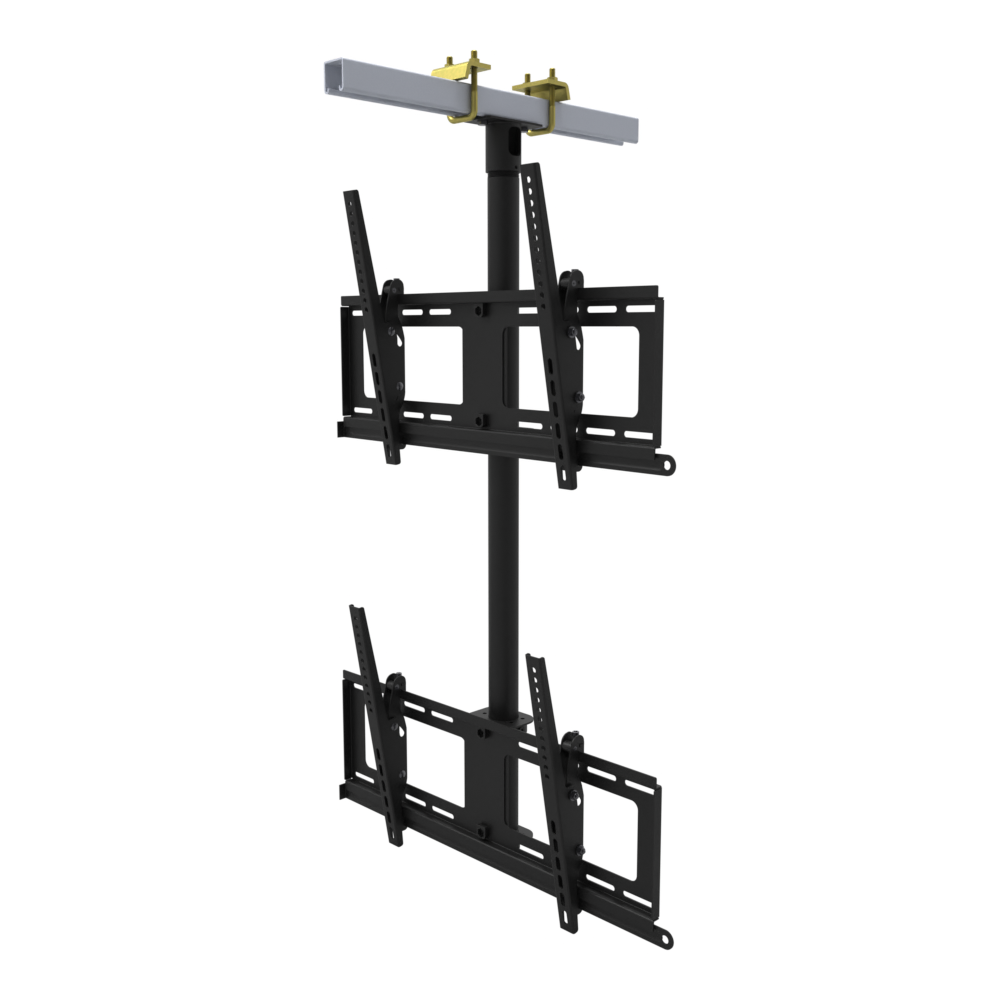

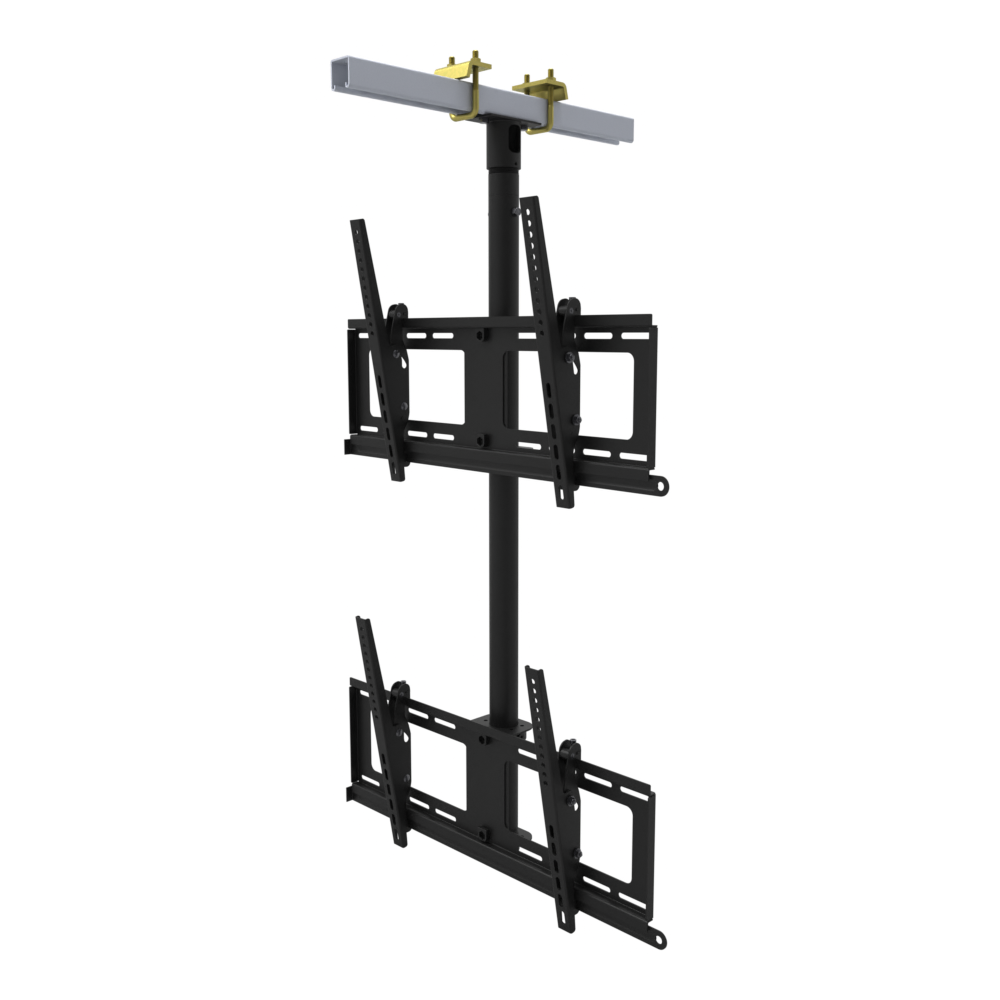

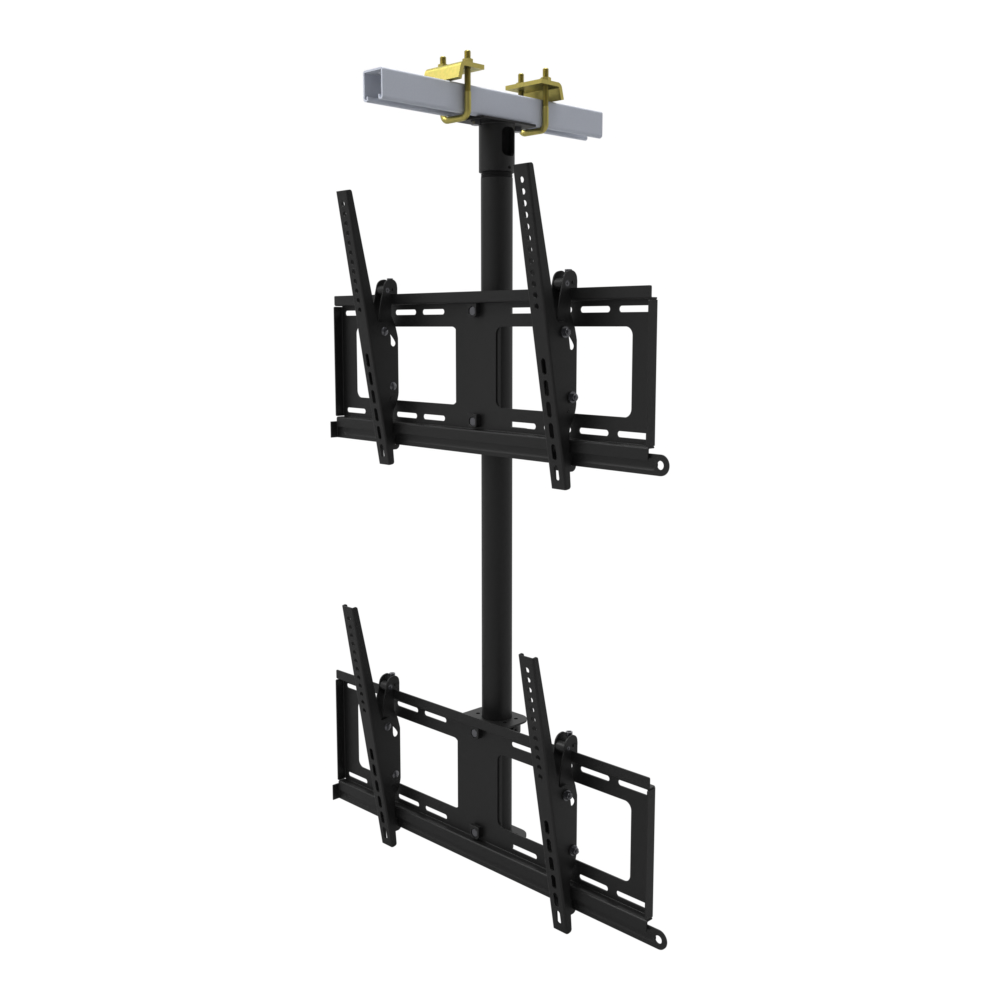

Beam Clamp
Clamps to an exposed beam - includes two beam clamps, an 18 inch strut, and the Unistrut adapter. Fits beams 2.5 to 14.5 inches wide.
Beam Clamp for 1-1/2 Inch Pipe →Fixed 39 Inch Drop Recommended

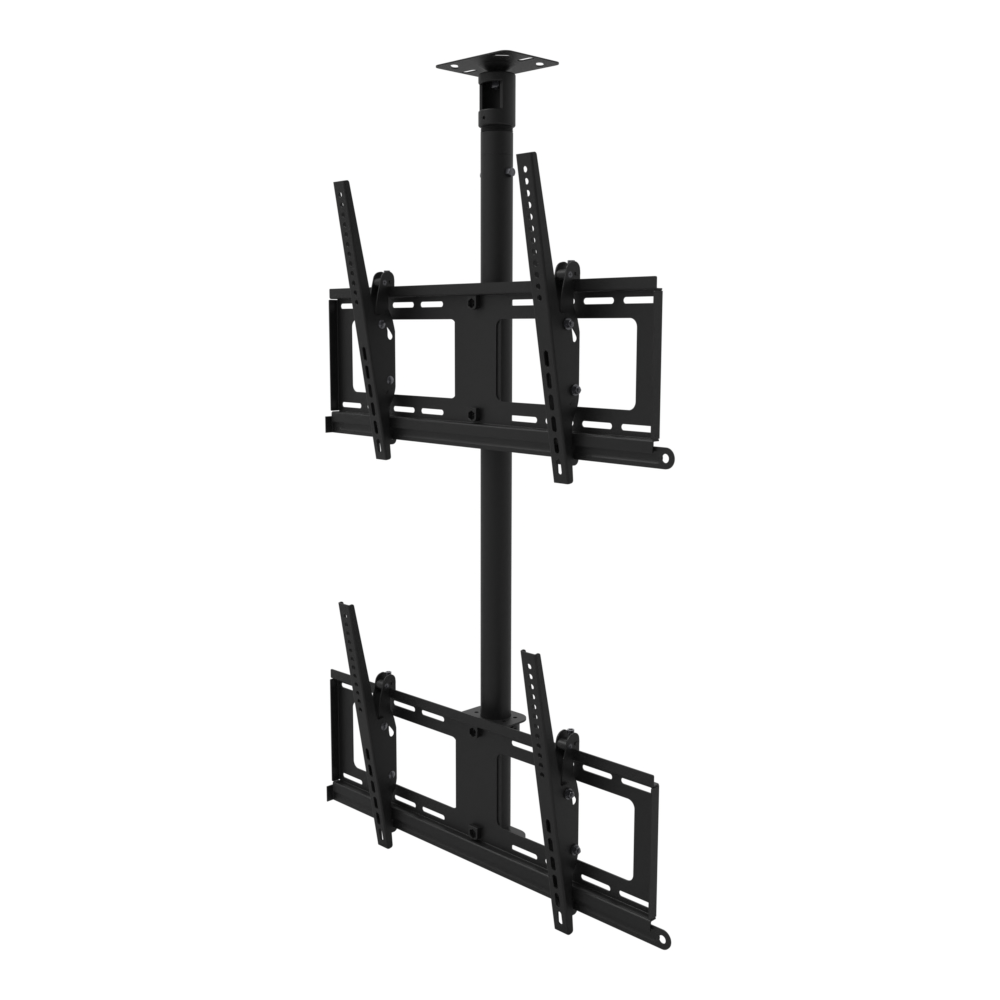

Adjustable 41 to 69 Inches
Measure to the middle of your screen
Use a tape measure to measure from your ceiling/beam down to where you want the center of your screen, that's your length.
We use center instead of top/bottom because TV height varies based on screen size, but the center never changes.
Full article about measuring and determining final TV locationTap anywhere to close
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

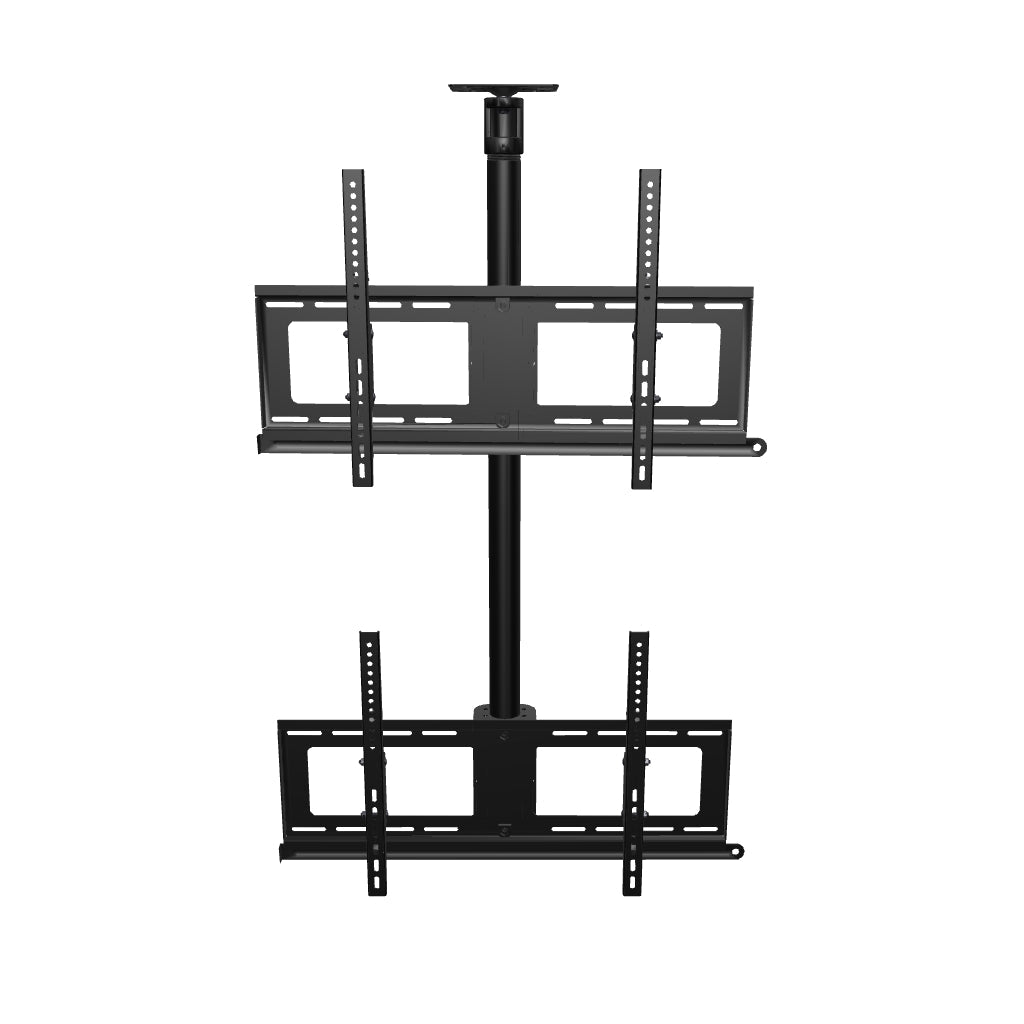

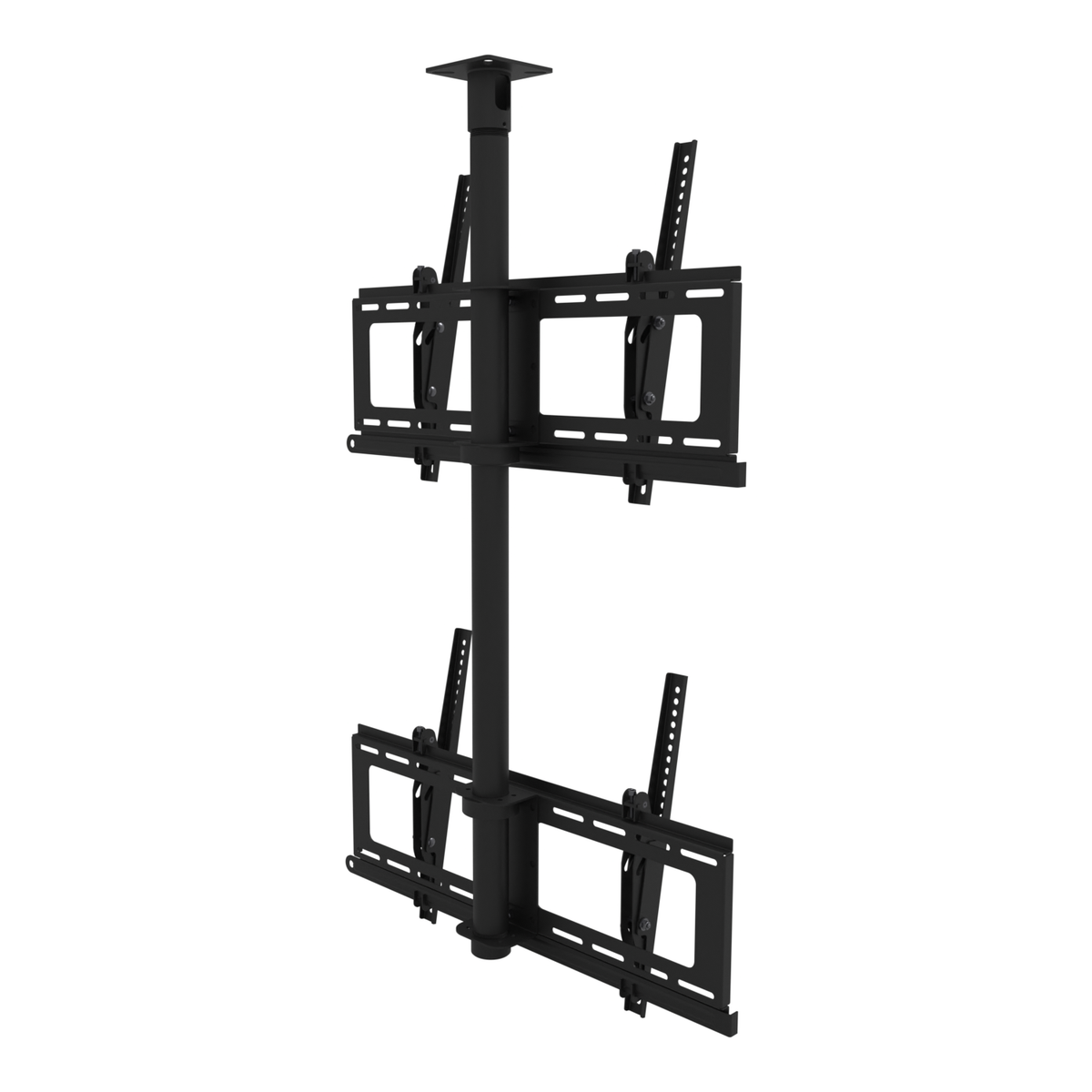

Stack two TVs on a single ceiling pole: each screen sets to its own height and tilts independently. Built to order for sports bars, fitness floors, airports, and control rooms.
- Holds two screens, up to 300 lb total
- Fits VESA patterns up to 600 x 400
- Rails cover hole spacing from 50 to 700 mm wide and 75 to 400 mm high

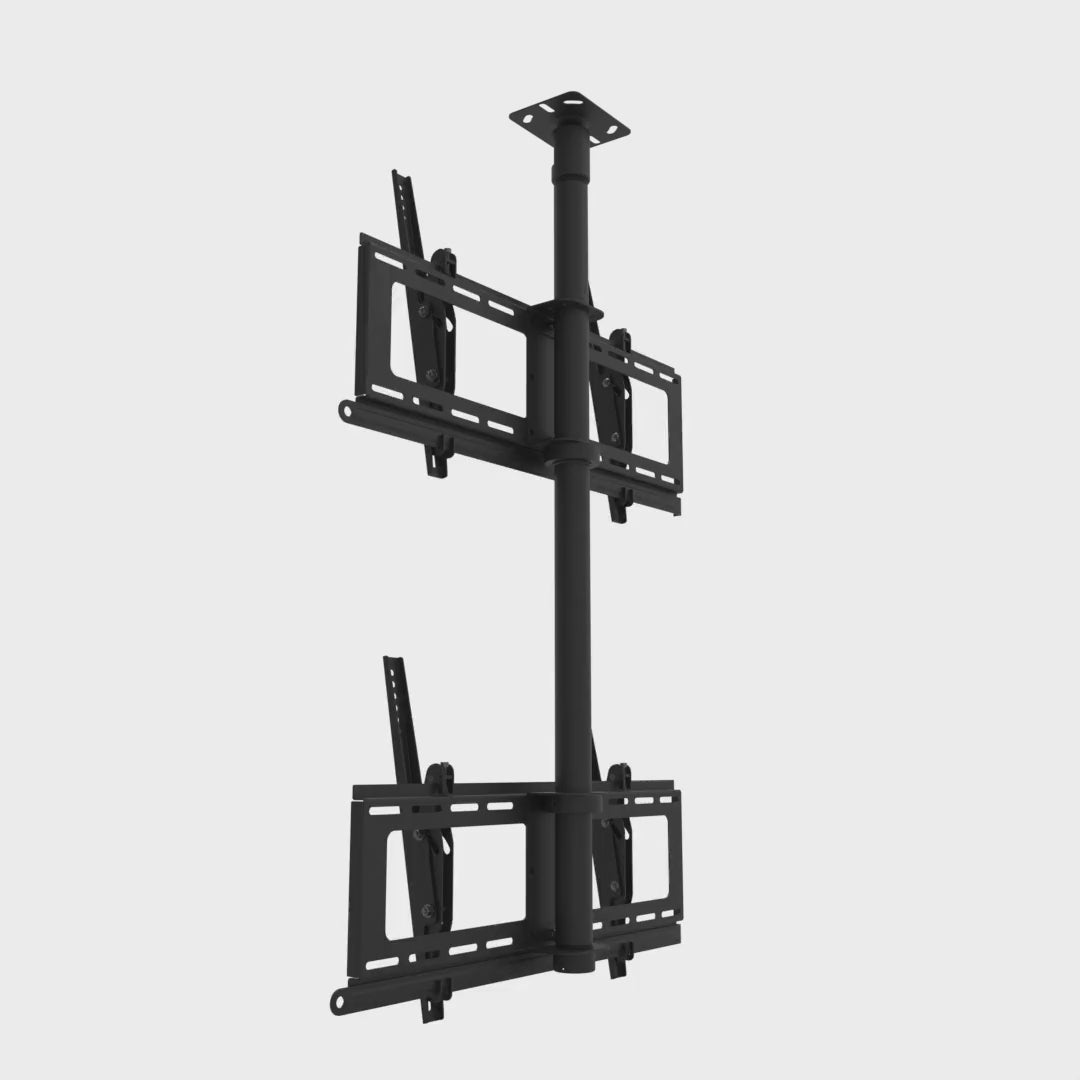

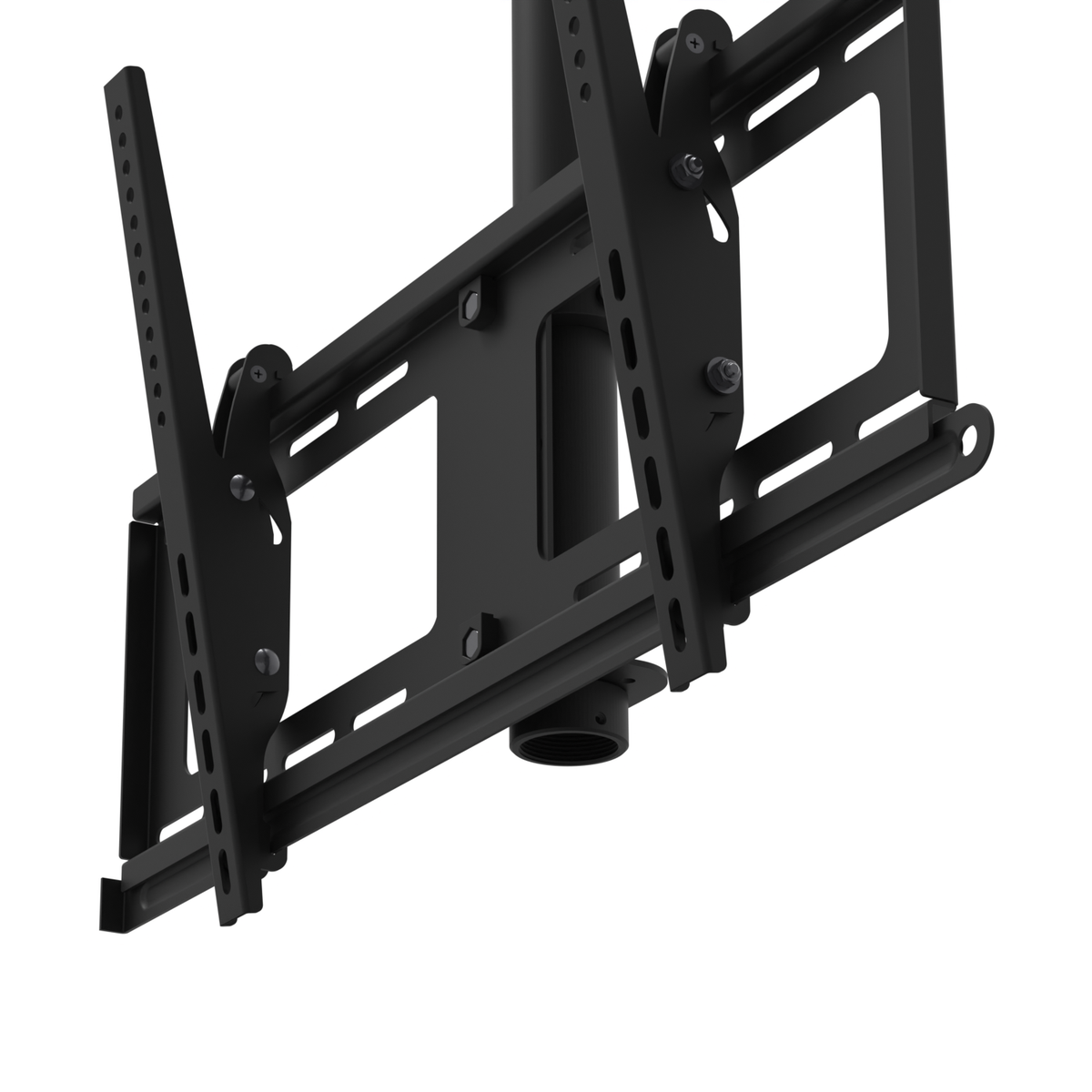

- Each mount head tilts 10° down and 5° up, and sets at its own height on the pole

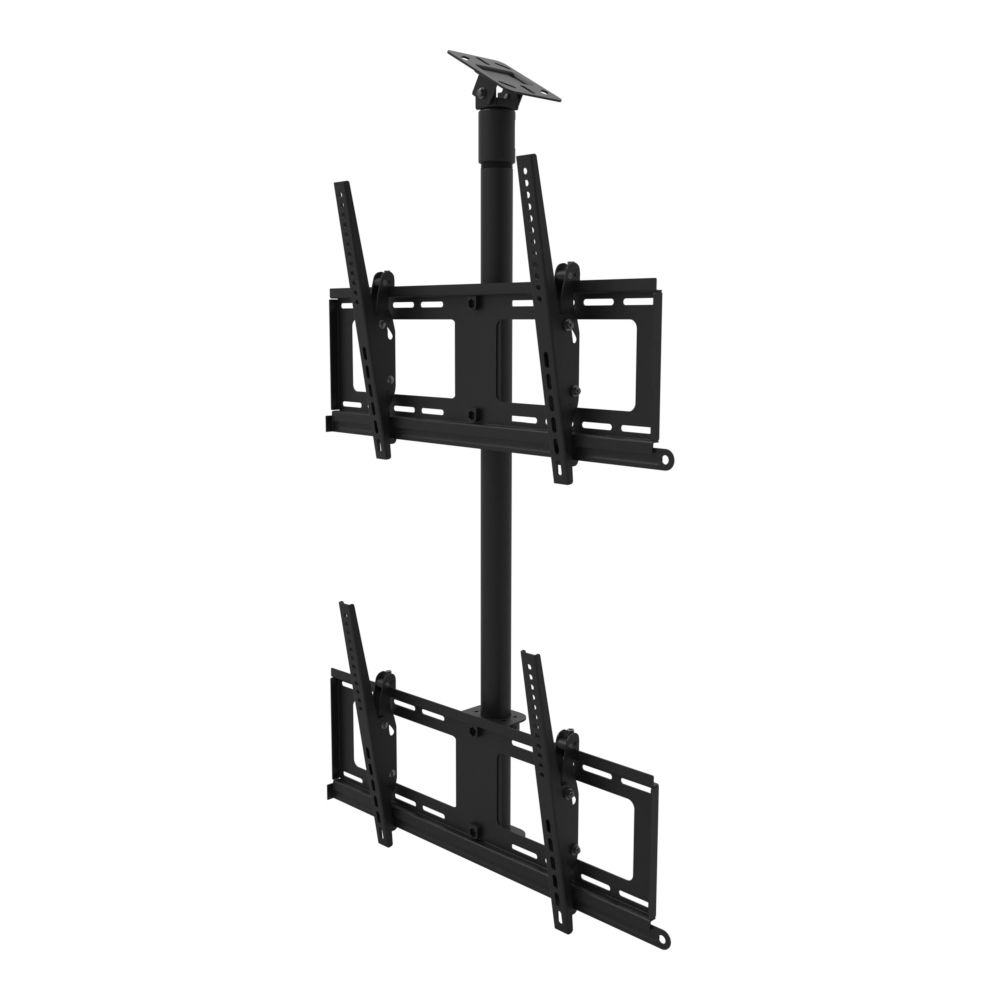

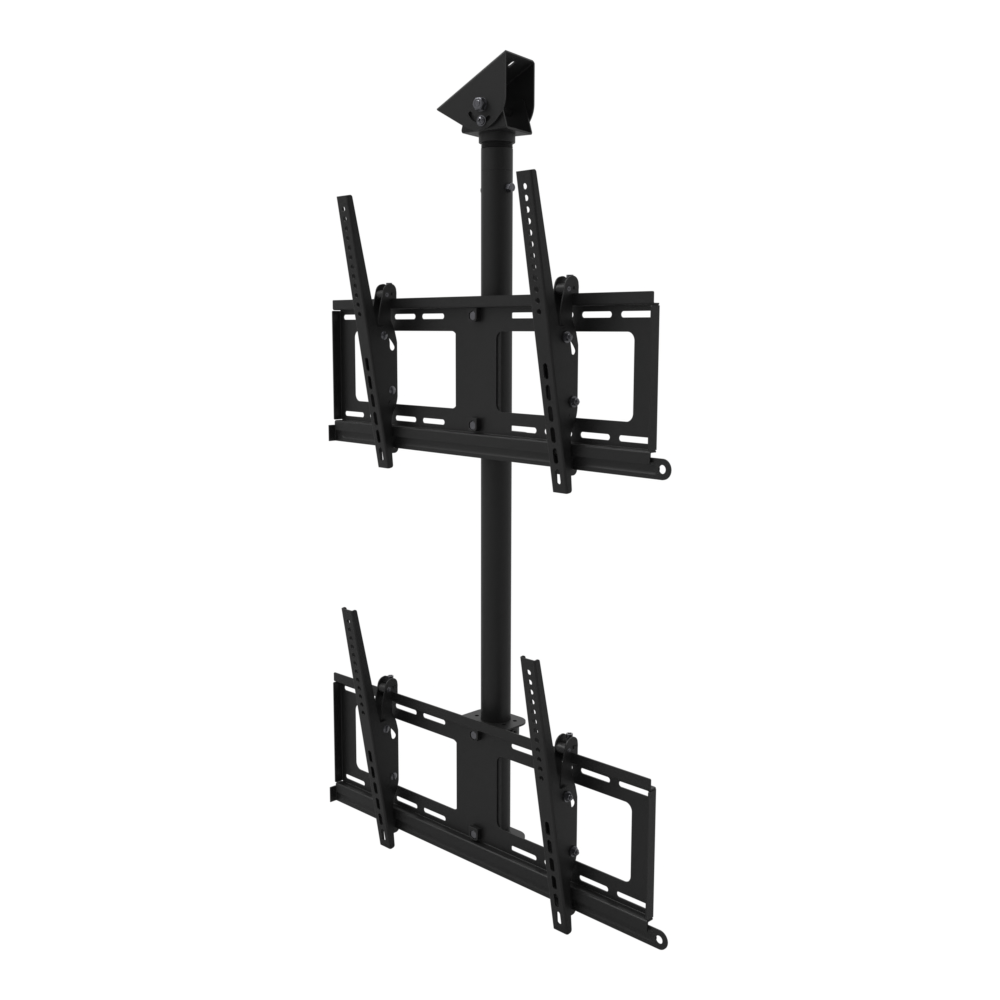

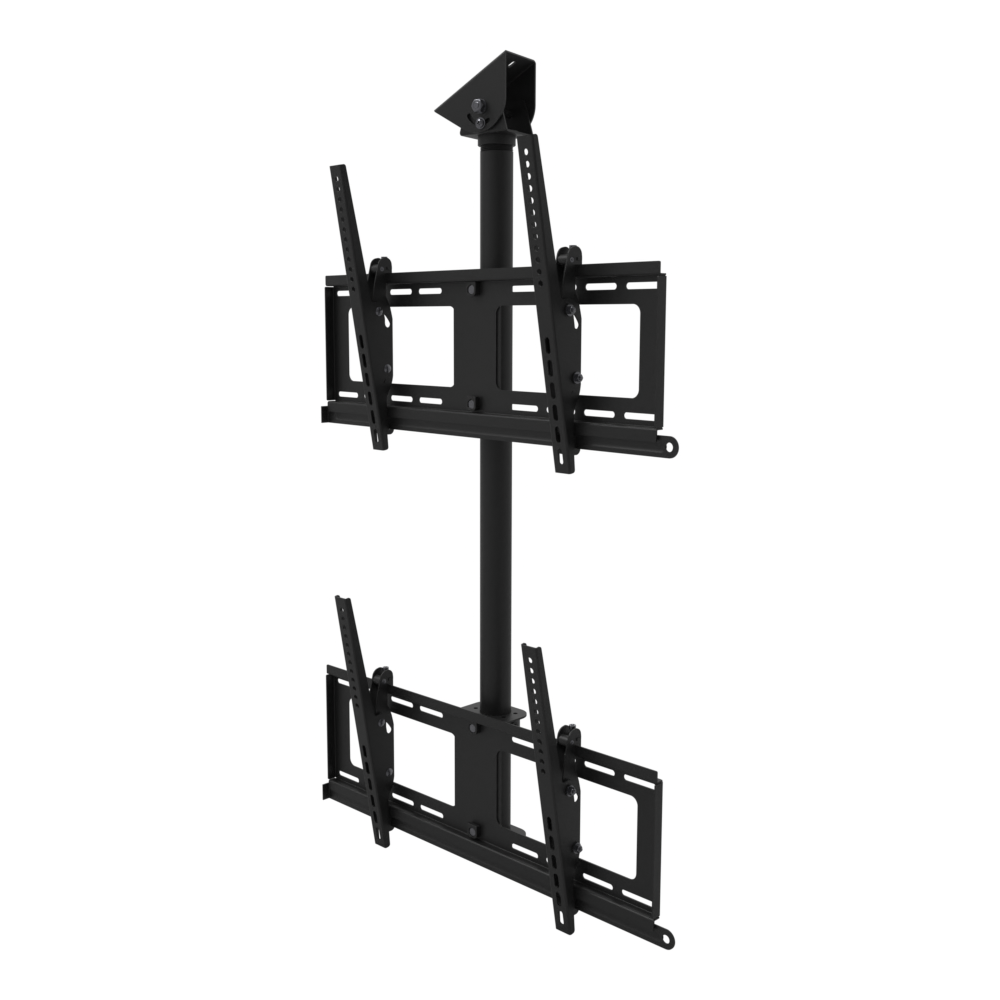

- Plate options include flat, angled, Unistrut, and a direct beam clamp for exposed I-beams
- Constructed of heavy-gauge metal
- Uses the 1-1/2 inch NPT pipe system for the mast
Will it fit your TV? If your TV's mounting holes fit this mount and the TV weighs less than the rated capacity, it will work, even if the screen is larger than the listed range.
Choosing your length. The measurement runs from the ceiling, or wherever the top plate mounts, down to about the middle of the bottom TV.

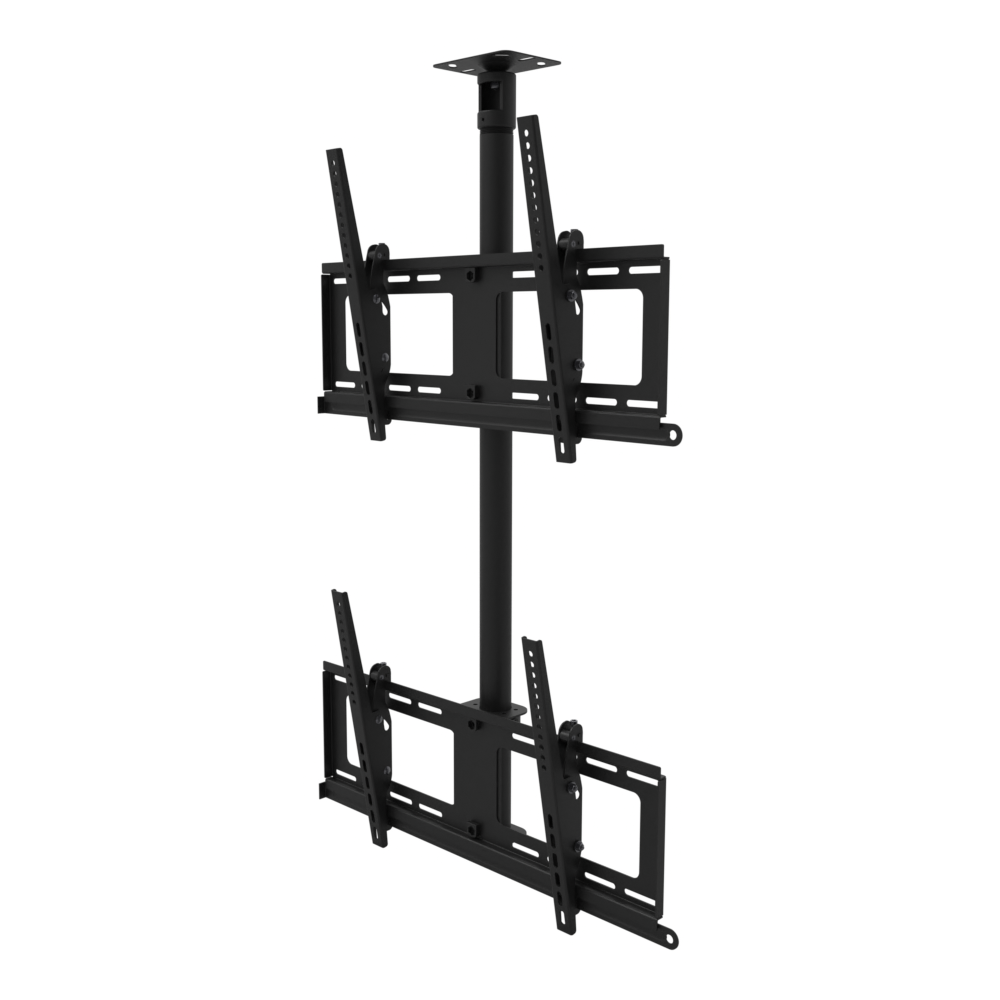

- Fixed 39 inch drop. Uses a 42 inch pipe.

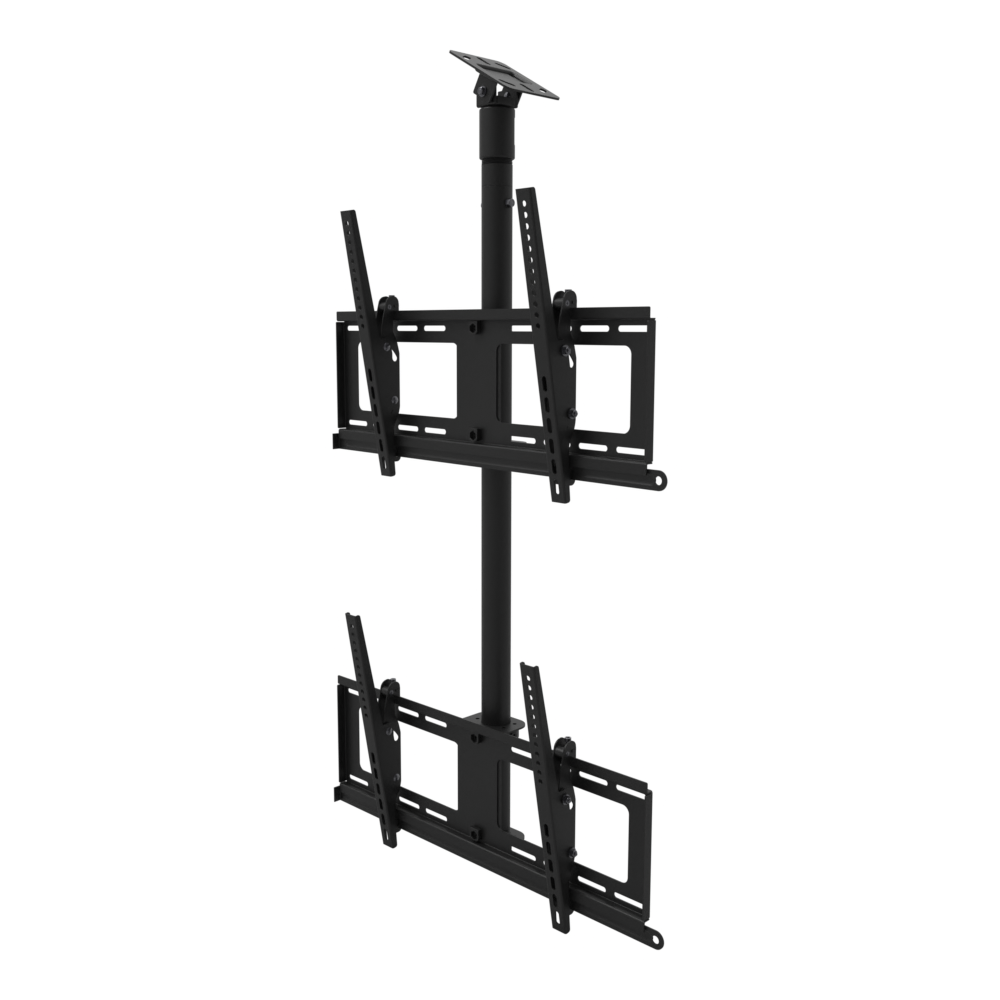

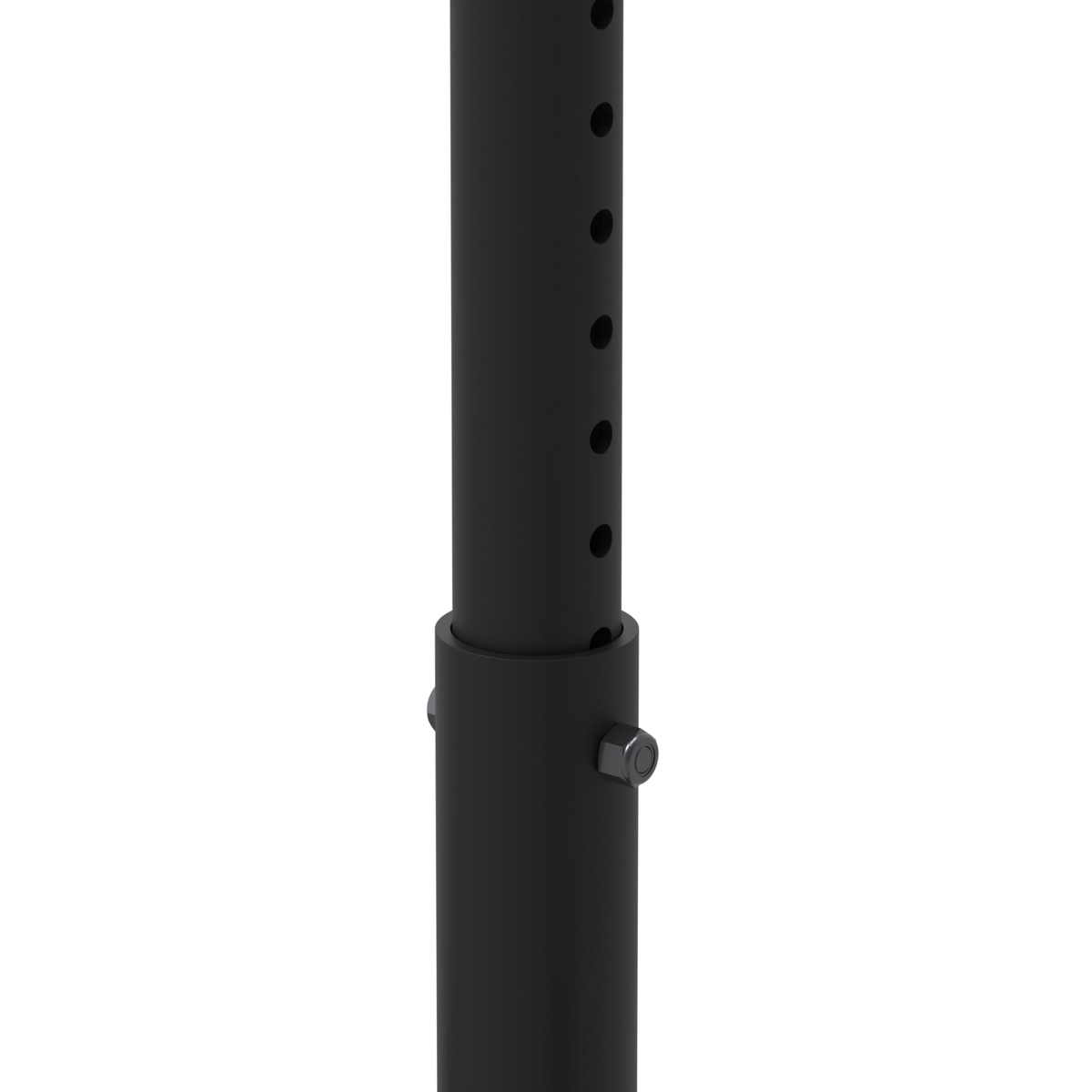

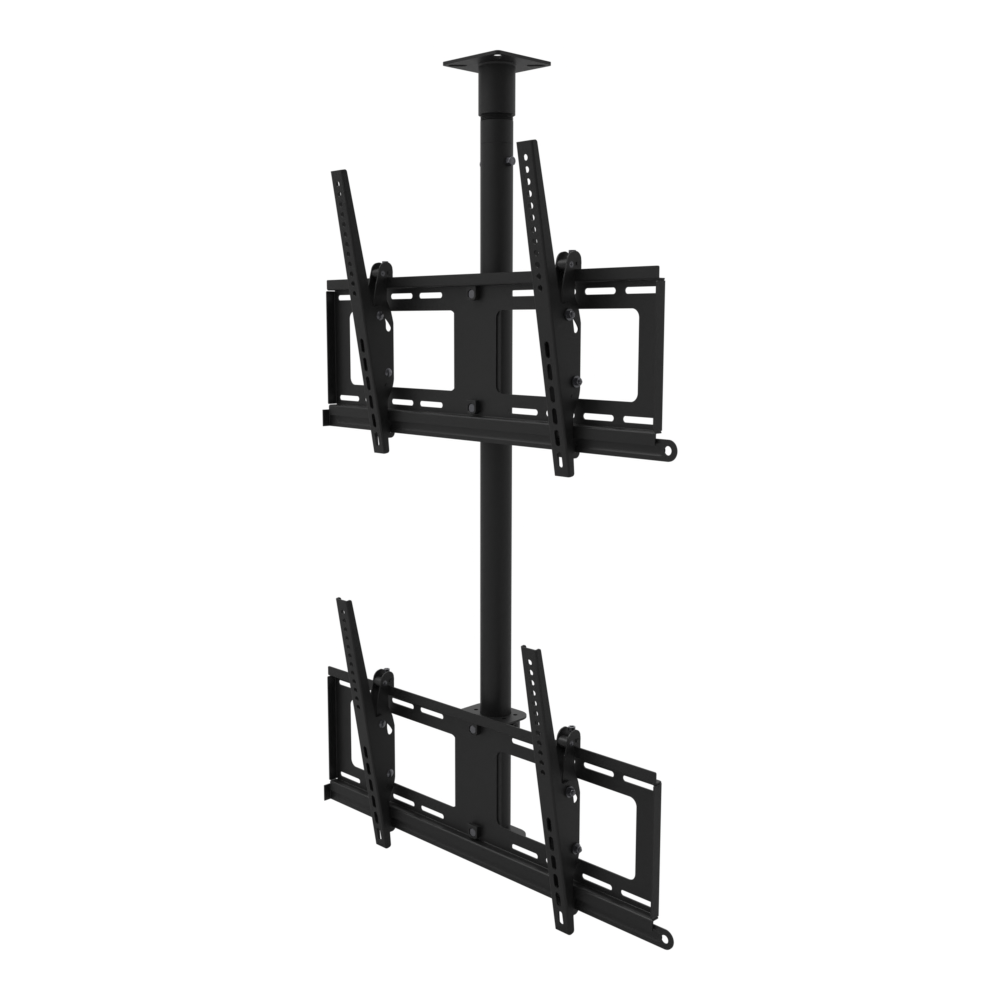

- Adjustable 41 to 69 inches. Uses the EXT4472 telescoping extension, so you can set the exact length.
This is not a one-size-fits-all product: screen sizes, spacing, and total drop interact. Choose your ceiling plate and length above, then call 800-585-8795, email sales@videomountstore.com, or send us a message and we'll configure the pole, heads, and extensions for exactly the screens you are hanging.
Explore the full 1-1/2 inch NPT ceiling system: ceiling mounts | ceiling plates | mount heads | extension pipes
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~86" screen (16:9)
50-700 mm wide · 75-400 mm tall(2-27.6" wide · 3-15.7" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
