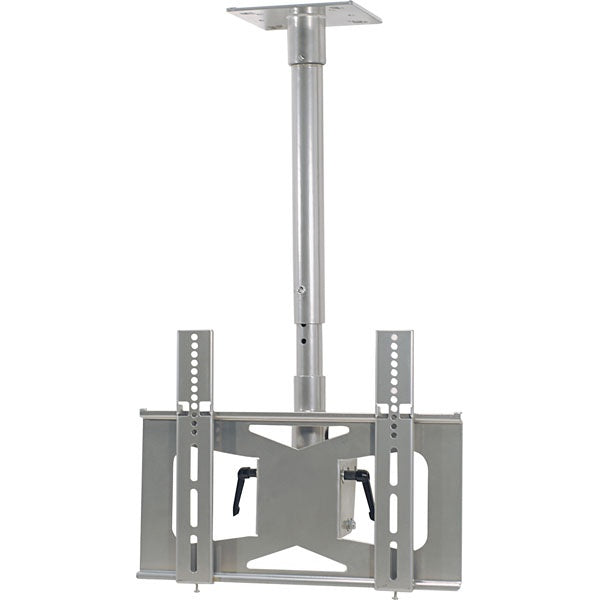

  • LCD-MID-C ceiling mount in silver, telescoping drop pole and a single tilting VESA bracket with two vertical adjustment rails and tilt levers, front view
1 2

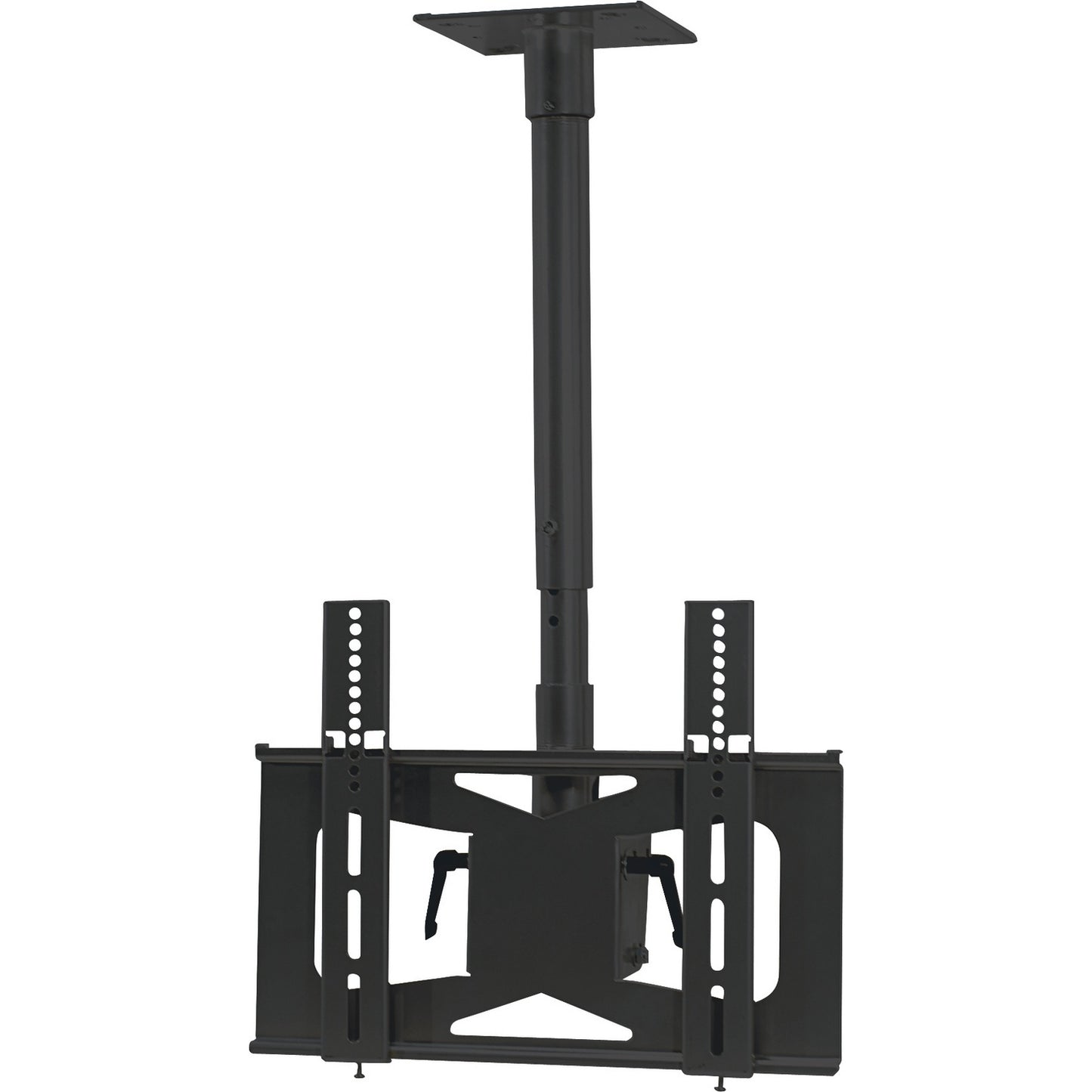

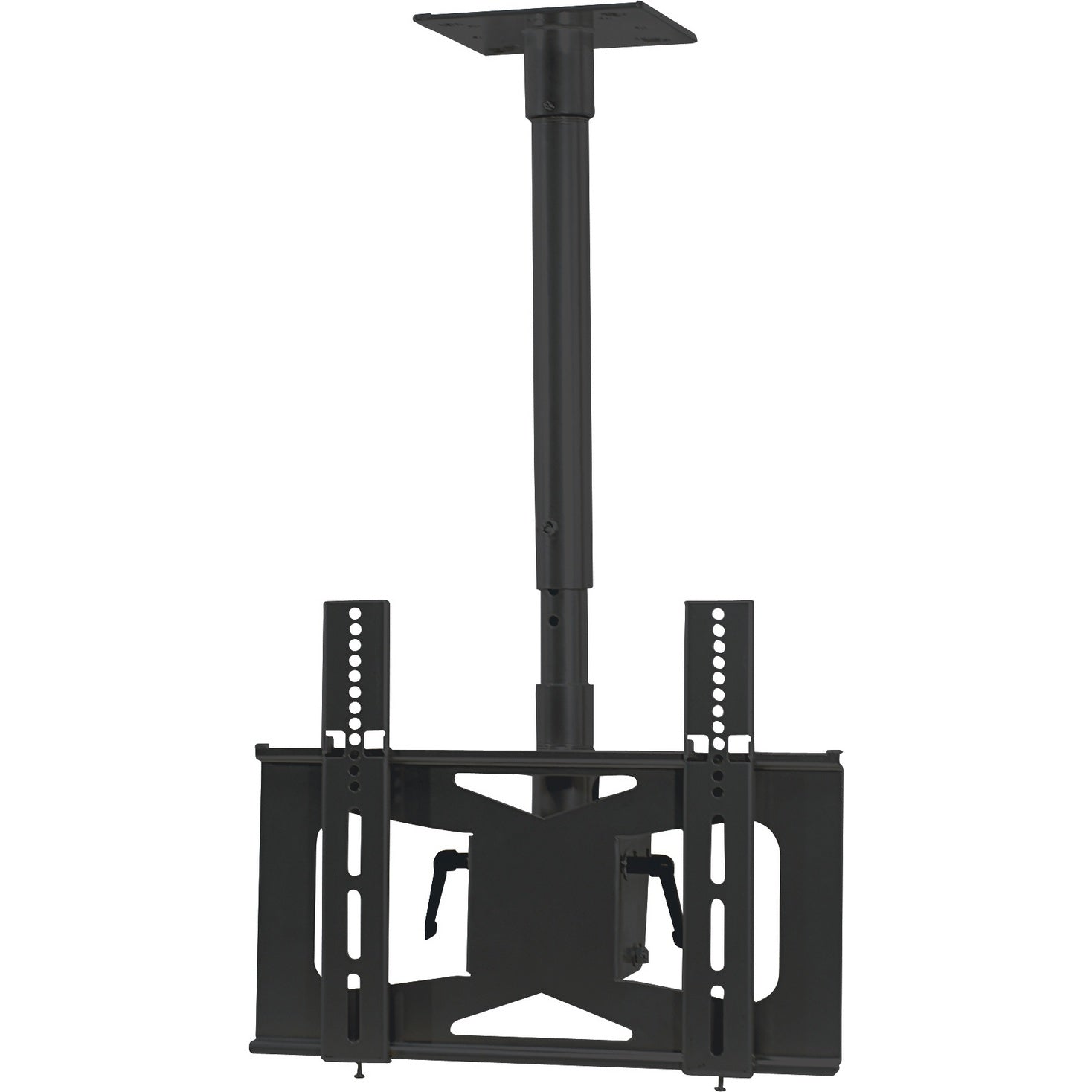

VMP Mid Size Flat Panel Ceiling Mount for 23 to 42 Inch

SKU LCD-MID-C-Black

$246.95
$444.95 $246.95
Save $198.00 (44%)
1. Choose Color : Black

Black Recommended
Your Setup
Black $246.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

The VMP LCD-MID-C is a ceiling mount for mid-size flat panels from 27 to 42 inches, with a load capacity of 100 lbs. The mast telescopes from 23 to 35 inches so you can set the screen at the height you need, and the head rotates a full 360 degrees while tilting from -5 to +20 degrees for a clear line of sight. Cable management runs through the center of the mast to keep wiring tidy, and the mount is available in a black or silver powder coat finish.

  • Holds mid-size flat panels from 27 to 42 inches
  • Load capacity of 100 lbs
  • Mast telescopes 23 to 35 inches from the ceiling
  • Rotates a full 360 degrees at the bottom of the mast
  • Adjustable tilt from -5 to +20 degrees
  • Maximum flat hole pattern of 410 mm wide by 340 mm tall
  • Cable management routed through the center of the mast
  • Uses standard 1 1/2 inch NPT pipe, so extending the drop is easy
  • Constructed of formed steel with arc and spot welds
  • Black or silver powder coat finish (LCD-MID-CB black, LCD-MID-C silver)

Product details

Screen size 23-42"
Max weight 100 lb · 45 kg
Tilt 5° up · 20° down
Mount distance 23-35" from ceiling

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 60 to 410 mm wide and 100 to 340 mm tall, shown to scale on an approximately 42 inch 16:9 display.
100-340 mm 3.9-13.4"
60-410 mm 2.4-16.1"

shown to scale on a ~42" screen (16:9)

60-410 mm wide · 100-340 mm tall(2.4-16.1" wide · 3.9-13.4" tall)

Supported standards100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details

Build a TV Ceiling Mount using our 1 1/2 inch pipe system

Ceiling Plate for 1 1/2 PipeCeiling plate 12 Inch Threaded Pipe 1 1/2 Inch NPT Thread1-1/2 inch NPT pipe TV Ceiling Mount Head for - 1 1/2 Pipe - 600x400Mount head 33CE016 tilt-and-rotate TV ceiling mount, fully assembled with ceiling plate, adjustable-drop pole, and wide VESA bracket, front viewAssembled mount
