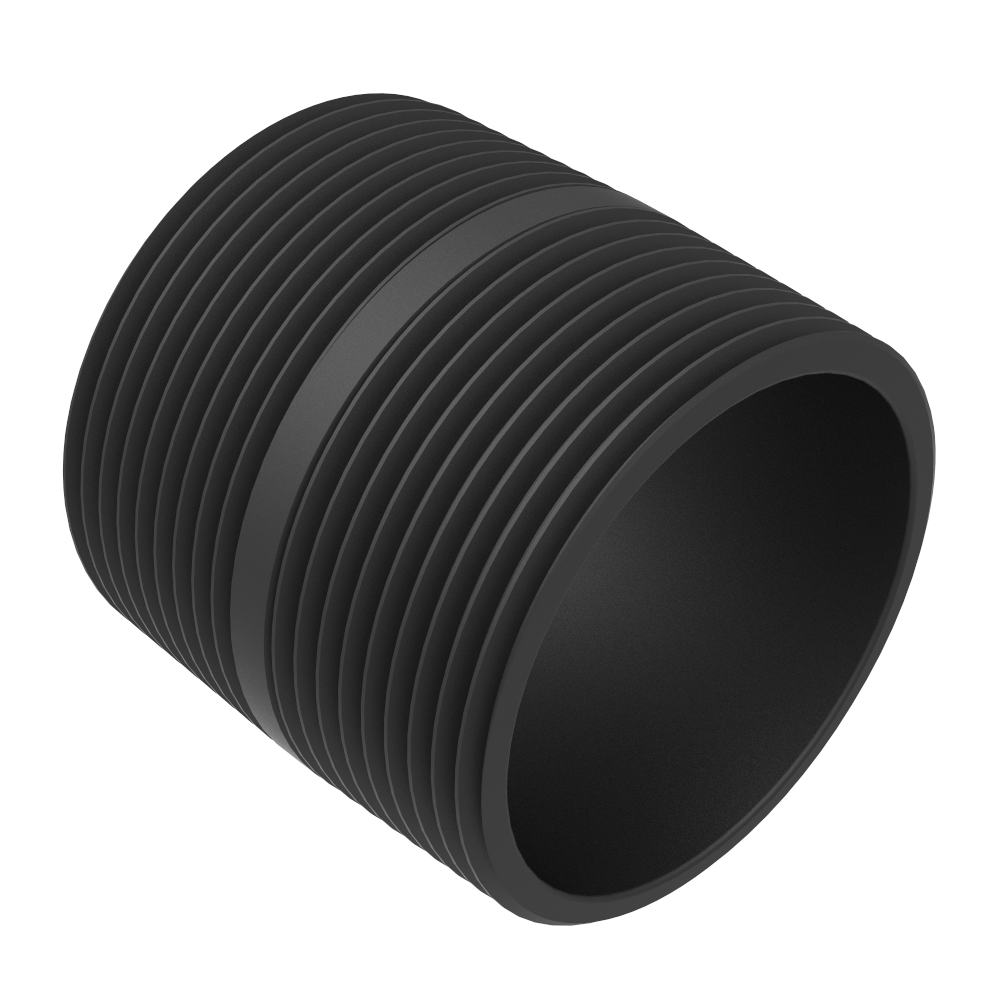

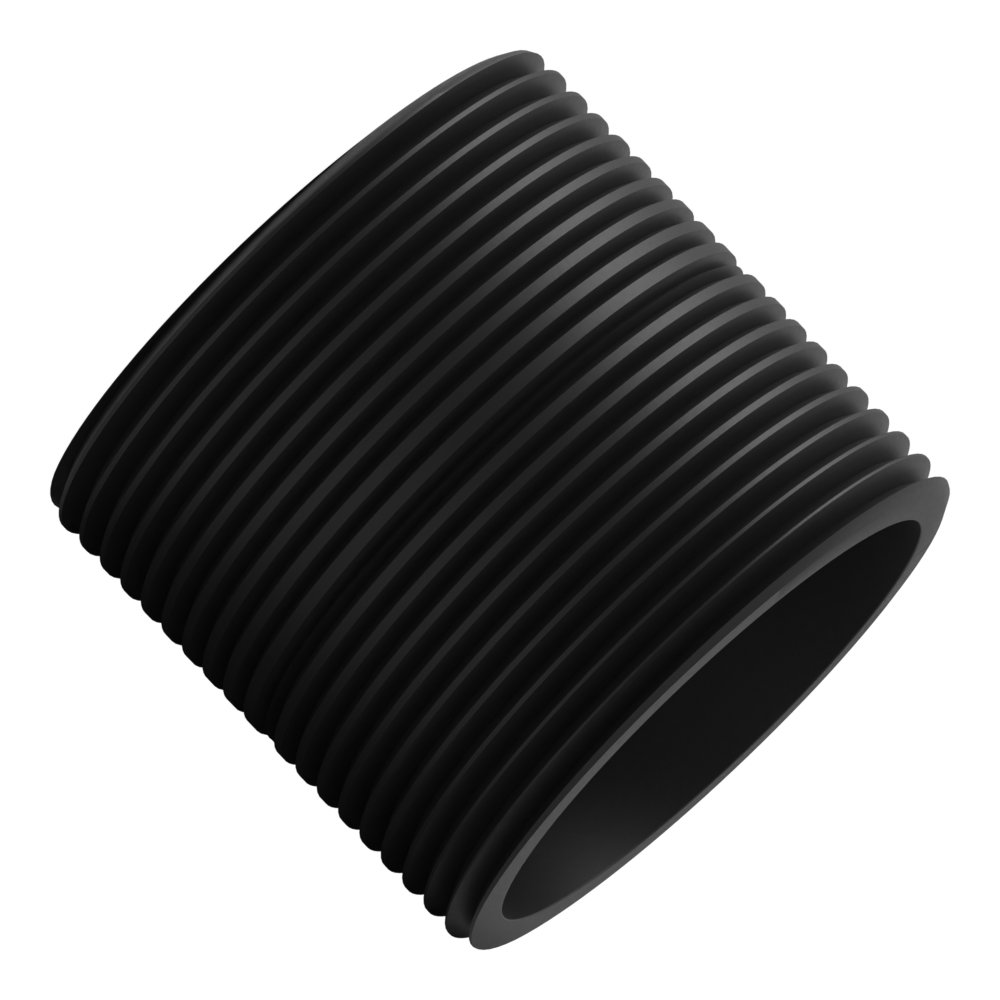

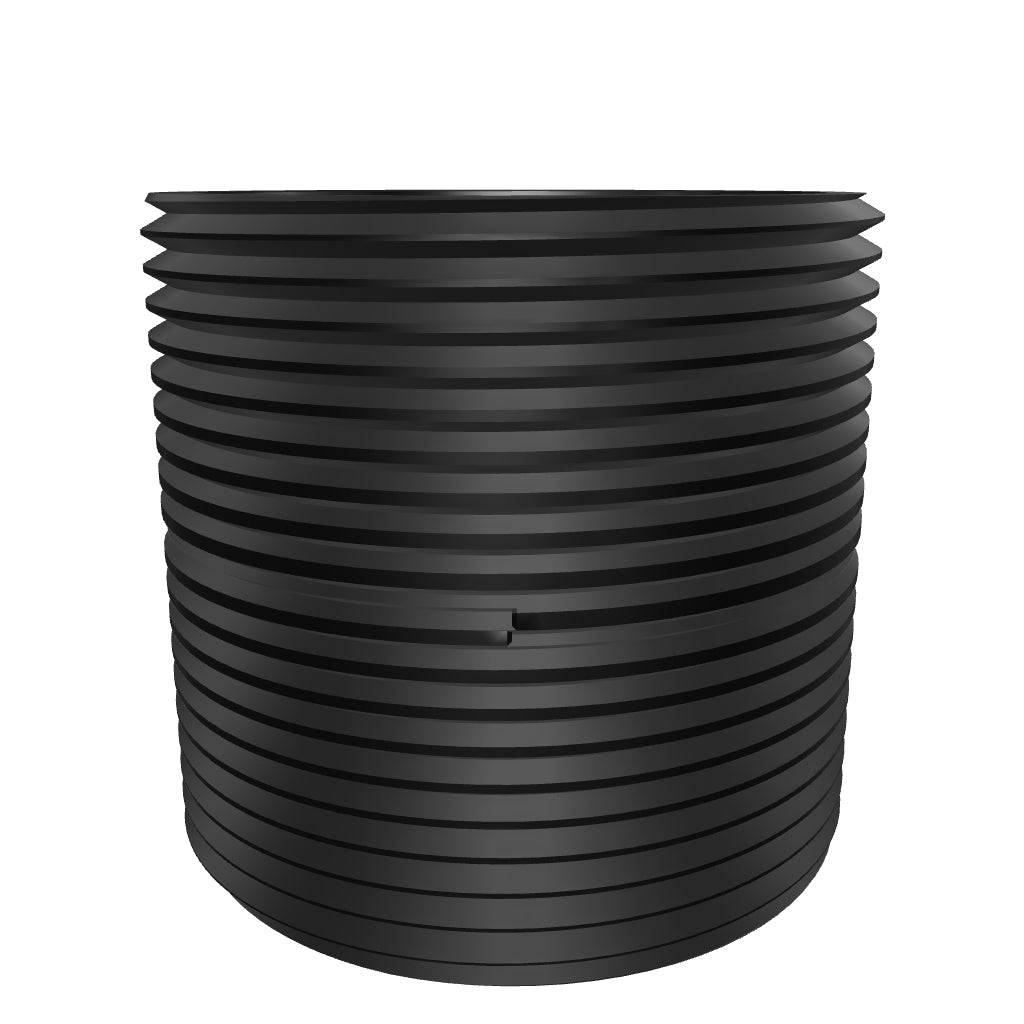

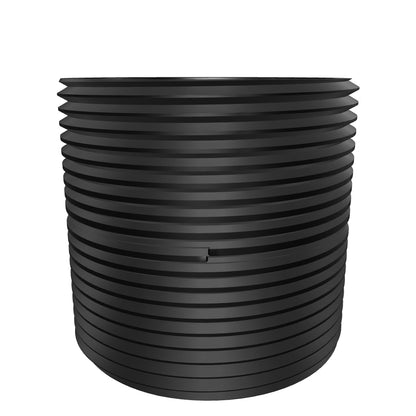

1-1/2" (1.5") NPT Threaded Pipe, 1.75" Length, Close Nipple (Shortest) · Steel

A 1.75-inch length of 1-1/2" (1.5", 1½") NPT Schedule 40 threaded pipe in A53/A36 carbon steel, a short, rock-solid way to add a precise amount of drop or to join components. Threaded on both ends; combines with couplers and other 1.5" NPT pipes to build any length.

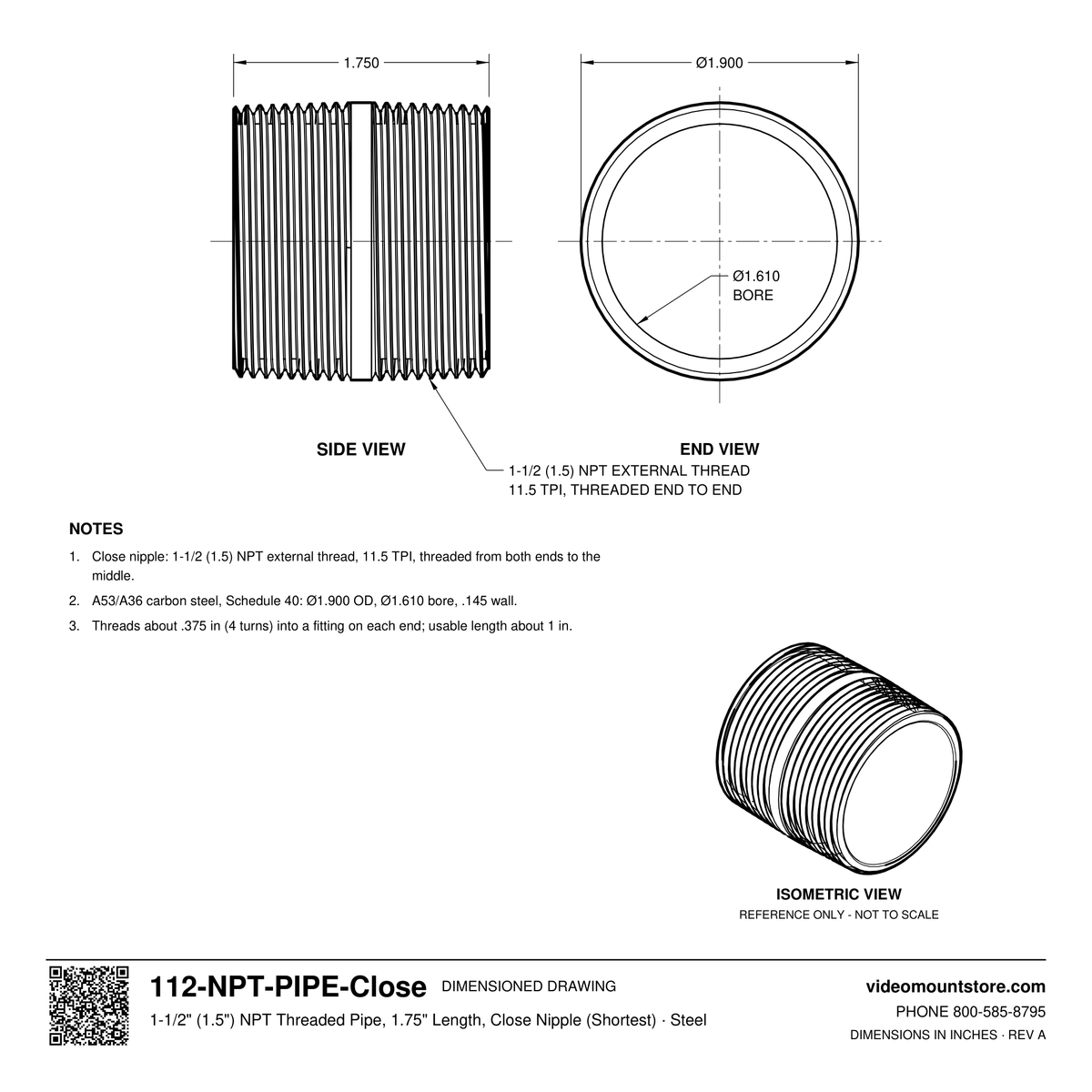

• Overall length 1.75" (usable ≈ 1", the pipe threads about 0.375" / 4 turns into a fitting on each end)

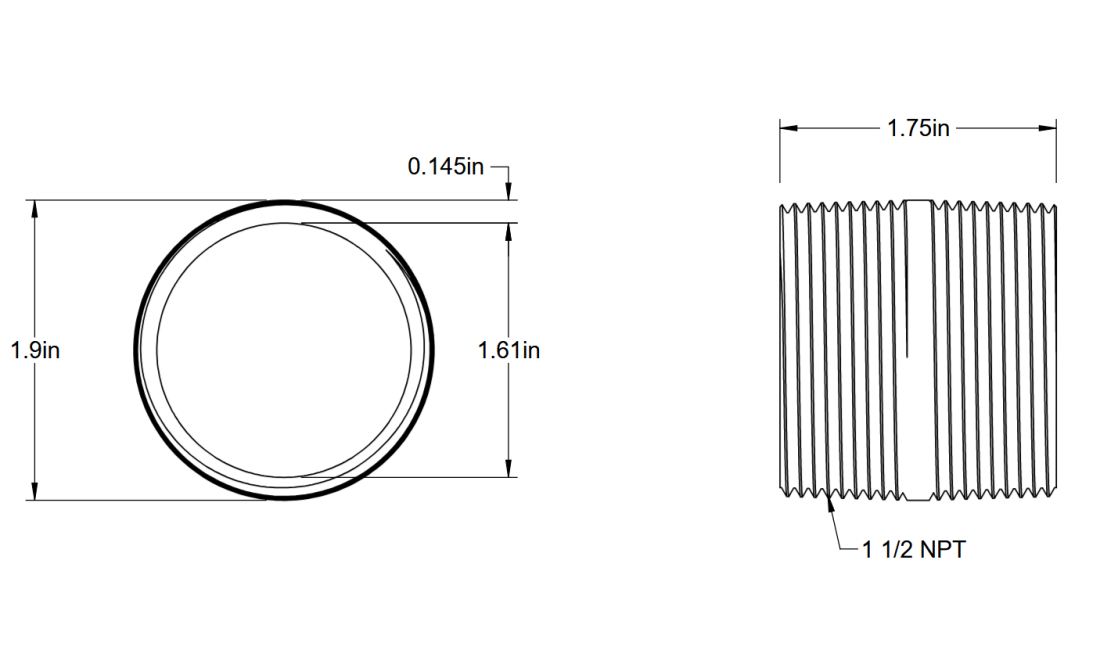

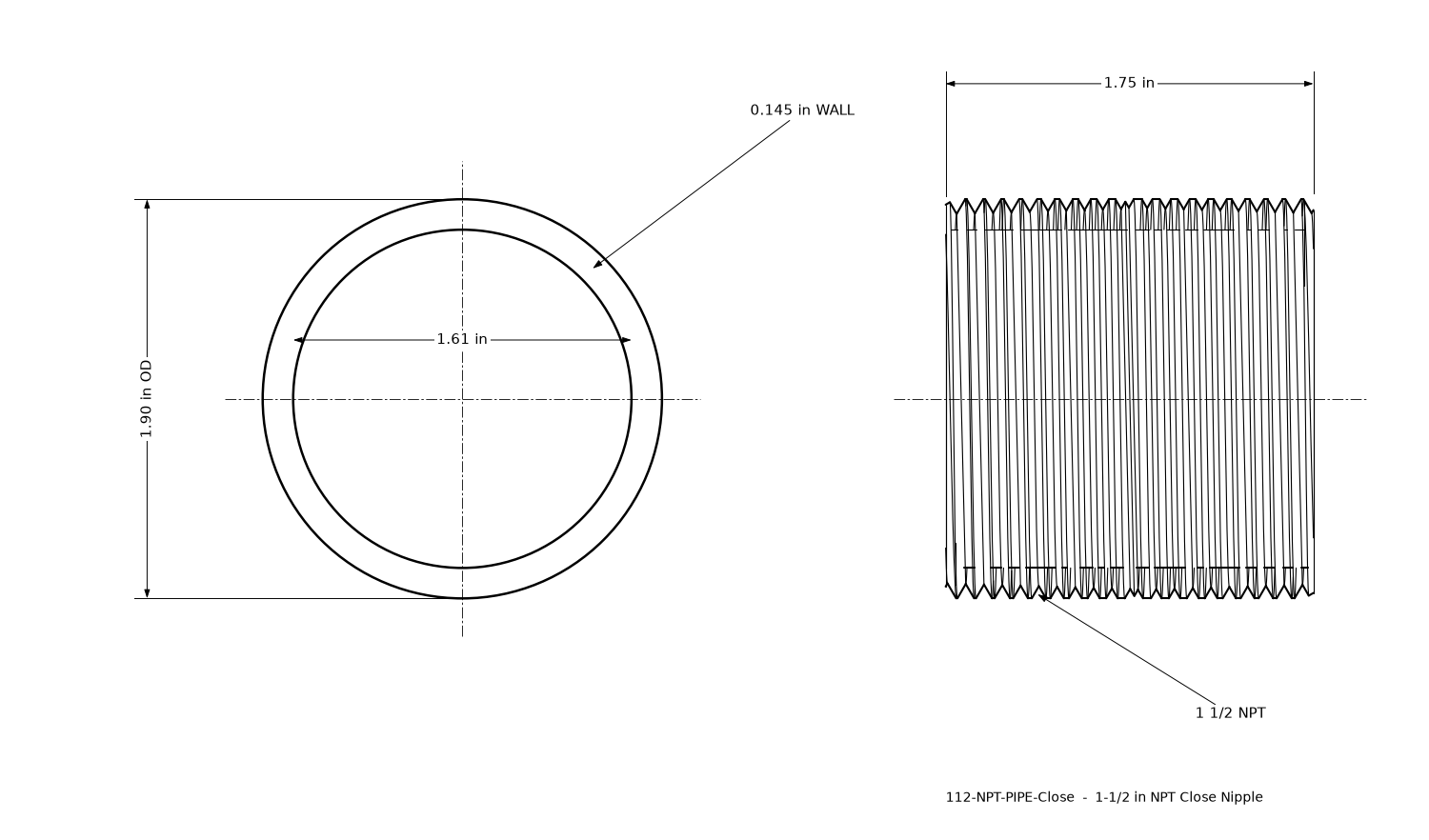

• Material: A53/A36 carbon steel, Schedule 40, 1.9" OD / 1.61" ID / 0.145" wall
• Pipe weight ≈ 0.3 lb
• Holds up to 500 lb
• 1-1/2" NPT thread, 11.5 TPI (11.5 threads per inch), both ends
• Finish: Outdoor Rated Black Powdercoat (indoor & outdoor)
• Threads into couplers and other 1.5" NPT pipes for any length

Designed for professional and commercial use, and excellent for home use. Works with TV ceiling mounts, projector mounts, digital signage, lighting, and stage truss, great in bars, restaurants, airports, home theaters, patios, gazebos, bowling alleys, schools, hospitals, and more.

Part of the Video Mount Store 1½" NPT system, see all TV ceiling mounts, ceiling plates, mounting heads, and extension pipes & couplers.
