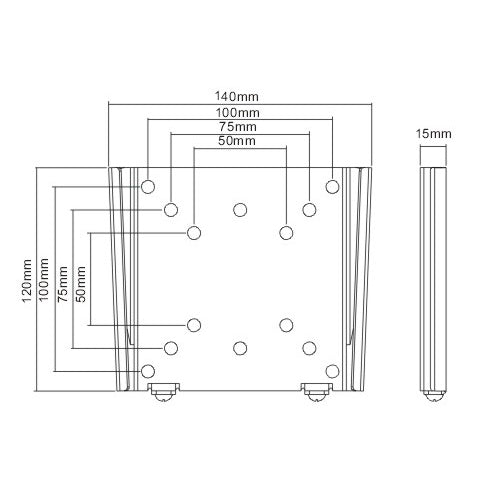

  • 11FW001 flush wall mount dimensioned drawing: 140 by 120 mm plate only 15 mm deep, with VESA holes at 50, 75, and 100 mm
1 2

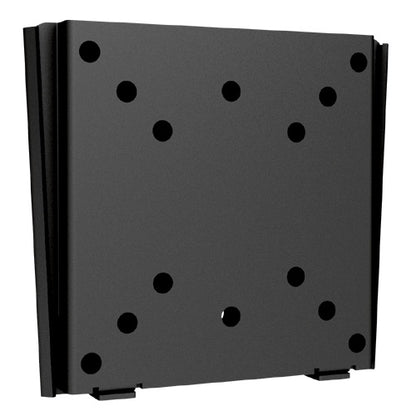

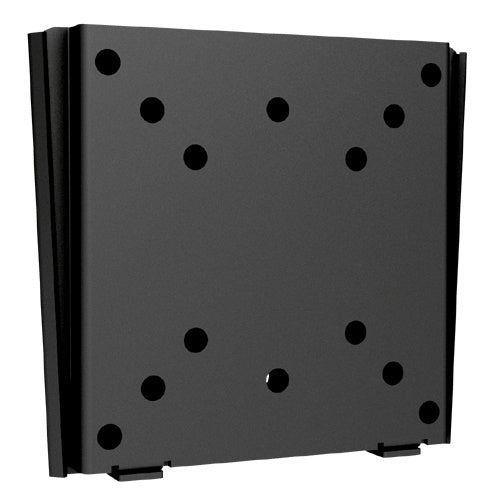

Flush Mount - 11FW001

SKU 11FW001

$29.95
$31.95 $29.95
Save $2.00 (6%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

  • For displays up to 24"
  • 40-lb. maximum weight capacity
  • Slide together quick mount for LCD displays
  • Designed to easily install LCD panels on walls "Hot swap" capable
  • VESA Mounting Standards:
  • 75 x 75 mm
  • 100 x 100 mm
  • Black Finish

Expert Mounts manufacturer spec sheet

Product details

Screen size 10-24"
Max weight 40 lb · 18 kg
Mount distance 0.57" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 75 to 100 mm wide and 75 to 100 mm tall, shown to scale on an approximately 24 inch 16:9 display.
75-100 mm 3-3.9"
75-100 mm 3-3.9"

shown to scale on a ~24" screen (16:9)

75-100 mm wide · 75-100 mm tall(3-3.9" wide · 3-3.9" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
