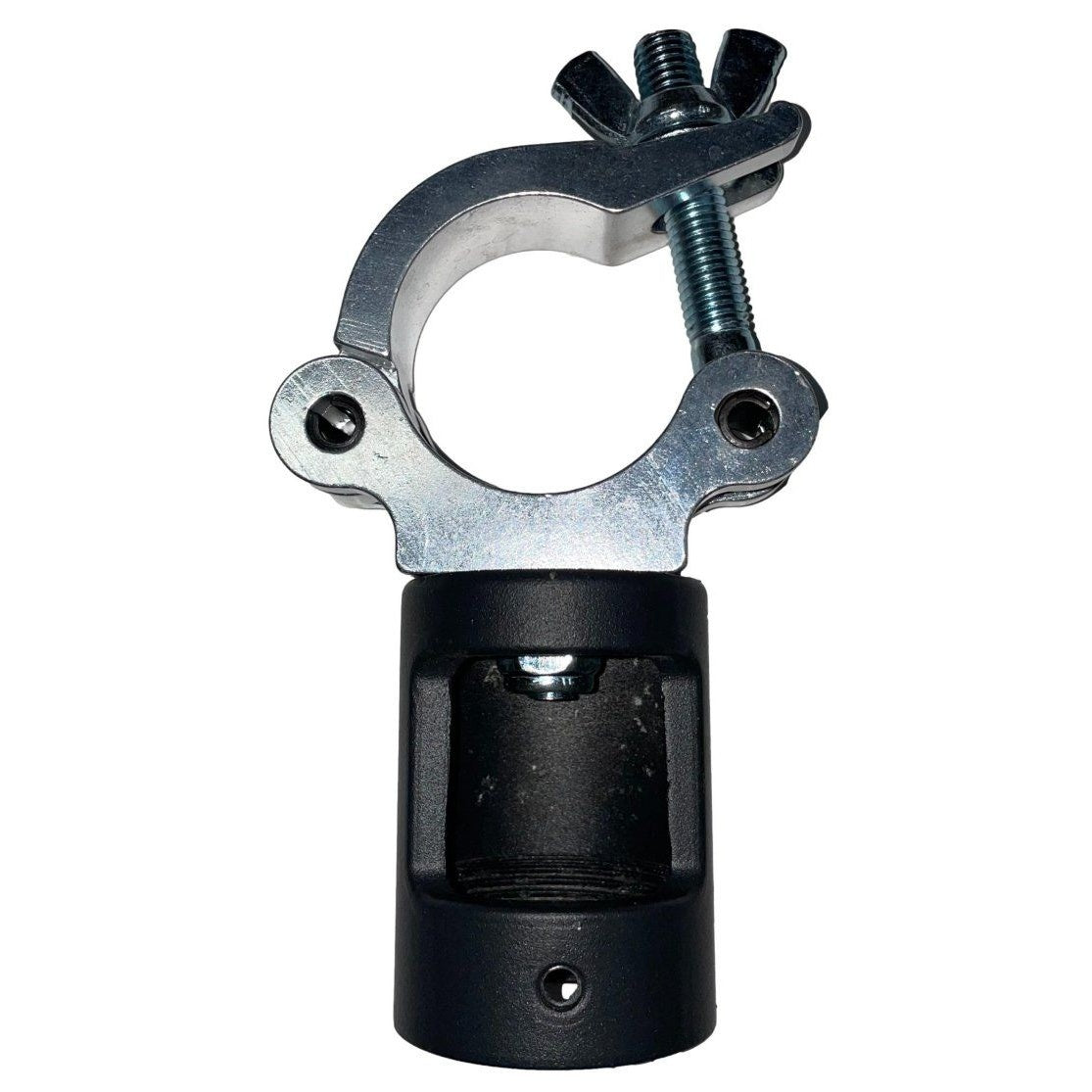

• Truss Clamp for 1-1/2 Inch NPT Threaded Pipe

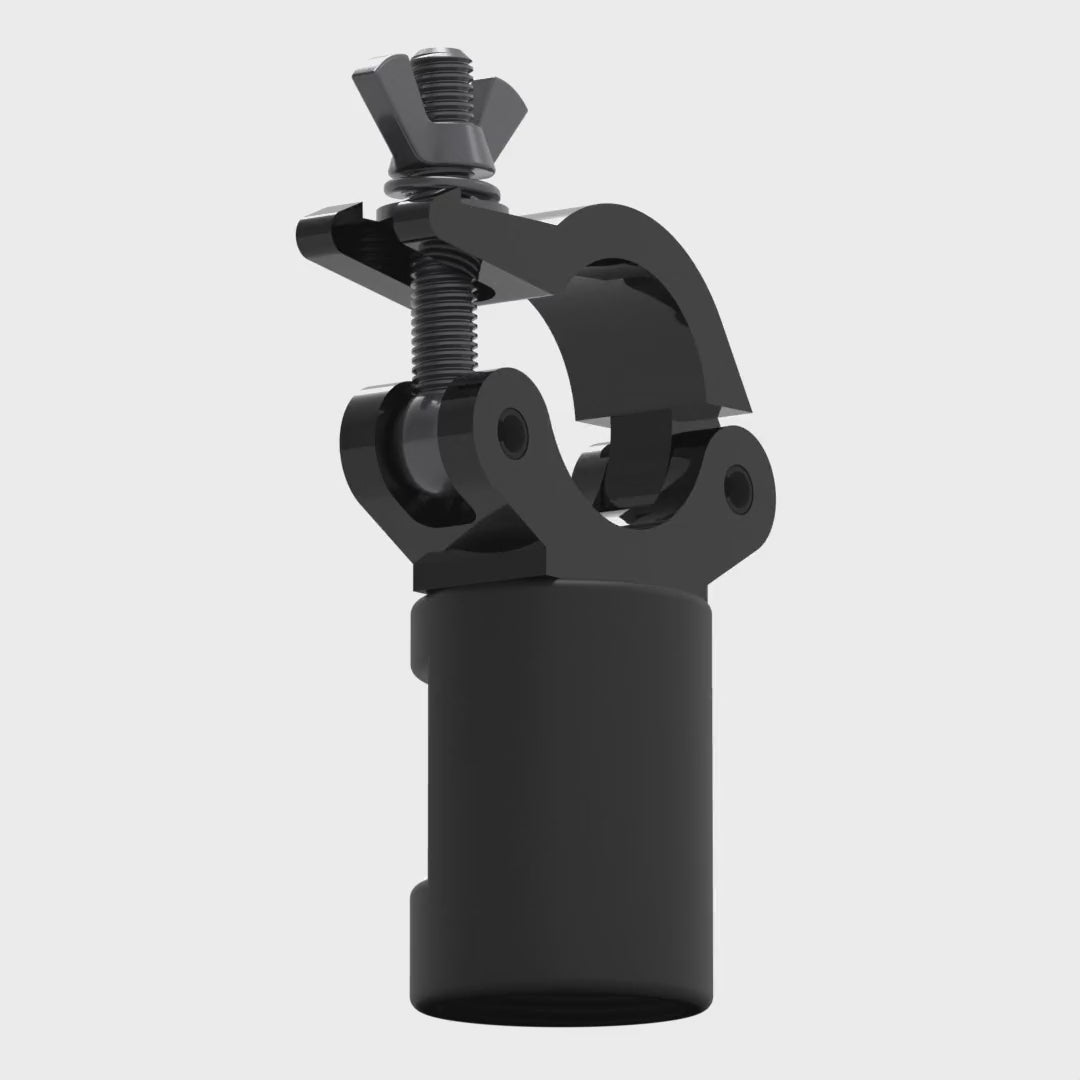

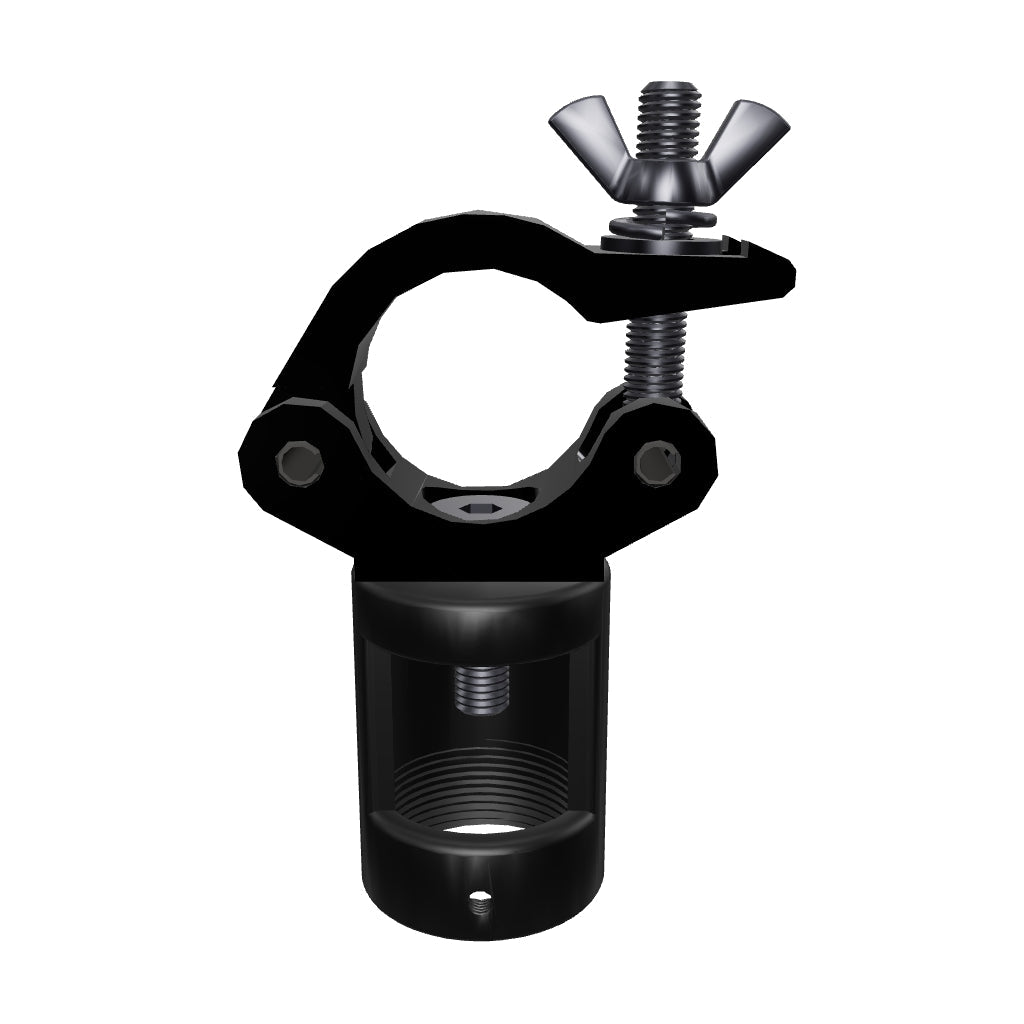

  • 11TR002 truss clamp for 1-1/2 inch NPT pipe, interactive 3D model showing the two jaws that close on a truss chord and the pipe socket underneath.

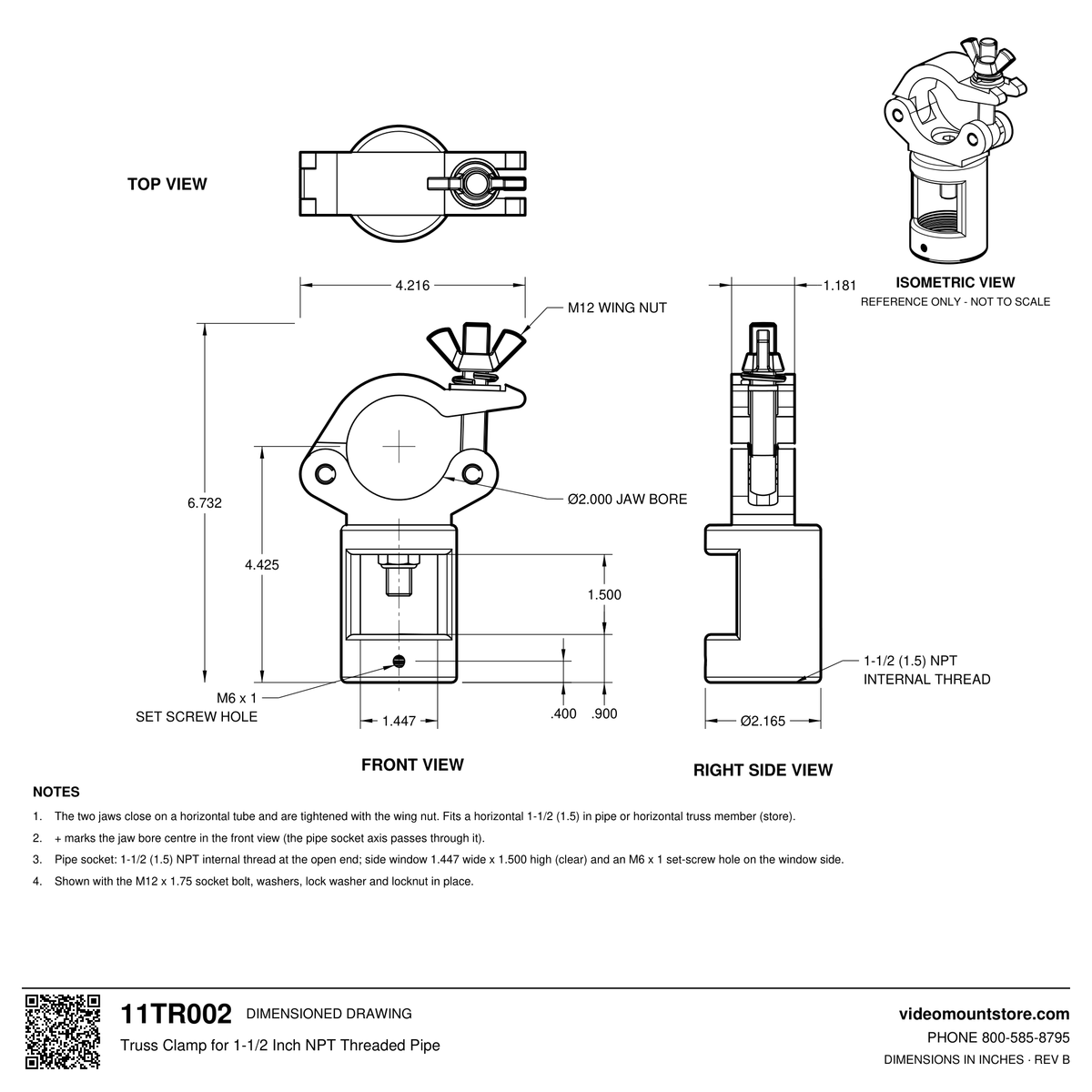

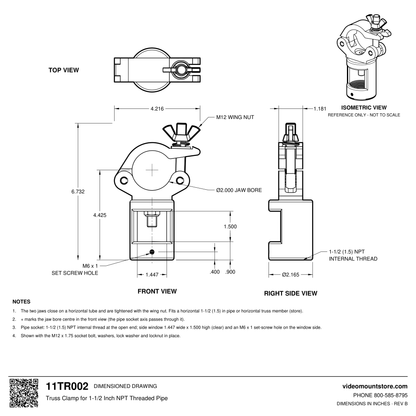

  • 11TR002 truss clamp dimensioned drawing: 2.000 inch jaw bore with M12 wing nut, 1-1/2 (1.5) inch NPT pipe socket 4.425 inches below the jaw centre, 6.732 inches overall

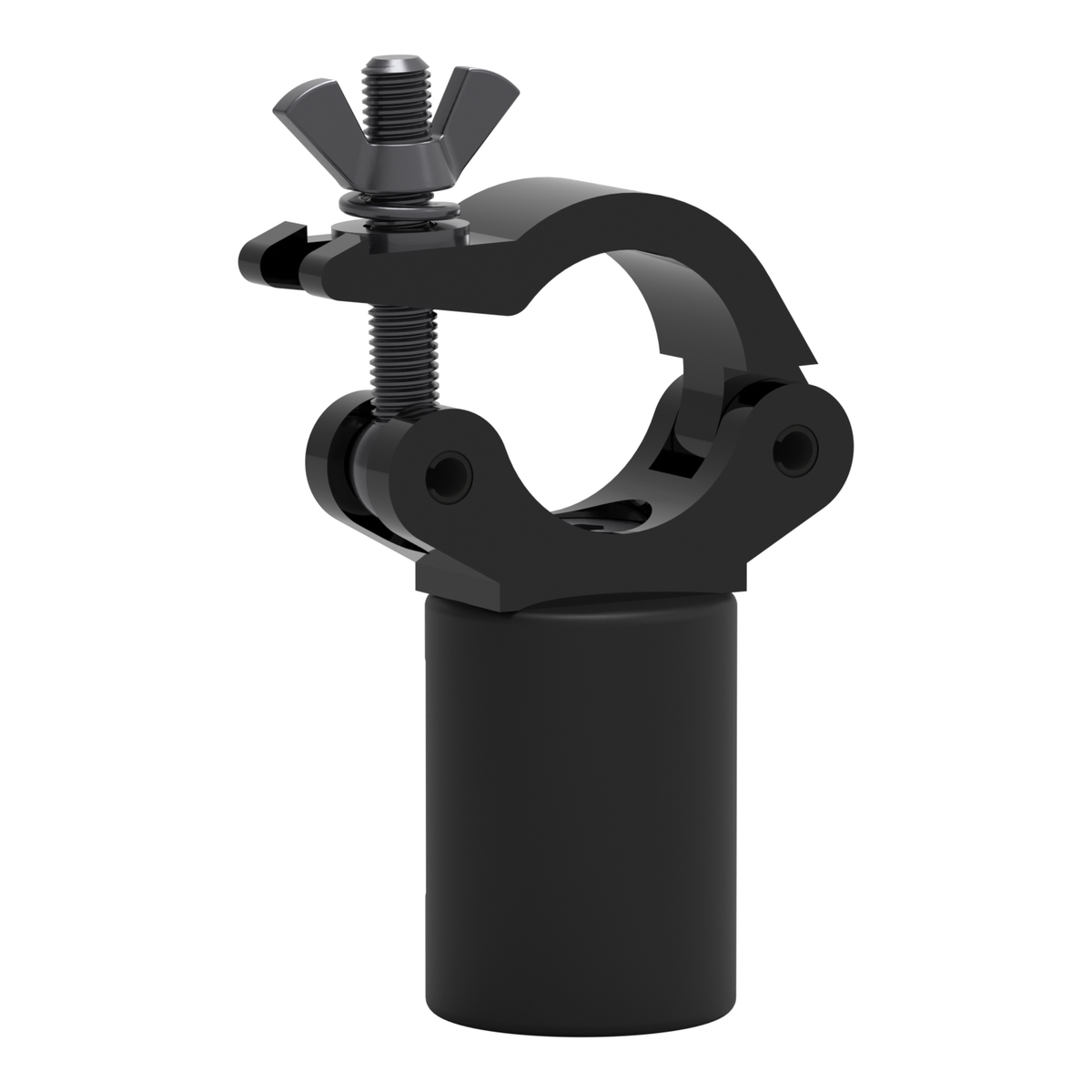

  • 11TR002 truss clamp seen from the back at an angle, showing the closed jaw ring, the wing nut tensioner and the 1-1/2 inch NPT pipe socket.

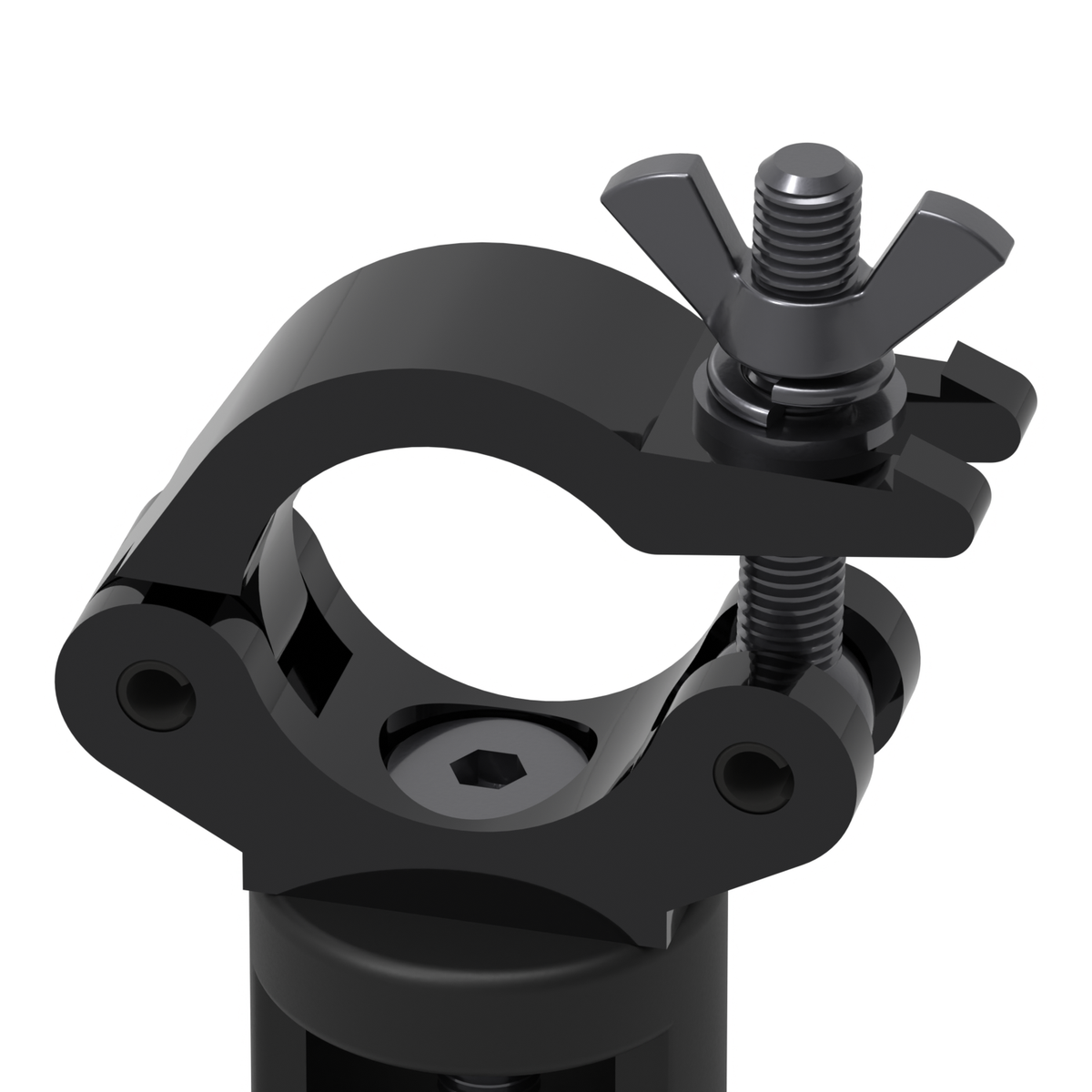

  • 11TR002 truss clamp close-up of the jaw, showing the two jaw halves closed into a ring, the hinge pins and the wing nut tensioner that locks it.
1 6

Truss Clamp for 1-1/2 Inch NPT Threaded Pipe

SKU 11TR002

"Jason was great! He got me what I needed and had a lot of knowledge on other things I..." Verified buyer

$37.95
$37.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

Build a complete mount using this plate as a starting point

Truss clamp adapts 1.5" Threaded pipe. Adapt TV Ceiling Mount to easily clamp on horizontal 1-1/2 Inch pipe or horizontal truss member.

This item is similar to the - Premier Mounts Cheesebrough Pipe Adapter (1.5 inch NPT) PCC-1-1-2

Expert Mounts manufacturer spec sheet

Product details

Max weight 110 lb · 50 kg
View full details

Build a TV Ceiling Mount using our 1 1/2 inch pipe system

11CP005 fixed pole mount seen from below, showing the 1-3/4 in socket opening, the side access window and the full slotted plate.Ceiling plate 1-1/2 inch NPT black aluminum pipe, 12 inches long, threaded at both ends, set diagonally across the frame with the open bore toward the viewer.1-1/2 inch NPT pipe 33HE002 wide TV ceiling mount head seen from the screen side, showing the full width of the 702 mm plate, the VESA pad and the pipe socket.Mount head 33CE016 tilt-and-rotate TV ceiling mount, fully assembled with ceiling plate, adjustable-drop pole, and wide VESA bracket, front viewAssembled mount
