TV Ceiling Mount Head for - 1 1/2 Pipe - 200x200
SKU 22HE001
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

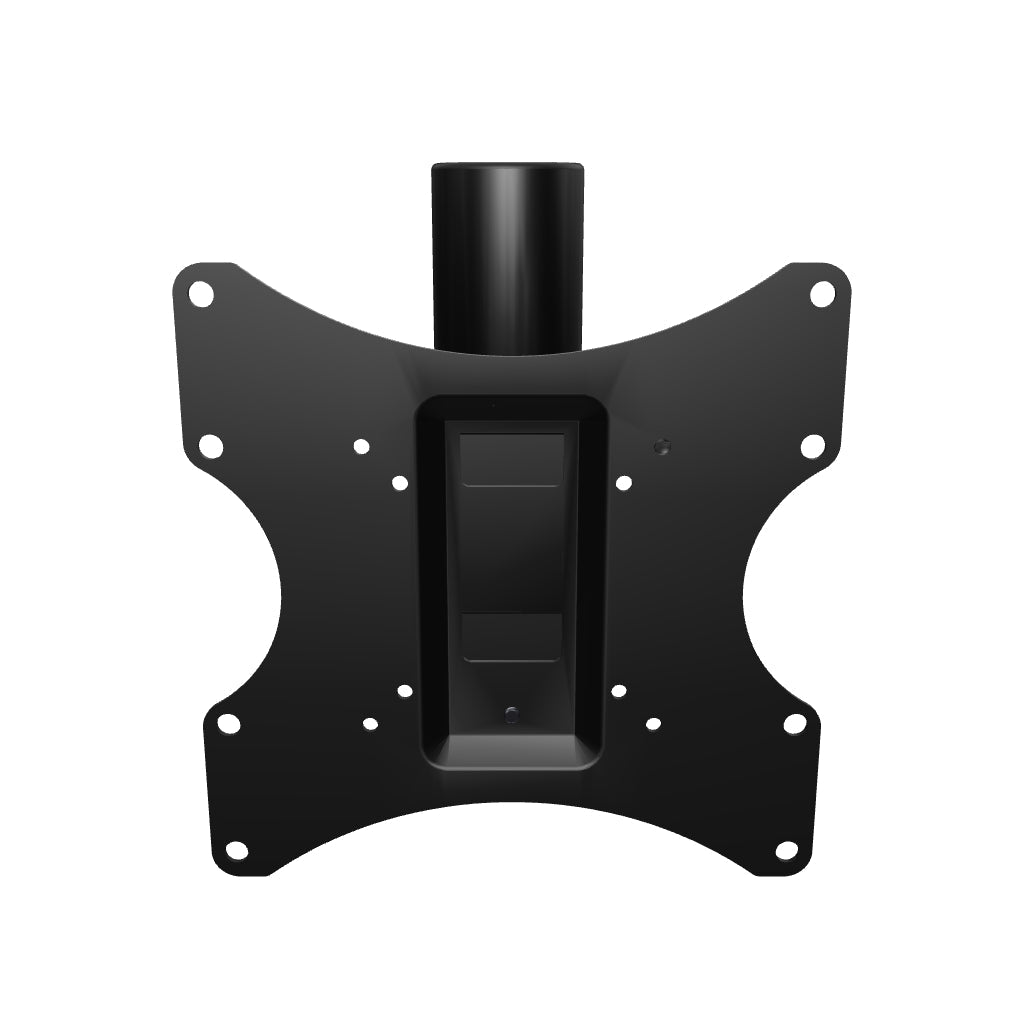

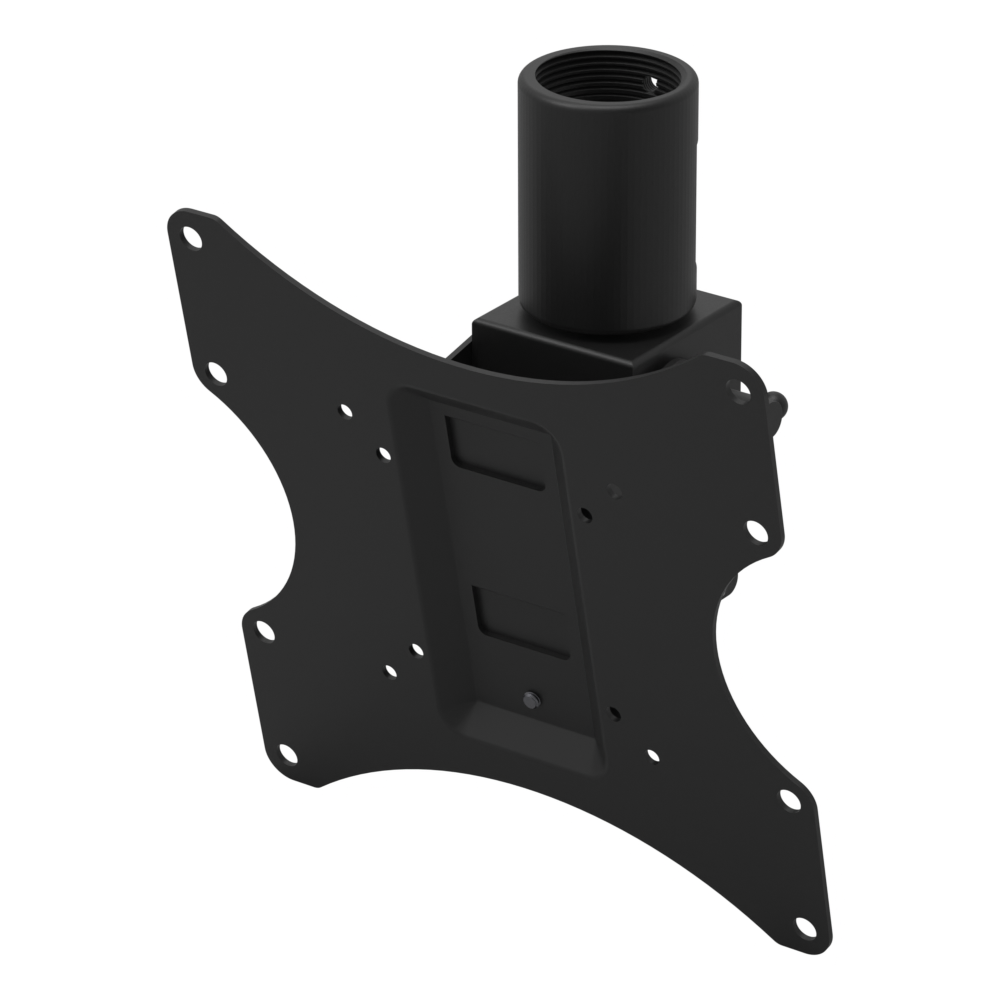

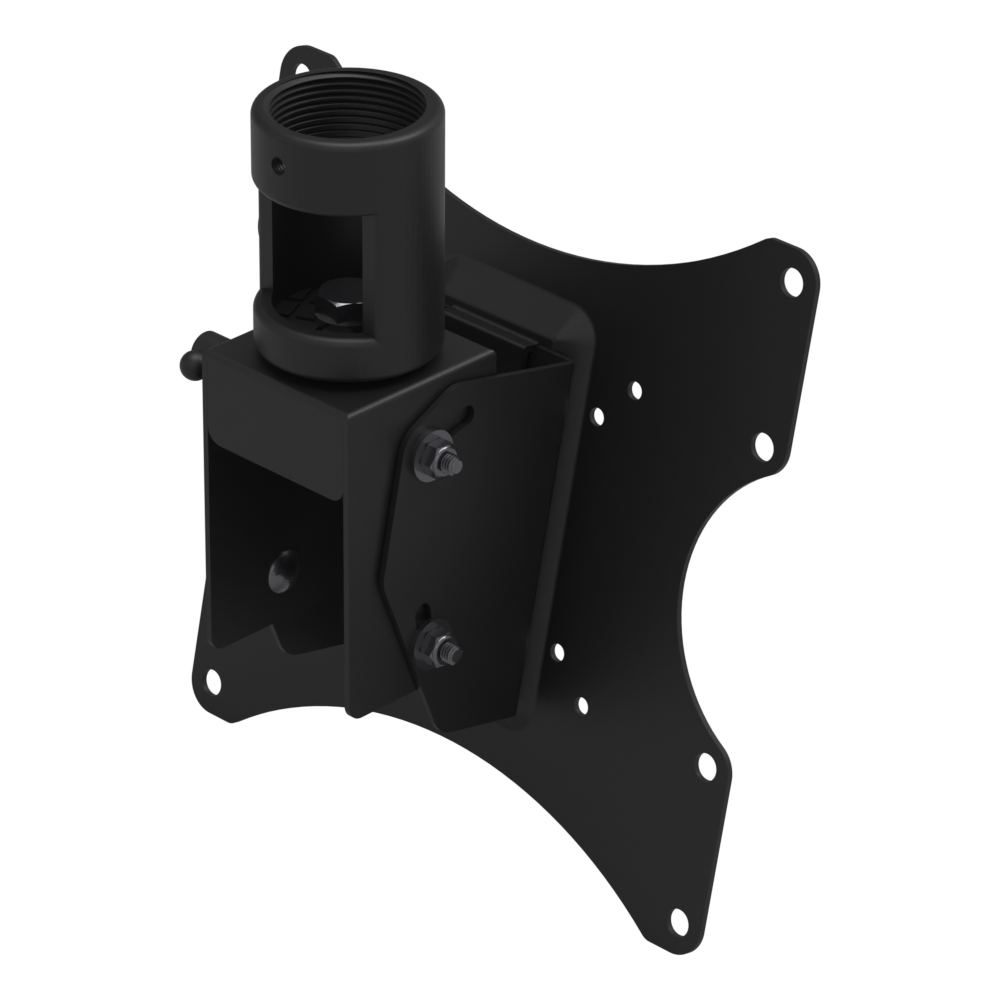

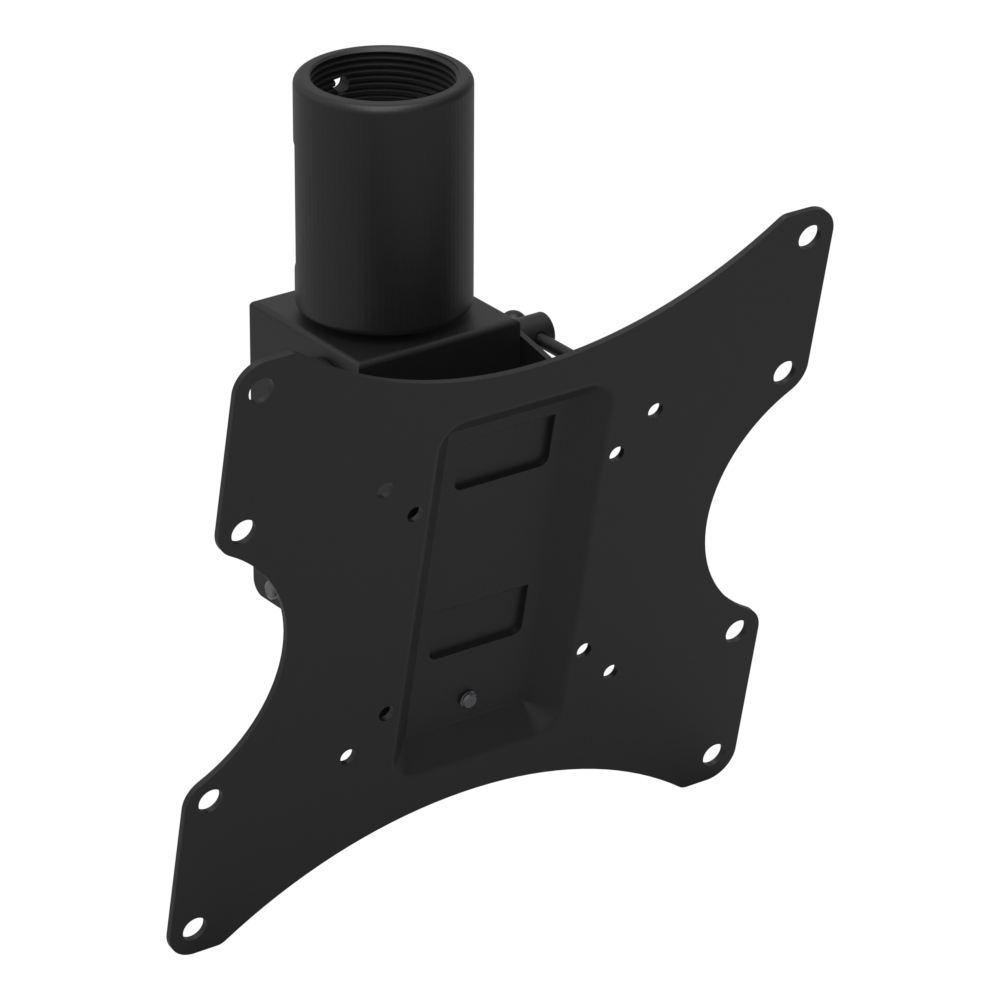

This is the tilt and rotate head from our 1-1/2 inch NPT ceiling mount system (1-1/2 inch is also written 1.5 inch), sold on its own. It threads onto a 1-1/2 inch NPT pipe and grips a flat panel with a VESA mounting pattern from 75 x 75 up to 200 x 200. If you are building a custom drop from your own plate and mast, this is the part that actually holds the TV and gives you the tilt and swivel.

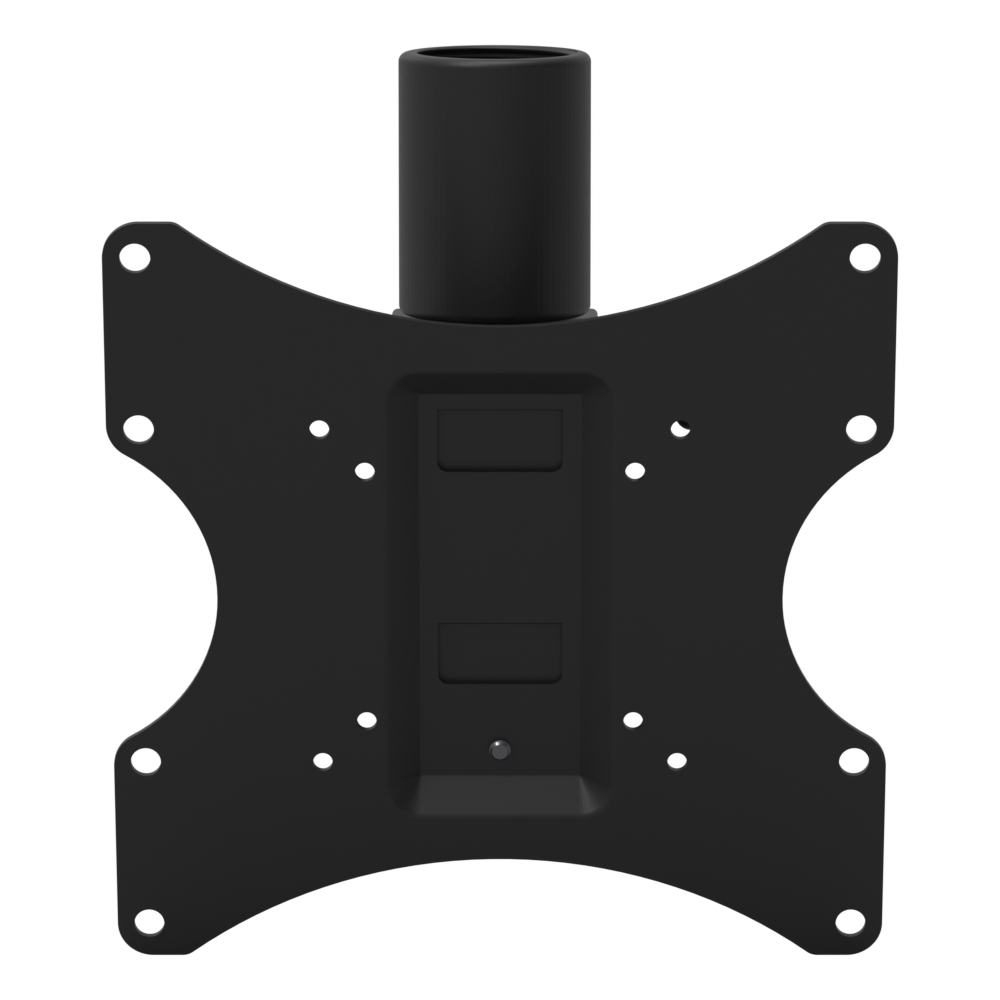

- Fits VESA patterns from 75 x 75 up to 200 x 200 mm

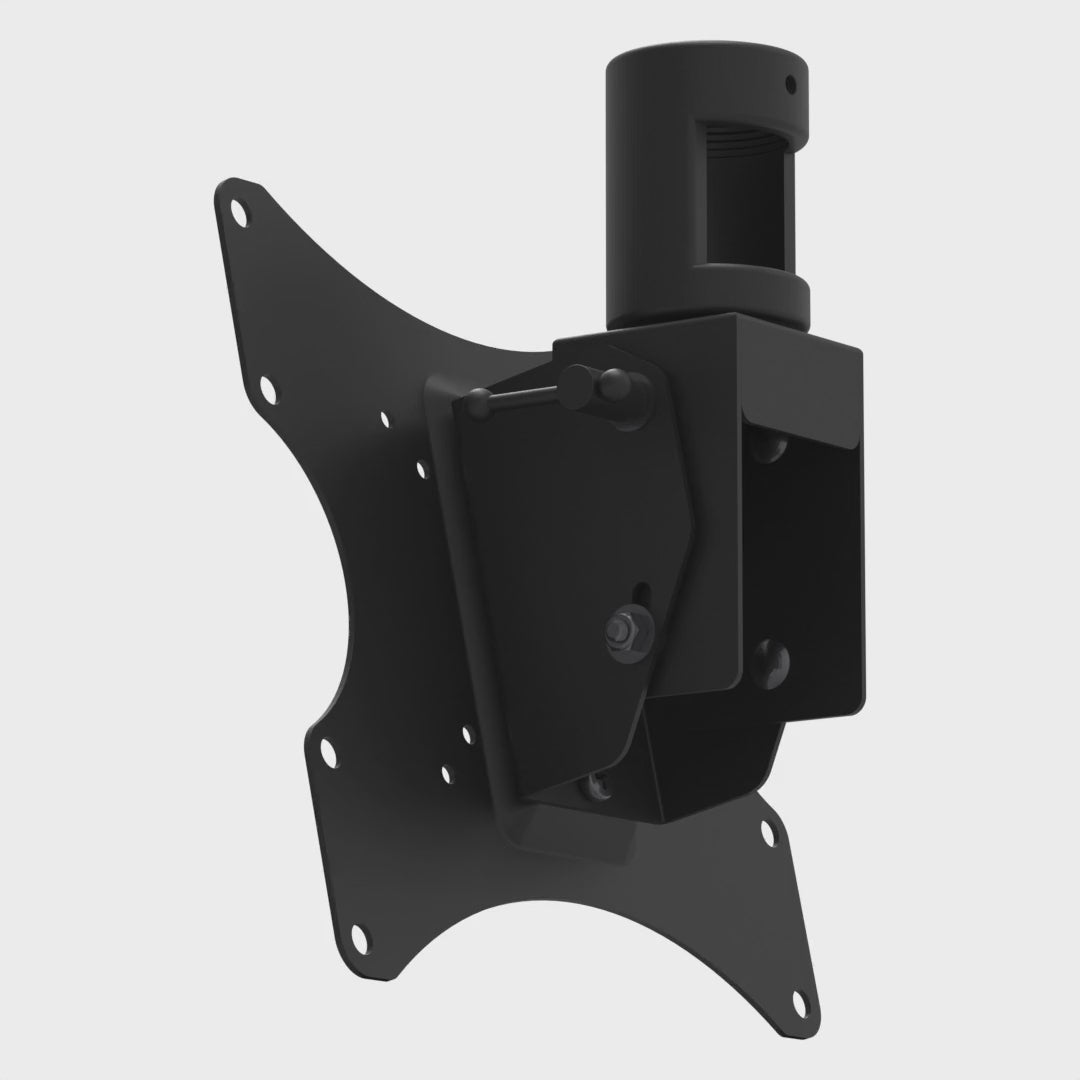

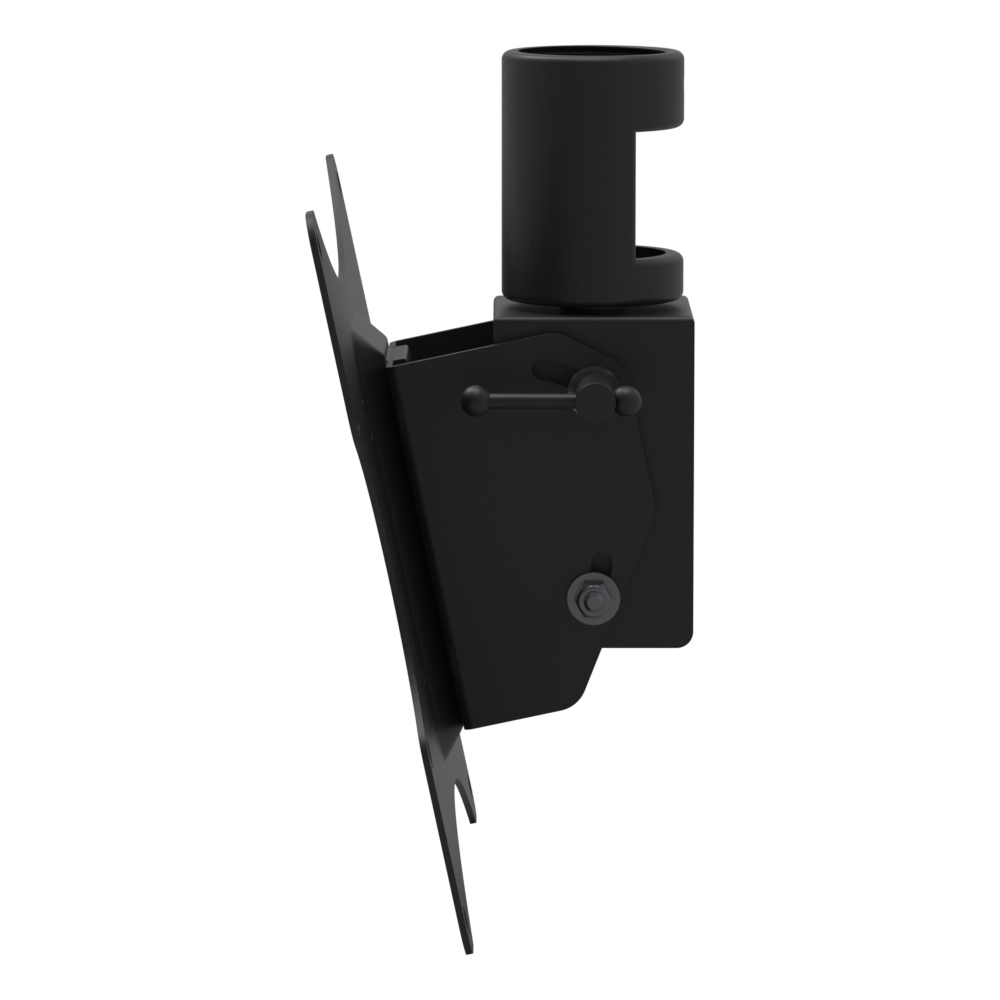

- Tilts up to 12° down and 5° up

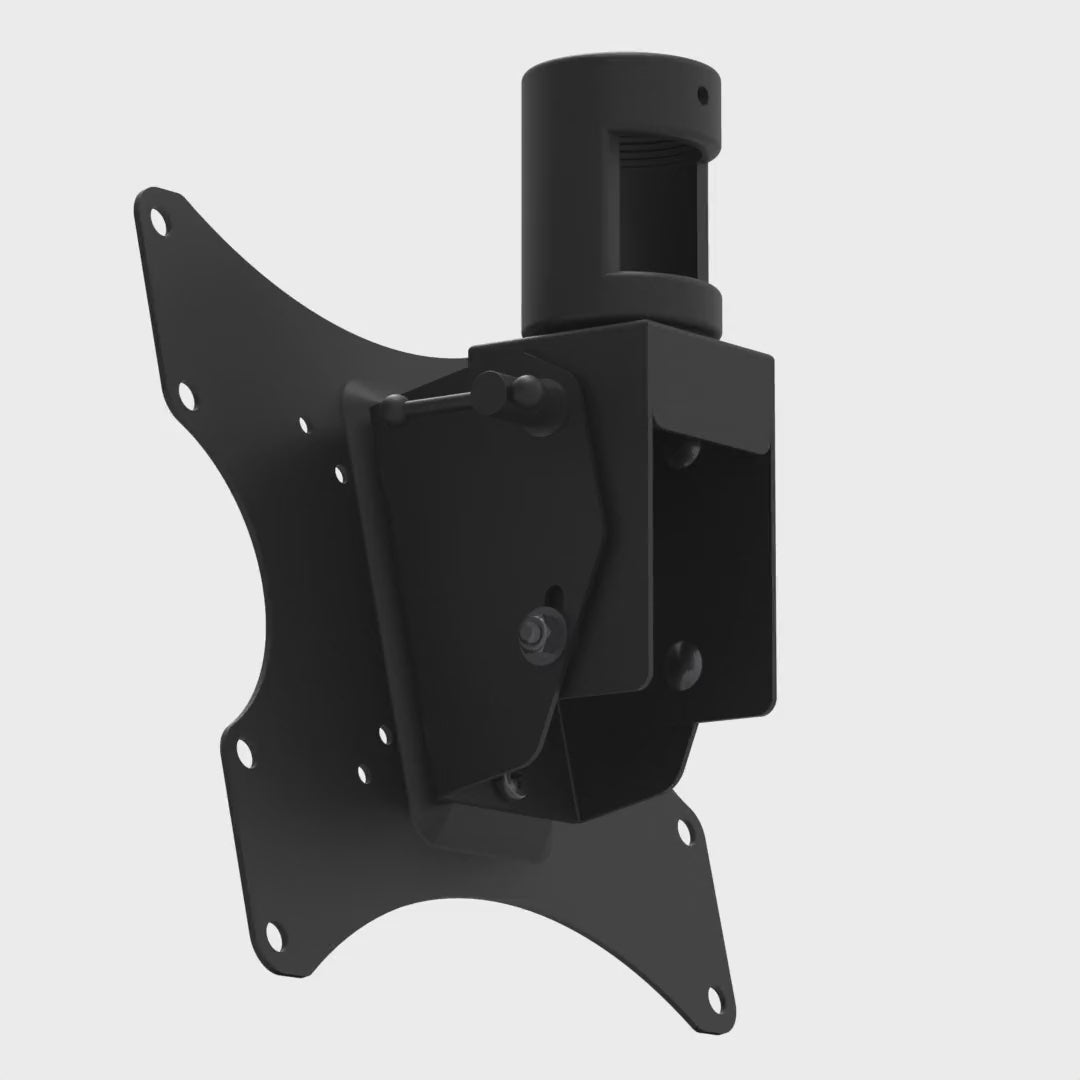

- Rotates a full 360°

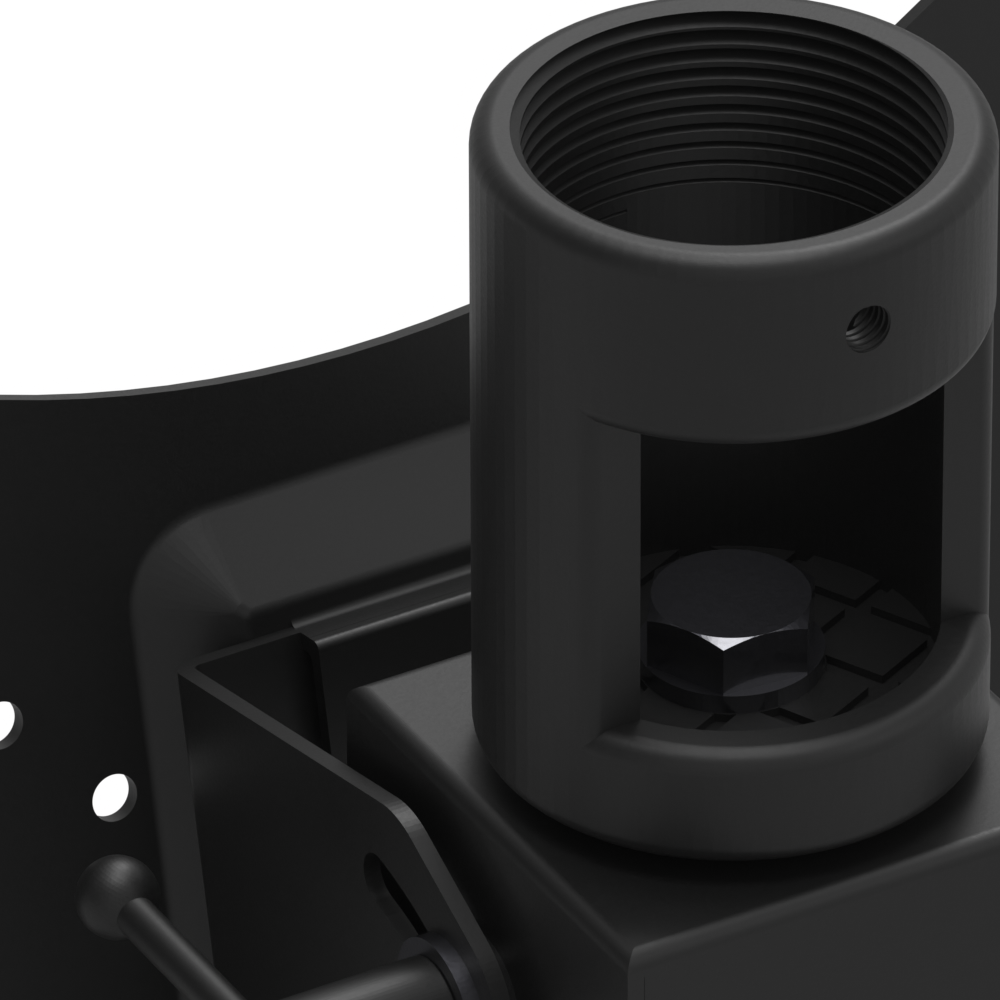

- Threads onto 1-1/2 inch NPT pipe
- Black powder coat finish, suitable for outdoor use
Threaded onto the pipe, this head adds 4-3/4 inches to your finished drop, measured to the center of the hole pattern. Use that number when you work out how far the TV will hang below the ceiling.
This is the same head that comes on the 22CE006 ceiling mount. If you want it packaged with a ceiling plate and mast, start there.
Keep in mind: screen size is only a guide. What matters is the VESA hole pattern and the weight. On the 22CE006 mount this same head is rated for screens up to 110 lb, but on a custom drop the real limit depends on your whole build, so measure your TV's mounting holes and call us if you are anywhere near the weight.
Call or email us if you need help picking the right head, or possibly a different solution.

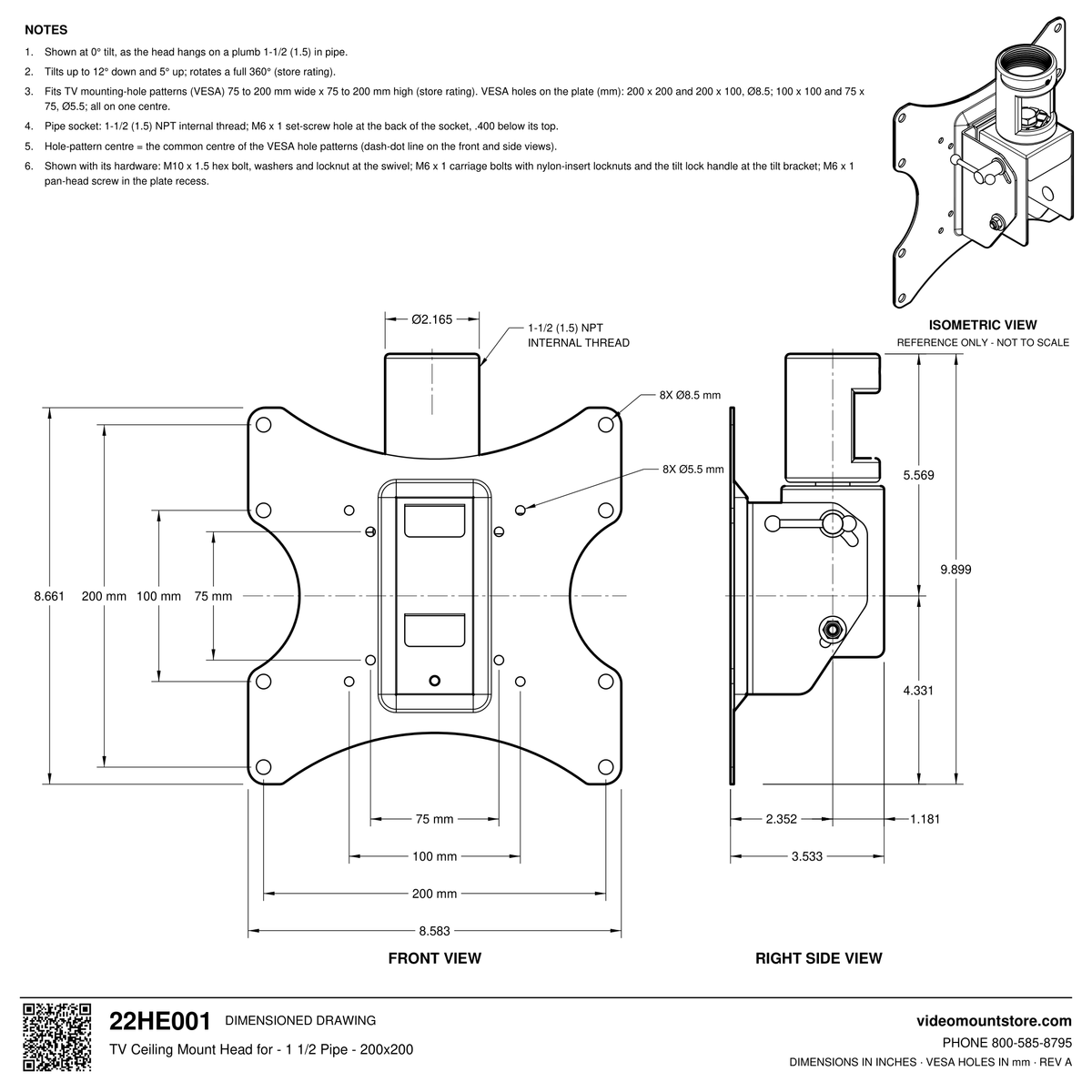

Expert Mounts manufacturer spec sheet
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~42" screen (16:9)
75-200 mm wide · 75-200 mm tall(3-7.9" wide · 3-7.9" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
