TV Ceiling Mount Head for 32 to 86 inch, Tilt and Rotate
SKU 33CE008HEAD
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

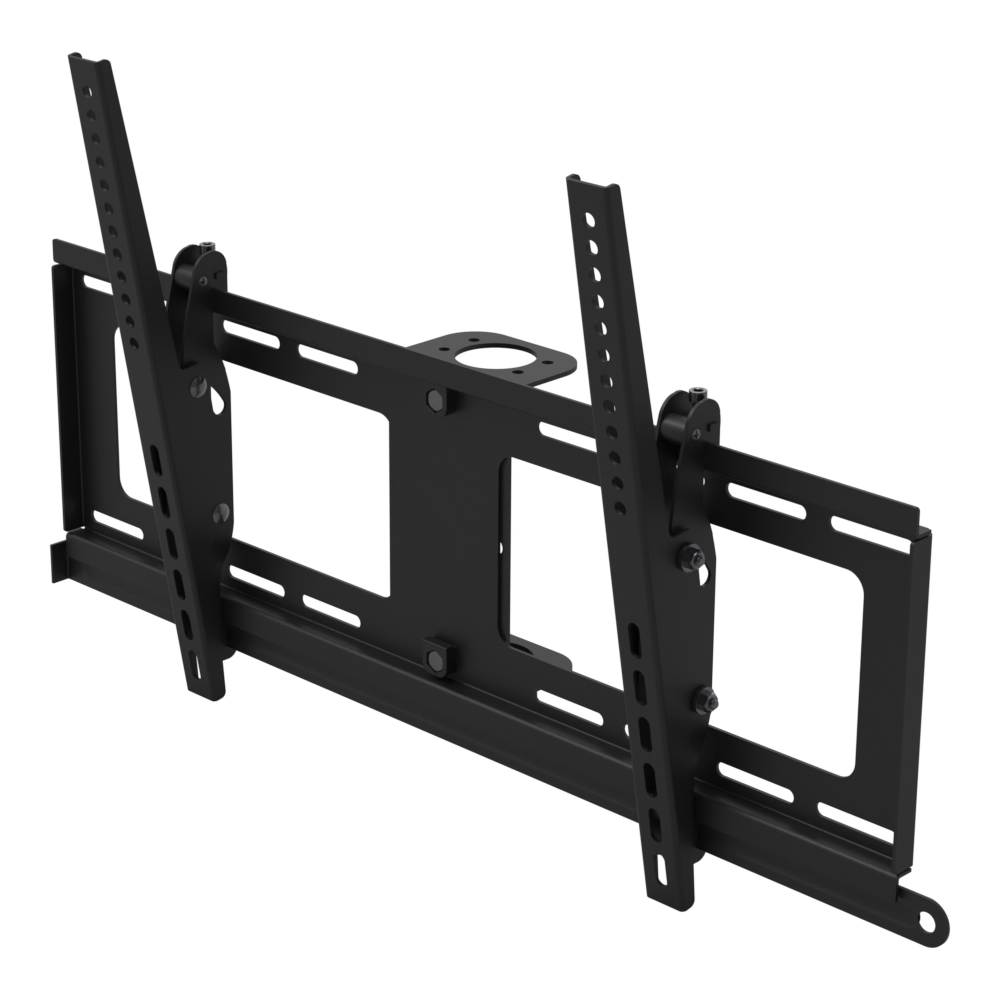

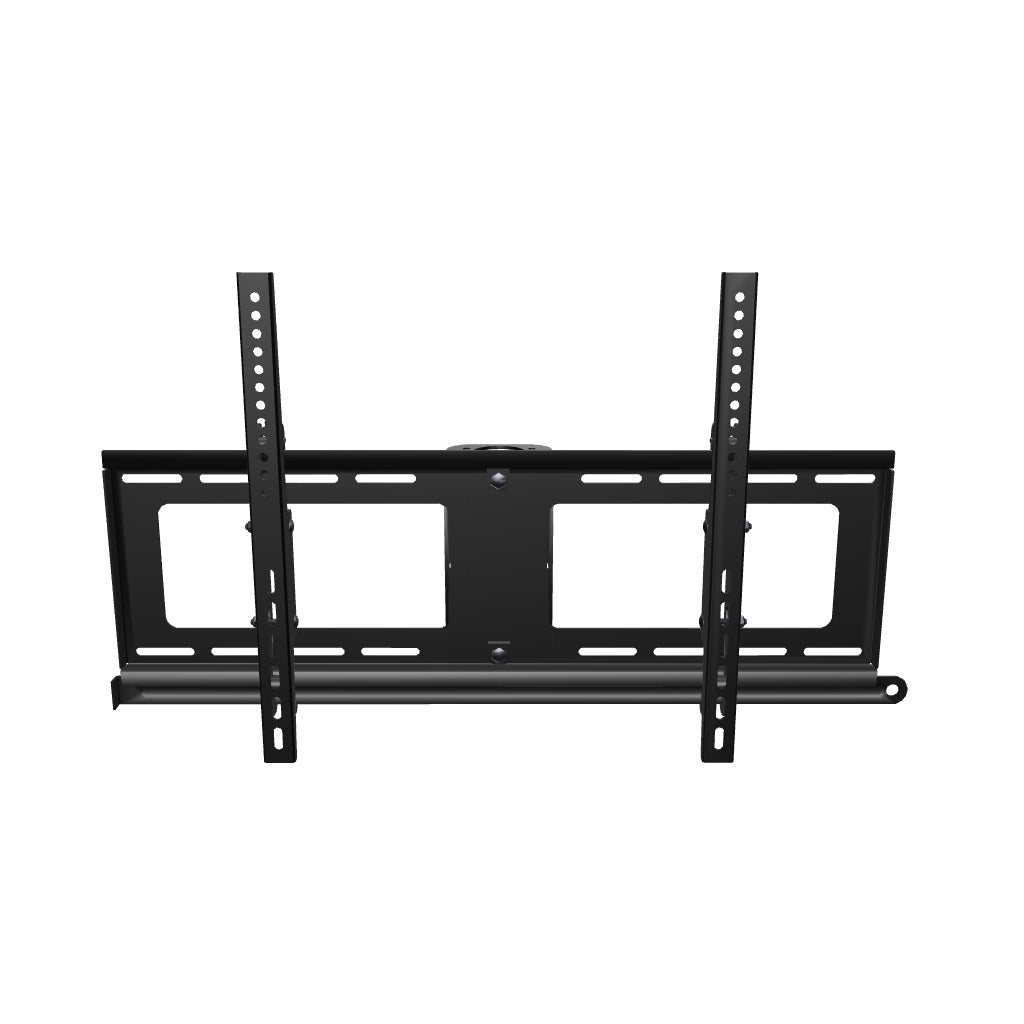

This is the large-screen tilt and rotate head from our 1-1/2 inch NPT ceiling mount system (1-1/2 inch, also written 1.5 inch), sold as a separate part. It threads onto a 1-1/2 inch NPT pipe and holds a flat panel with a VESA mounting pattern up to 600 x 400, sized for screens in the 32 to 86 inch range. If you are building a custom drop from your own plate and mast, this is the part that holds the TV and gives you the tilt and rotation.

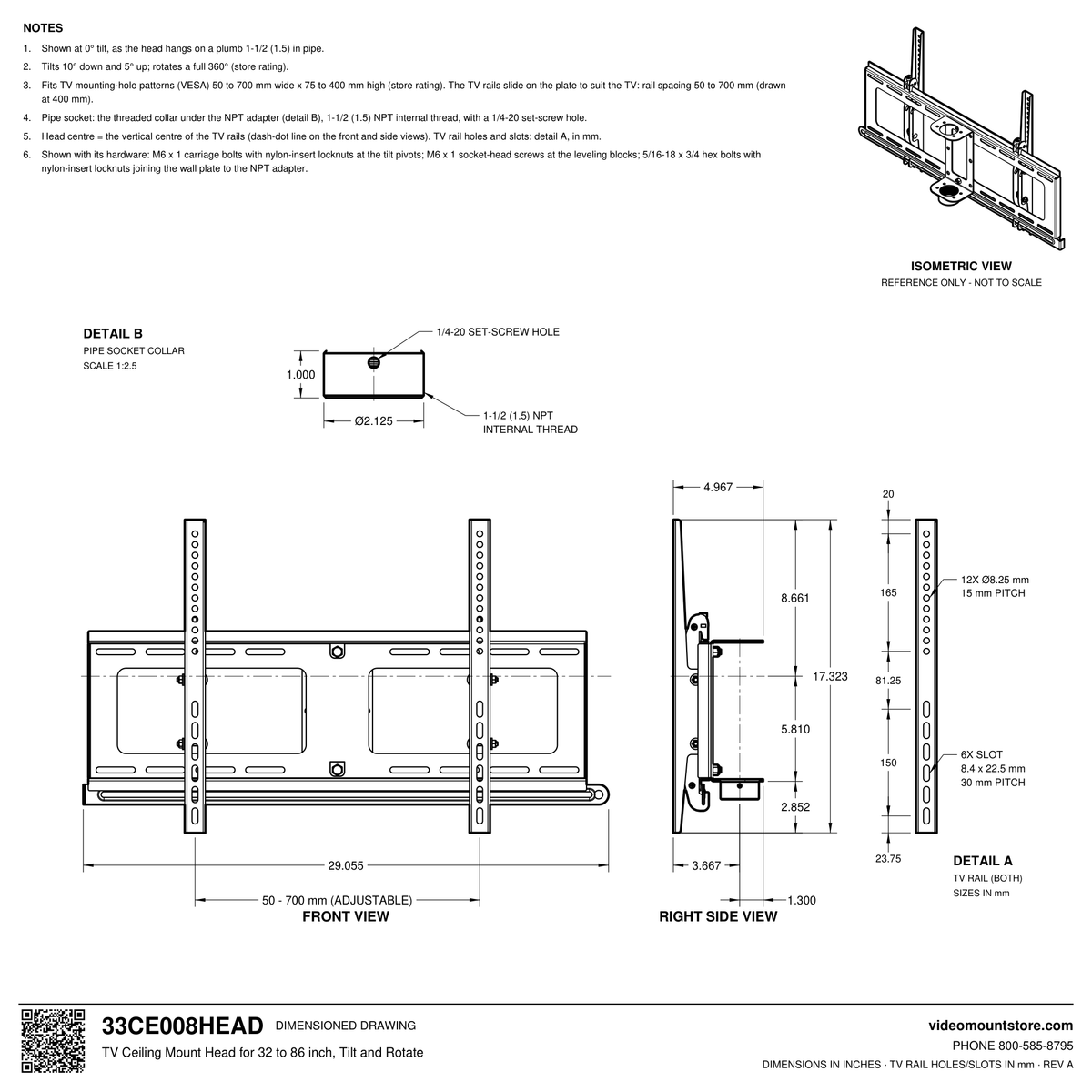

- Fits VESA patterns up to 600 x 400 mm
- Rails cover hole spacing from 50 to 700 mm wide and 75 to 400 mm high
- Tilts 10° down and 5° up

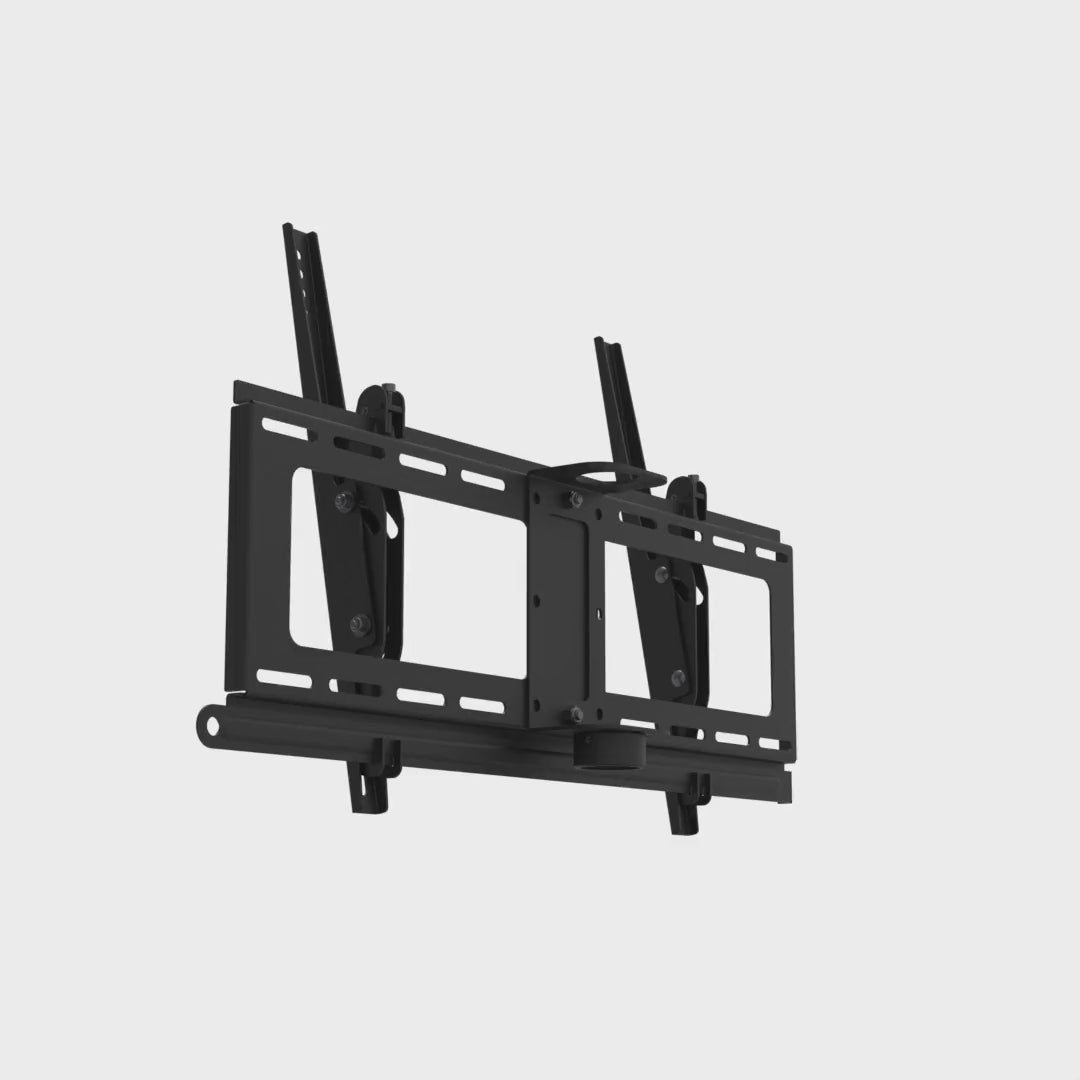

- Rotates a full 360°
- Threads onto 1-1/2 inch NPT pipe
- Heavy gauge metal construction
This is the same head that comes on the 33CE008 ceiling mount.
Keep in mind: screen size is only a guide. What matters is the VESA hole pattern and the weight. On the 33CE008 mount this same head is rated for screens up to 176 lb, but on a custom drop the real limit depends on your whole build, so measure your TV's mounting holes and call us if you are near the weight.
Call or email us if you need help picking the right head, or possibly a different solution.
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~86" screen (16:9)
50-700 mm wide · 75-400 mm tall(2-27.6" wide · 3-15.7" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
