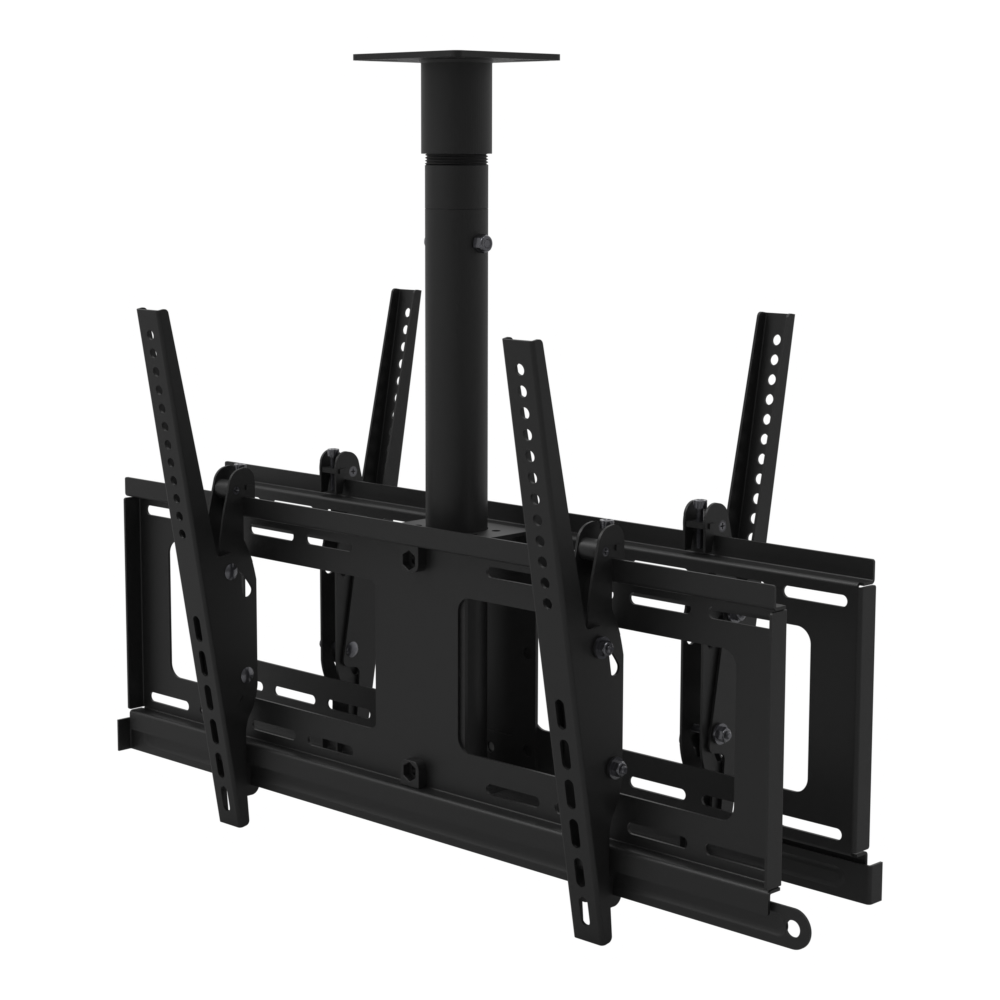

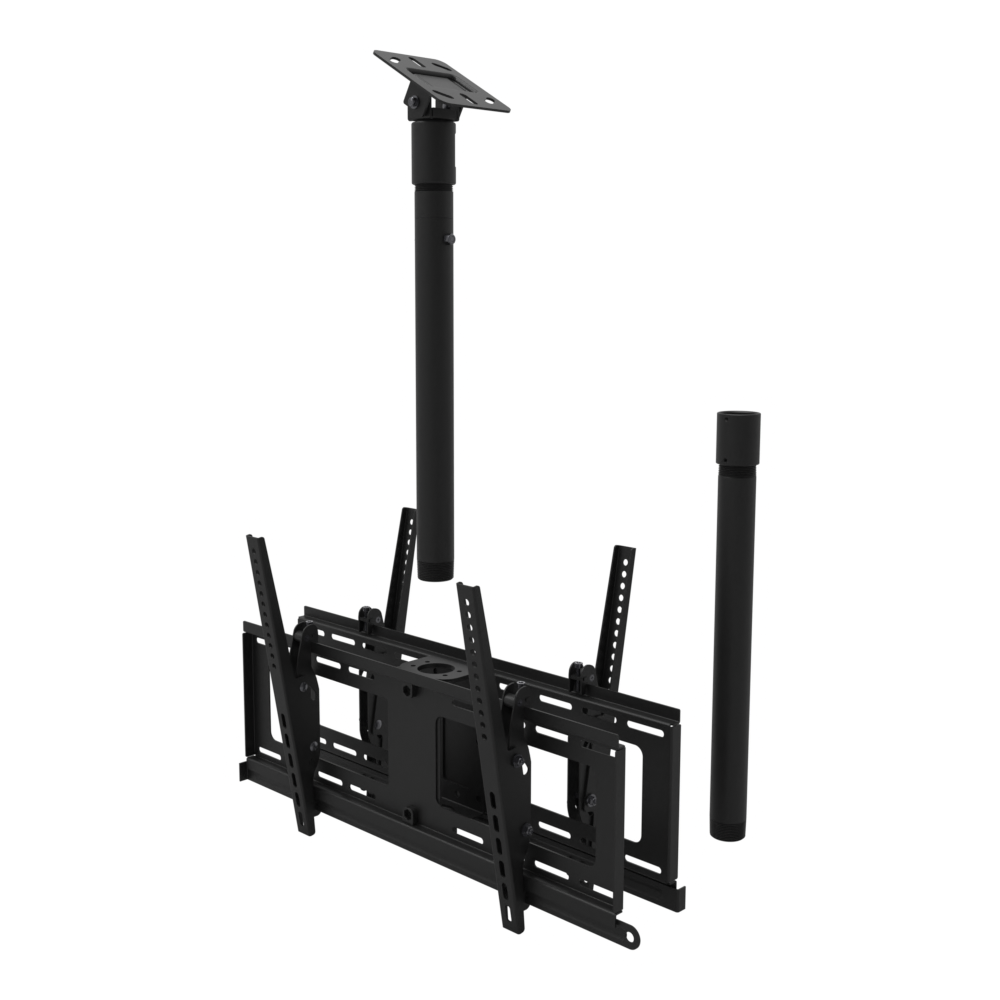

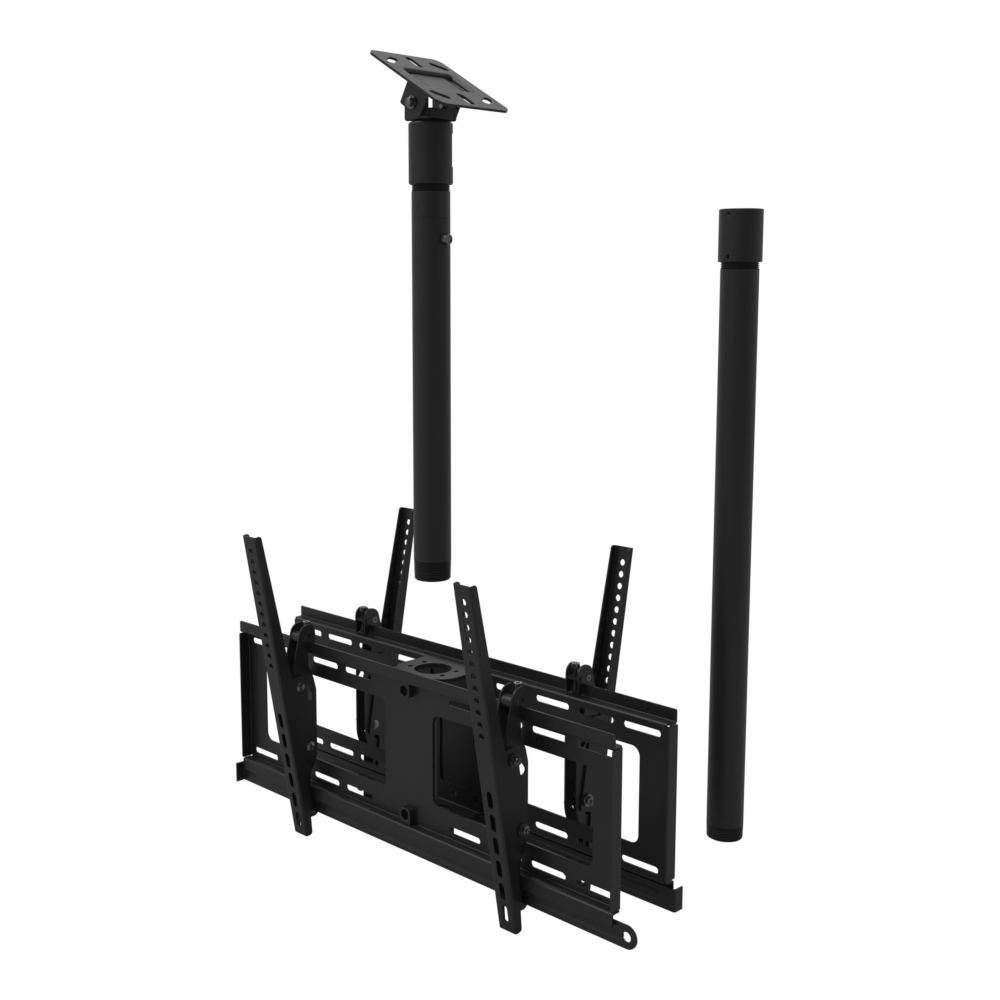

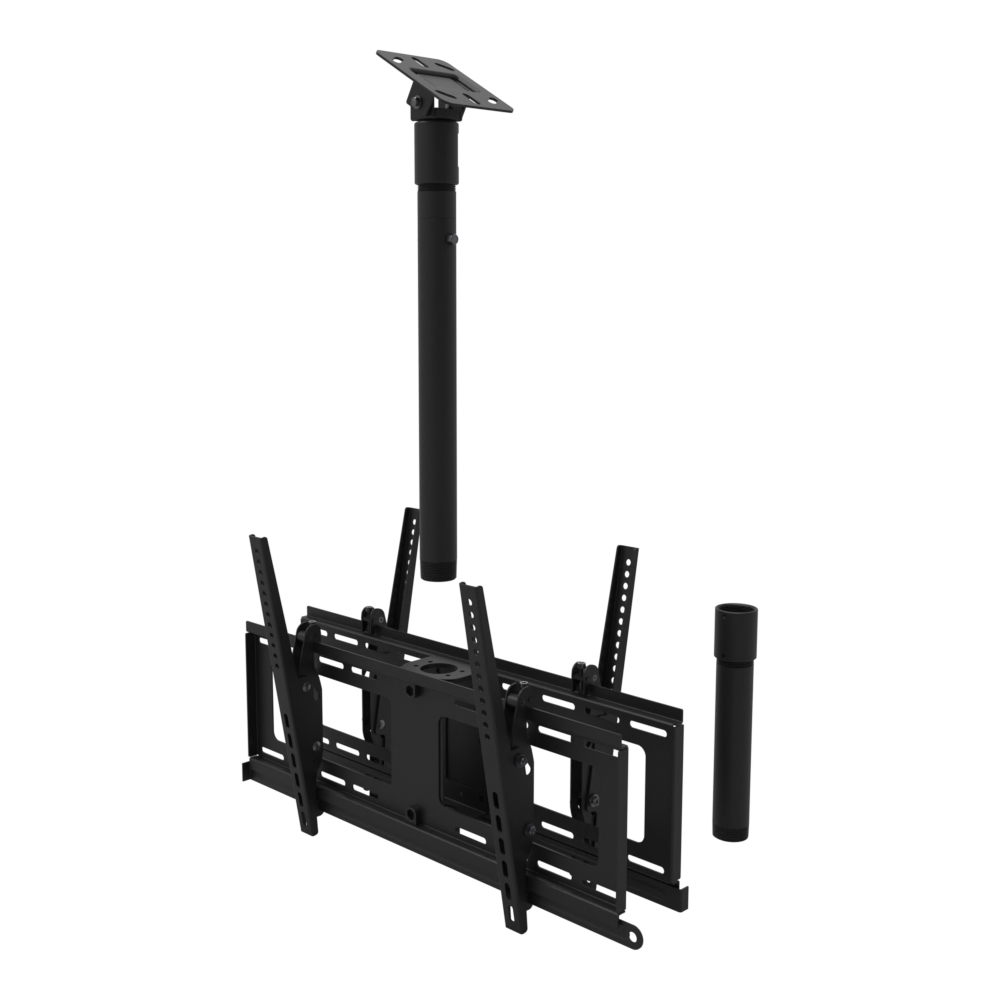

Back to Back TV Ceiling Mount for 32 to 86 inch, Tilt, Rotate, Customizable Length

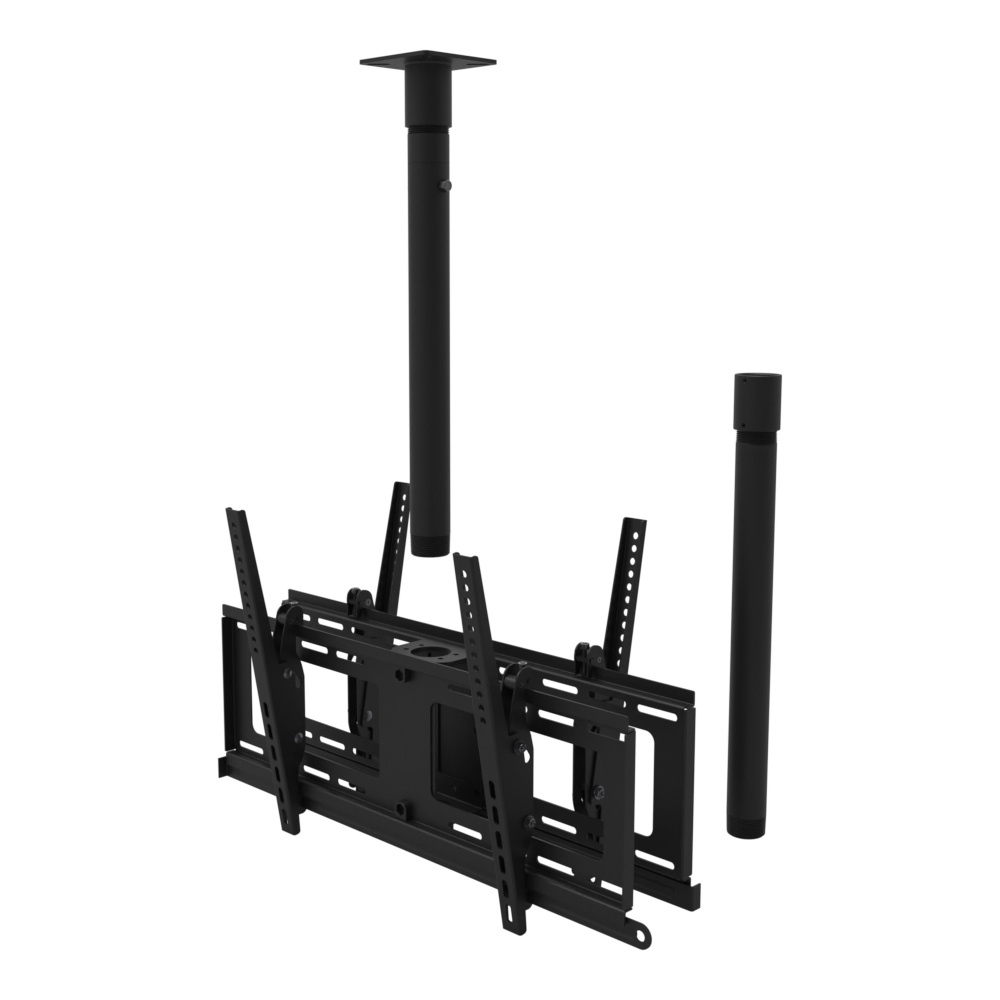

Flat Ceiling Recommended
Welded steel, made in USA, with a large pass-through hole on top so cables route cleanly.
Ceiling Plate for 1 1/2 Inch Pipe →

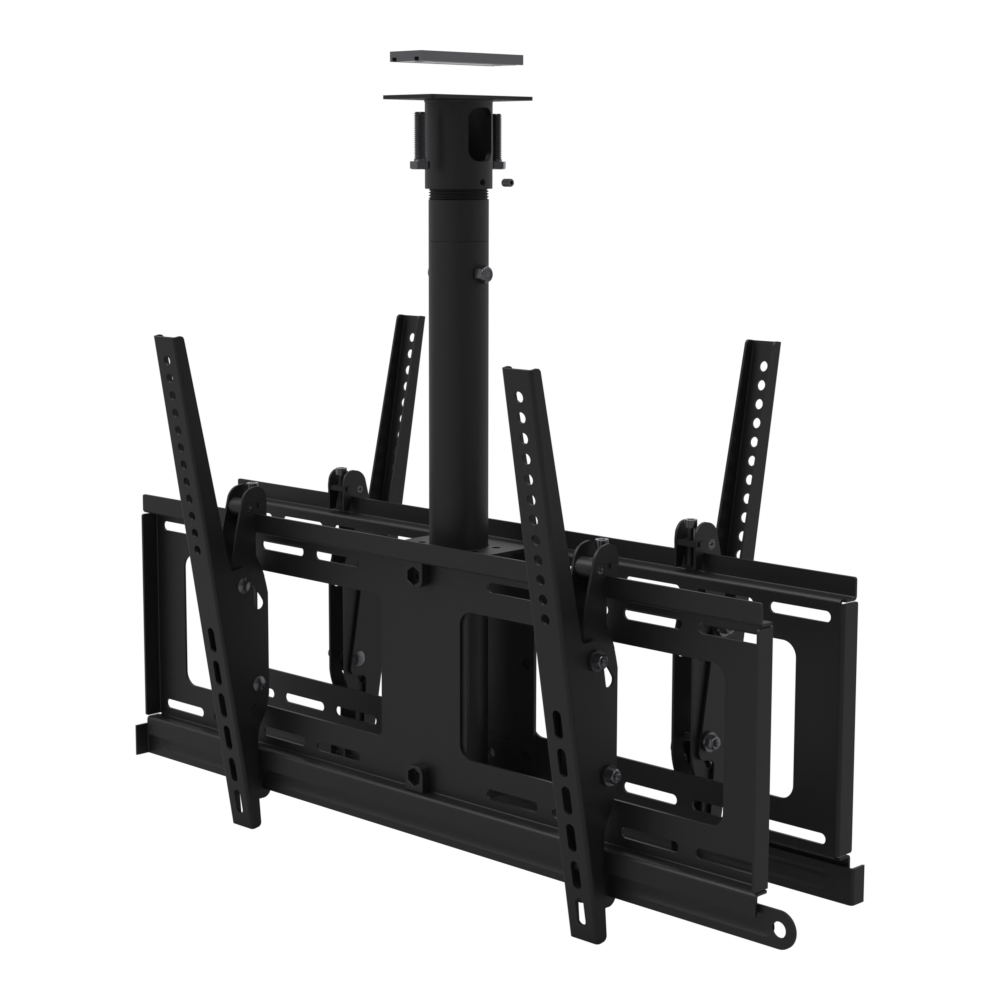

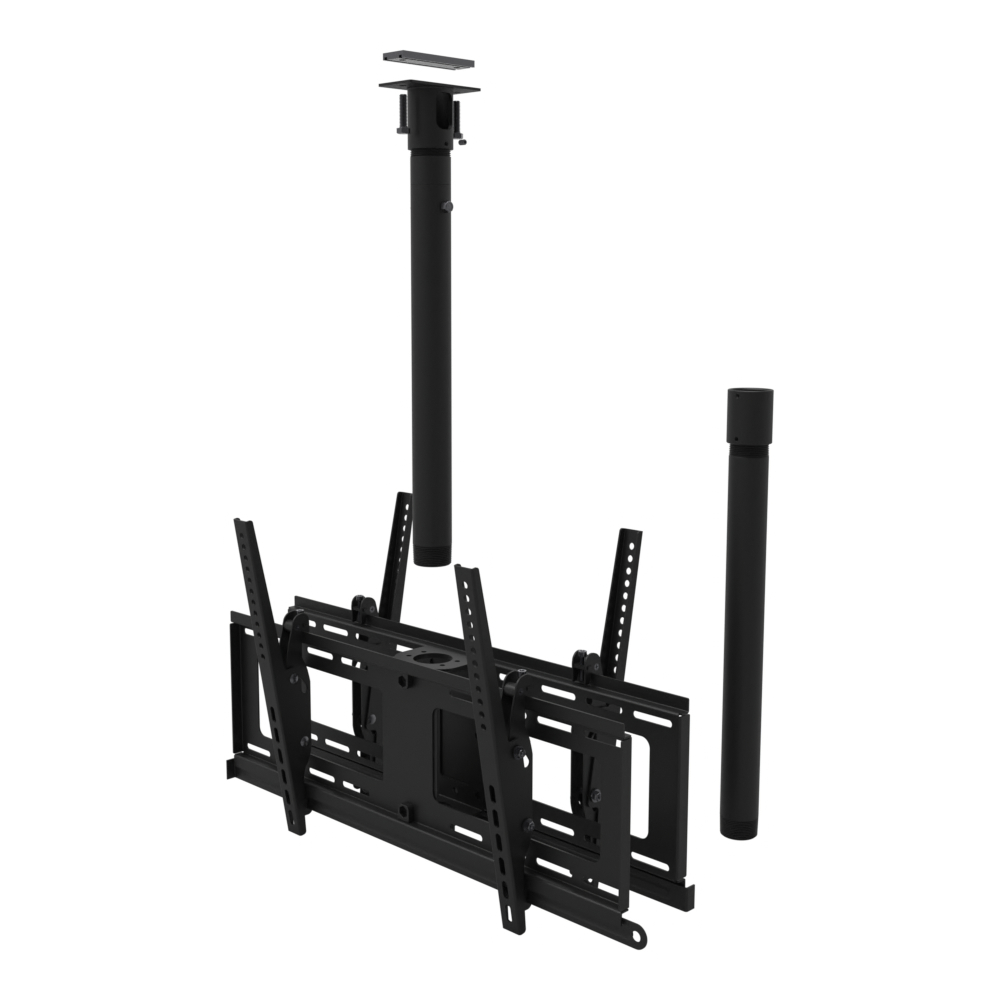

Unistrut

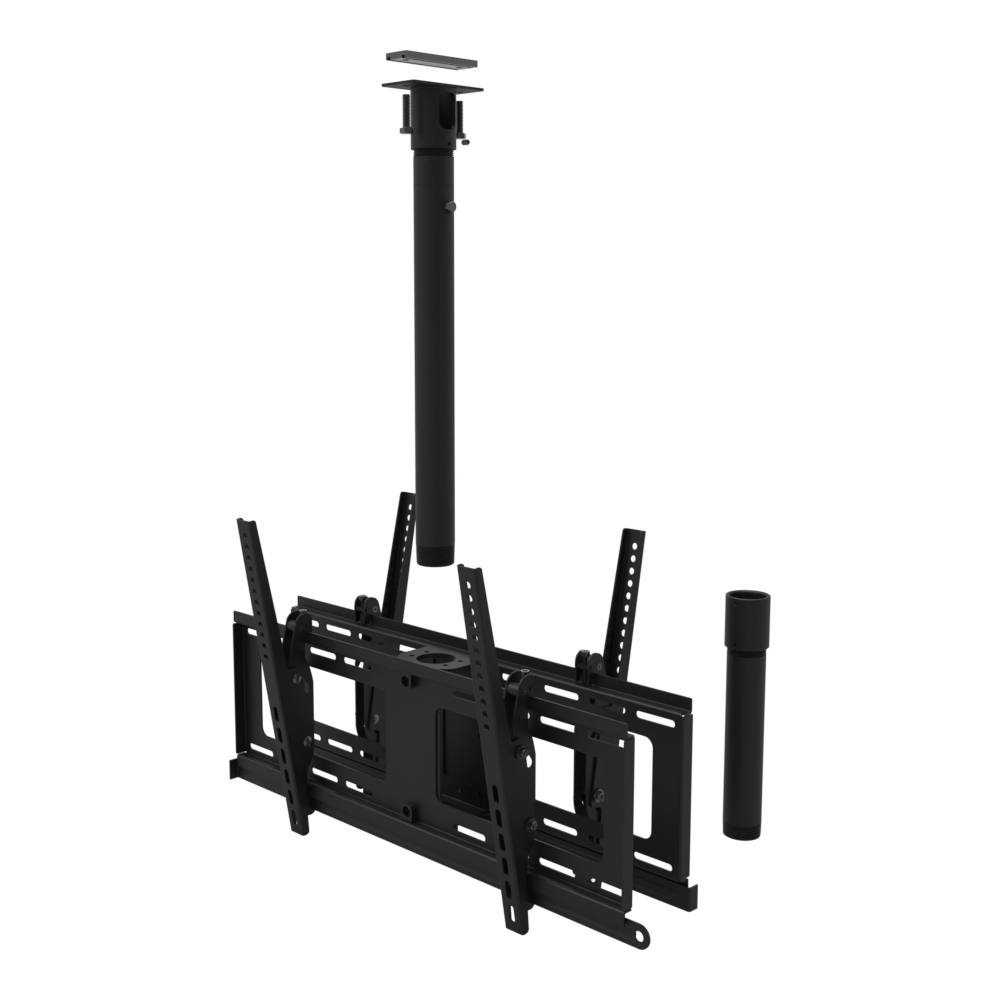

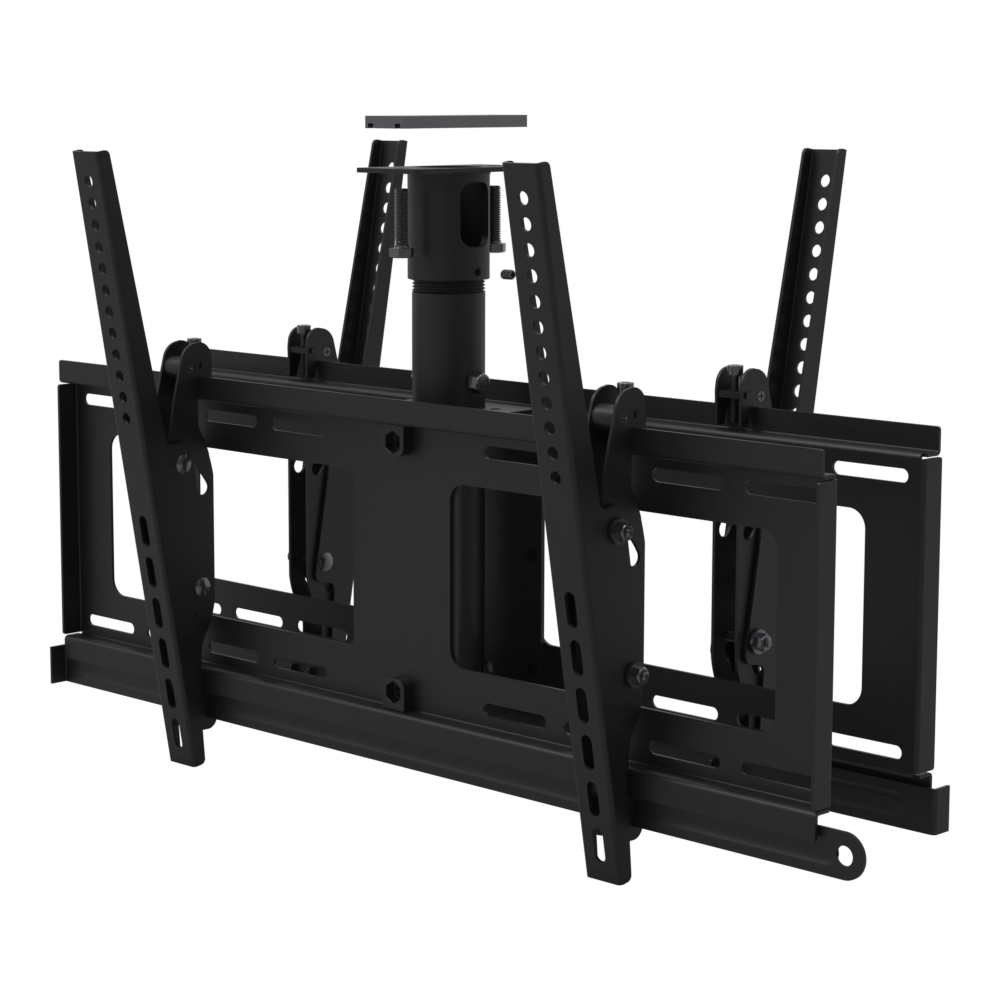

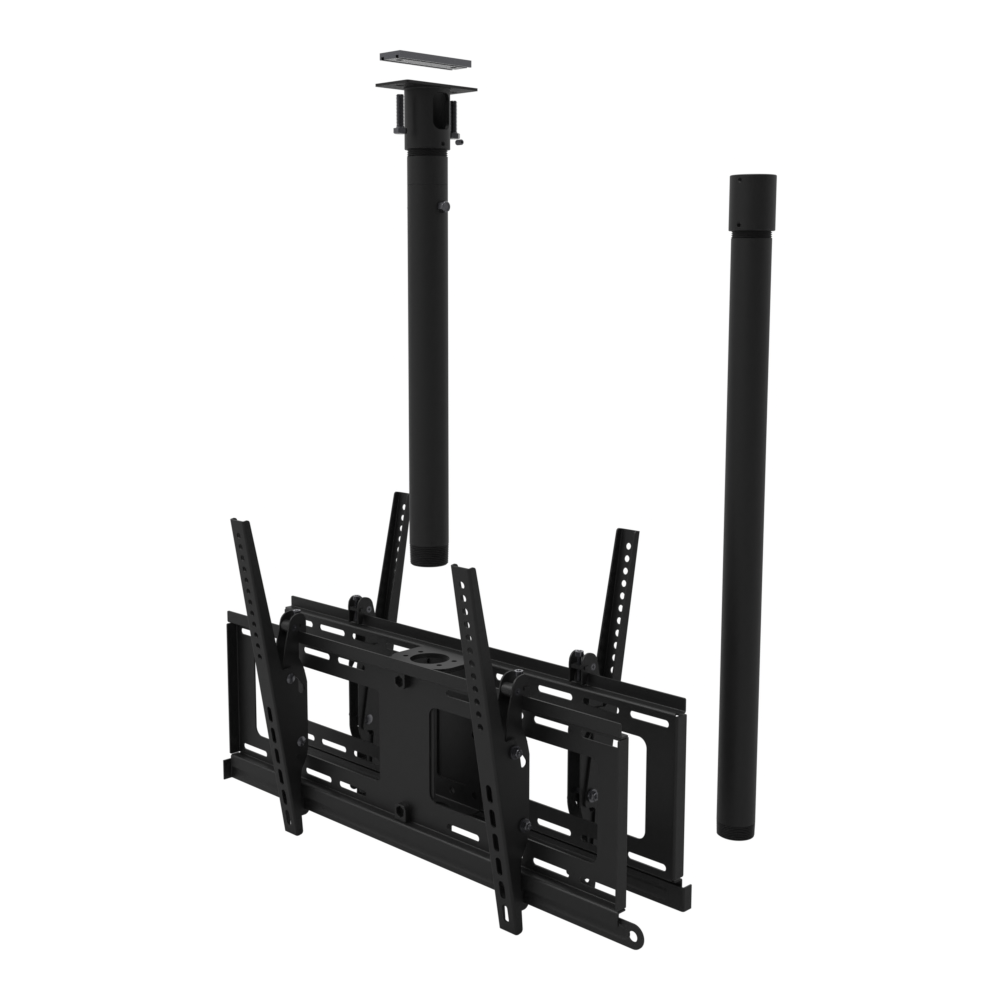

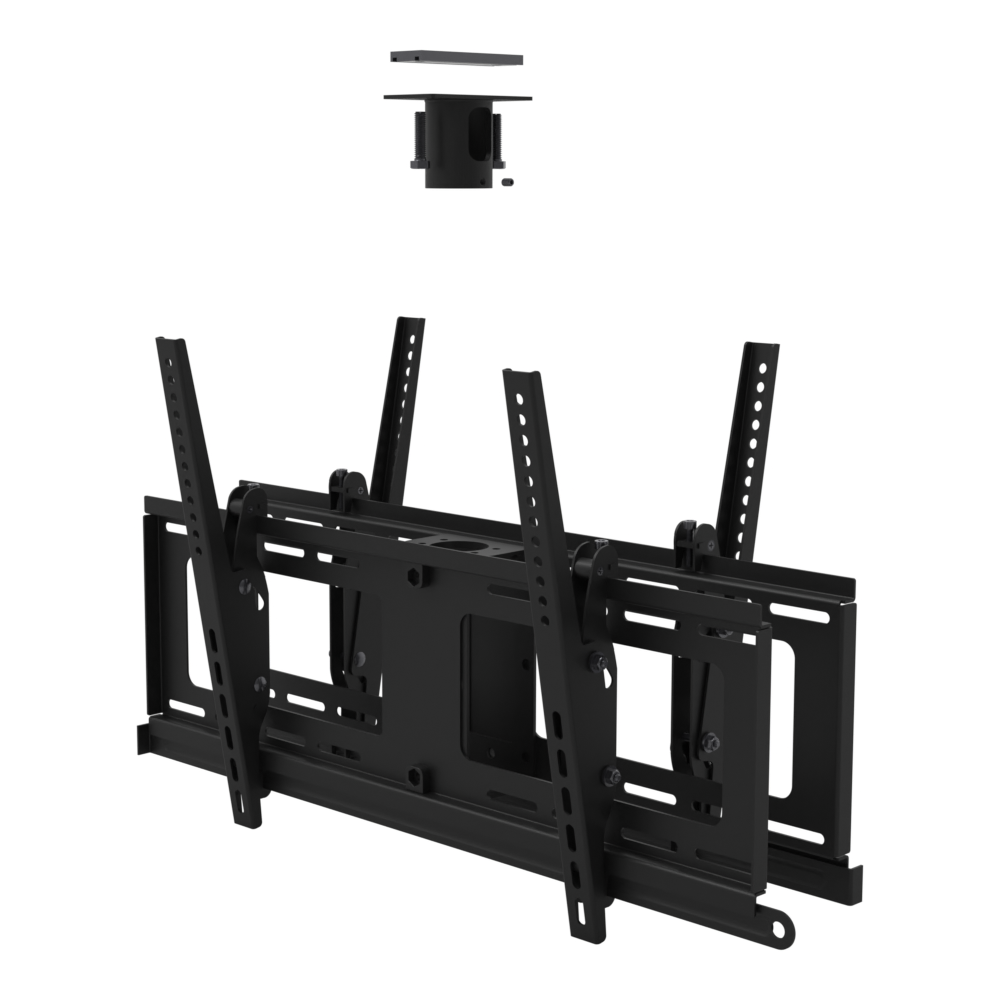

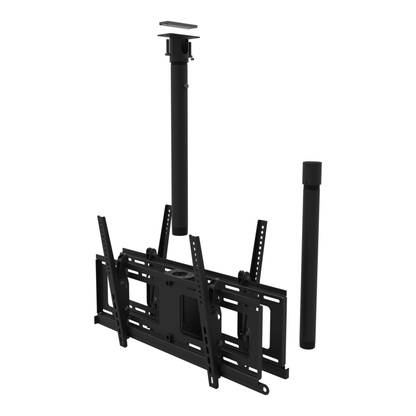

Mounts to Unistrut - the U-shaped metal channel commonly used in construction.
Unistrut Adapter for 1 1/2 Inch NPT Pipe →

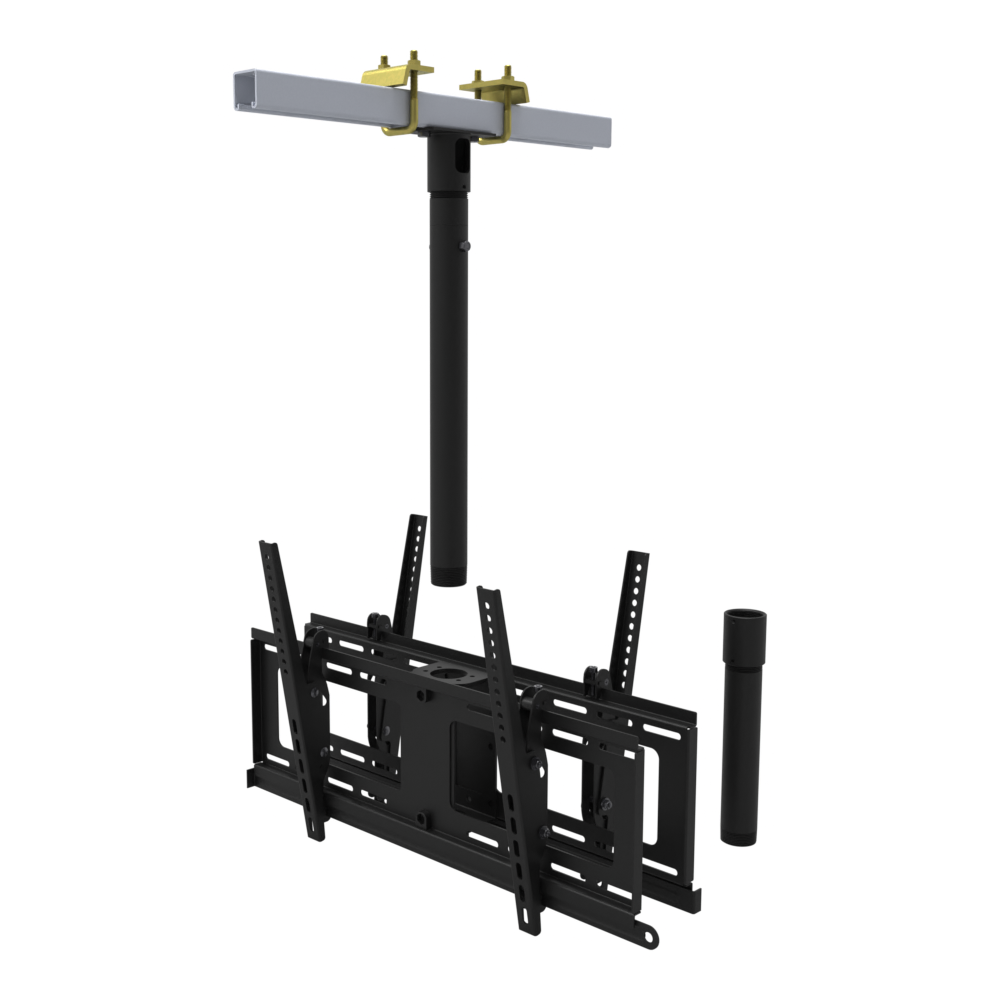

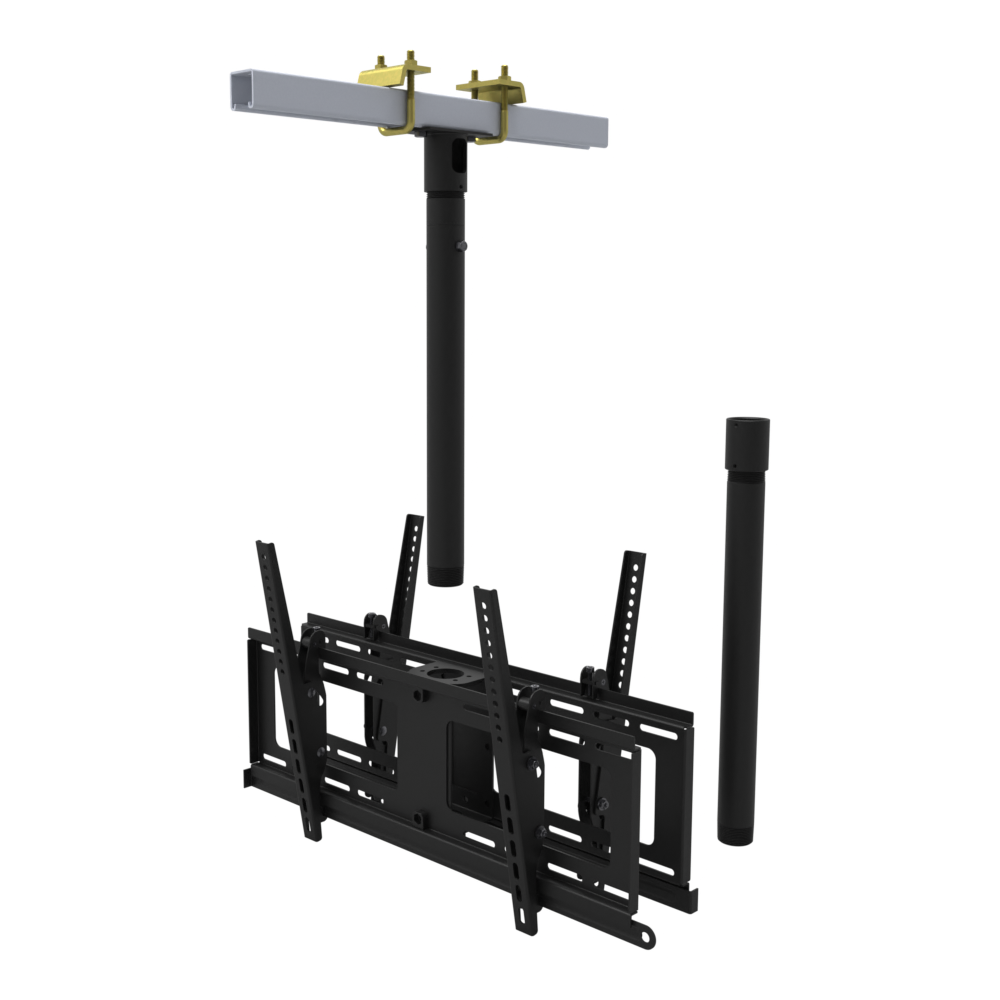

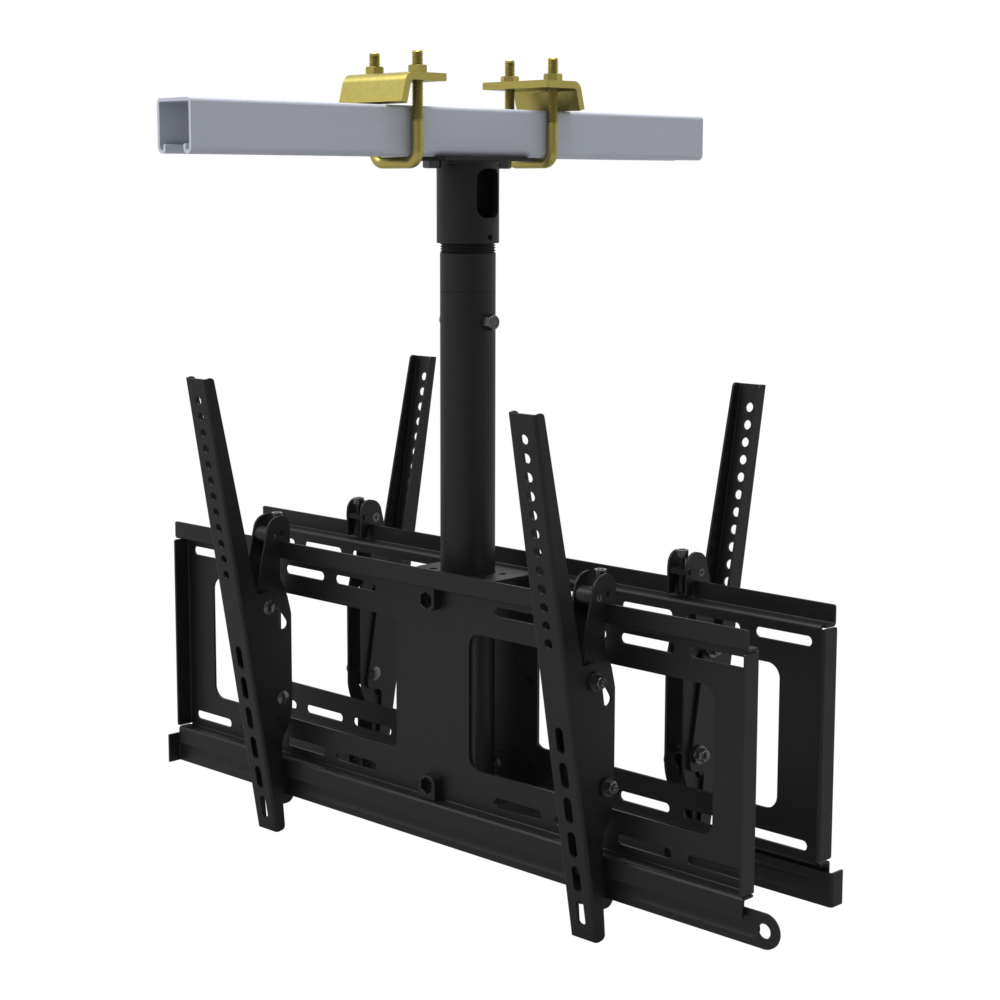

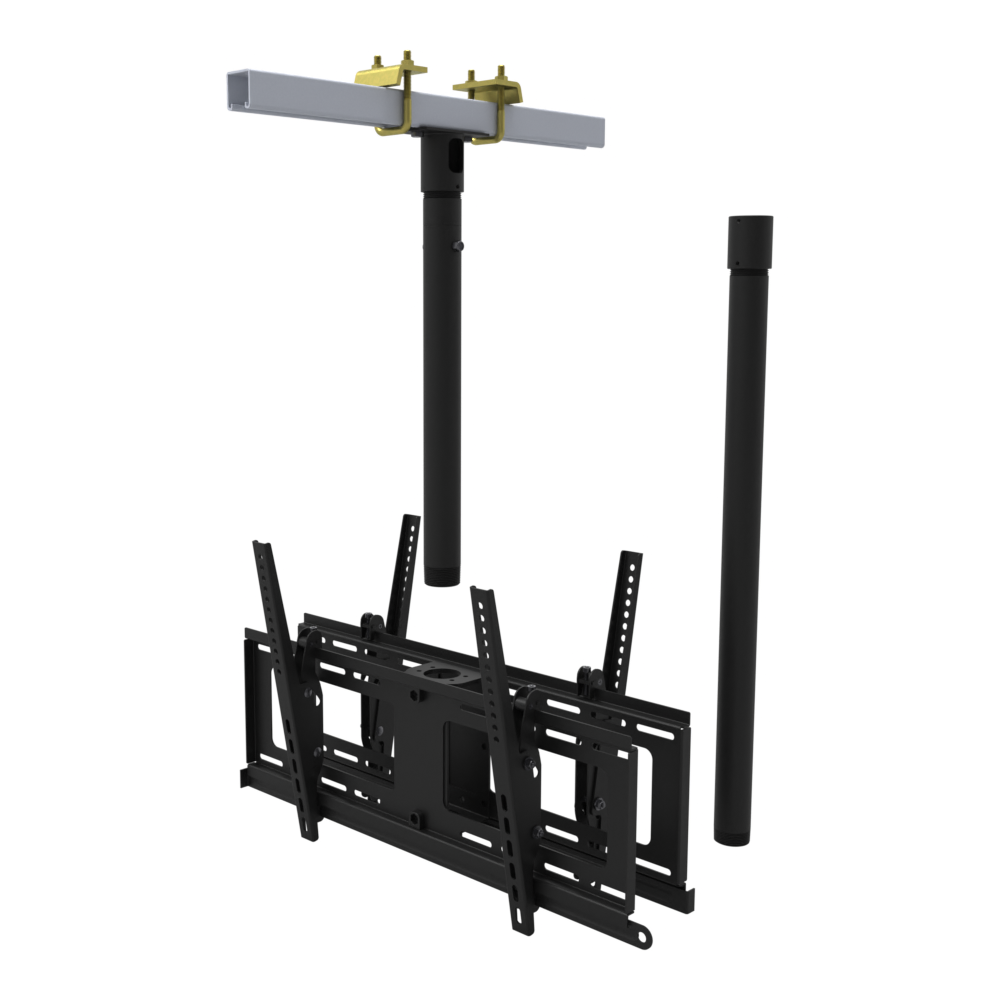

Beam Clamp

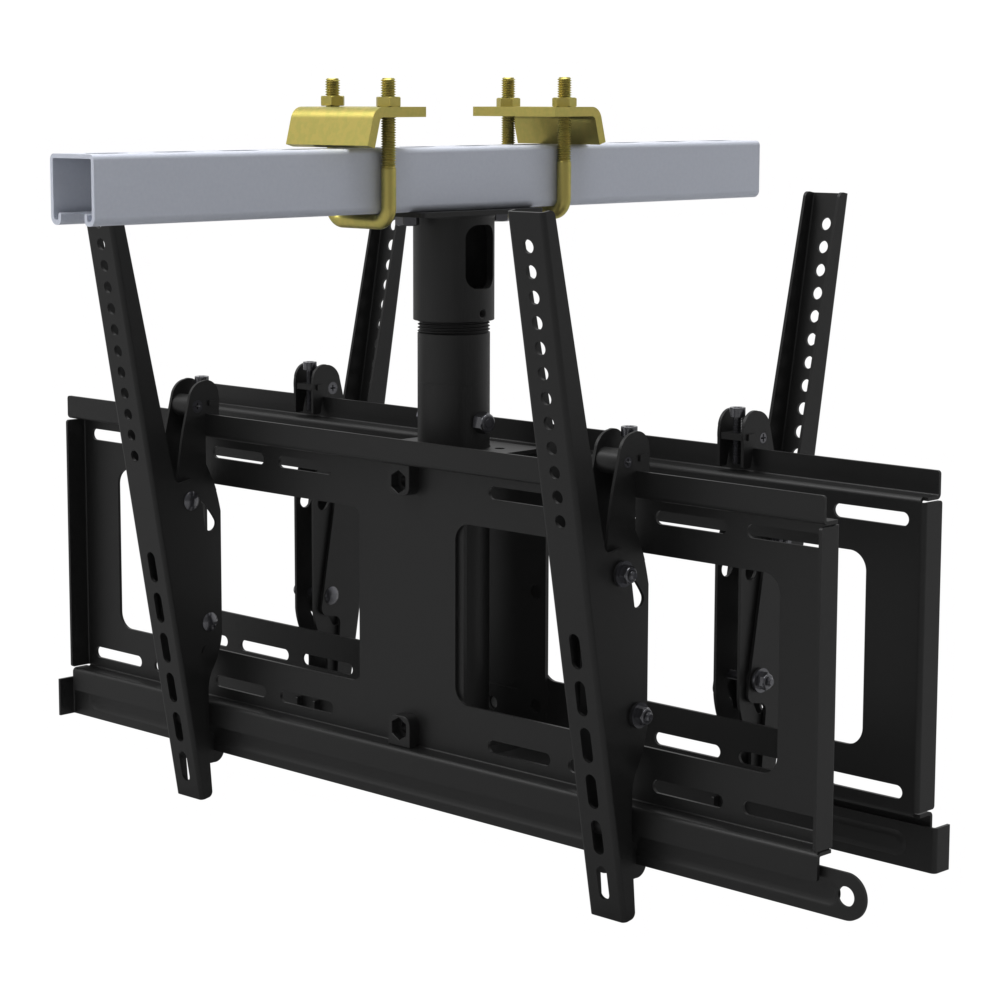

Clamps to an exposed beam - includes two beam clamps, an 18 inch strut, and the Unistrut adapter. Fits beams 2.5 to 14.5 inches wide.
Beam Clamp for 1-1/2 Inch Pipe →17 to 33 Inches Recommended

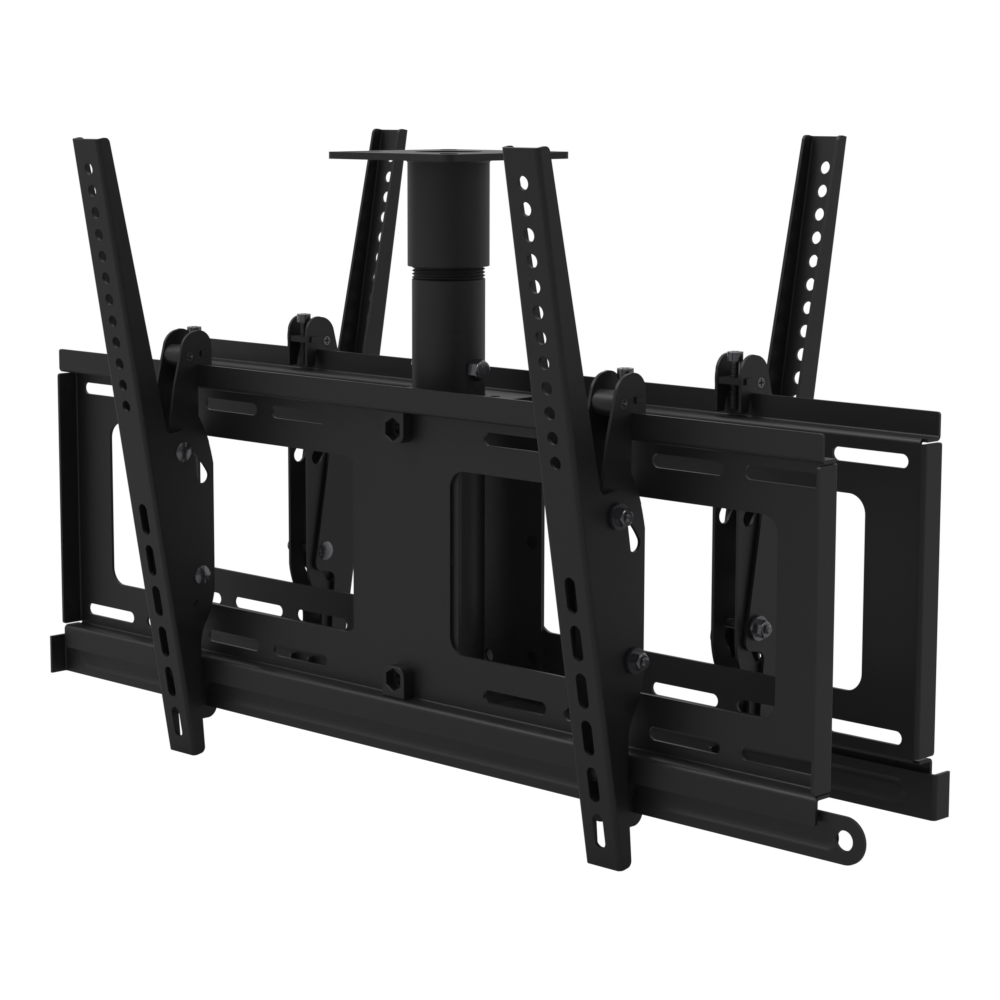

9 to 17 Inches

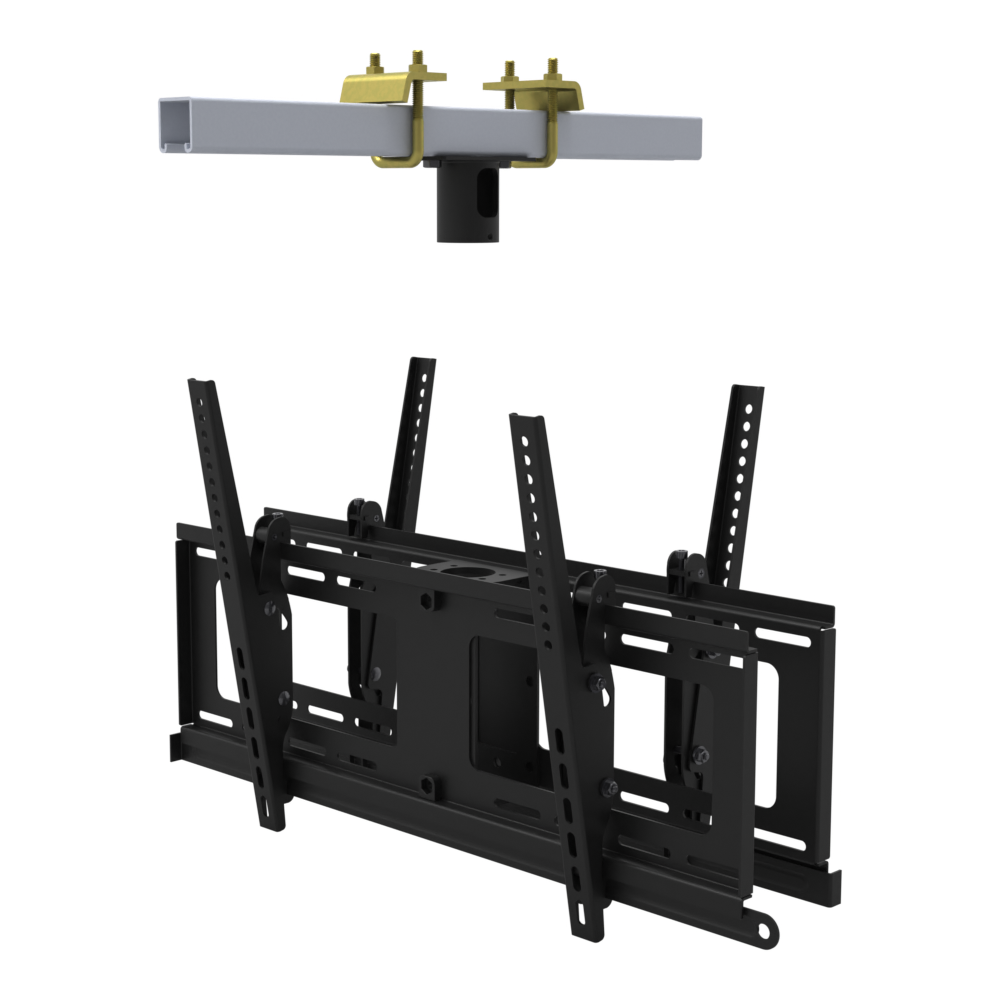

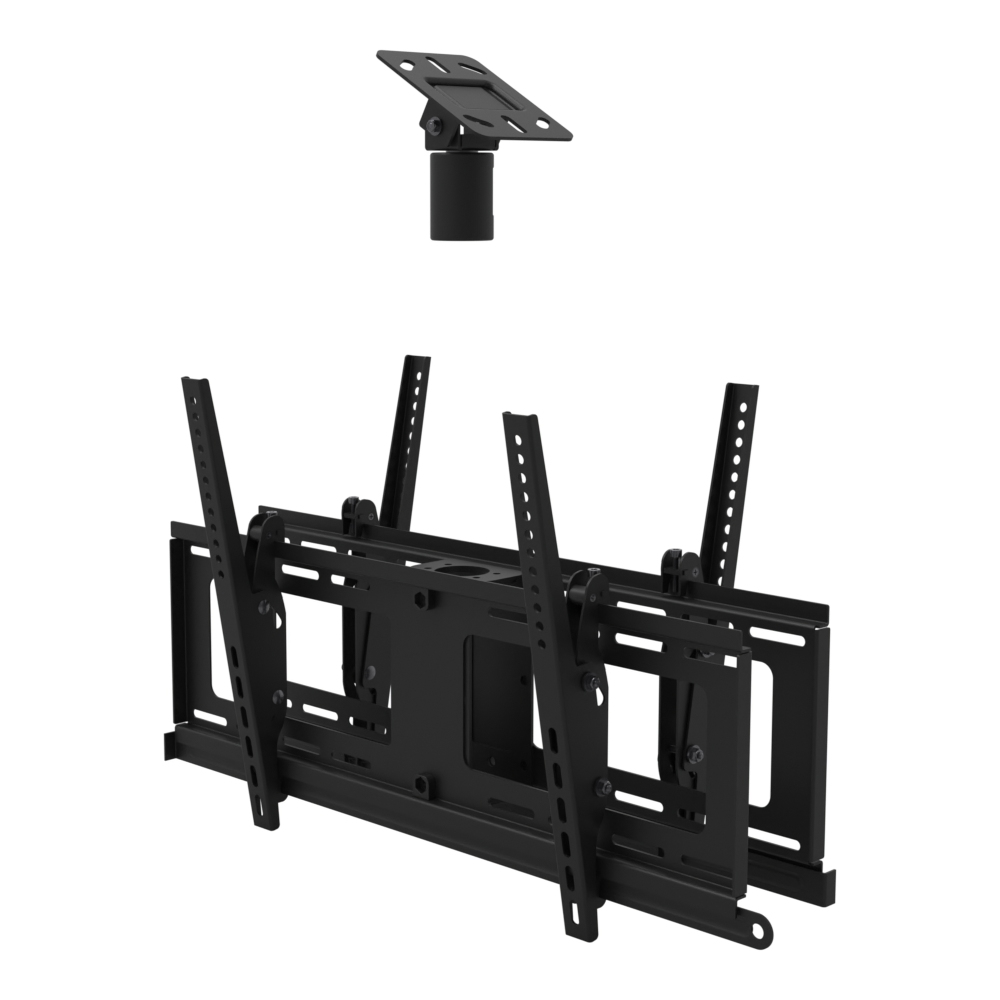

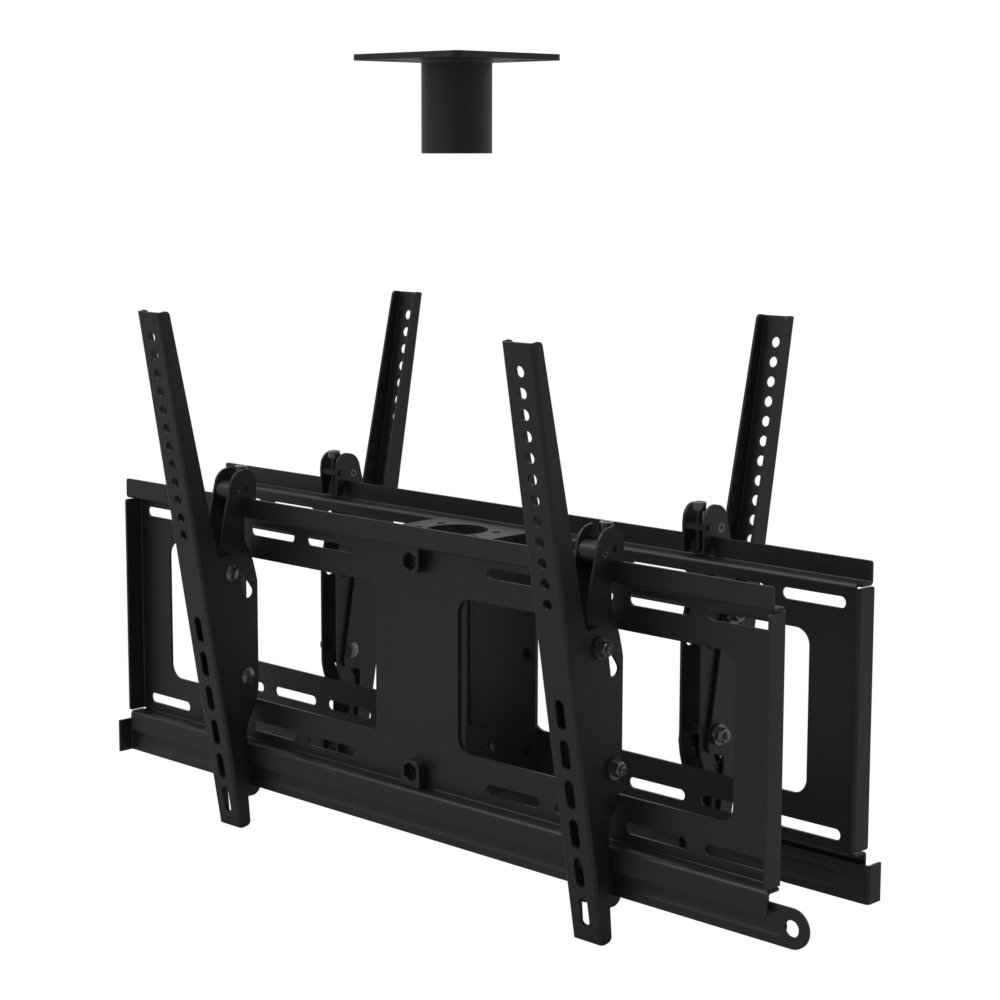

No Mast Heads up
This option is not a complete mount, you will still need a mast or extension to connect the mount to the ceiling plate. On this mount the pipe runs past the middle of the screen, so the mount and plate actually subtract about 2 inches, and the mast or extension you supply must be at least about 9 inches long to function.
Shop masts & extensions →Measure to the middle of your screen
Use a tape measure to measure from your ceiling/beam down to where you want the center of your screen, that's your length.
We use center instead of top/bottom because TV height varies based on screen size, but the center never changes.
Full article about measuring and determining final TV locationTap anywhere to close
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

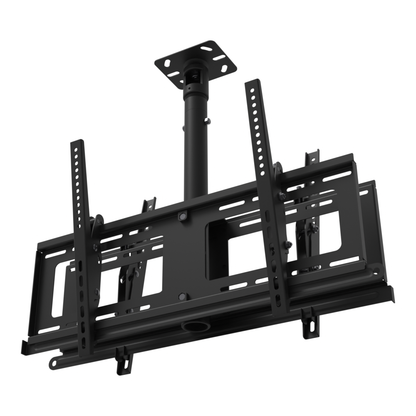

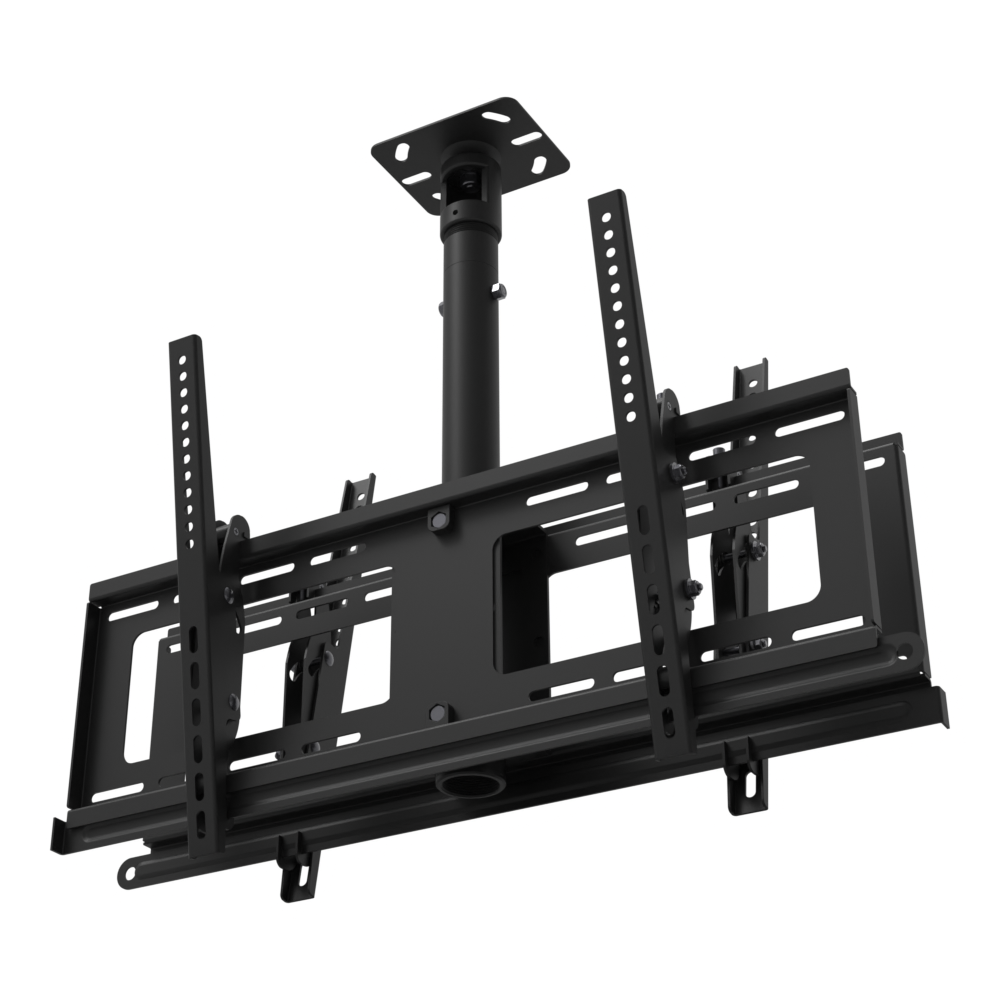

Hang two TVs back-to-back from one ceiling drop: 32 to 86 inch screens, 300 lb combined capacity, with your choice of ceiling plate and drop length.
- Holds two screens, 32 to 86 inches, up to 300 lb total
- Fits VESA patterns up to 600 x 400
- Rails cover hole spacing from 50 to 700 mm wide and 75 to 400 mm high

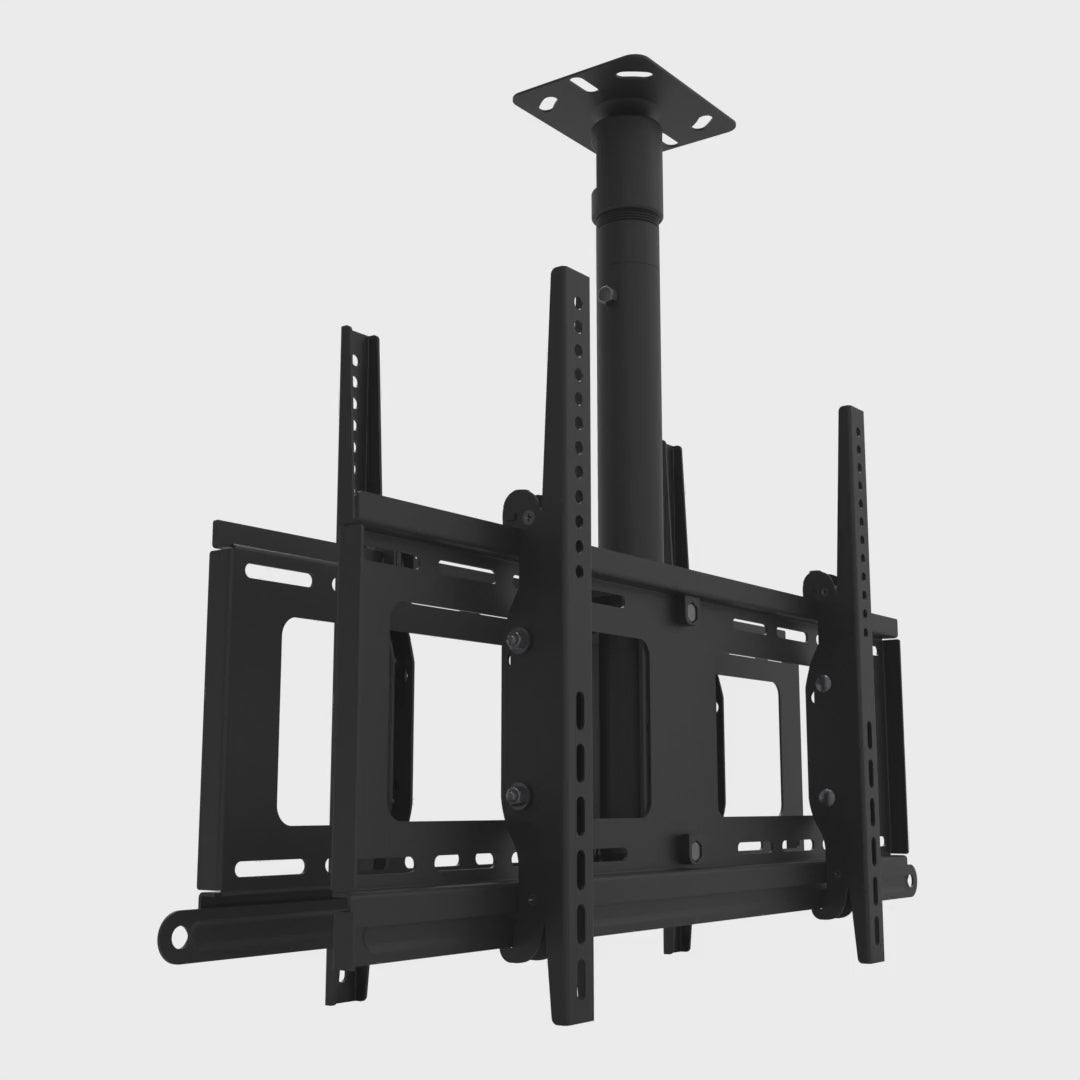

- Each screen tilts 10° down and 5° up

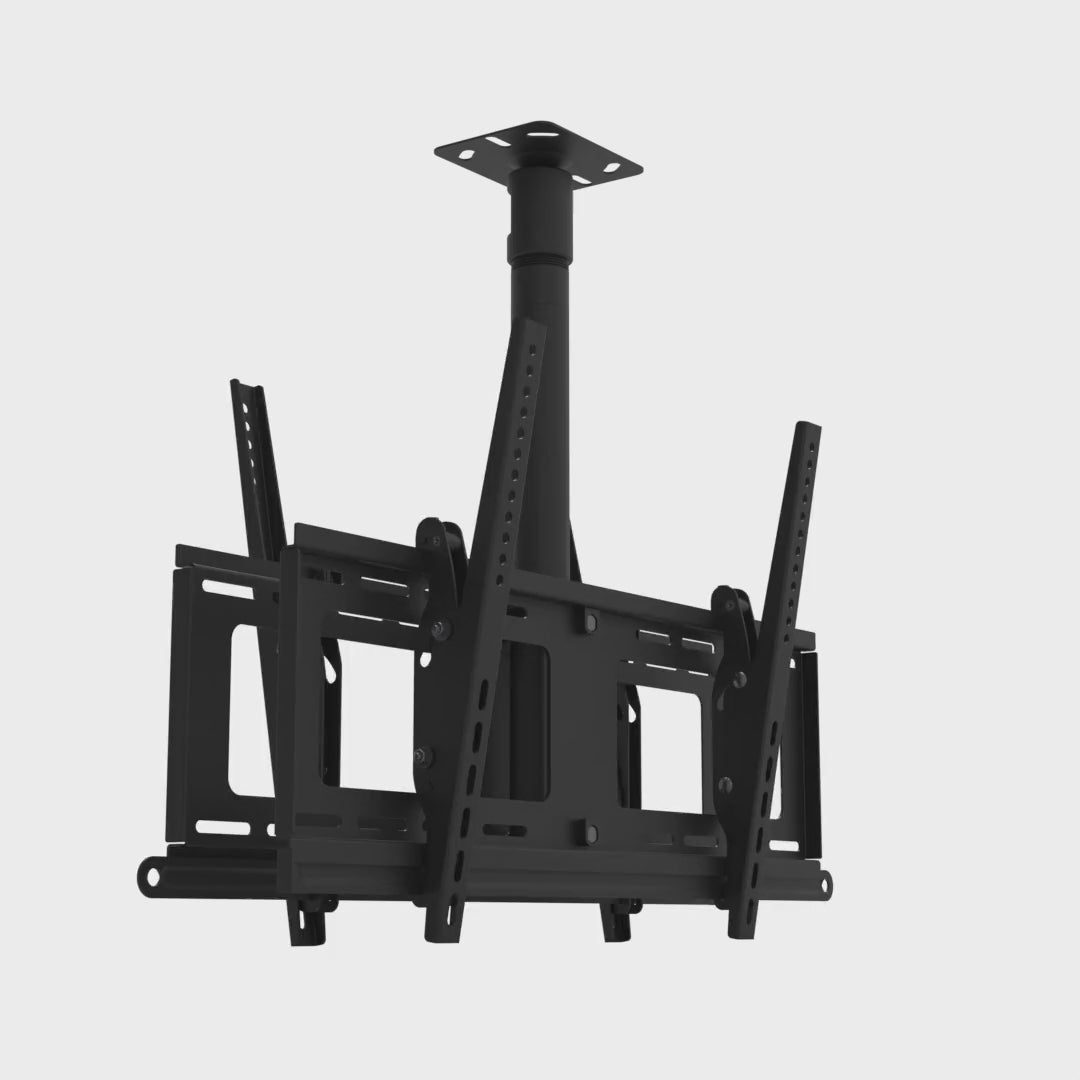

- Easily rotates 360°
- Constructed of heavy-gauge metal
- Uses the 1-1/2 inch NPT pipe system for the mast
- Excellent cable management: cables enter the bottom of the mast and exit through the side or top of the ceiling plate
Will it fit your TV? Screen sizes are a guideline to get you close to the right mount. The real test is the mounting pattern and the weight: if your TV's mounting holes fit this mount and the TV weighs less than the rated capacity, it will work, even if the screen is larger than the listed range.
Applications: with two televisions mounted back to back, two different groups can watch different programs at the same time, ideal in a sports bar or restaurant where multiple games or events run simultaneously.

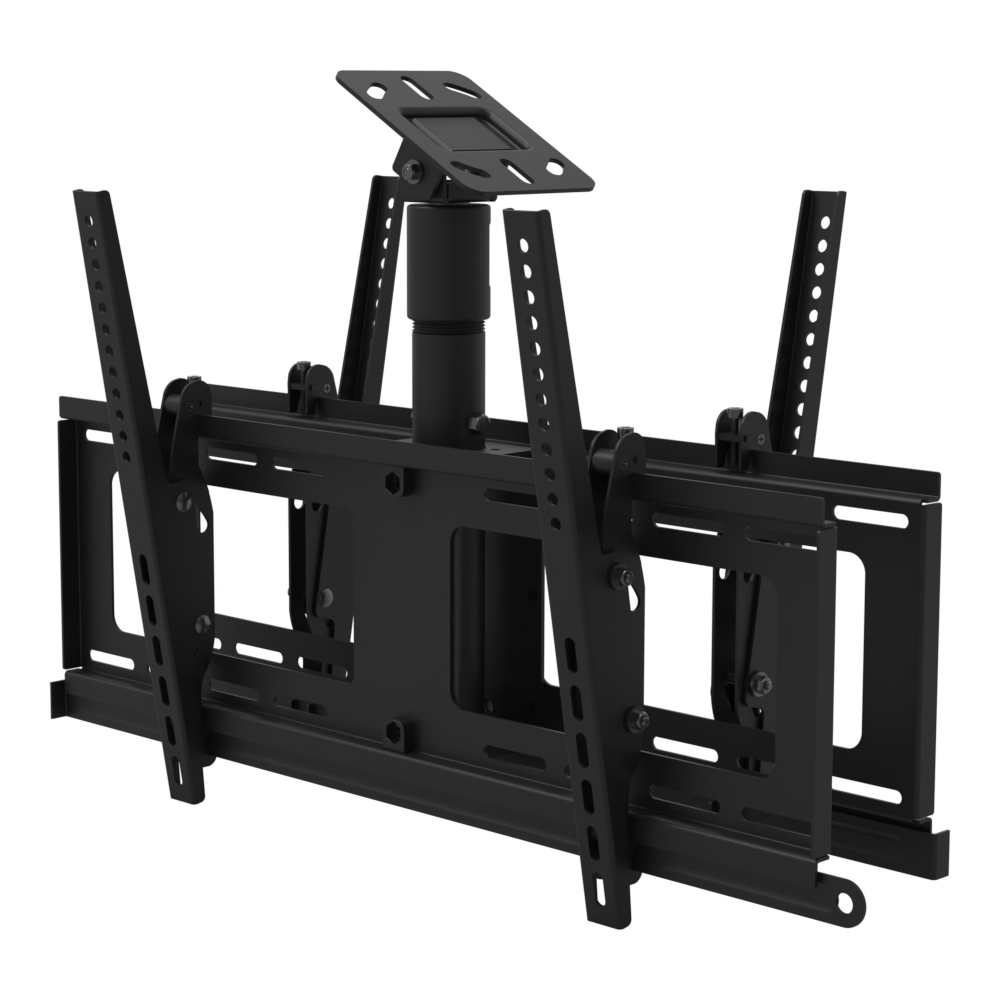

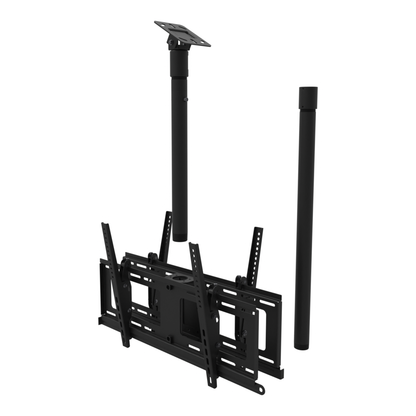

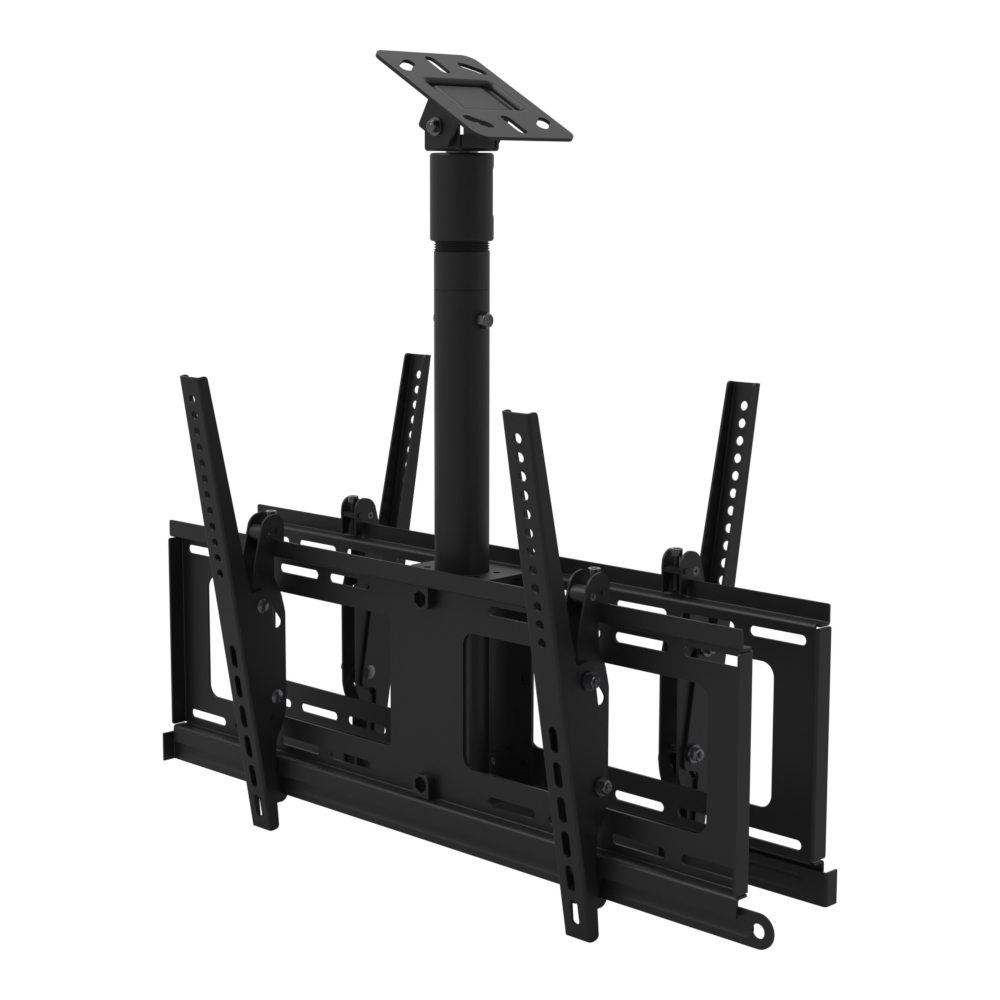

Built to order: choose the ceiling plate that matches your ceiling (flat, angled/cathedral, Unistrut, heavy-duty, or a beam clamp for exposed I-beams) and the total drop you need using the options above. Need a longer drop than the listed lengths? The 1-1/2 inch NPT pipe system extends to virtually any ceiling height: add an extension, call 800-585-8795, or send us a message and we'll spec it for you.
Explore the full 1-1/2 inch NPT ceiling system: ceiling mounts | ceiling plates | mount heads | extension pipes
This back to back ceiling mount is exactly like the 33CE008 single ceiling mount, with the additional components to hold a second screen back-to-back.
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~86" screen (16:9)
50-700 mm wide · 75-400 mm tall(2-27.6" wide · 3-15.7" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
