Swivel TV Mount for 32 to 75 inch Plasma/LCD/LED

SKU 33WA003

$139.95
$279.95 $139.95
Save $140.00 (50%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

1-800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

This incredibly strong and versatile mount extends 20.3 inches from the wall and fits 99% of TV's from 32 to 75 inches in size.

This mount provides a full range of motion for your flat screen. It will tilt the TV up or down 15°. It also allows you to swivel the TV from left to right. Extension up to 20.3 inches from the wall allows you to position the TV the best way possible for you installation.

Features:
  • Includes mounting hardware to attach TV and mount to wall.
  • Easy installation
  • Durable scratch resistant finish
  • Swivels up to 60° left or right
  • Locking mechanism prevents TV from unlatching from wall for added security
  • Built in bubble level for installation convenience

Product details

Screen size 32–75″
Max weight 150 lb · 68 kg
Tilt 15° up · 15° down

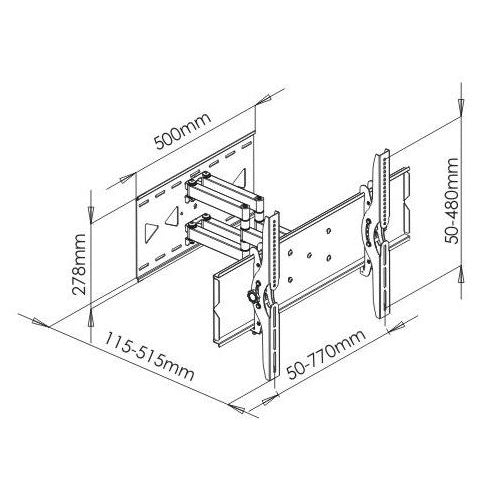

Mount distance 4.5–20.25″ from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline — any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we’ll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 50 to 770 mm wide and 50 to 480 mm tall, shown to scale on an approximately 75 inch 16:9 display.
50–480 mm 2–18.9″
50–770 mm 2–30.3″

shown to scale on a ≈75″ screen (16:9)

50–770 mm wide · 50–480 mm tall(2–30.3″ wide · 2–18.9″ tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range — not an exhaustive list.

Will my TV fit?

round to the nearest inch — close is fine, we’ll match it to the standard size

enter your TV’s spacing to check

How do I find my TV’s pattern?

Find the four threaded holes on the back of your TV and measure between them — left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV’s manual, or search “[your model] VESA pattern”.

Can’t find it or not sure? Call us at 1-800-585-8795 or email sales@videomountstore.com — we can usually look up your TV’s pattern faster than you can.
