• Tilting Wall Mount for 23" to 37" LCD's

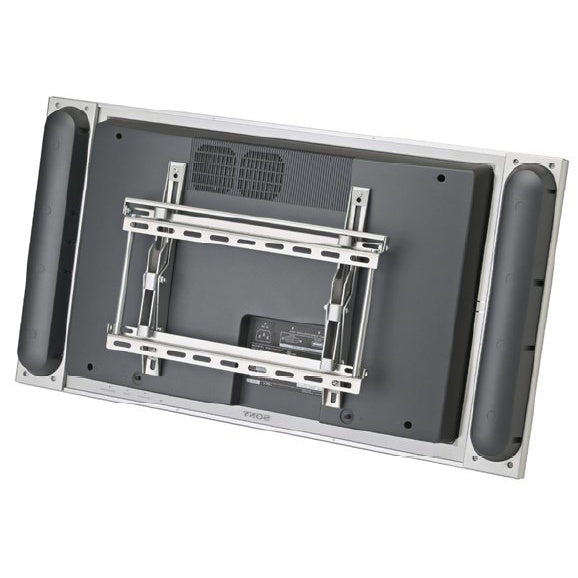

  • 37SB-T shown installed on the back of a Sony flat panel, its two horizontal tilt rails clamped to the VESA holes, angled view
1 2

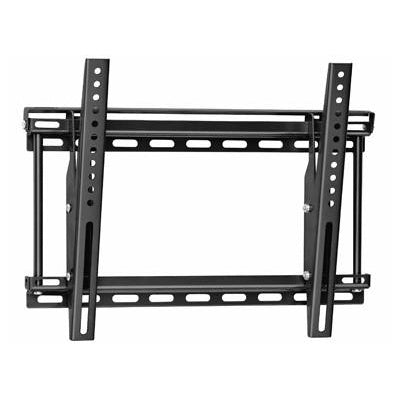

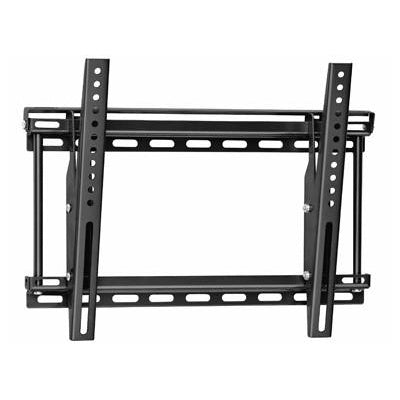

Tilting Wall Mount for 23" to 37" LCD's

SKU 37SB-T-SILVER

$79.95
$99.95 $79.95
Save $20.00 (20%)
1. Choose Color : Silver

Silver Recommended
Your Setup
Silver $79.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

  • Fast & easy install low profile fixed mount with Lift-and-Lock installation
  • Tilt (+15° to -5°) and sliding lateral on-wall adjusment
  • Mounts to any stud separation up to 17" (432mm)
  • Includes complete security mounting hardware kit
  • VESA Mounting Standards:
    • 75 x 75 mm
    • 100 x 100 mm
    • 100 x 200 mm
    • 200 x 200 mm
    • To a maximum of 393.7 mm Wide and 342.9 High
  • Available in Silver
  • 80 lb. (36.3 kg) maximum weight capacity

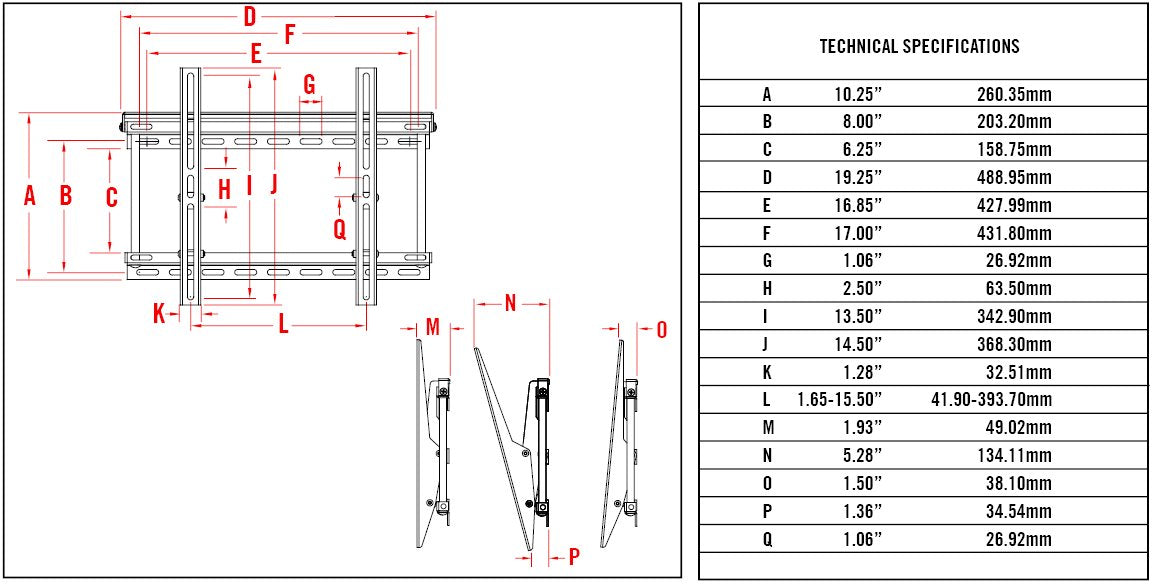

Product details

Screen size 23-37"
Max weight 80 lb · 36 kg
Tilt 5° up · 15° down
Mount distance 1.93" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 41.9 to 393.7 mm wide and 63.5 to 342 mm tall, shown to scale on an approximately 37 inch 16:9 display.
63.5-342 mm 2.5-13.5"
41.9-393.7 mm 1.6-15.5"

shown to scale on a ~37" screen (16:9)

41.9-393.7 mm wide · 63.5-342 mm tall(1.6-15.5" wide · 2.5-13.5" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details
