TV Ceiling Mount Head with 90 Degree Tilt for Dental Operatory
SKU DD-HEAD
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

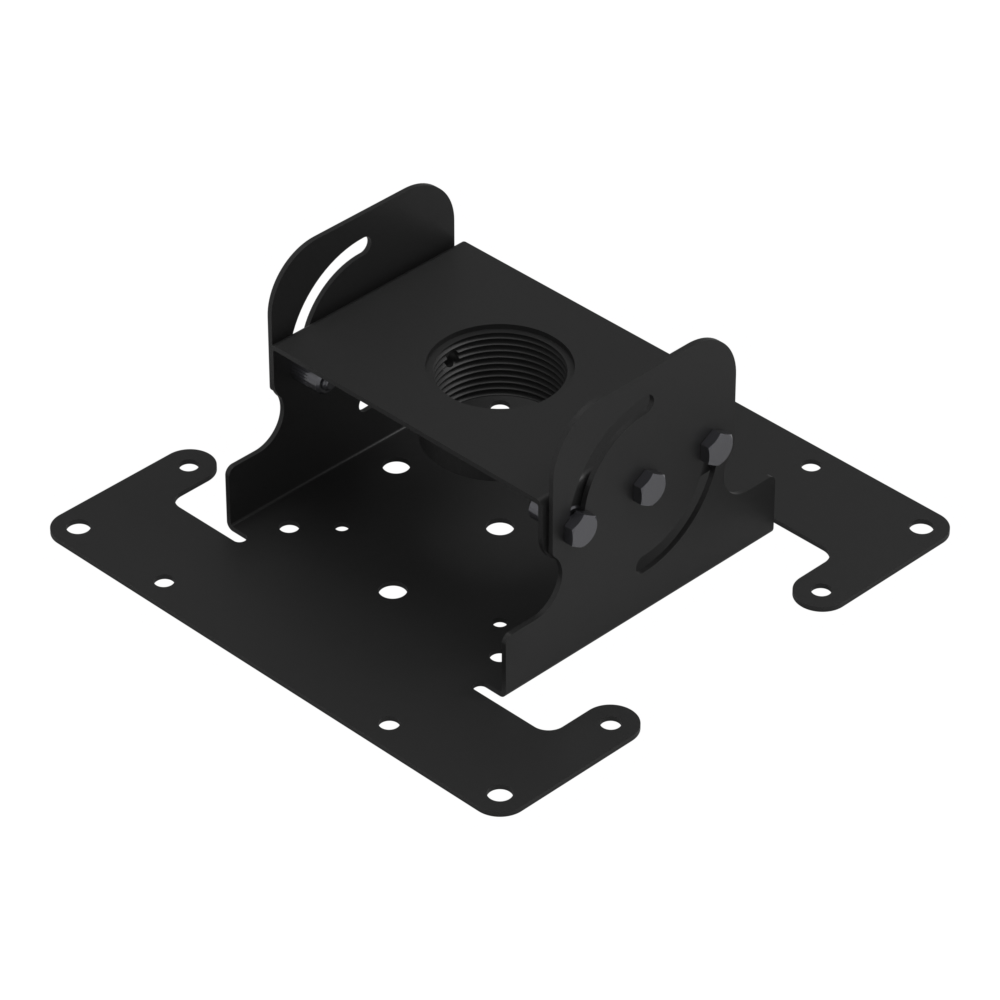

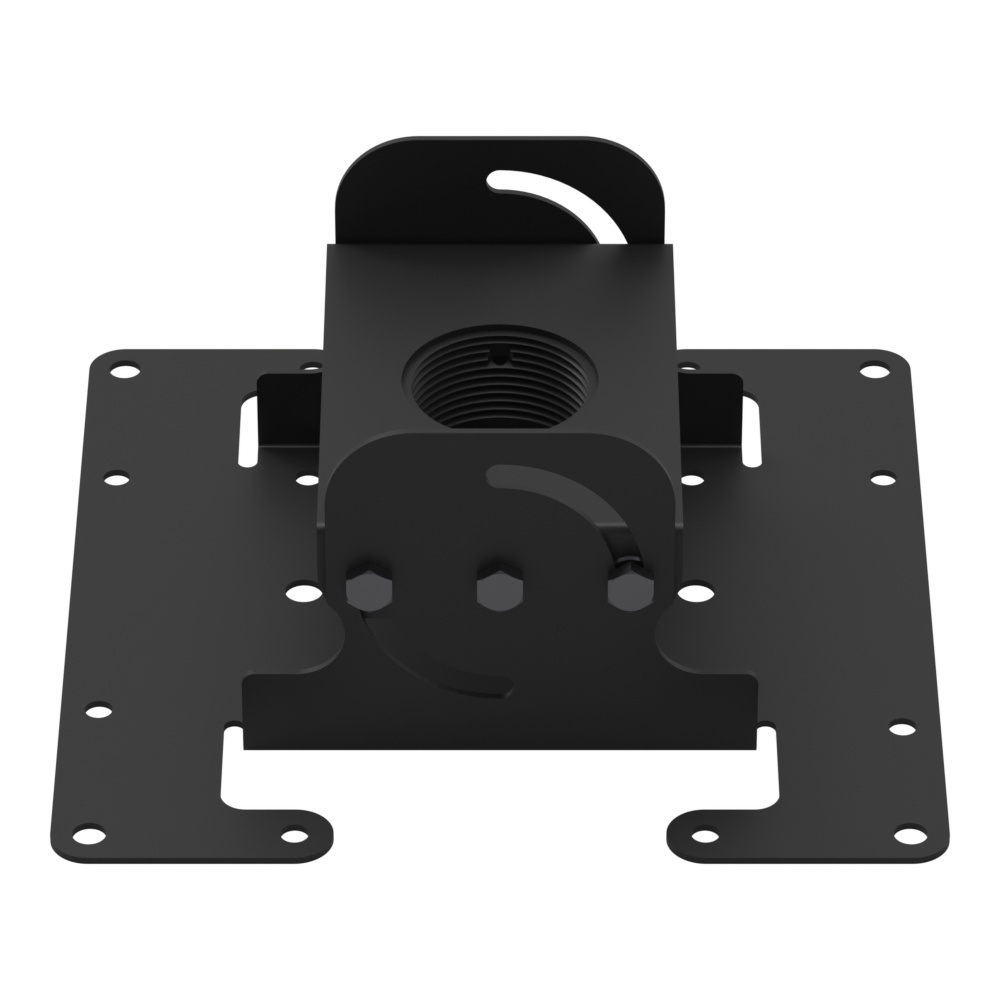

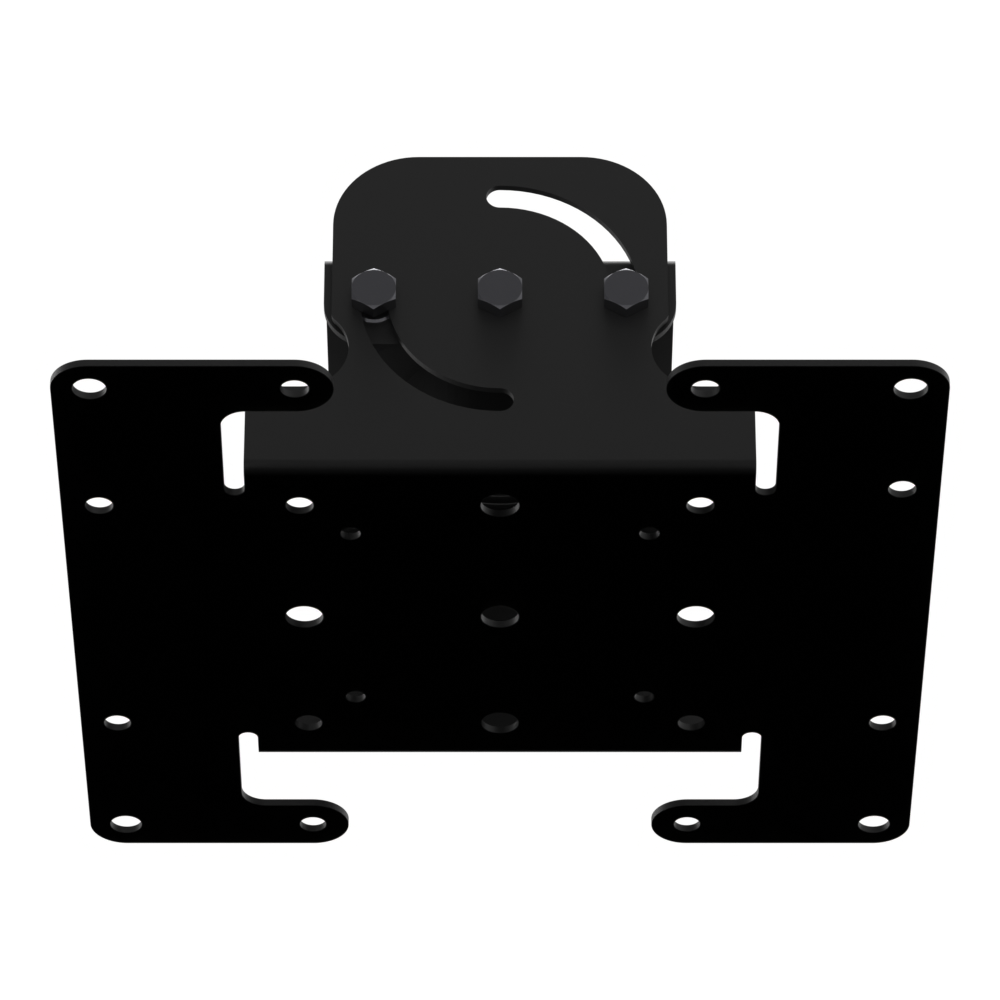

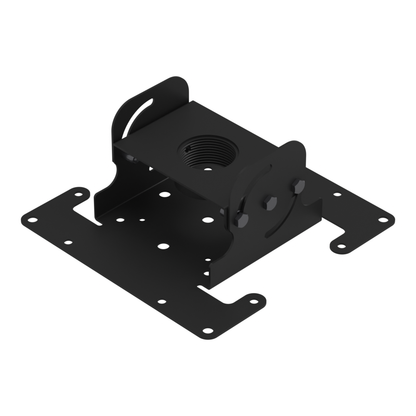

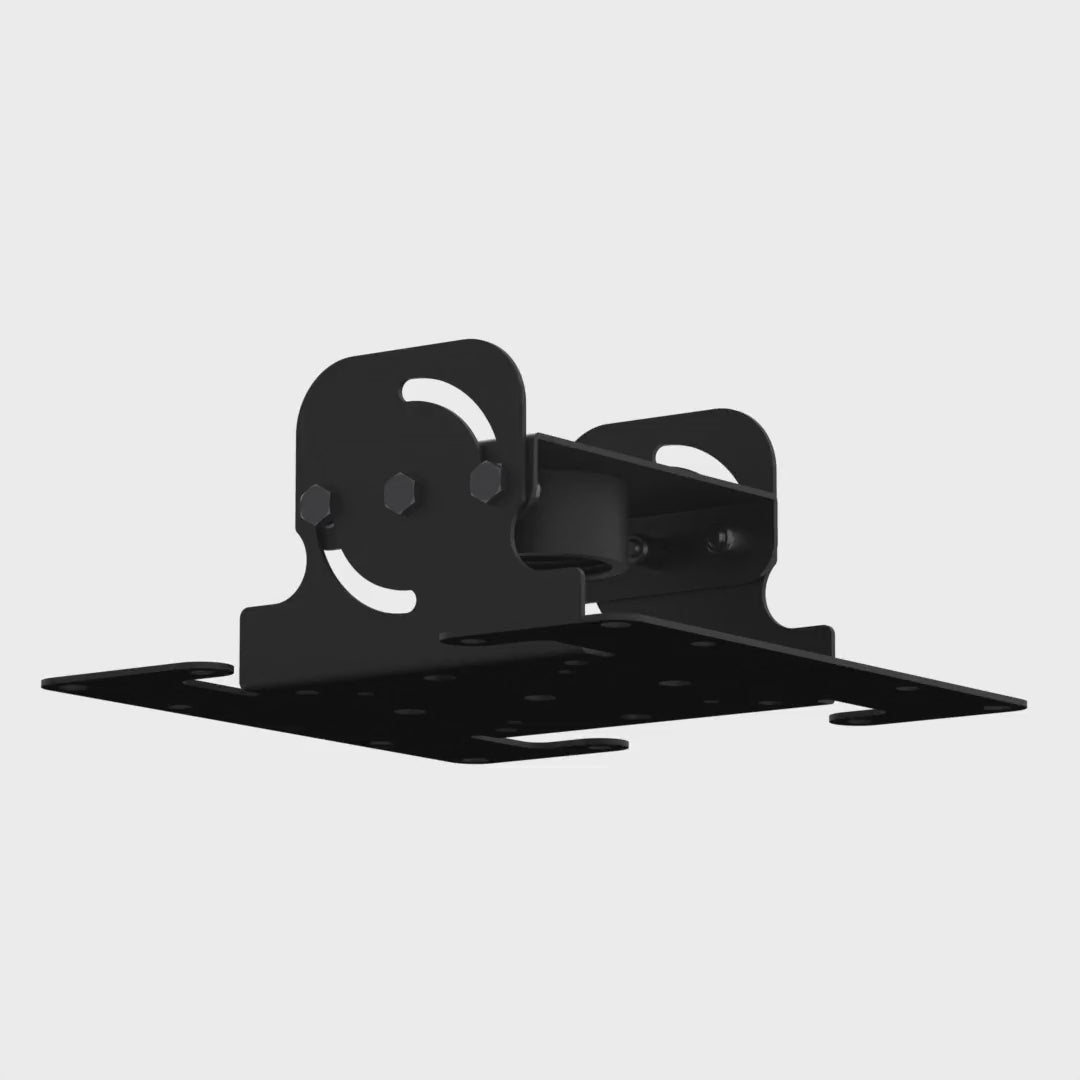

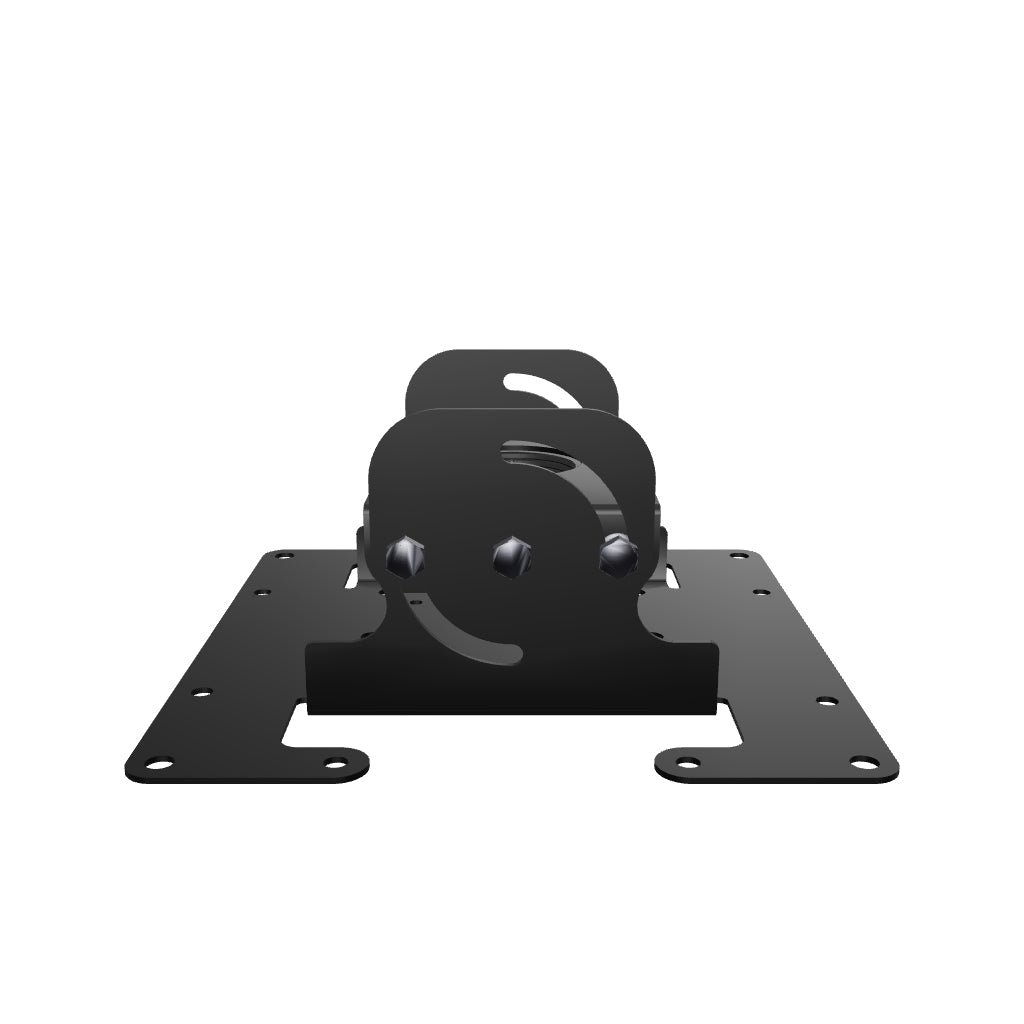

This is the 90 degree tilt head from our 1-1/2 inch NPT ceiling mount system, sold as a separate part. It threads onto a 1-1/2 inch NPT pipe and tilts a full 90 degrees, from vertical to fully horizontal, so a screen can face straight down at a reclined viewer below it.
- Tilts a full 90 degrees, from vertical to horizontal

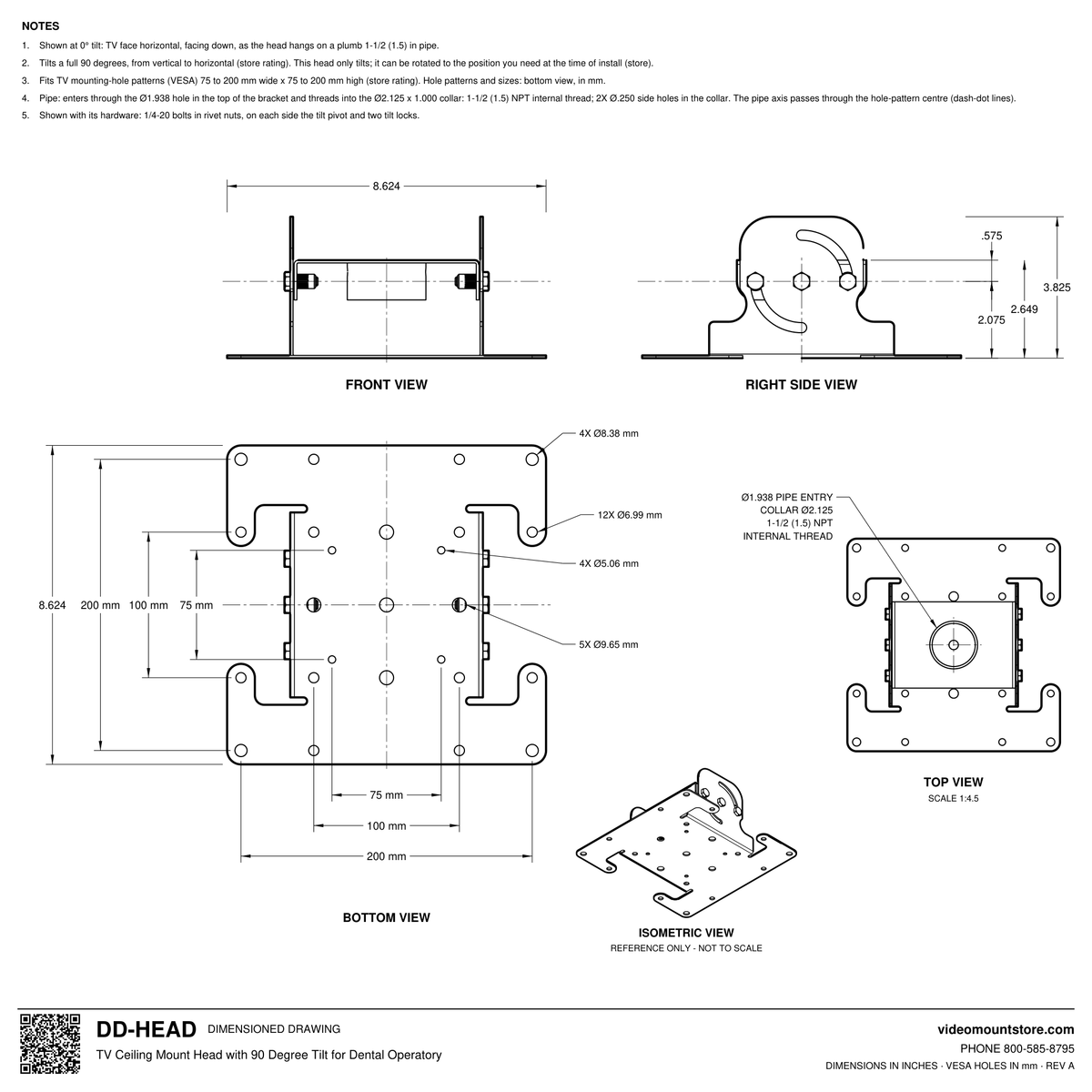

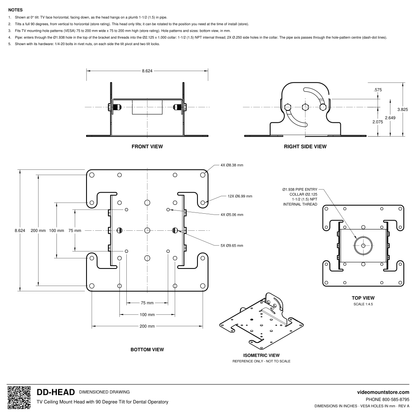

- Fits VESA patterns up to 200 x 200 mm
- Threads onto 1-1/2 inch NPT pipe
- Black powder coat finish, suitable for outdoor use
This is the same head that comes on the DD dental ceiling mount.
Keep in mind: this head only tilts. But you can rotate it to the position you need at time of install. Screen size is a guideline: what matters is the VESA hole pattern on the back of your screen, so measure it before you order.
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
75-200 mm wide · 75-200 mm tall(3-7.9" wide · 3-7.9" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
