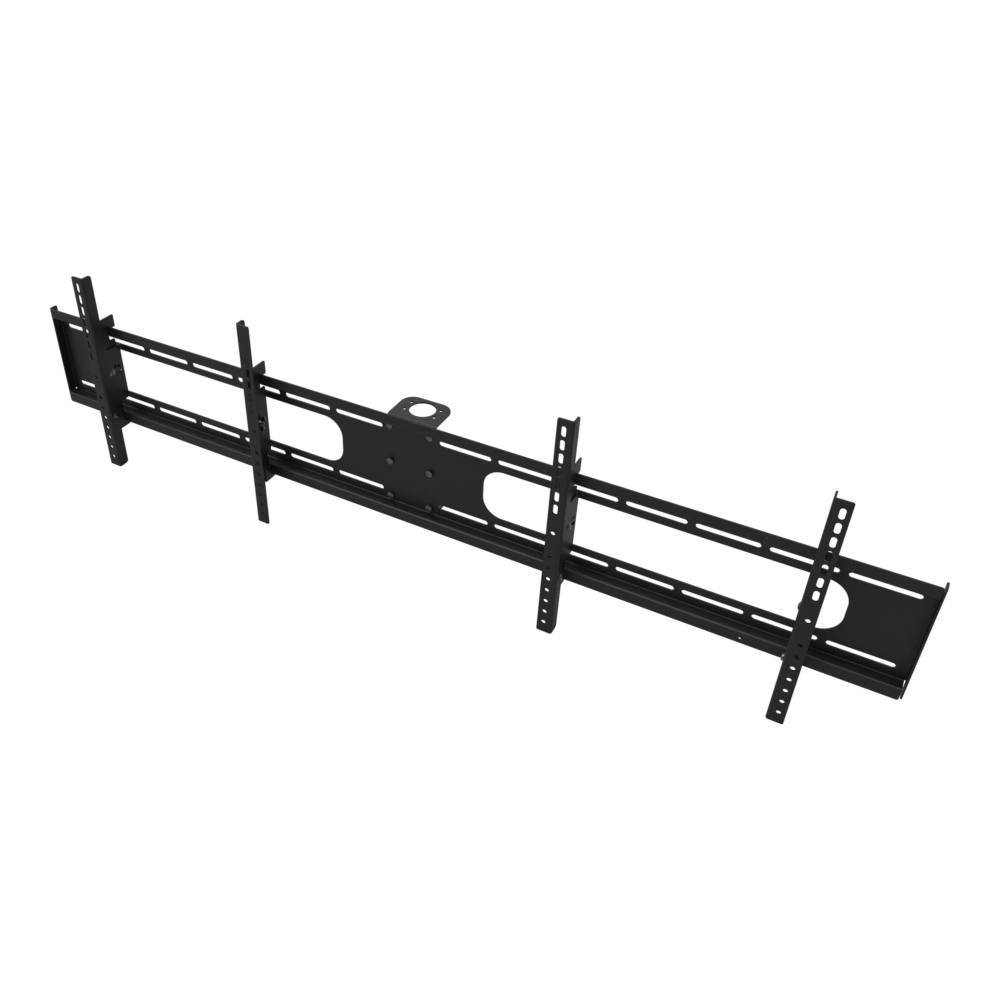

• 33DW004 double-wide TV ceiling mount head from the screen side, showing all four tilt rails along the 68 in bar.

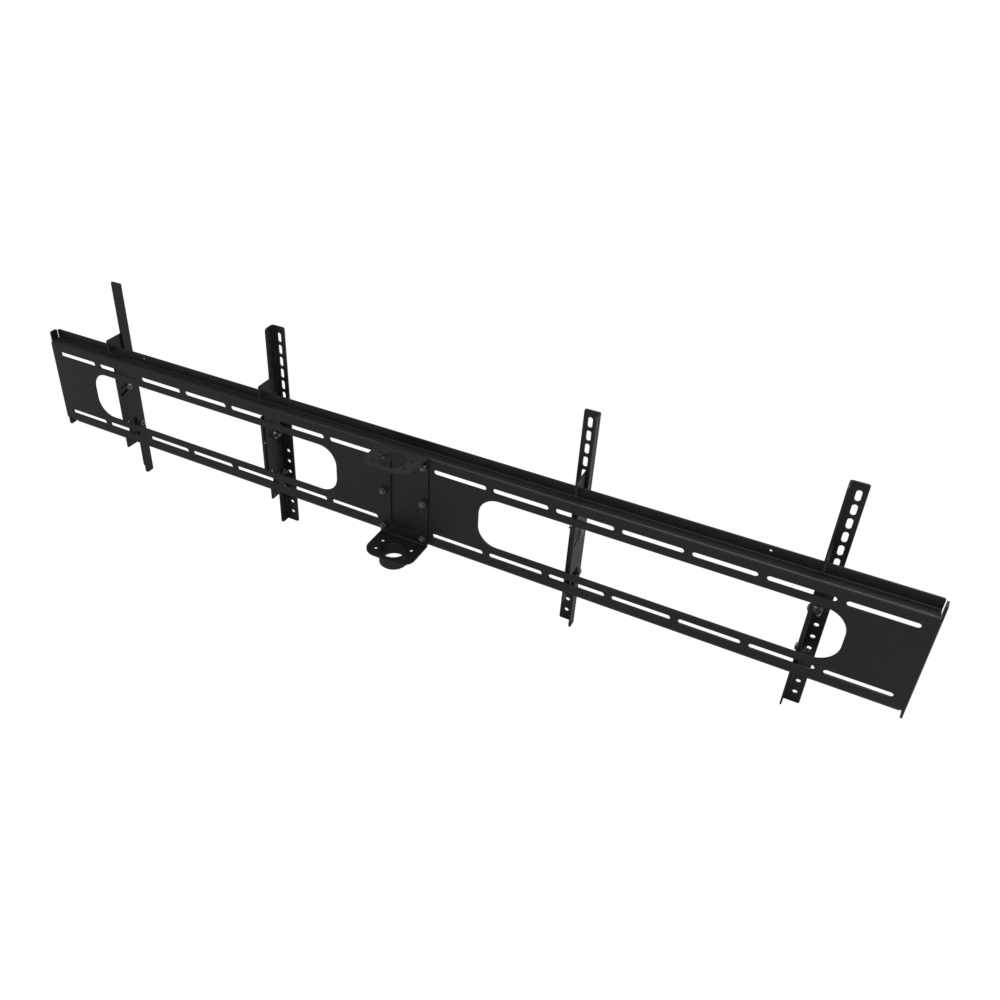

  • 33DW004 double-wide TV ceiling mount head from the mount side, showing the 1-1/2 in NPT pipe adapter and its stop collar.

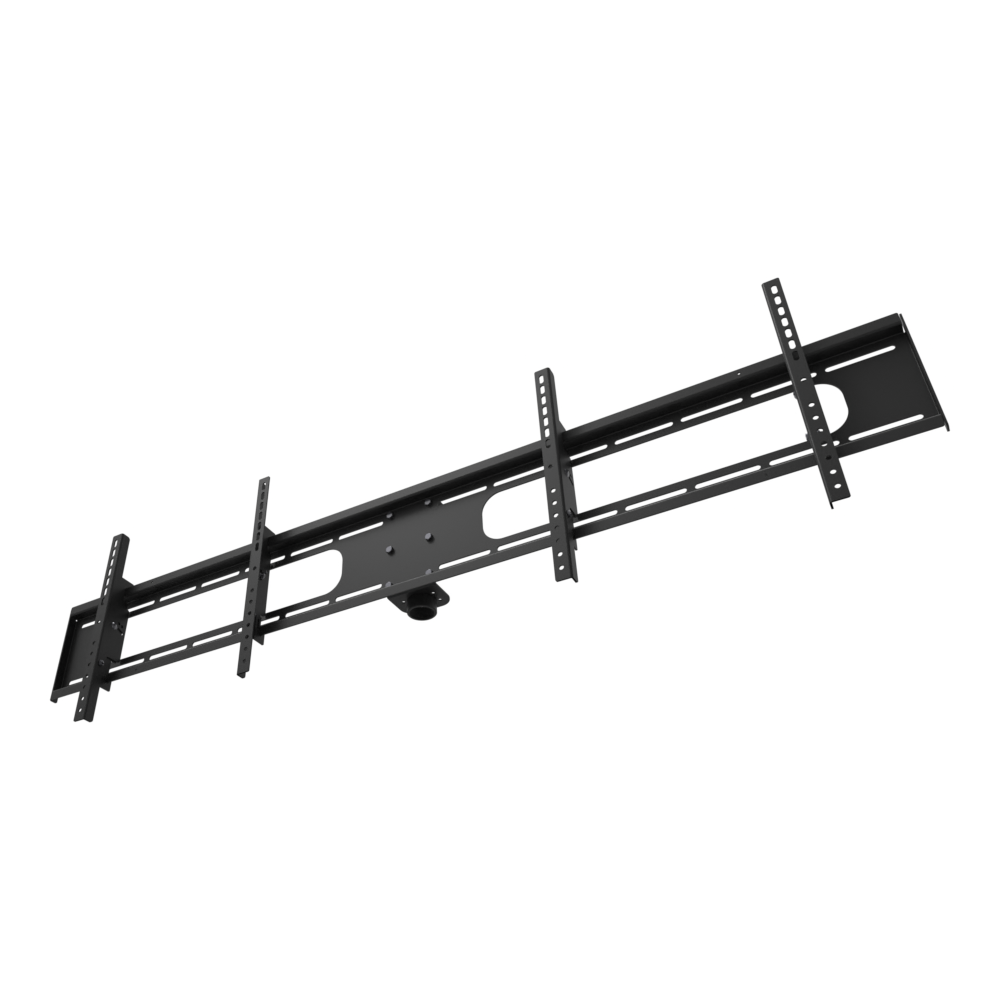

  • 33DW004 double-wide TV ceiling mount head seen from below, the installed angle, showing the tilt rails and the pipe adapter.
1 4
Commercial quality
32 to 55
inch screens
300 lb
weight capacity
15° down
tilt

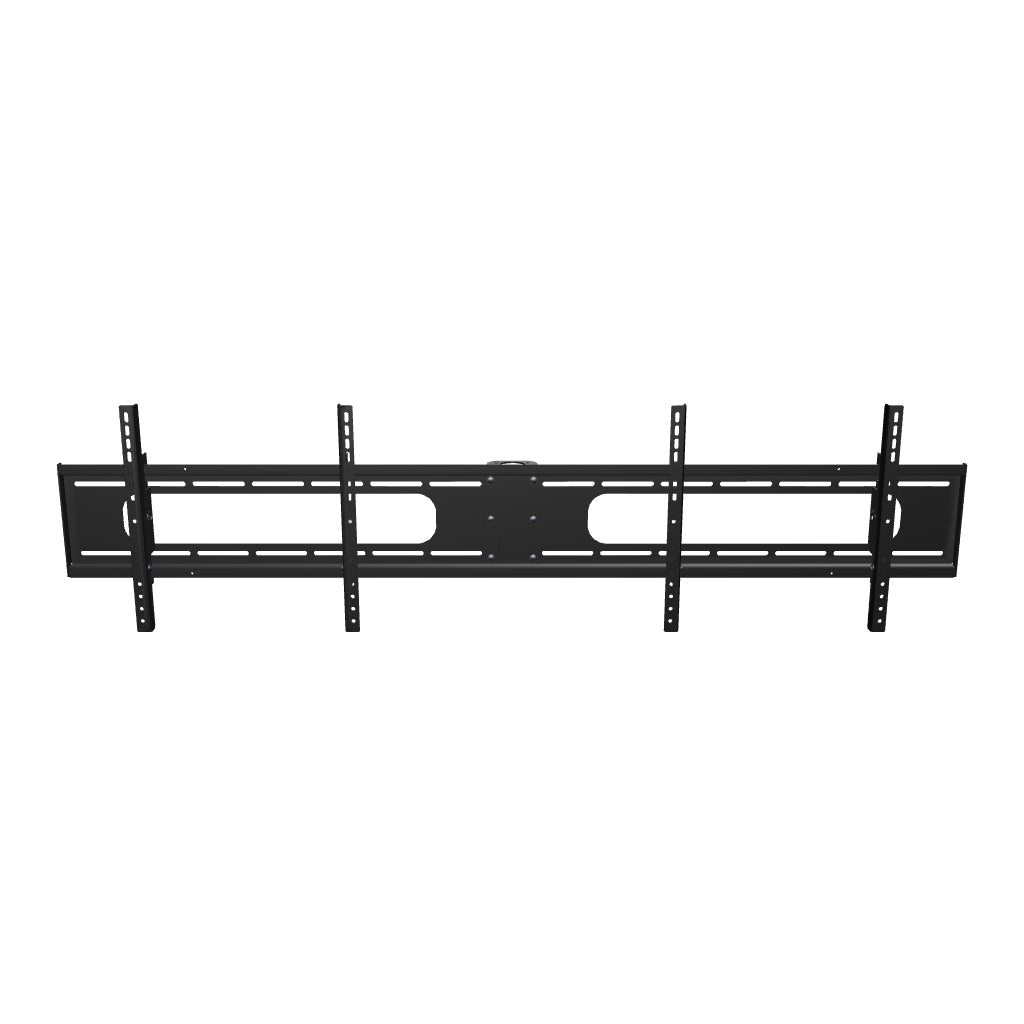

Double Wide TV Ceiling Mount Head for 32 to 55 inch, Tilt and Rotate

SKU 33DW004HEAD

$264.95
$264.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

This is the tilt and rotate head from our double wide ceiling mount system, sold as a separate part. It threads onto a 1-1/2 inch NPT pipe and carries two screens side by side on one crossbar, each on its own tilt rails, for screens in the 32 to 55 inch range.

  • Holds two screens side by side on one bar
  • Fits VESA patterns up to 600 x 400 mm
  • Tilts up to 15 degrees down

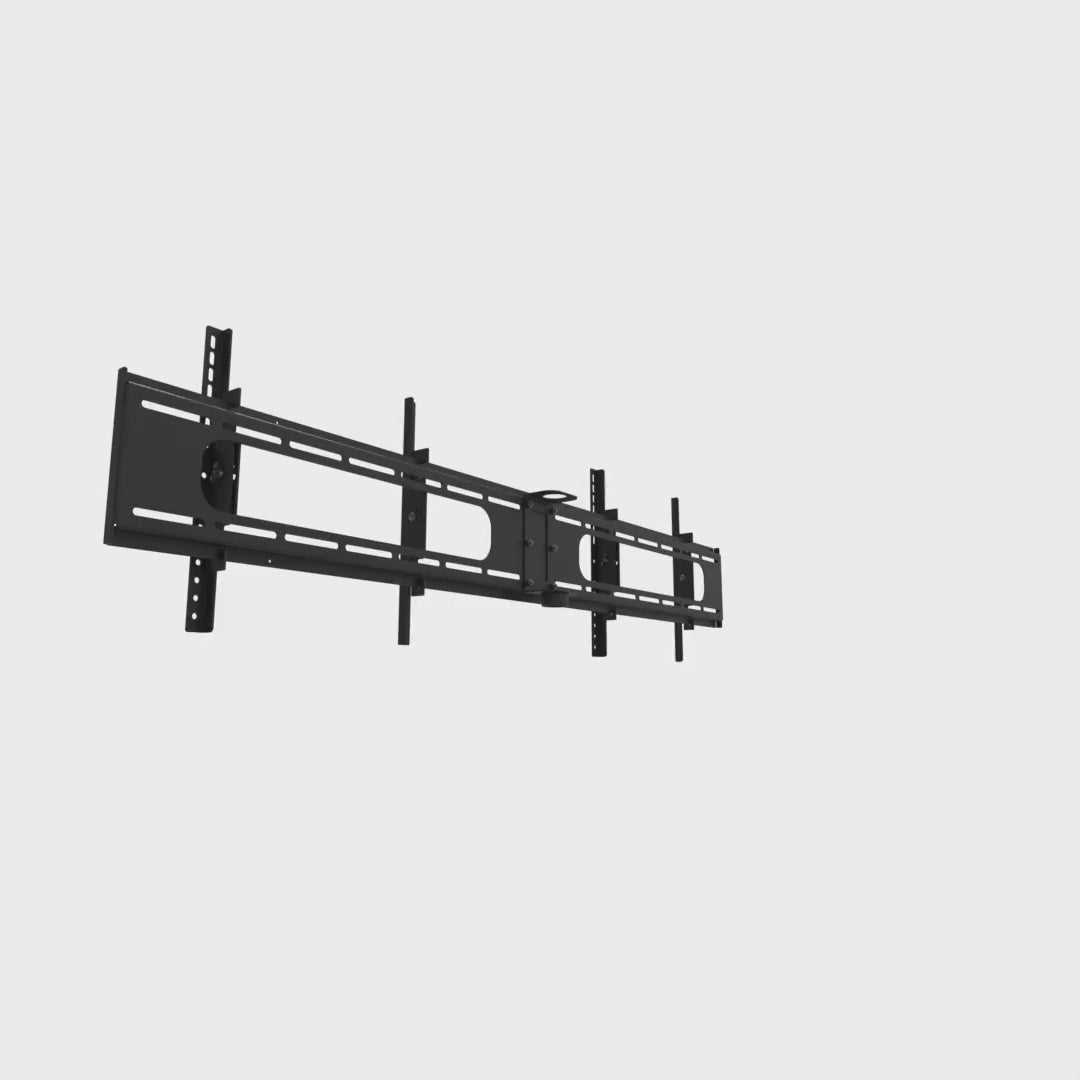

  • Rotates a full 360 degrees
  • Threads onto 1-1/2 inch NPT pipe
  • Black powder coat finish, suitable for outdoor use

This is the same head that comes on the 33DW004 double wide ceiling mount.

Product details

Max weight 300 lb · 136 kg
Tilt 15° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 55 to 760 mm wide and 65 to 470 mm tall.
65-470 mm 2.6-18.5"
55-760 mm 2.2-29.9"

55-760 mm wide · 65-470 mm tall(2.2-29.9" wide · 2.6-18.5" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details
