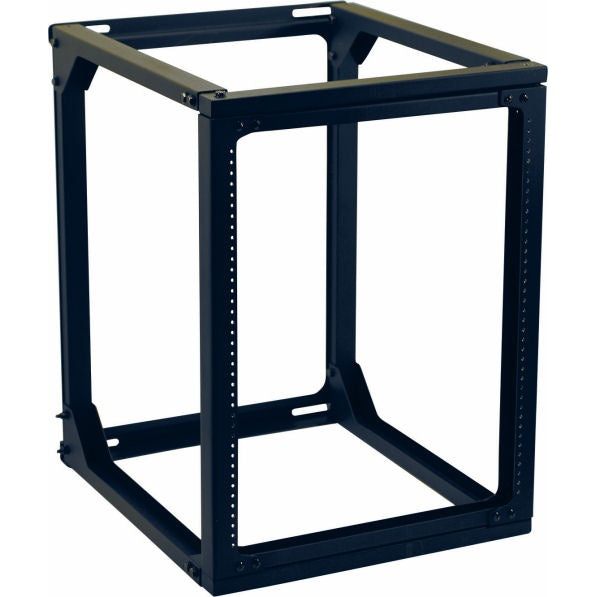

19" Wall Mounted Rack - 24" Height

The VMP ER-W24 is a 19" wall mounted equipment rack that holds standard rack gear right where you need it while keeping the floor clear. Its swing gate design lets the frame pivot open from the left or the right, so you can reach cabling and connections at the back without pulling equipment. A fixed wall plate mounts to studs on 16" centers, and the lift on and off frame drops onto that plate for a one person install even when the rack is already populated.

• Model VMP ER-W24, swing gate wall rack, 24" height class
• 13 rack spaces for standard 19" rack mounted equipment
• Usable mounting depth of 19"
• Swing gate frame opens and pivots from either the left or the right side
• Fixed wall plate allows easy installation and removal of a populated rack
• Lift on and off design allows for a one person install
• Rack rails tapped with 10-32 holes in universal EIA spacing, EIA compliant
• Mounts to wall studs on 16" centers or other suitable surfaces
• Steel and aluminum construction with a load capacity of 100 lbs evenly distributed
• Black static resistant powder coat finish
• Overall dimensions of 27.9" high by 23.7" deep by 20.75" wide
