1-1/2" (1.5") NPT Telescoping Extension, Adjustable 8" to 12"
SKU EXT0812
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

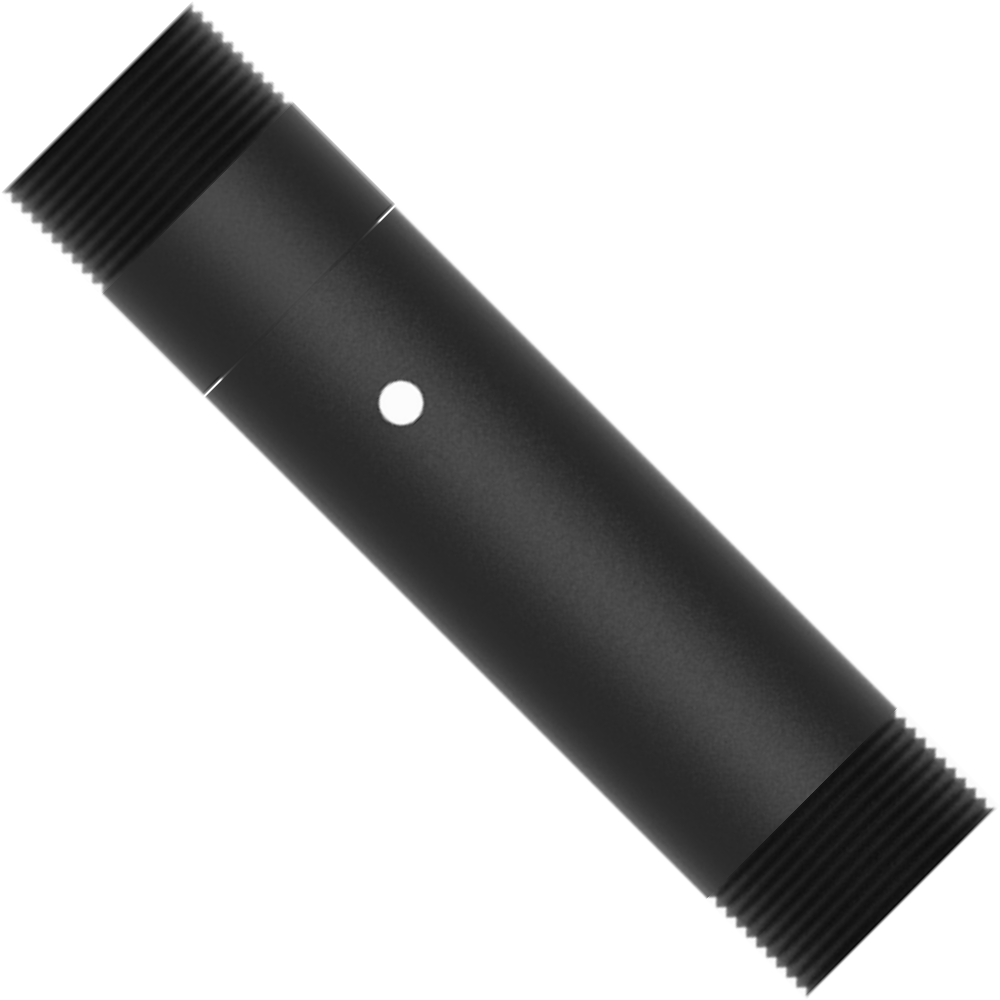

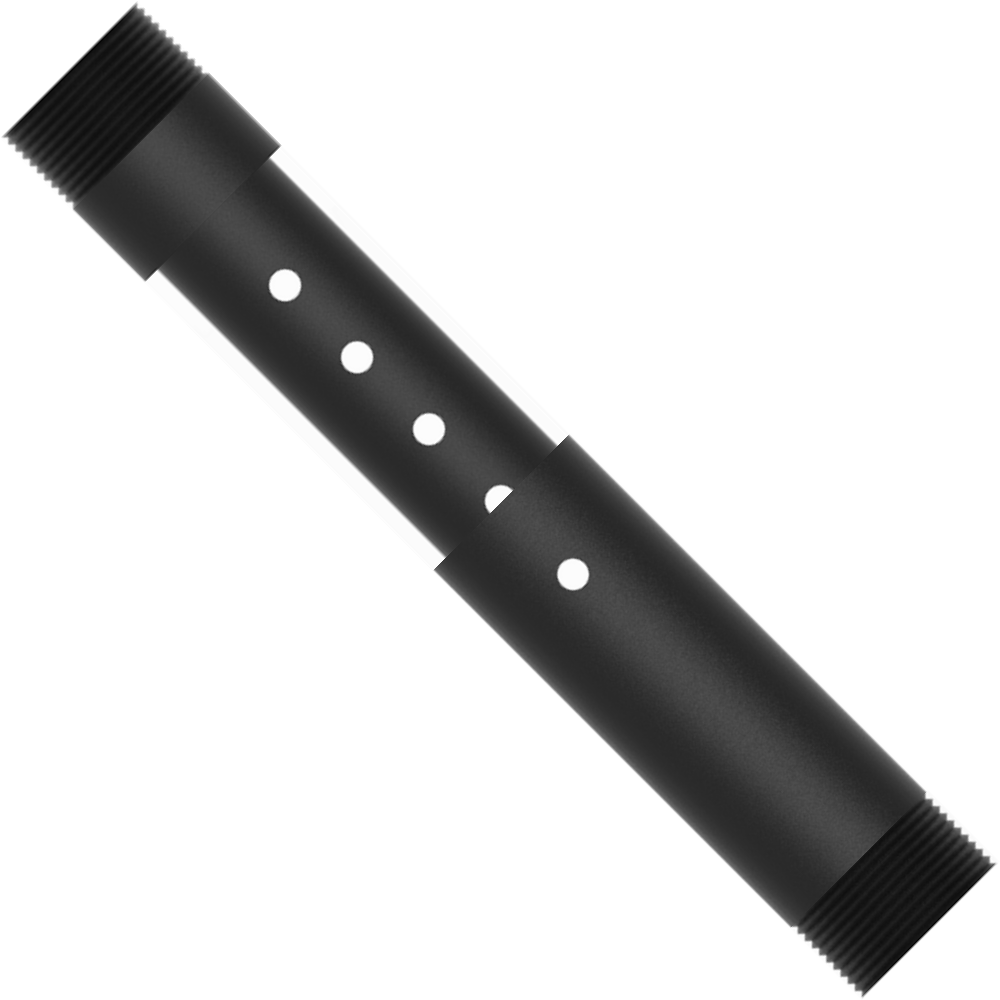

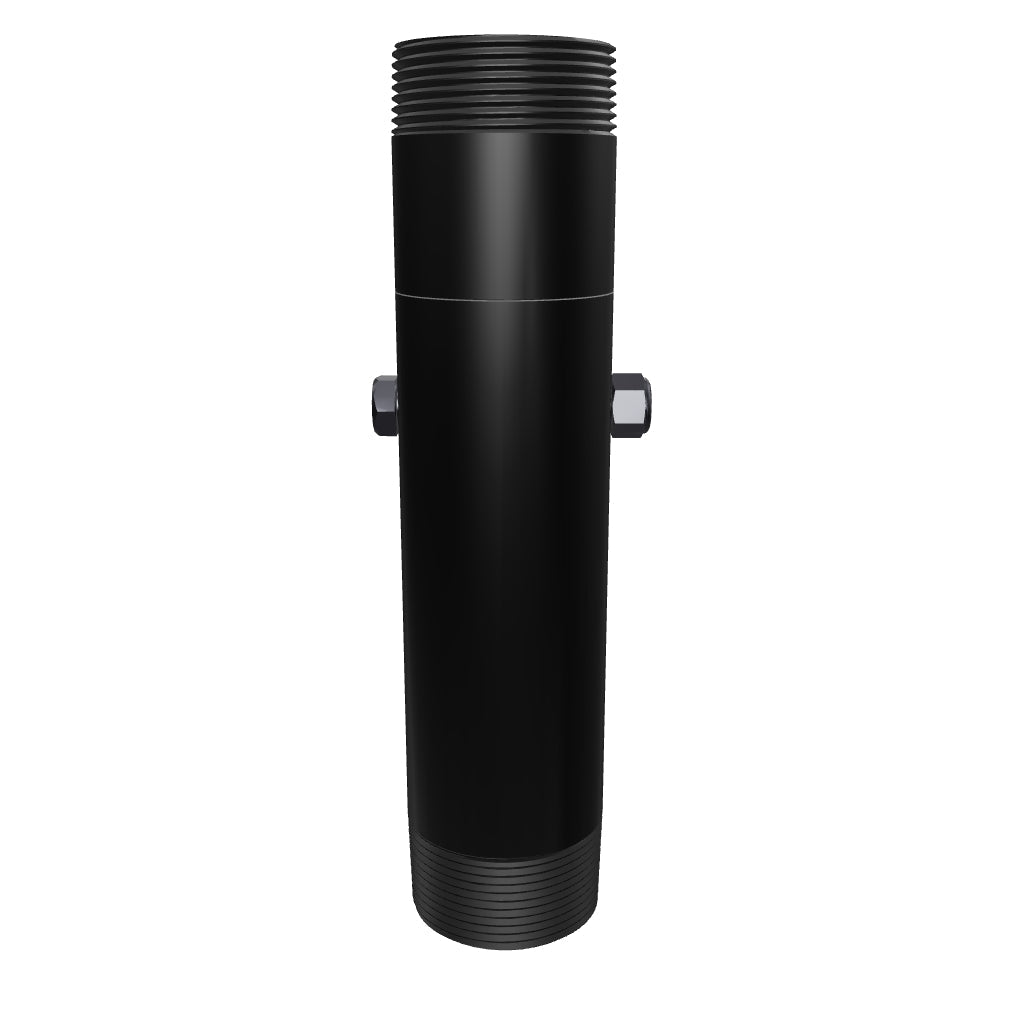

A telescoping 1-1/2" (1.5") NPT extension, adjustable from 8" to 12" in 1-inch increments, a welded-steel inner section inside an aluminum outer, for strength where it counts and less weight where it helps. Threads into any 1.5 inch NPT ceiling-mount system.
- Adjustable 8" to 12" in 1" increments
- Material: welded steel inner section + aluminum outer
- Holds up to 500 lb
- 1-1/2" NPT thread, 11.5 TPI (11.5 threads per inch), both ends
- Precision machined and manufactured in the USA
- Finish: Outdoor Rated Black Powdercoat (indoor & outdoor)
- Works with any 1.5" NPT ceiling-mount system

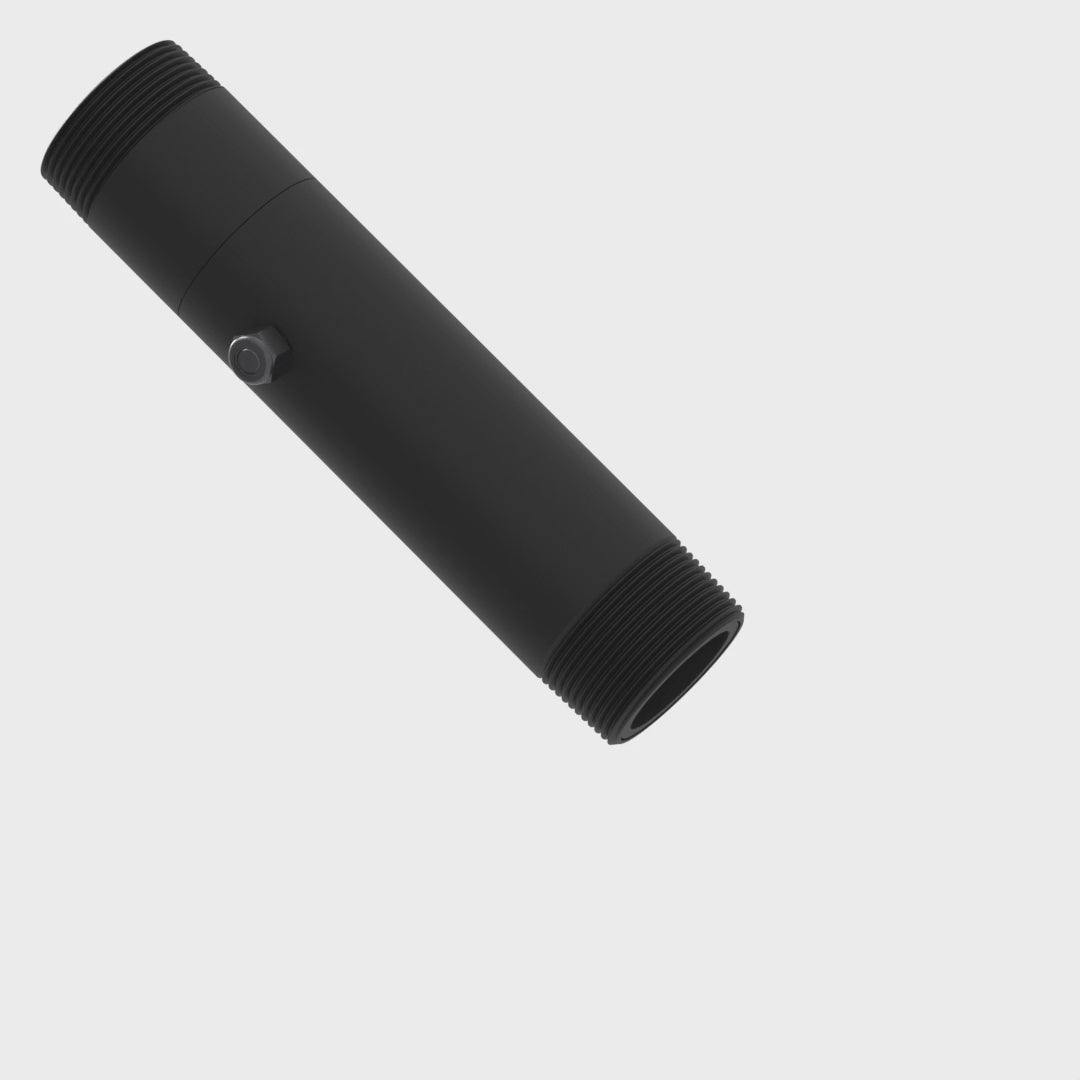

Includes a 5/16-18 x 2 1/4 inch long bolt with a nylon locking 5/16-18 nut to lock the mast at your set height.
Designed for professional and commercial use, and excellent for home use. Works with TV ceiling mounts, projector mounts, digital signage, lighting, and stage truss, great in bars, restaurants, airports, home theaters, patios, gazebos, bowling alleys, schools, hospitals, and more.
Replaces these competitor parts
This telescoping extension adjusts from 8 to 12 inches. It is a direct replacement for these adjustable extension columns from other brands:
- Chief CMS006009, CMS009012
- Epson ELPMBC01, ELPMBC02 (V12H810001)
- Peerless-AV AEC006009, AEC009012
- Premier Mounts APP-0609, APP-0912
- Strong (SnapAV) SM-ADJPOLE-9-BLK, SM-ADJPOLE-12-BLK, SM-ADJPOLE-S-BLK
- Video Mount Products (VMP) EXT-0609
It is also the closest single-part match for these, though it does not cover every inch of their range:
- Advance CMP-0508, CMP-0814
- Bestlink Netware 502858BK
- Crimson AV EA0611, EAL0611
- InstallerParts 15127
- Mustang AV MPEA-0611
- VideoSecu MPCNP915
- Zuum NPT1.5-8.66-14.57
Most drops fall inside the overlap, so this extension works for the majority of these. Check the range against the drop you need. If you need the very short or very long end, a fixed pipe or a different extension may suit you better. Call or email us and we can pick the right parts. 800-585-8795 or sales@videomountstore.com.

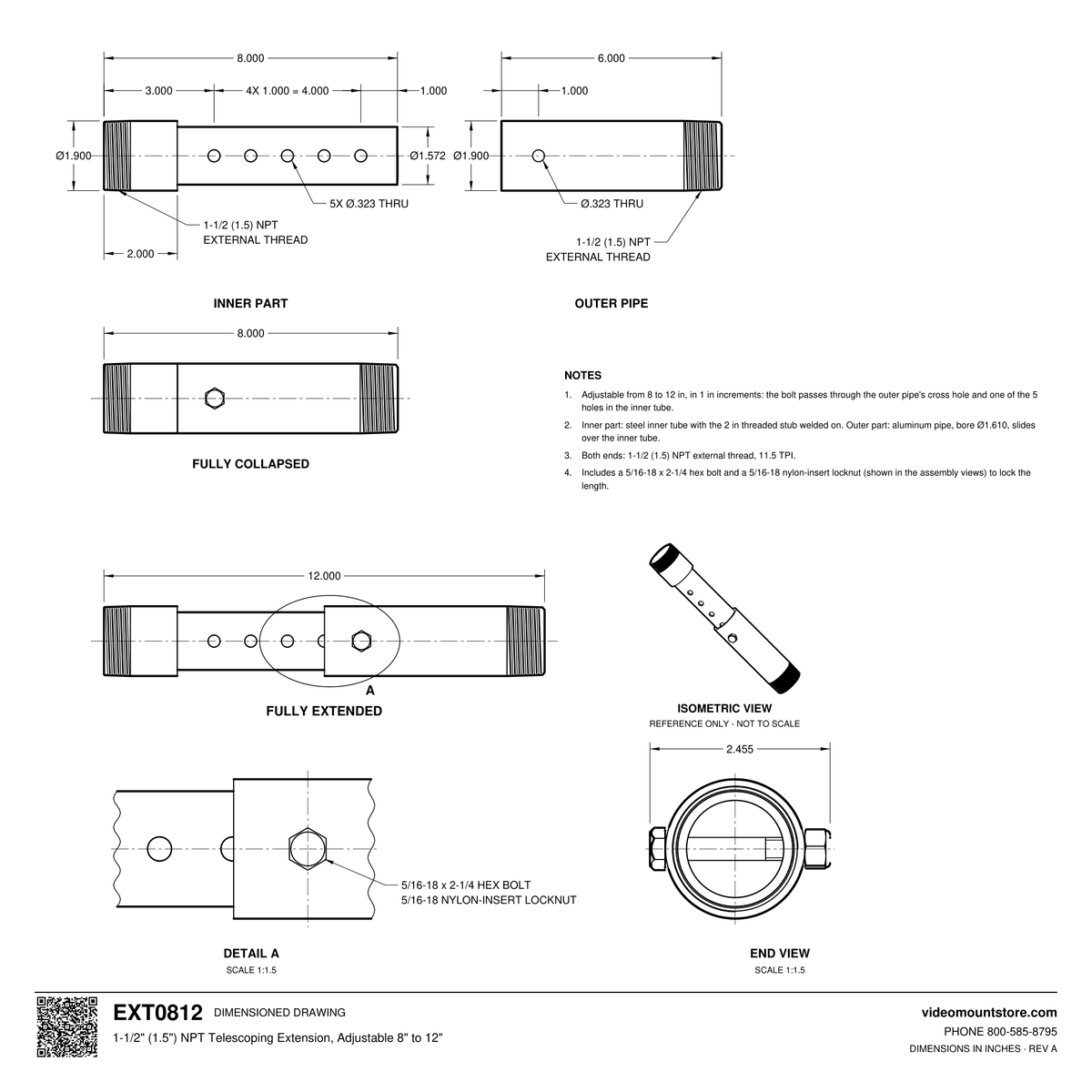

Expert Mounts manufacturer spec sheet
