VMP Large Flat Panel Digital Signage Mount for 32" to 63" flat panels.

SKU FP-LDSB

$175.95
$319.95 $175.95
Save $144.00 (45%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

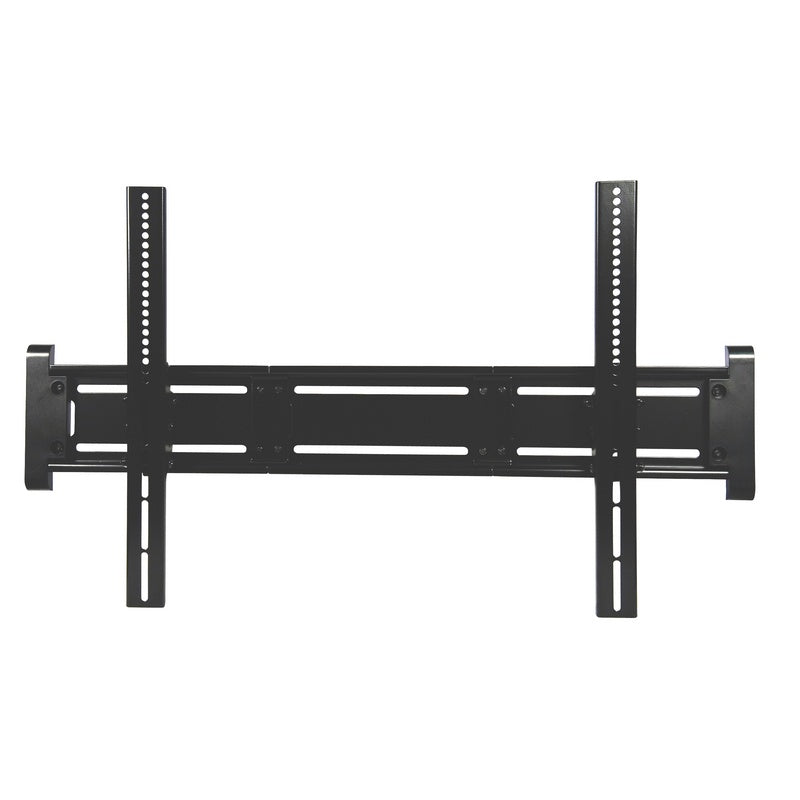

The VMP FP-LDSB is a tilting wall mount built for large digital signage flat panels from 32 to 63 inches, in either portrait or landscape orientation. It holds up to 180 lbs, tilts from -5 to +15 degrees with lockable 5 degree stops, and mounts flush and close to the wall. Its sectional wall plate lets you add DS-BP extension sections to line up multiple FP-LDSB units into a video wall.

  • Holds most 32 to 63 inch flat panels in portrait or landscape orientation
  • Load capacity of 180 lbs
  • Adjustable tilt from -5 to +15 degrees, lockable at 5 degree increments
  • Maximum mounting hole pattern of 810mm wide by 530mm tall (810mm by 810mm with the included rail extensions)
  • Distance from wall to back of the flat panel is 2.5 inches (2.6 inches with extensions)
  • Sectional wall plate that accepts additional VMP DS-BP sections to build a video wall from multiple FP-LDSB units
  • Attaches to at least two studs up to 16 inches apart, or to another suitable support surface
  • Constructed primarily of formed steel
  • Black powder coat finish

Product details

Screen size 32-63"
Max weight 180 lb · 82 kg
Tilt 5° up · 15° down
Mount distance 2.62" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 100 to 810 mm wide and 100 to 812 mm tall, shown to scale on an approximately 63 inch 16:9 display.
100-812 mm 3.9-32"
100-810 mm 3.9-31.9"

shown to scale on a ~63" screen (16:9)

100-810 mm wide · 100-812 mm tall(3.9-31.9" wide · 3.9-32" tall)

Supported standards100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches400×600VESA 400 by 600 mm, about 16 by 24 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches800×400VESA 800 by 400 mm, about 31 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
