VMP Large Flat Panel Flush Mount for 42 to 90 inch

SKU FP-LF

$119.95
$171.95 $119.95
Save $52.00 (30%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

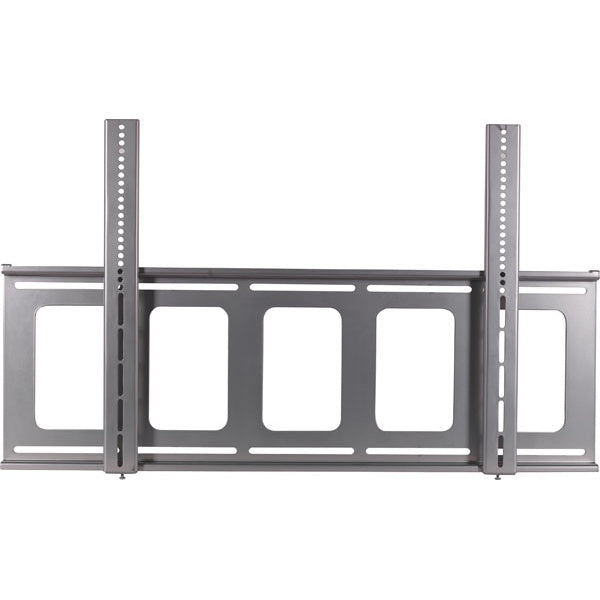

The VMP FP-LF is a flush wall mount that holds most 42 to 90 inch flat panel displays close to the wall for a clean, low-profile look. It is built from formed steel with arc welds and includes security screws, and it fastens to at least two studs up to 24 inches apart or another suitable support surface. The adjustable mounting rails fit a wide range of panels, so it is not model specific.

  • VMP model FP-LF, silver powder coat finish
  • Holds most 42 to 90 inch flat panel displays
  • Load capacity of 180 lbs
  • Flush, fixed design that holds the display 1.4 inches from the wall to the back of the panel
  • Adjustable mounting rails accommodate a maximum hole pattern up to 850mm wide by 500mm tall
  • Fits VESA hole patterns including 75 x 75, 100 x 100, 200 x 100, 200 x 200, 400 x 200, 400 x 600, and 400 x 800
  • Accommodates multiple double gang boxes for in-wall connections
  • Formed steel construction with arc welds and included security screws
  • Attaches to at least two studs up to 24 inches apart or another suitable support surface

Product details

Screen size 42-90"
Max weight 180 lb · 82 kg
Mount distance 1.4" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 60 to 850 mm wide and 75 to 500 mm tall, shown to scale on an approximately 90 inch 16:9 display.
75-500 mm 3-19.7"
60-850 mm 2.4-33.5"

shown to scale on a ~90" screen (16:9)

60-850 mm wide · 75-500 mm tall(2.4-33.5" wide · 3-19.7" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches800×400VESA 800 by 400 mm, about 31 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
