• VMP Small Flat Panel Mount with Tilt for 10" to 23" flat panels.
1 1

VMP Small Flat Panel Mount with Tilt for 10" to 23" flat panels.

SKU FP-SFT-Black

$51.95
$86.95 $51.95
Save $35.00 (40%)
1. Choose Color : Black

Black Recommended
Your Setup
Black $51.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

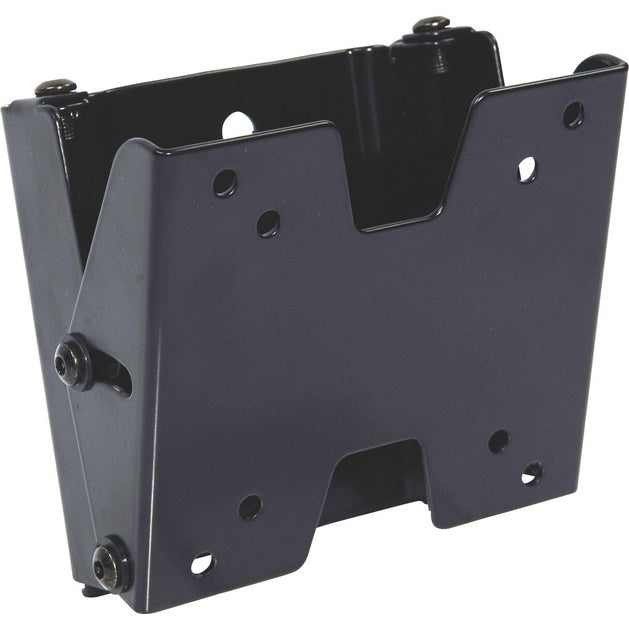

The VMP FP-SFT is a low-profile tilting wall mount for small flat panels from 10 to 23 inches. It attaches to a single wall stud and holds screens with 75 or 100 mm VESA hole patterns, keeping the display close to the wall while still allowing a comfortable viewing angle. Security screws on the tilt mechanism and wall plate help deter tampering in public or shared spaces.

  • Fits flat panels from 10 to 23 inches
  • Compatible with 75x75 mm and 100x100 mm VESA hole patterns
  • Adjustable tilt from -5 degrees to +15 degrees
  • Sits just 1.7 inches from the wall to the back of the panel
  • Load capacity of 25 lbs
  • Primarily constructed of formed steel
  • Tamper resistant security screws on the tilt mechanism and wall plate
  • Mounts to a single stud or other suitable support surface
  • Black powder coat finish, also available in silver

Product details

Screen size 10-23"
Max weight 25 lb · 11 kg
Tilt 5° up · 15° down
Mount distance 1.7" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 75 to 100 mm wide and 75 to 100 mm tall, shown to scale on an approximately 23 inch 16:9 display.
75-100 mm 3-3.9"
75-100 mm 3-3.9"

shown to scale on a ~23" screen (16:9)

75-100 mm wide · 75-100 mm tall(3-3.9" wide · 3-3.9" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
