• VMP Low profile Articulating TV Wall Mount for 42 to 90 Inch
1 1
Commercial quality
42 to 90
inch screens
150 lb
weight capacity
600 x 400
max VESA
2.8 to 25.3 in
from the wall

VMP Low profile Articulating TV Wall Mount for 42 to 90 Inch

SKU FP-XLWAB

$278.95
$278.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

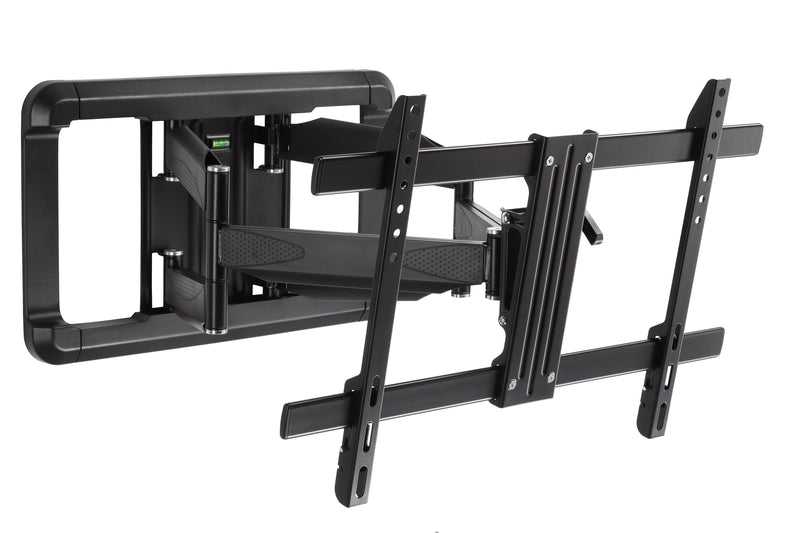

The FP-XLWAB is a low profile articulating wall mount for large flat panel displays from 42 to 90 inches. It sits 2.8 inches from the wall when closed and extends out to 25.3 inches, with -2 to 10 degrees of tilt, up to 45 degrees of rotation, and a plus or minus 3 degree post-install level adjustment so you can set the screen to the right viewing angle for the room. Cable management runs through the arms to keep your cables out of the way. The mount is UL listed at a 150 lb load capacity.

  • Holds most 42 to 90 inch flat panels.
  • UL listed load capacity of 150 lbs.
  • Fits mounting hole patterns from 200mm by 200mm up to 600mm by 400mm.
  • Extends from 2.8 inches to 25.3 inches from the wall.
  • Adjustable tilt from -2 to 10 degrees.
  • Rotates up to 45 degrees.
  • Post-install level correction of plus or minus 3 degrees.
  • Cable management system runs through the arms.
  • Black powder coat finish.

Keep in mind: this replaces the FP-LWAB, which VMP has discontinued. The FP-XLWAB covers a wider screen range (42 to 90 inches instead of 42 to 70), but its maximum VESA hole pattern is smaller, 600mm by 400mm instead of the old mount's 800mm by 512mm. If your screen's mounting holes are wider than 600mm, measure before you order, this mount will not fit that pattern even though the screen size falls in range.

Call or email us if you need help picking, or possibly a different solution.

Product details

Screen size 42-90"
Max weight 150 lb · 68 kg
Tilt 2° up · 10° down
Mount distance 2.8-25.3" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 200 to 600 mm wide and 200 to 400 mm tall, shown to scale on an approximately 90 inch 16:9 display.
200-400 mm 7.9-15.7"
200-600 mm 7.9-23.6"

shown to scale on a ~90" screen (16:9)

200-600 mm wide · 200-400 mm tall(7.9-23.6" wide · 7.9-15.7" tall)

Supported standards200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
