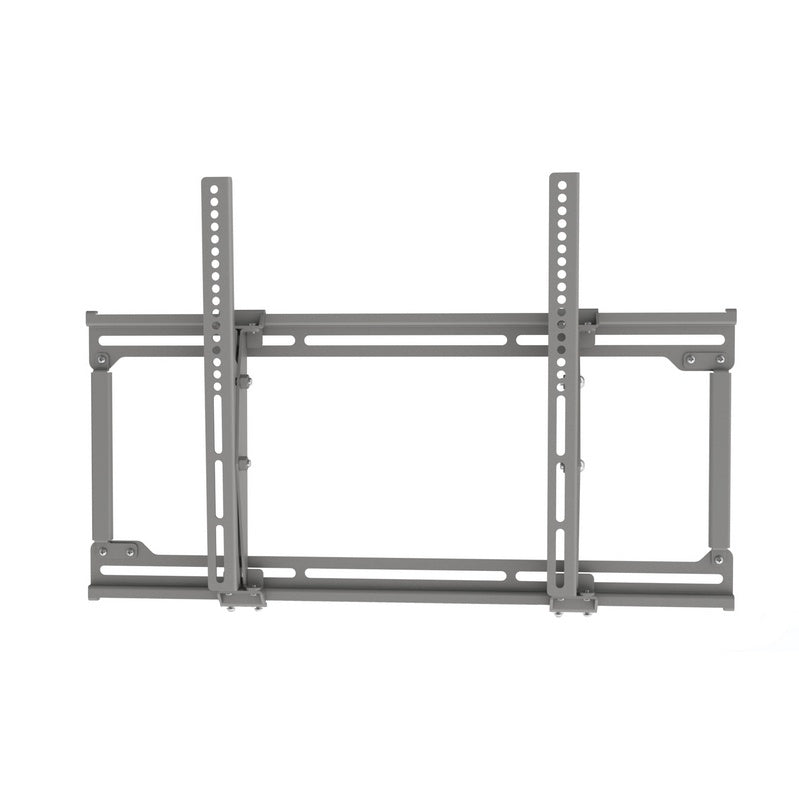

  • FP-XMFT flush tilting wall mount, front view: two vertical VESA rails with hole columns set over two horizontal wall rails with leveling slots
1 2

Extra Medium Flat Panel Flush Mount w/ Tilt

SKU FP-XMFT

$89.95
$115.95 $89.95
Save $26.00 (22%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

The VMP FP-XMFT is an extra medium flush wall mount with tilt for flat panel displays from 32 to 52 inches. It holds up to 120 lbs and sits just 2.3 inches from the wall, while tilt from -5 to +15 degrees helps you cut glare and set a comfortable viewing angle. Formed steel construction with arc welds and security screws keeps the display secure, and the open back design leaves room to route cables behind the panel.

  • Fits most 32 to 52 inch flat panel displays
  • Load capacity up to 120 lbs
  • Maximum flat panel hole pattern 616 mm wide by 400 mm tall, with rails that adjust down to 100 mm
  • Adjustable tilt from -5 to +15 degrees to reduce glare
  • Sits 2.3 inches from the wall for a low, flush profile
  • Formed steel construction with arc welds for strength
  • Security screws help deter tampering
  • Mounts to at least 2 studs up to 24 inches apart or other suitable support surface
  • Open back design for easy cable management behind the panel

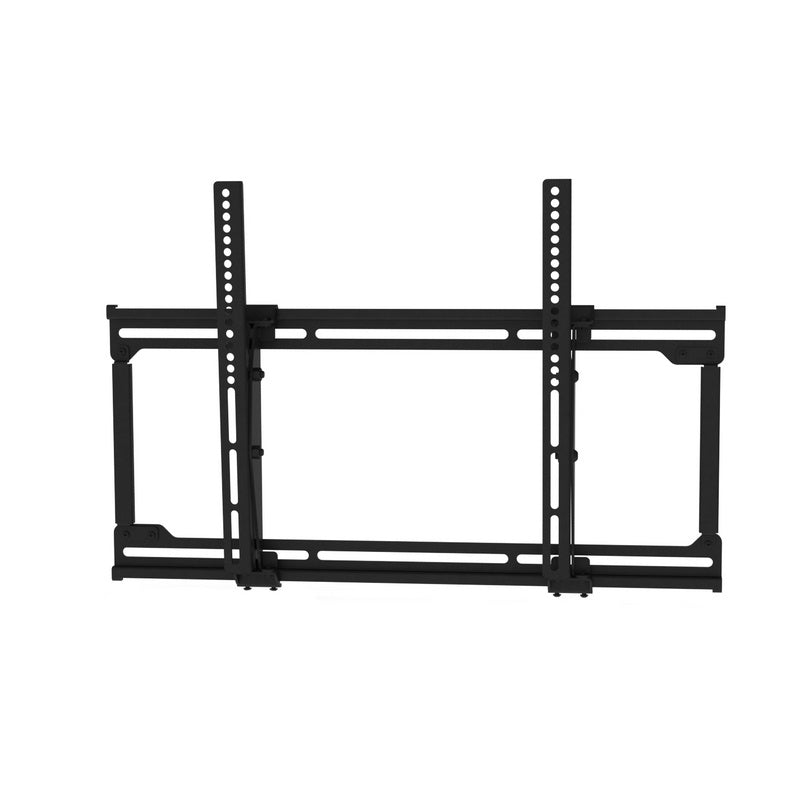

  • Silver powder coat finish (black finish available as model FP-XMFTB)

Product details

Screen size 32-52"
Max weight 120 lb · 54 kg
Tilt 5° up · 15° down
Mount distance 2.3" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 100 to 616 mm wide and 100 to 400 mm tall, shown to scale on an approximately 52 inch 16:9 display.
100-400 mm 3.9-15.7"
100-616 mm 3.9-24.3"

shown to scale on a ~52" screen (16:9)

100-616 mm wide · 100-400 mm tall(3.9-24.3" wide · 3.9-15.7" tall)

Supported standards100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
