VMP Full Motion mount for 10 to 24 inch flat panels - LCD-1

SKU LCD-1-Black

$69.95
$117.95 $69.95
Save $48.00 (41%)
1. Choose Color — Black

Black Recommended
Your Setup
Black $69.95

Tax & shipping calculated at checkout

Ships same or next business day

Fast shipping

Same / next business day

30-day returns

Easy & no hassle

Built to last

Heavy-gauge steel

VMP’s revolutionary Universal LCD Monitor Mount offers the industry’s first, truly Multi-Configurable design. With the abilities to configure the LCD-1 into several different mounting styles, users can accommodate nearly every wall mount application they encounter, with just one mount! The LCD-1 works with nearly ever LCD monitor from 10”-24” that uses a 75 or 100mm VESA standard. Whether your application calls for a double arm articulating mount, a single arm mount or a near flush mount, you need look no further than the LCD-1 from Video Mount Products.

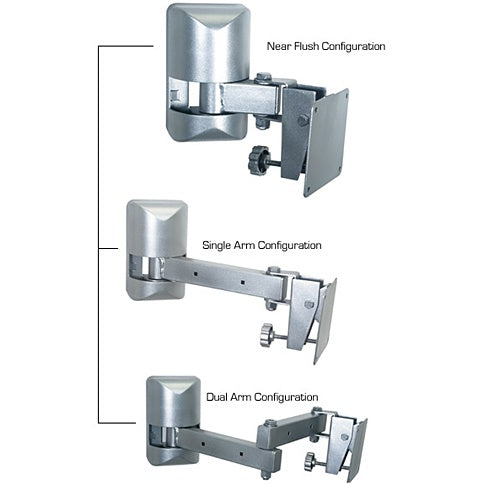

  • All parts provided to be used as a single arm, double arm or near flush mount
  • Holds most 10”-24” LCD monitors
  • VESA Mounting Standards:
    • 75 x 75 mm
    • 100 x 100 mm
  • Adjustable -5° to +30° tilt.
  • Rotates 240° at the elbow joint (double arm configuration.)
  • Feed through wall plate with decorative cover
  • Includes clip-based cable management system
  • Load capacity 25 lbs
  • Silver or Black powder coat finish

Product details

Screen size 10–24″
Max weight 25 lb · 11 kg
Tilt 5° up · 30° down
Mount distance 3.5–15.71″ from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Enter what you measure below and we’ll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 75 to 100 mm wide and 75 to 100 mm tall, shown to scale on an approximately 24 inch 16:9 display.
75–100 mm 3–3.9″
75–100 mm 3–3.9″

shown to scale on a ≈24″ screen (16:9)

75–100 mm wide · 75–100 mm tall(3–3.9″ wide · 3–3.9″ tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches

Common standards within this hole range — not an exhaustive list.

Will my TV fit?

round to the nearest inch — close is fine, we’ll match it to the standard size

enter your TV’s spacing to check

How do I find my TV’s pattern?

Find the four threaded holes on the back of your TV and measure between them — left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV’s manual, or search “[your model] VESA pattern”.

Can’t find it or not sure? Call us at 1-800-585-8795 or email sales@videomountstore.com — we can usually look up your TV’s pattern faster than you can.

Instructions Dimensioned Drawing View full details
