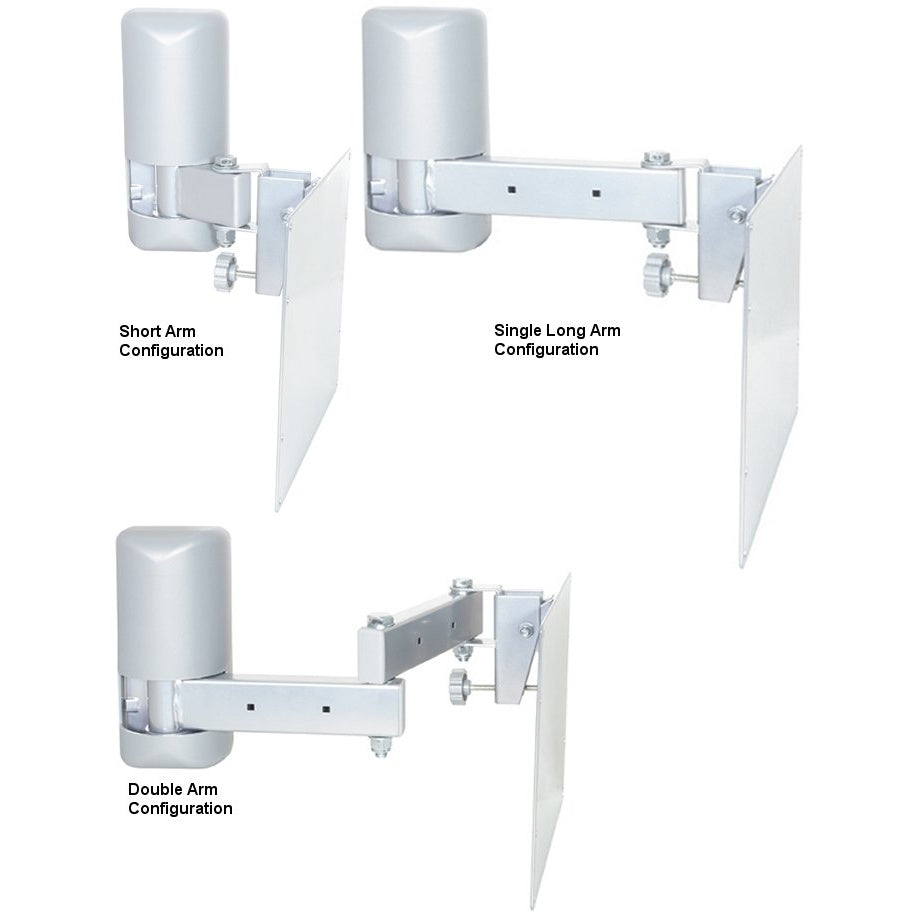

  • LCD-2537 comparison graphic of three arm setups: short arm, single long arm, and double arm, each with wall plate and tilting VESA head
1 2

VMP Full Motion Arm LCD TV/Monitor Mount for 22 to 37 inch

SKU LCD-2537-Black

$119.95
$193.95 $119.95
Save $74.00 (38%)
1. Choose Color : Black

Black Recommended
Your Setup
Black $119.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

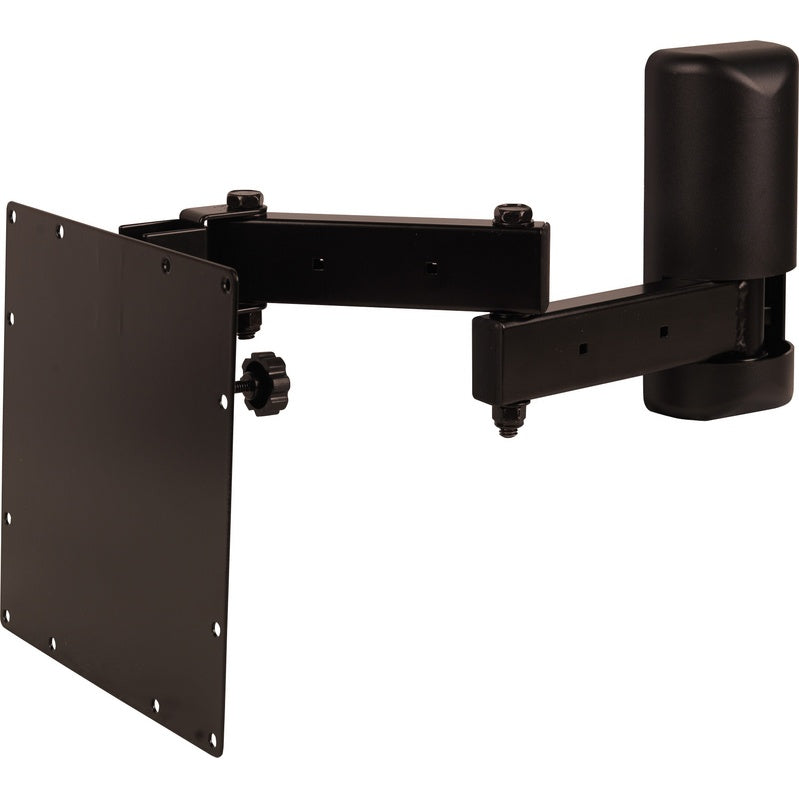

The VMP LCD-2537 is a multi-configurable articulating wall mount for mid-size flat panels from 25 to 32 inches. Built primarily of tubular steel, it can be set up as a double arm, single arm, or near-flush mount using the parts provided, so you can pull the screen off the wall and angle it or keep it tucked in tight. Full articulation lets you swivel, extend, and tilt the display, and the feed-through wall plate with a clip-based cable system keeps wiring out of sight. This is the black powder coat finish (LCD-2537B).

  • Holds 25 to 32 inch flat panels, up to 50 lbs
  • Configurable as a double arm, single arm, or near-flush mount with the parts provided
  • Fits VESA 75, 100, 200, and 100 x 200 mm mounting hole patterns; includes a plate for VESA 75 and 100 and a plate for VESA 100 x 200 and 200
  • Adjustable tilt from -5 degrees to +20 degrees
  • Rotates 240 degrees at the panel and 240 degrees at the elbow joint in the double arm configuration
  • Rotates 160 degrees at the wall
  • Extends up to 13.95 inches from the wall
  • Feed-through wall plate with a decorative cover
  • Clip-based cable management system
  • Constructed primarily of tubular steel with nylon nuts and arc welds
  • Black powder coat finish; also available in silver (LCD-2537)

Product details

Screen size 22-32"
Max weight 50 lb · 23 kg
Tilt 5° up · 20° down
Mount distance 3.5-13.95" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 75 to 200 mm wide and 75 to 200 mm tall, shown to scale on an approximately 32 inch 16:9 display.
75-200 mm 3-7.9"
75-200 mm 3-7.9"

shown to scale on a ~32" screen (16:9)

75-200 mm wide · 75-200 mm tall(3-7.9" wide · 3-7.9" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details
