VMP Dual LCD Monitor Celing Mount Accessory - LCD-CM2

SKU LCD-CM2

$199.95
$199.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

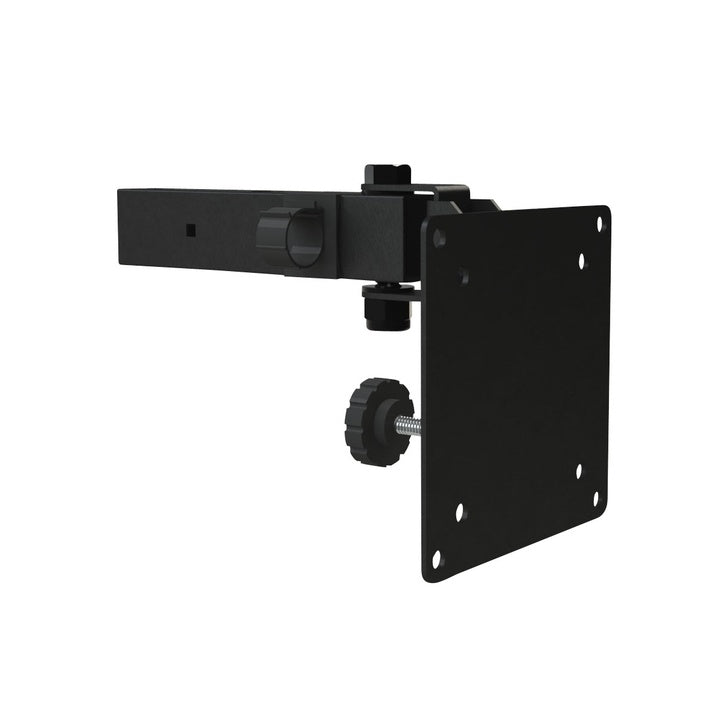

The VMP LCD-CM2 is a dual-monitor adaptor that turns a single LCD-1C ceiling mount into a back-to-back mount for two small screens. It holds most 10 to 23 inch monitors on 75 or 100mm VESA hole patterns, so one ceiling drop can serve two viewing directions. Each monitor tilts and rotates on its own for independent aiming.

  • Adapts a single VMP LCD-1C ceiling mount (sold separately) to hold two LCD monitors back to back
  • Holds most 10 to 23 inch LCD monitors
  • Fits 75 x 75mm and 100 x 100mm VESA mounting hole patterns
  • Adjustable tilt from -5 to +15 degrees at each monitor
  • Rotates up to 260 degrees at each monitor for independent aiming
  • Combined load capacity of the LCD-CM2 and LCD-1C is 50 lbs
  • Each monitor arm is offset 57.5mm (2.26 inches) from center, for an overall bracket width of 227mm (8.94 inches)
  • Black powder coat finish

Product details

Screen size 10-23"
Max weight 50 lb · 23 kg
Tilt 5° up · 30° down
Mount distance 18-30" from ceiling

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 75 to 100 mm wide and 75 to 100 mm tall, shown to scale on an approximately 23 inch 16:9 display.
75-100 mm 3-3.9"
75-100 mm 3-3.9"

shown to scale on a ~23" screen (16:9)

75-100 mm wide · 75-100 mm tall(3-3.9" wide · 3-3.9" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
