Medium Flat Panel Ceiling Mount Head Only

SKU LCD-MID-CHB

$147.95
$265.95 $147.95
Save $118.00 (44%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

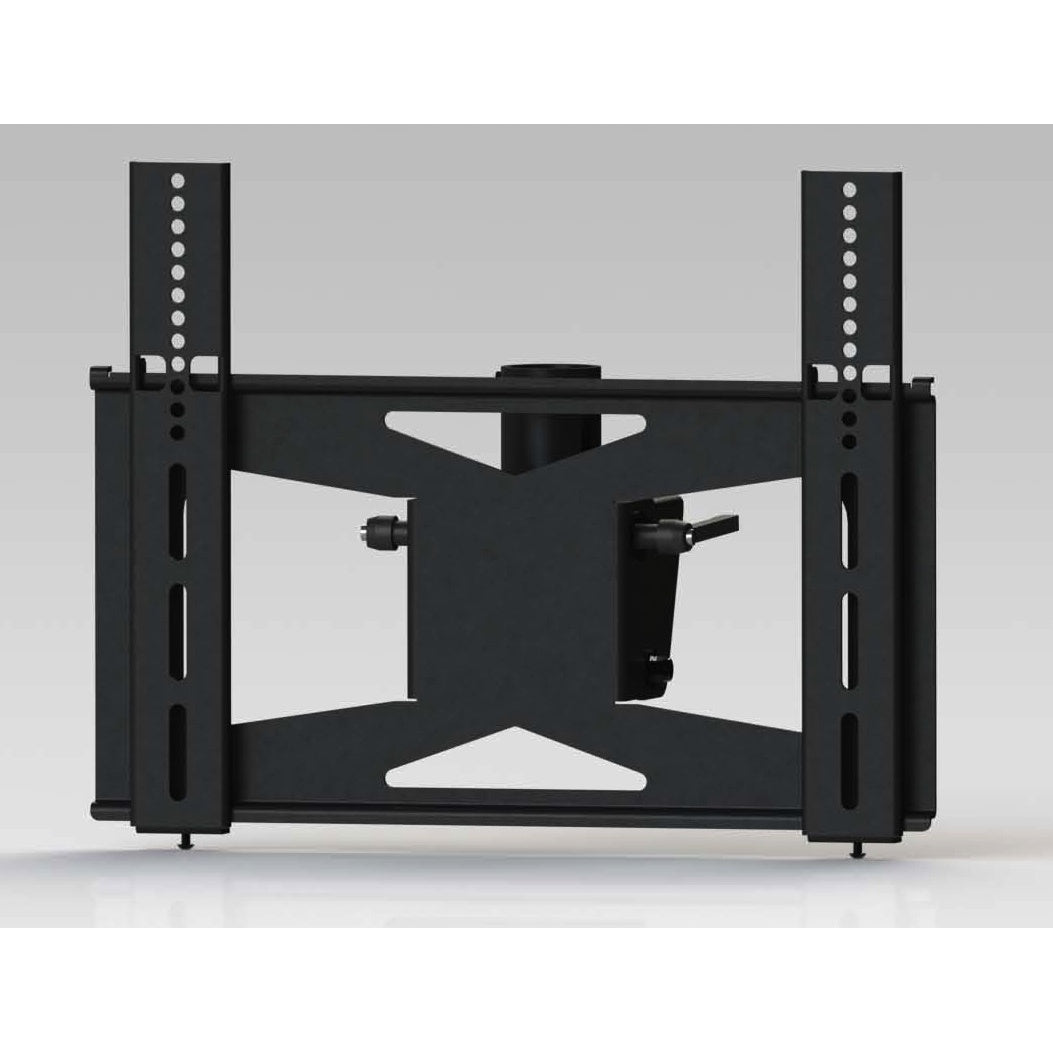

The VMP LCD-MID-CHB is the head-only portion of a flat panel ceiling mount, sized for most 27 to 42 inch screens up to 100 lbs. It threads onto any preexisting 1.5 inch NPT pipe or VMP EXT-Series extension pipe, so you can set the drop height with the pipe that fits your ceiling. Once mounted, the screen rotates a full 360 degrees and tilts from -5 to +20 degrees for the viewing angle you need.

  • VMP model LCD-MID-CHB, head only (pipe not included)
  • Holds most 27 to 42 inch flat panels
  • Weight capacity of 100 lbs
  • Maximum flat panel hole pattern of 410 mm wide by 340 mm tall (VESA up to 400 x 300)
  • Full 360 degree rotation
  • Adjustable -5 to +20 degree tilt
  • Attaches to standard 1.5 inch NPT pipe or any VMP EXT-Series pipe
  • Black powder coat finish

Product details

Screen size 27-42"
Max weight 100 lb · 45 kg
Tilt 5° up · 20° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 100 to 410 mm wide and 100 to 340 mm tall, shown to scale on an approximately 42 inch 16:9 display.
100-340 mm 3.9-13.4"
100-410 mm 3.9-16.1"

shown to scale on a ~42" screen (16:9)

100-410 mm wide · 100-340 mm tall(3.9-16.1" wide · 3.9-13.4" tall)

Supported standards100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
