• VMP Flat Wall Mount for Flat Panel TV's/Monitors 23" - 42"
1 1

VMP Flat Wall Mount for Flat Panel TV's/Monitors 23" - 42"

SKU LCD-MID-F-Black

$79.95
$105.95 $79.95
Save $26.00 (25%)
1. Choose Color : Black

Black Recommended
Your Setup
Black $79.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

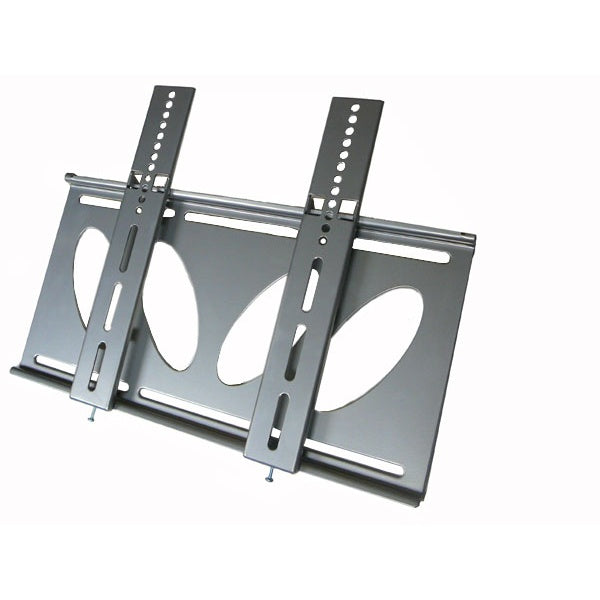

The VMP LCD-MID-F is a fixed flush wall mount for mid-size flat panel displays from 27 to 42 inches. It holds the screen close to the wall, with just 1 inch from the wall to the back of the panel for a clean, low-profile look. The mount attaches to two studs up to 16 inches apart or another suitable support surface, and it clears a double gang electrical box behind the panel. Adjustable mounting brackets fit a range of popular screens rather than one specific model.

  • VMP model LCD-MID-F, black powder coat finish (also available in silver as LCD-MID-F)
  • Holds most 27 to 42 inch flat panel displays
  • Load capacity of 125 lbs
  • Accommodates a maximum hole pattern of 410 mm horizontal by 340 mm vertical
  • Distance from wall to back of panel is 1 inch for a flush, low-profile fit
  • Mounts to two studs up to 16 inches apart or other suitable support surface
  • Clears a double gang electrical box behind the display
  • Fixed, non-tilting flush design
  • Constructed primarily of formed steel with spot welds

Product details

Screen size 27-42"
Max weight 125 lb · 57 kg
Mount distance 1" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 61 to 406 mm wide and 75 to 339 mm tall, shown to scale on an approximately 42 inch 16:9 display.
75-339 mm 3-13.3"
61-406 mm 2.4-16"

shown to scale on a ~42" screen (16:9)

61-406 mm wide · 75-339 mm tall(2.4-16" wide · 3-13.3" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
