VMP Tilting Mount for 23 to 40 inch Flat Panels

SKU LCD-MID-FT-Black

$107.95
$200.95 $107.95
Save $93.00 (46%)
1. Choose Color : Black

Black Recommended
Your Setup
Black $107.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

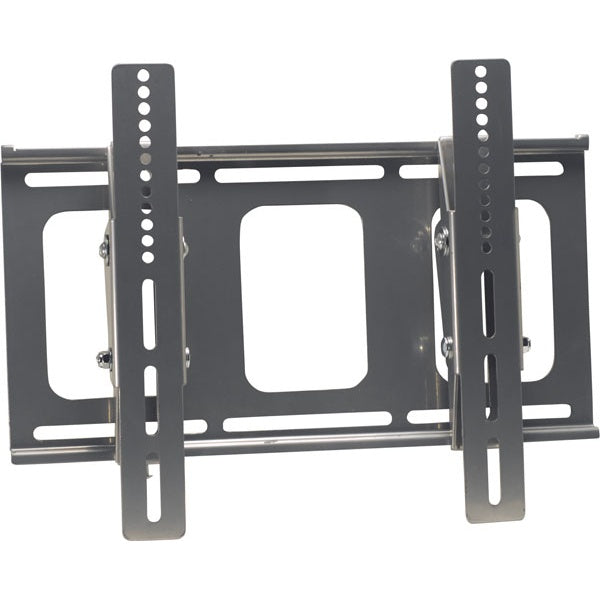

The VMP LCD-MID-FT is a low-profile tilting wall mount for mid-size flat panel displays. It holds most 27 to 42 inch screens up to 100 lbs close to the wall, with a tilt range that helps you cut glare and set a comfortable viewing angle. The mount is built from formed steel and is offered in a black or silver powder coat finish.

  • Model LCD-MID-FT (black finish, part number LCD-MID-FTB; also available in silver)
  • Holds most 27 to 42 inch flat panel displays
  • Load capacity up to 100 lbs
  • Adjustable tilt from -5 degrees to +15 degrees to reduce glare and fine-tune the viewing angle
  • Fits VESA hole patterns of 75 x 75, 100 x 100, 200 x 100, 200 x 200, and 400 x 200 mm
  • Accommodates a maximum hole pattern of 410 mm left to right by 340 mm vertically
  • Holds the display just 2.4 inches from the wall
  • Accommodates a double gang electrical box behind the panel
  • Attaches to 2 wall studs up to 16 inches apart or another suitable support surface
  • Constructed of formed steel with spot welds
  • Available in a black or silver powder coat finish

Product details

Screen size 23-42"
Max weight 100 lb · 45 kg
Tilt 5° up · 30° down
Mount distance 2.4" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 61 to 410 mm wide and 75 to 340 mm tall, shown to scale on an approximately 42 inch 16:9 display.
75-340 mm 3-13.4"
61-410 mm 2.4-16.1"

shown to scale on a ~42" screen (16:9)

61-410 mm wide · 75-340 mm tall(2.4-16.1" wide · 3-13.4" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
