1-1/2" (1.5") NPT Threaded Pipe, 48" Length · Aluminum
SKU NPT48
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

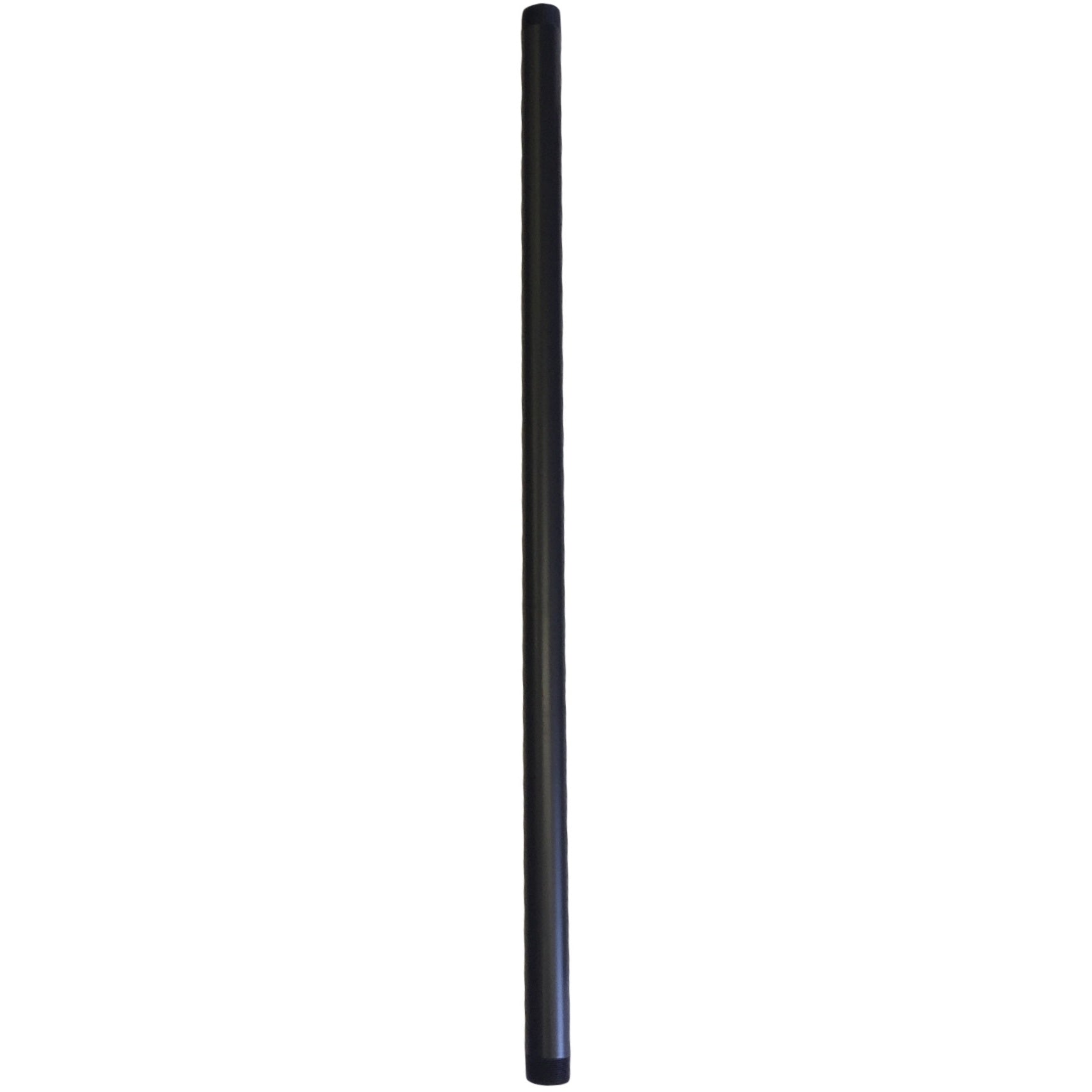

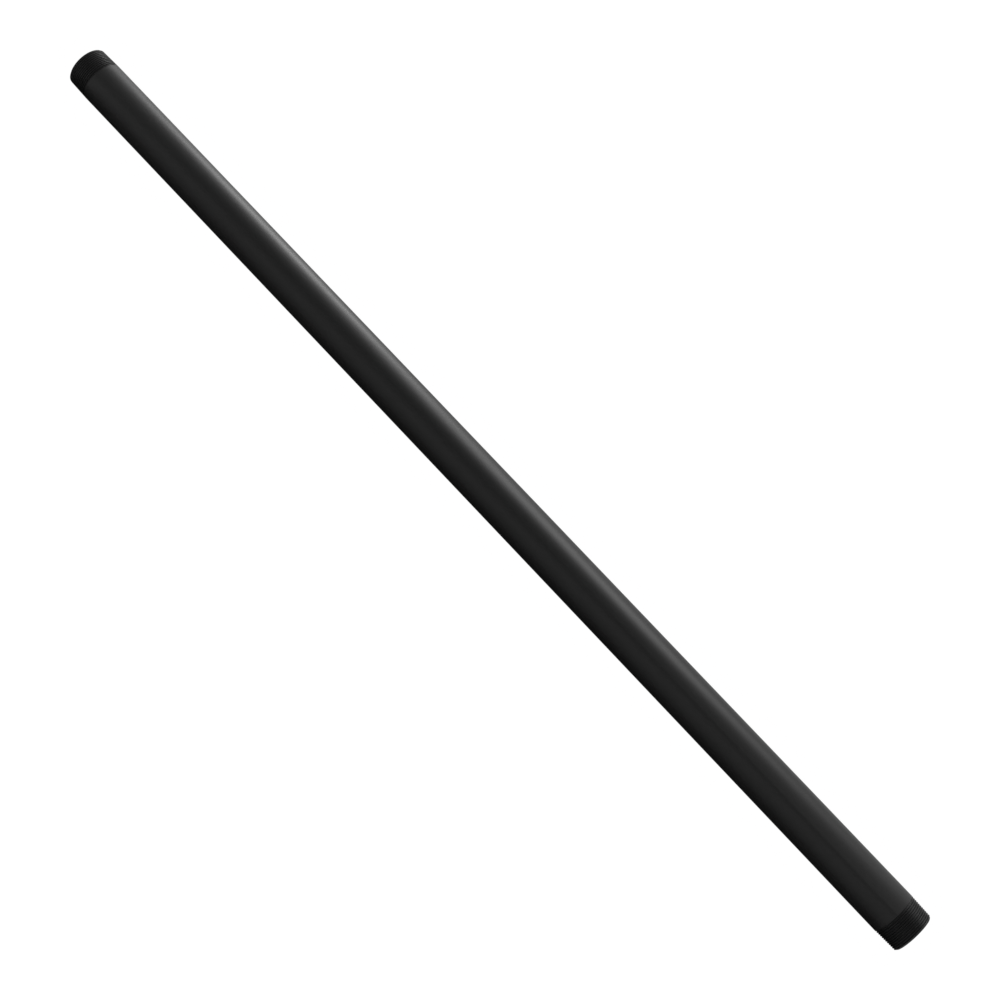

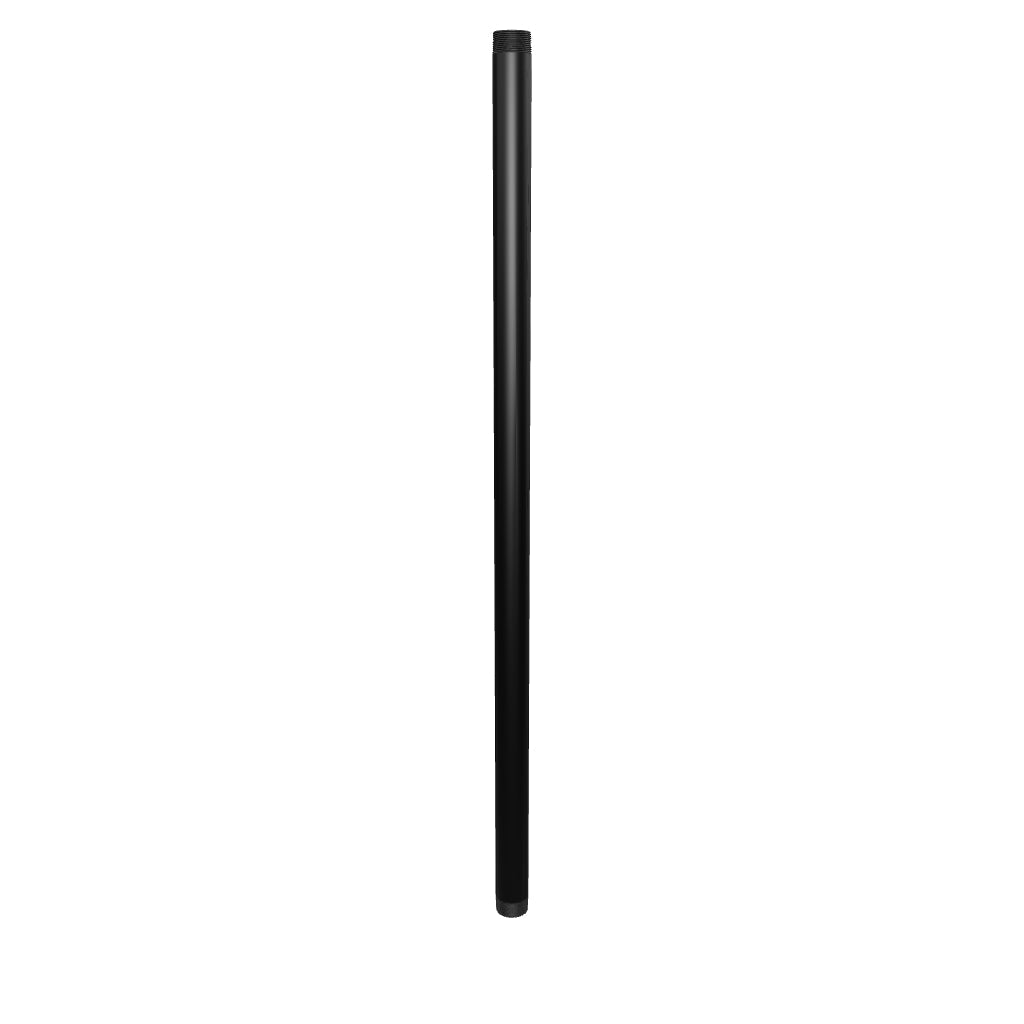

A 48-inch length of 1-1/2" (1.5", 1½") NPT Schedule 40 threaded pipe in 6061-T6 aircraft-grade aluminum, about a third the weight of steel, so it is lighter to handle overhead and ships for less, while staying plenty strong. Threaded on both ends to drop a TV, projector, sign, or light fixture the exact distance you need, and to join couplers and other 1.5" NPT pipes for any length.
- Overall length 48" (usable ≈ 47.25", the pipe threads about 0.375" / 4 turns into a fitting on each end)

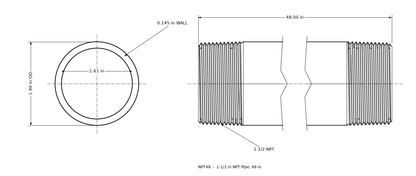

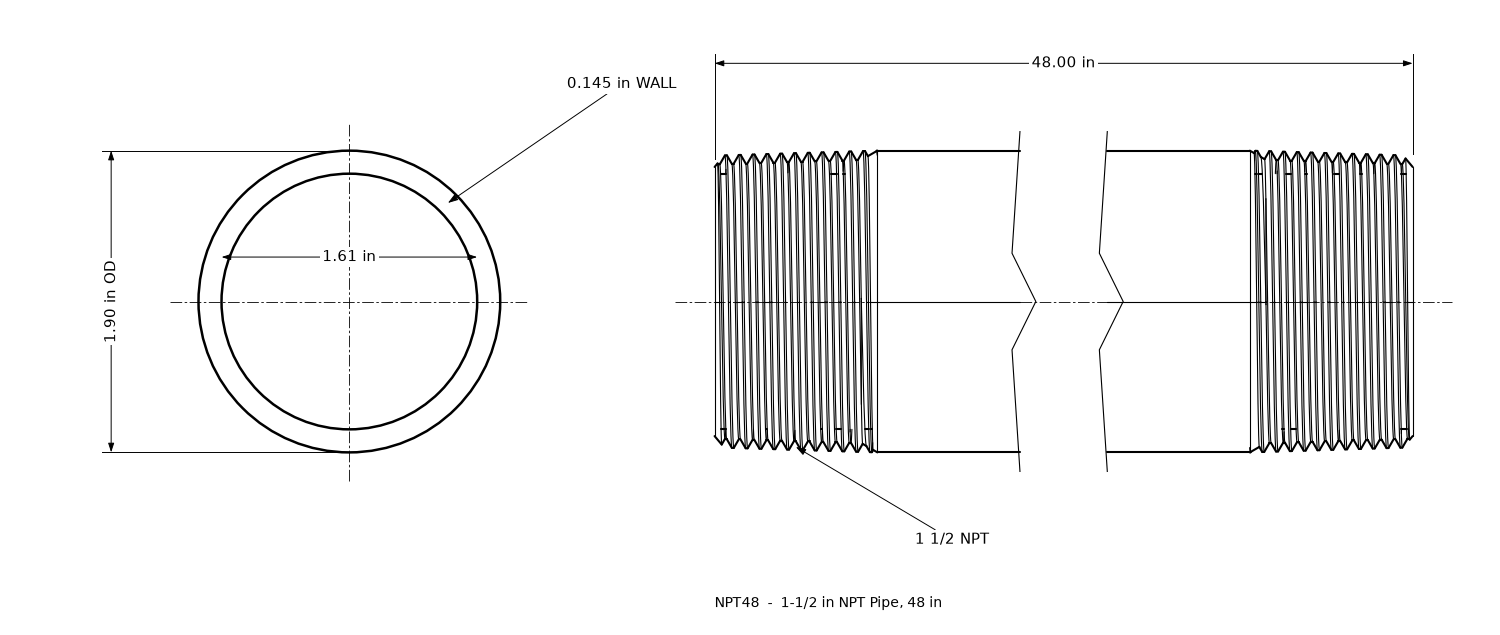

- Material: 6061-T6 aluminum, Schedule 40, 1.9" OD / 1.61" ID / 0.145" wall
- Pipe weight ≈ 3.8 lb
- Holds up to 500 lb
- 1-1/2" NPT thread, 11.5 TPI (11.5 threads per inch), both ends
- Precision machined and manufactured in the USA
- Finish: Outdoor Rated Black Powdercoat (indoor & outdoor)
- Threads into couplers and other 1.5" NPT pipes for any length
Designed for professional and commercial use, and excellent for home use. Works with TV ceiling mounts, projector mounts, digital signage, lighting, and stage truss, great in bars, restaurants, airports, home theaters, patios, gazebos, bowling alleys, schools, hospitals, and more.
Shipping note: ordering the 48" pipe raises shipping noticeably. UPS charges an oversize fee for packages over 48 inches. If you can reach your length by combining shorter pipes, it ships cheaper.
Replaces these competitor parts
This 48 inch 1-1/2 inch NPT pipe is a direct replacement for the same-length extension columns and drop poles sold under other brand names:
- Chief CMS048
- Crimson AV E4, EL4
- Mustang AV MPE-4
- Peerless-AV ADD104, EXT104
- Premier Mounts PWH-48, PWH-48B
Keep in mind: every one of these uses the same 1-1/2 inch NPT thread, so this pipe threads straight into the same mount. If you are not sure yours takes 1-1/2 inch pipe, measure the old one across the outside, it should be about 1.9 inches.
Call or email us if you want us to confirm the fit or help with the drop you need. 800-585-8795 or sales@videomountstore.com.

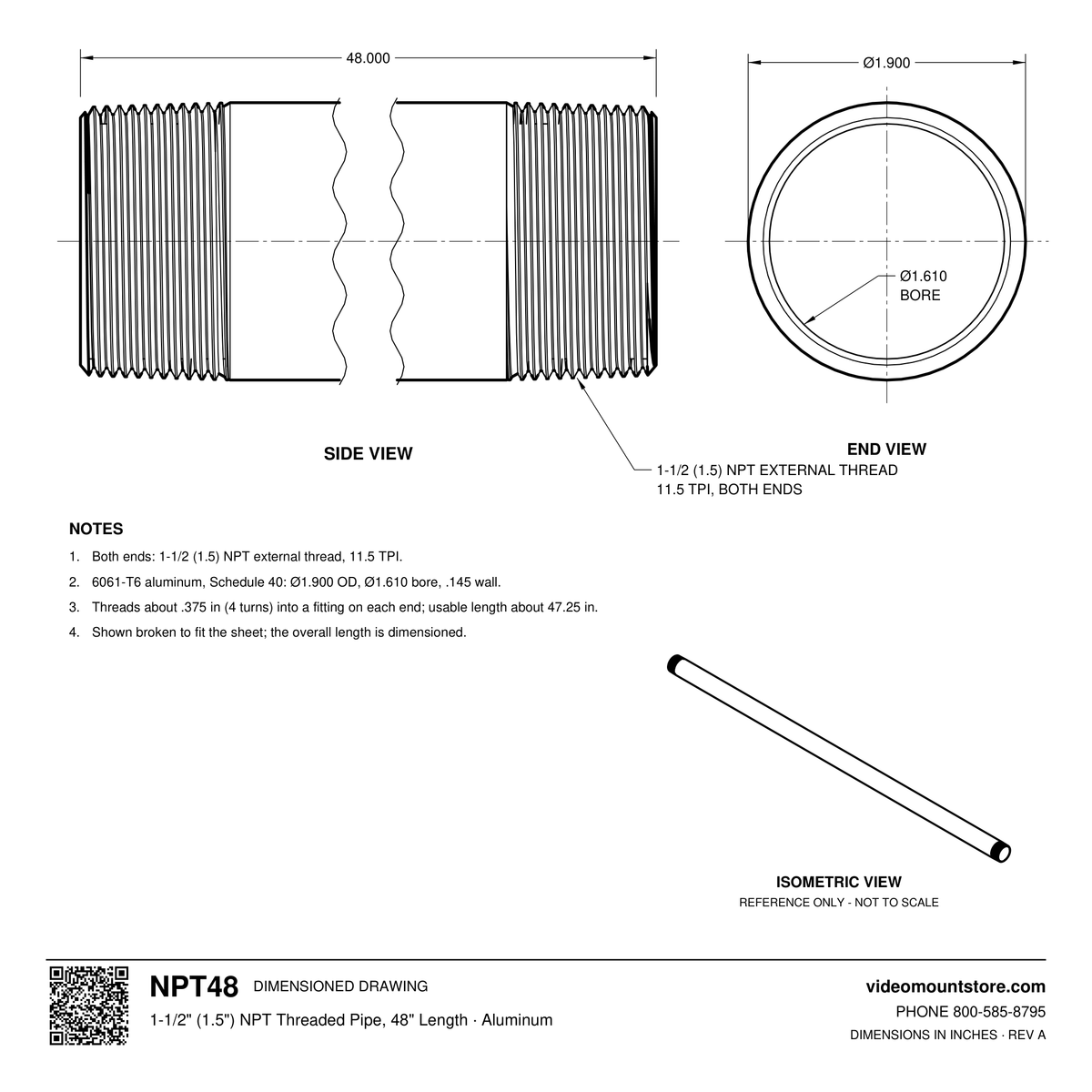

Expert Mounts manufacturer spec sheet
