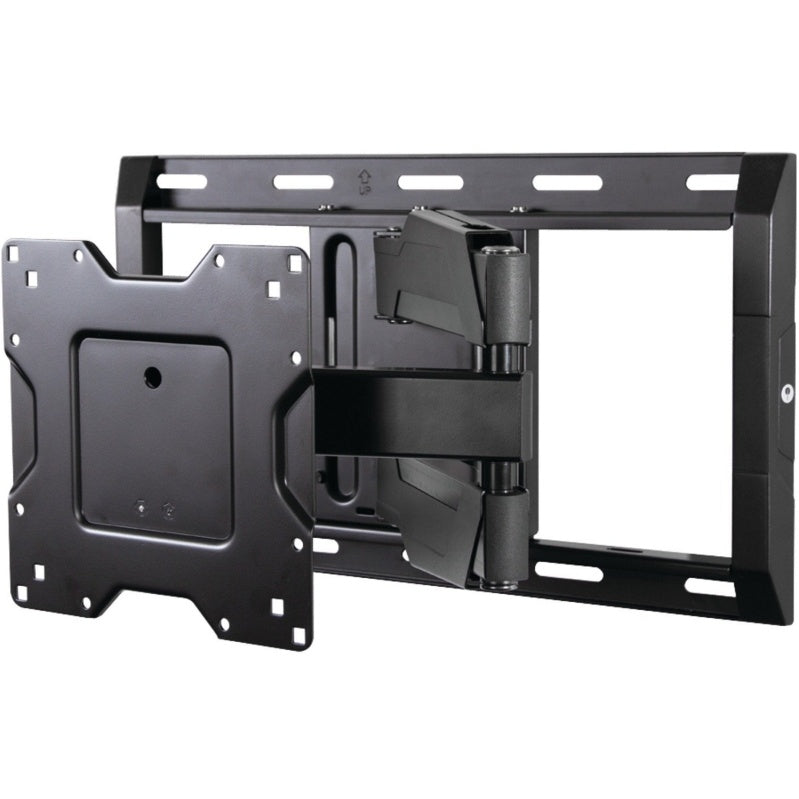

• Full Motion Articulating Mount for 42 to 70

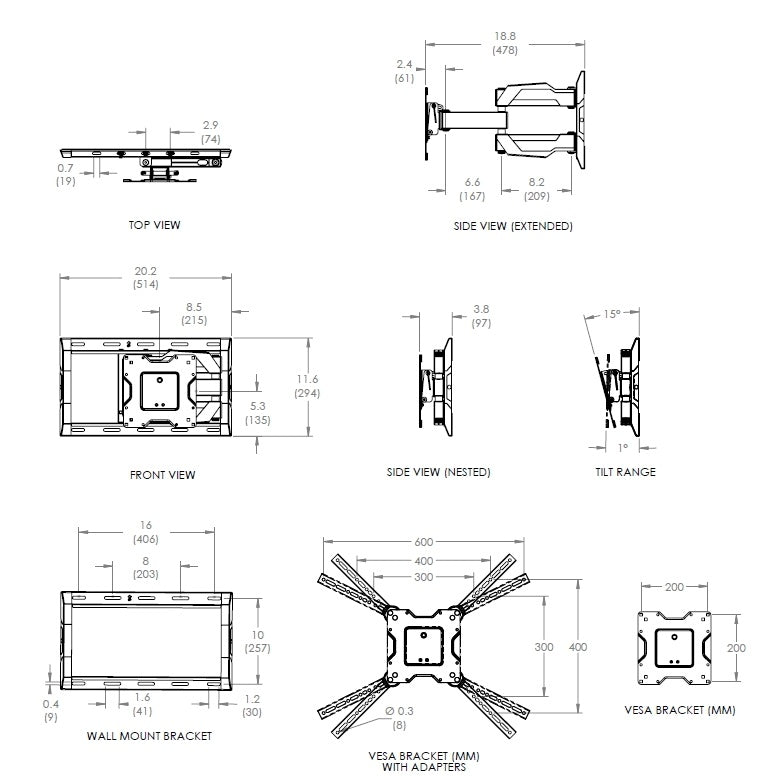

  • OC120FM dimensioned drawing sheet: top, front, and side views, 15 degree tilt range, wall bracket, and VESA adapters up to 600 by 400
1 2

Full Motion Articulating Mount for 42 to 70

SKU OC120FM

$229.95
$246.00 $229.95
Save $16.05 (7%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

The OC120FM is ideal for consumers looking for a low-profile and easy-to-use large full motion mount.
  • Tilt forward or back to reduce glare or for overhead installations
  • Pan display left or right to view from multiple rooms or seating areas
  • Pull TV forward when mounted in a recessed space
  • Included adapters fit a wide range of VESA patterns
  • Lift n' Lock™ feature offers easy, three step installation
  • Cable management channels guide wires from TV to wall for a clean install
  • +/-3° post installation leveling
  • 2.9" (7.4 cm) of lateral adjustment makes TV centering possible
  • Open frame provides ample room for power and A/V cutouts behind TV
  • Wall plate and arm design complements TV whether extended or nested to the wall
  • Complete hardware kit included
  • Fits most: 43–70" TVs
  • Supports up to: 120 lbs (54.4 kg)
  • Tilt: +15° to -1°
  • Mounting profile: 3.8" (9.7 cm)*
  • Maximum extension: 18.8" (47.8 cm)*
  • VESA compliance: 200x200 to 600x400
  • Mounting: Double-stud or solid wall
  • Warranty: 5 years
  • Color: Black
  • UL Listed
  • *adapter adds .2" (0.6 cm

Product details

Screen size 42-70"
Max weight 120 lb · 54 kg
Tilt 15° down
Mount distance 3.8-18.8" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 200 to 600 mm wide and 200 to 400 mm tall, shown to scale on an approximately 70 inch 16:9 display.
200-400 mm 7.9-15.7"
200-600 mm 7.9-23.6"

shown to scale on a ~70" screen (16:9)

200-600 mm wide · 200-400 mm tall(7.9-23.6" wide · 7.9-15.7" tall)

Supported standards200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
