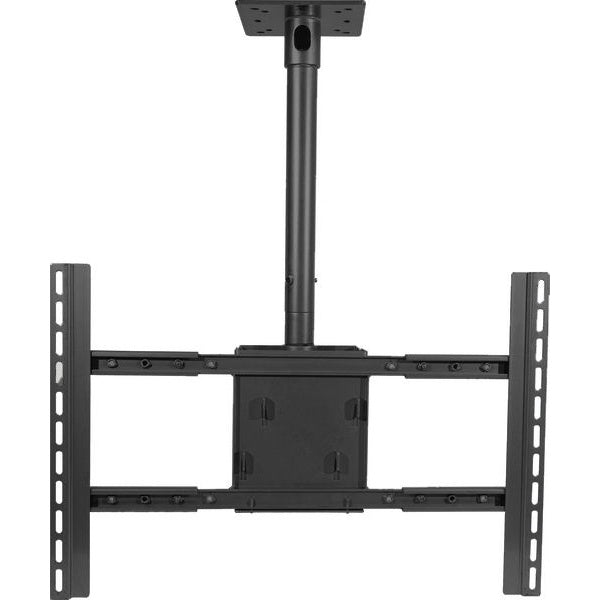

VMP Large Flat Panel Ceiling Mount for 37" to 90" flat panels.

SKU PDS-LC-Black

$274.95
$486.95 $274.95
Save $212.00 (44%)
1. Choose Color : Black

Black Recommended
Your Setup
Black $274.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

The VMP PDS-LC is a ceiling mount for large flat panel displays from 37 to 90 inches, holding up to 180 lbs. The mast telescopes from 23 to 35 inches to set your viewing height, the display rotates a full 360 degrees, and it tilts from 0 to 15 degrees for glare control. Cables route through the center of the mast for a clean install.

  • Holds most 37 to 90 inch flat panels
  • Load capacity of 180 lbs
  • Maximum mounting hole pattern of 860mm x 500mm
  • Fits VESA patterns including 300x300, 400x200, 400x300, 400x400, 600x400, and 800x400
  • Mast telescopes from 23 to 35 inches from the ceiling
  • Rotates 360 degrees for flexible viewing angles
  • Adjustable 0 to 15 degree tilt
  • Cable management routed through the center of the mast
  • Uses standard 1.5 inch NPT masting
  • Tamper resistant hardware
  • Available in black or silver powder coat finish

Product details

Screen size 37-90"
Max weight 180 lb · 82 kg
Tilt 15° down
Mount distance 23-35" from ceiling

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 200 to 860 mm wide and 75 to 500 mm tall, shown to scale on an approximately 90 inch 16:9 display.
75-500 mm 3-19.7"
200-860 mm 7.9-33.9"

shown to scale on a ~90" screen (16:9)

200-860 mm wide · 75-500 mm tall(7.9-33.9" wide · 3-19.7" tall)

Supported standards200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches800×400VESA 800 by 400 mm, about 31 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details
