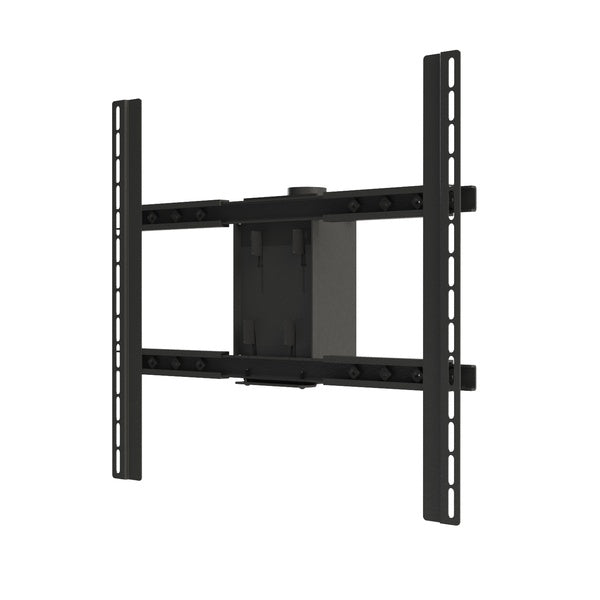

• Flat Panel Ceiling Mount for 32 to 90 - Head Only

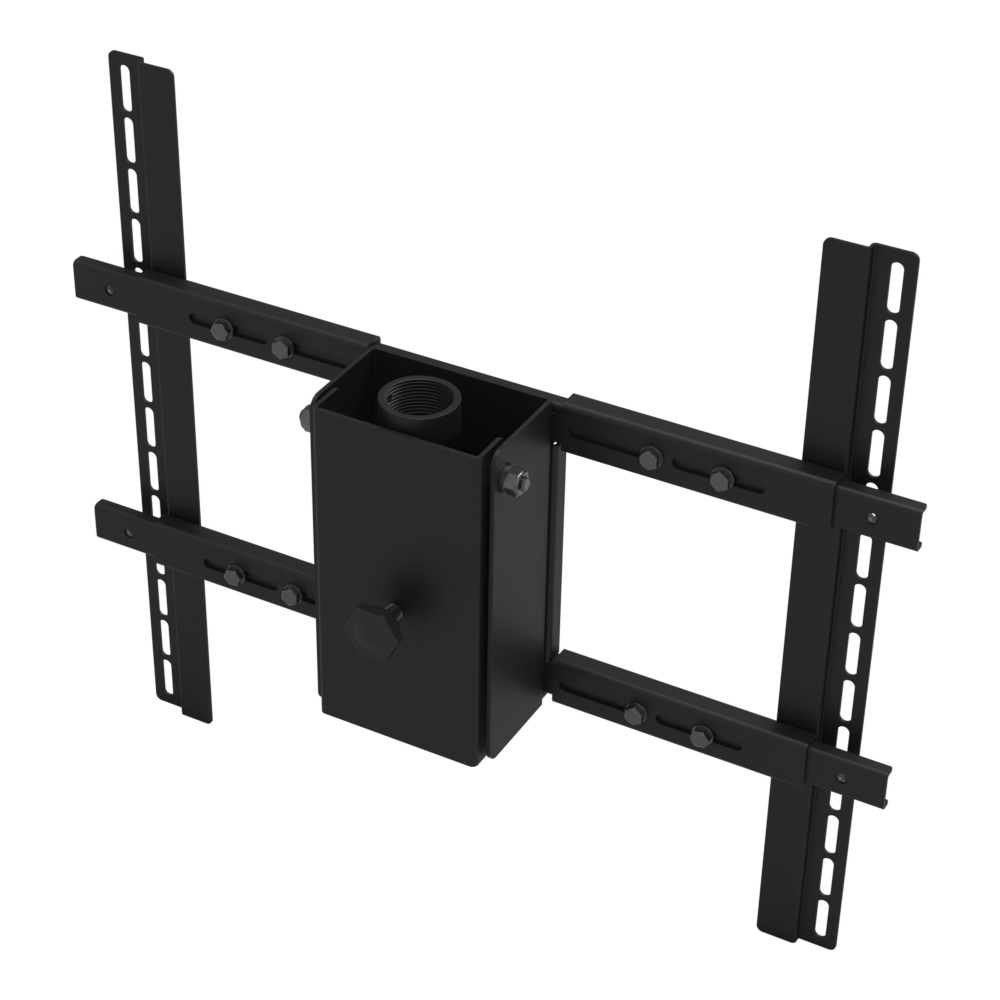

  • PDS-LCHB large TV ceiling mount head at a three-quarter angle, showing the threaded 1-1/2 in pipe socket, the tilt box, the lock knob and the adjustable screen rails.

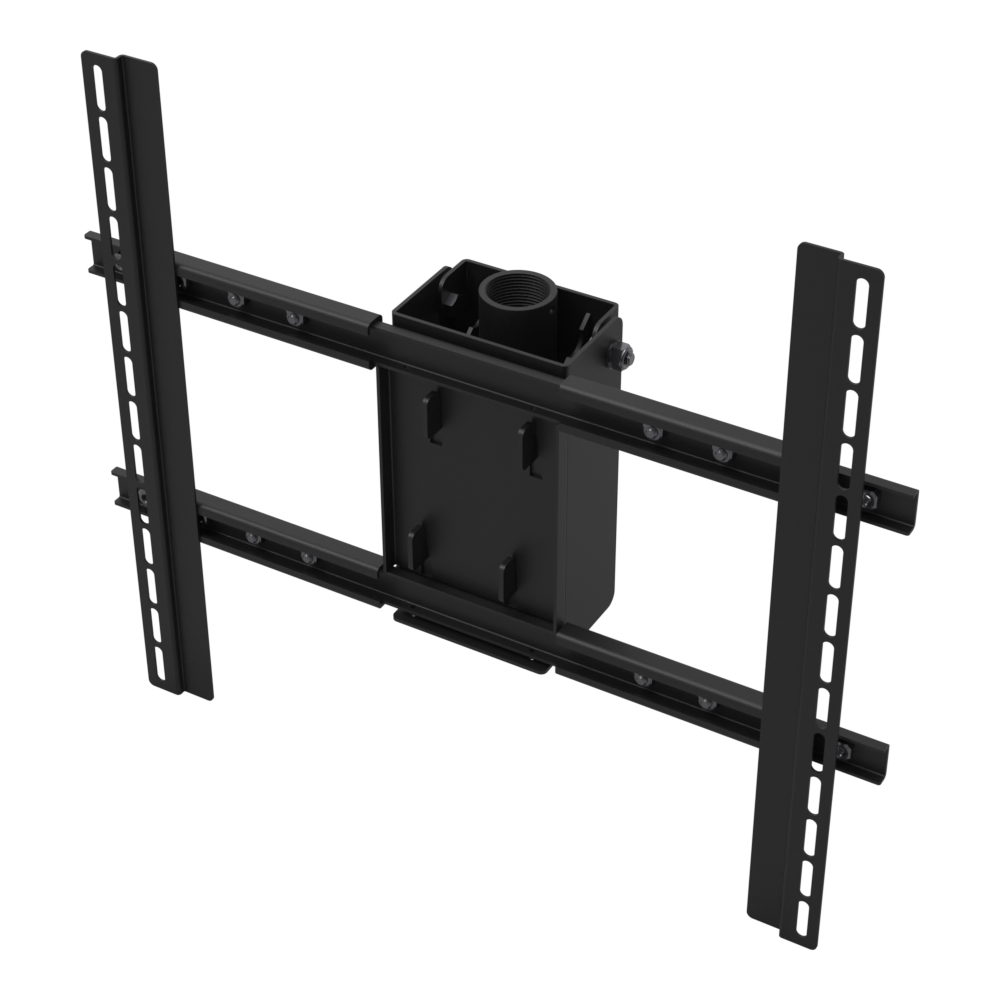

  • PDS-LCHB large TV ceiling mount head from the screen side, showing the four hooks the TV hangs on, the adapter frame and the pipe socket above.

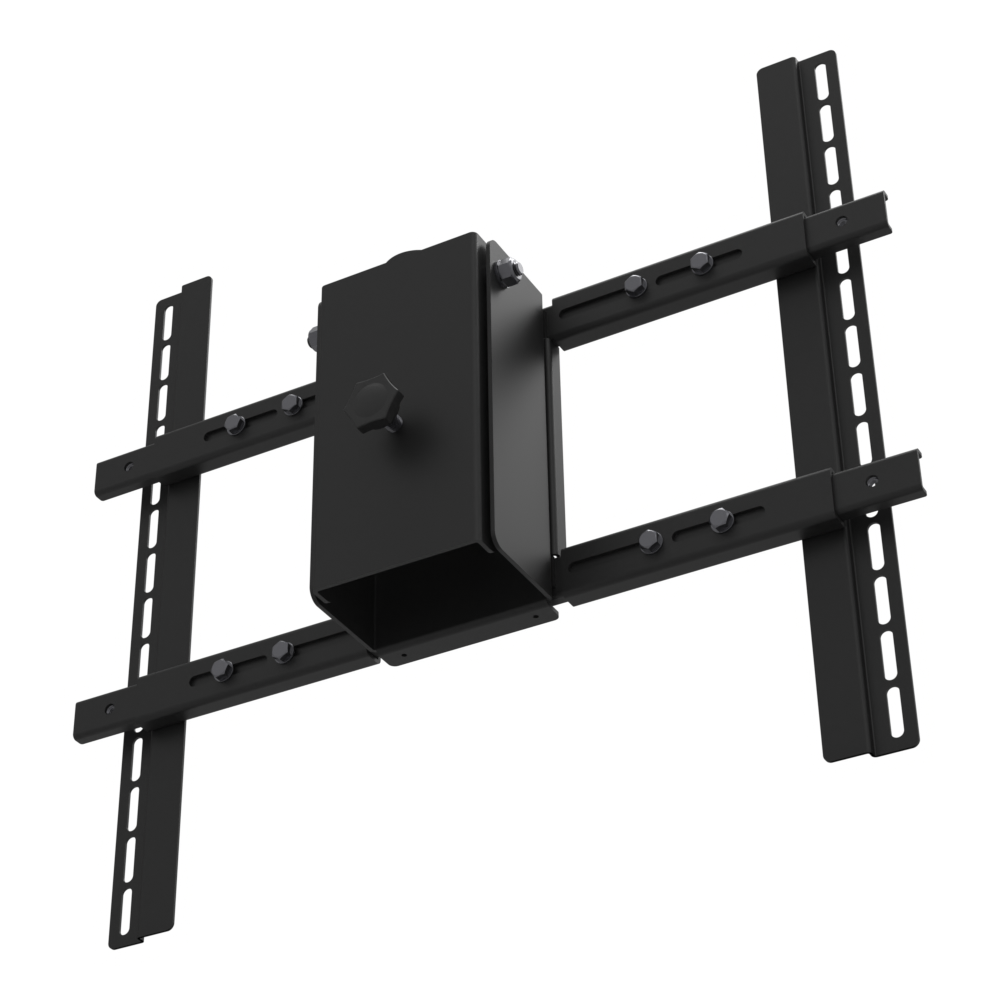

  • PDS-LCHB large TV ceiling mount head seen from below at the installed viewing angle, showing the underside of the tilt box, the lock knob and the adapter frame.

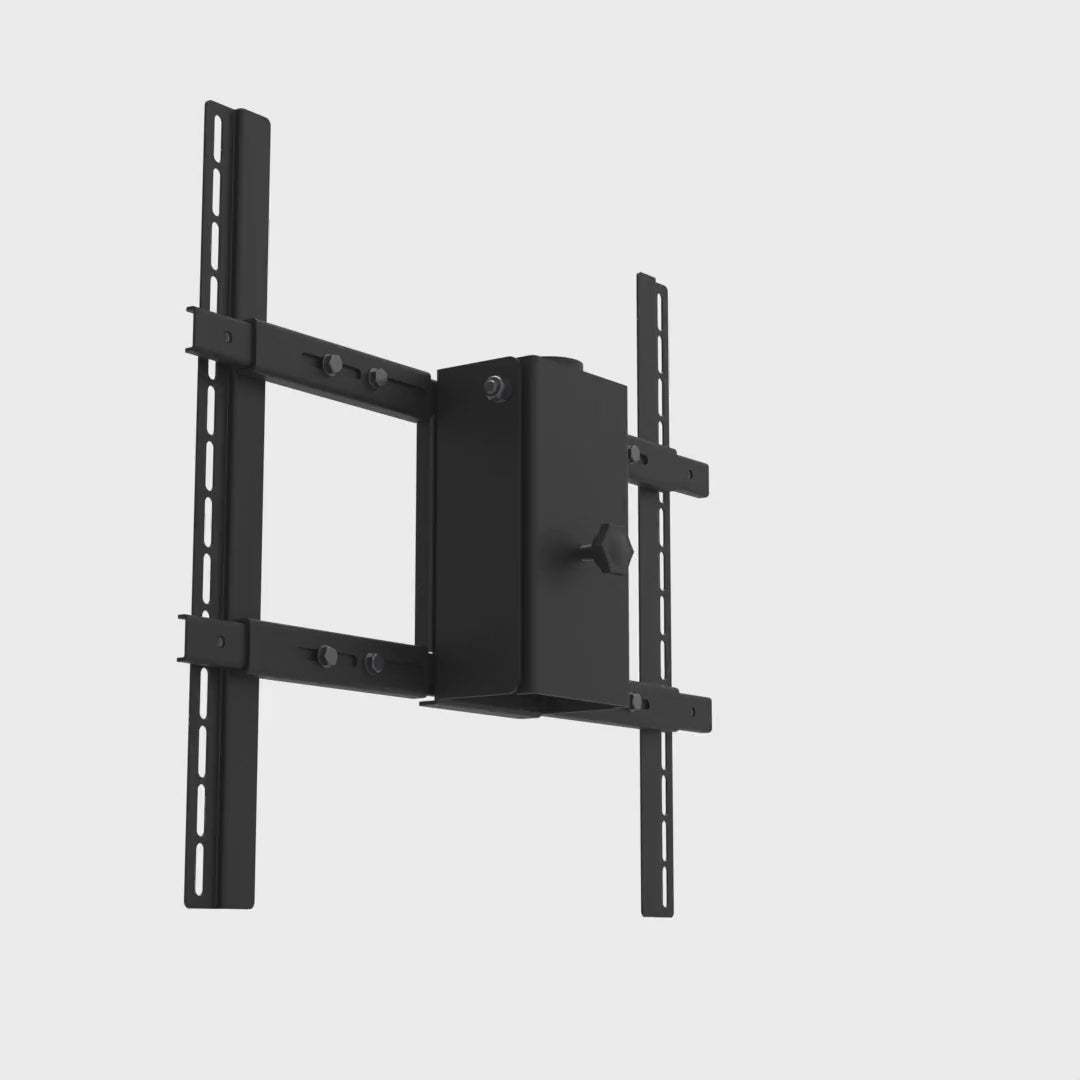

  • PDS-LCHB large TV ceiling mount head rotating 360 degrees, showing the threaded pipe socket, the tilt box and the adjustable screen adapter frame.

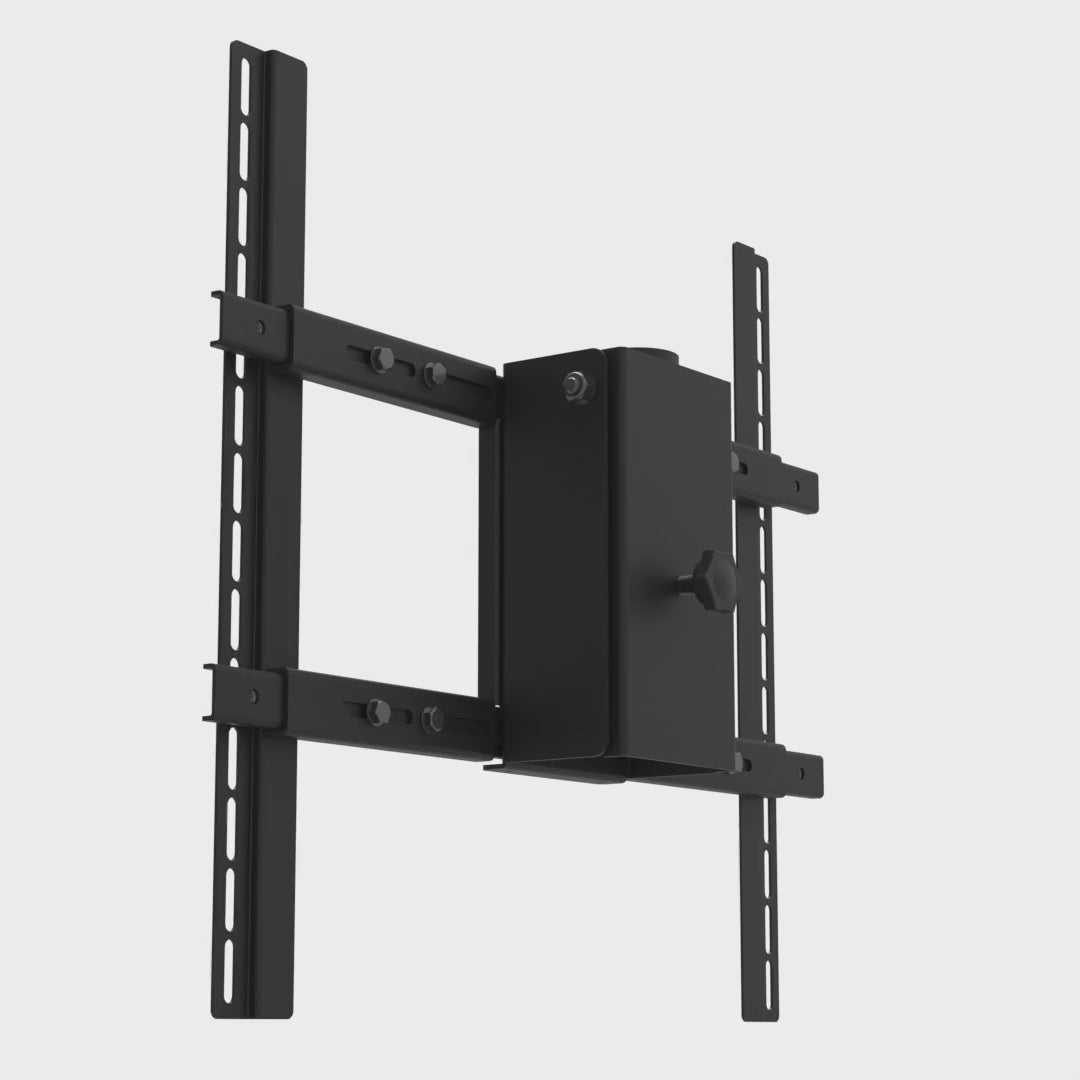

  • PDS-LCHB large TV ceiling mount head tilting the screen frame from level to 15 degrees down, with the pipe socket held fixed and the lock knob backing out.
1 6

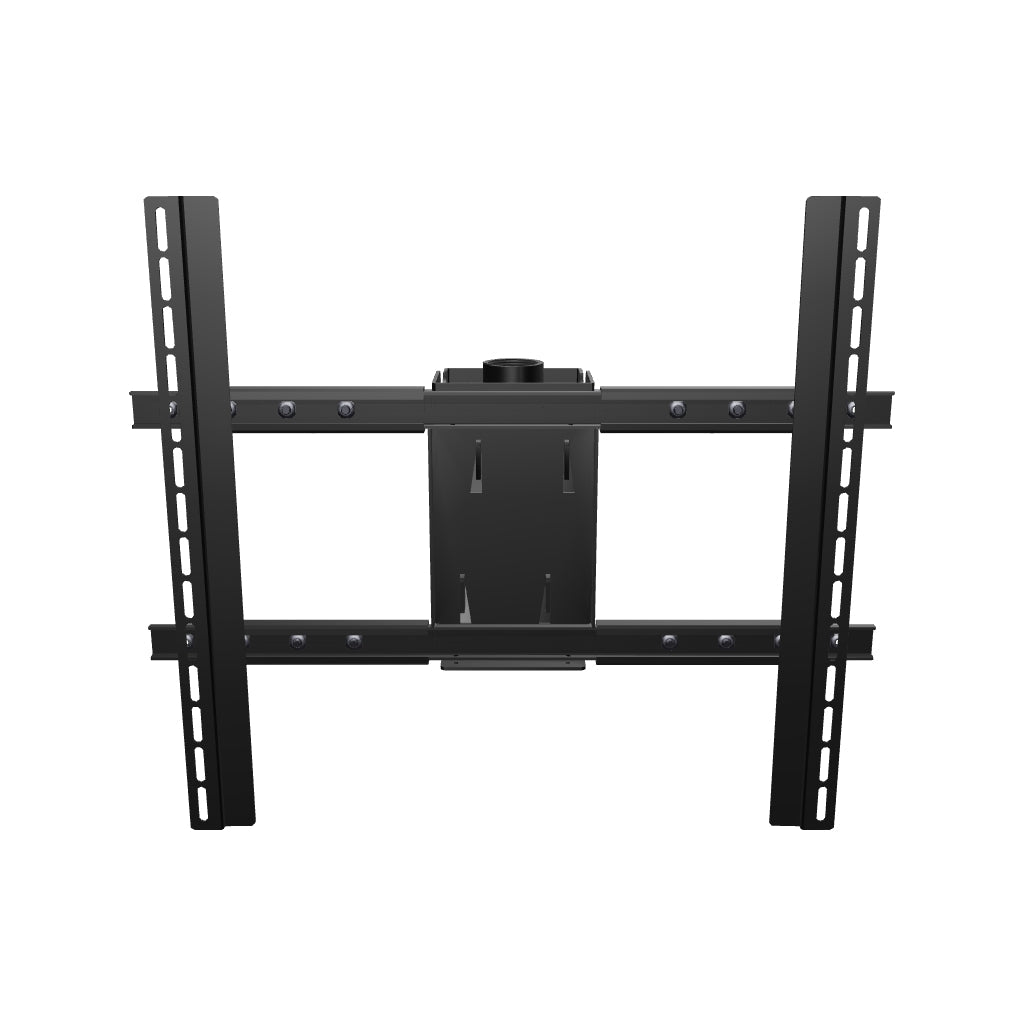

Flat Panel Ceiling Mount for 32 to 90 - Head Only

SKU PDS-LCHB

$207.95
$372.95 $207.95
Save $165.00 (44%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

The PDS-LCHB is the mounting head only for VMP's large flat panel ceiling mount. It is the head portion of the full PDS-LCB ceiling mount, so it attaches to preexisting 1.5 inch NPT pipe or any VMP EXT-Series extension pipe and holds most 37 to 90 inch flat panels up to 180 lbs. Rotation, tilt, and side to side rail adjustment let you place the screen exactly where you need it.

  • Head only: mounts to preexisting 1.5 inch NPT pipe or any VMP EXT-Series pipe (sold separately)
  • Holds most 37 to 90 inch flat panels
  • Load capacity up to 180 lbs
  • Maximum mounting hole pattern 860mm x 500mm (33.86 inches wide by 19.69 inches tall)
  • Rotates a full 360 degrees for easy aiming
  • Adjustable 0 to 15 degree forward tilt to reduce glare
  • Side to side rail adjustment for centering the screen on the pole
  • Uses standard 1.5 inch NPT masting
  • Black powder coat finish

Product details

Screen size 37-90"
Max weight 180 lb · 82 kg
Tilt 15° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 200 to 860 mm wide and 75 to 500 mm tall, shown to scale on an approximately 90 inch 16:9 display.
75-500 mm 3-19.7"
200-860 mm 7.9-33.9"

shown to scale on a ~90" screen (16:9)

200-860 mm wide · 75-500 mm tall(7.9-33.9" wide · 3-19.7" tall)

Supported standards200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches800×400VESA 800 by 400 mm, about 31 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details
