• VMP Dual Ceiling Mount Adapter for PDS-LC

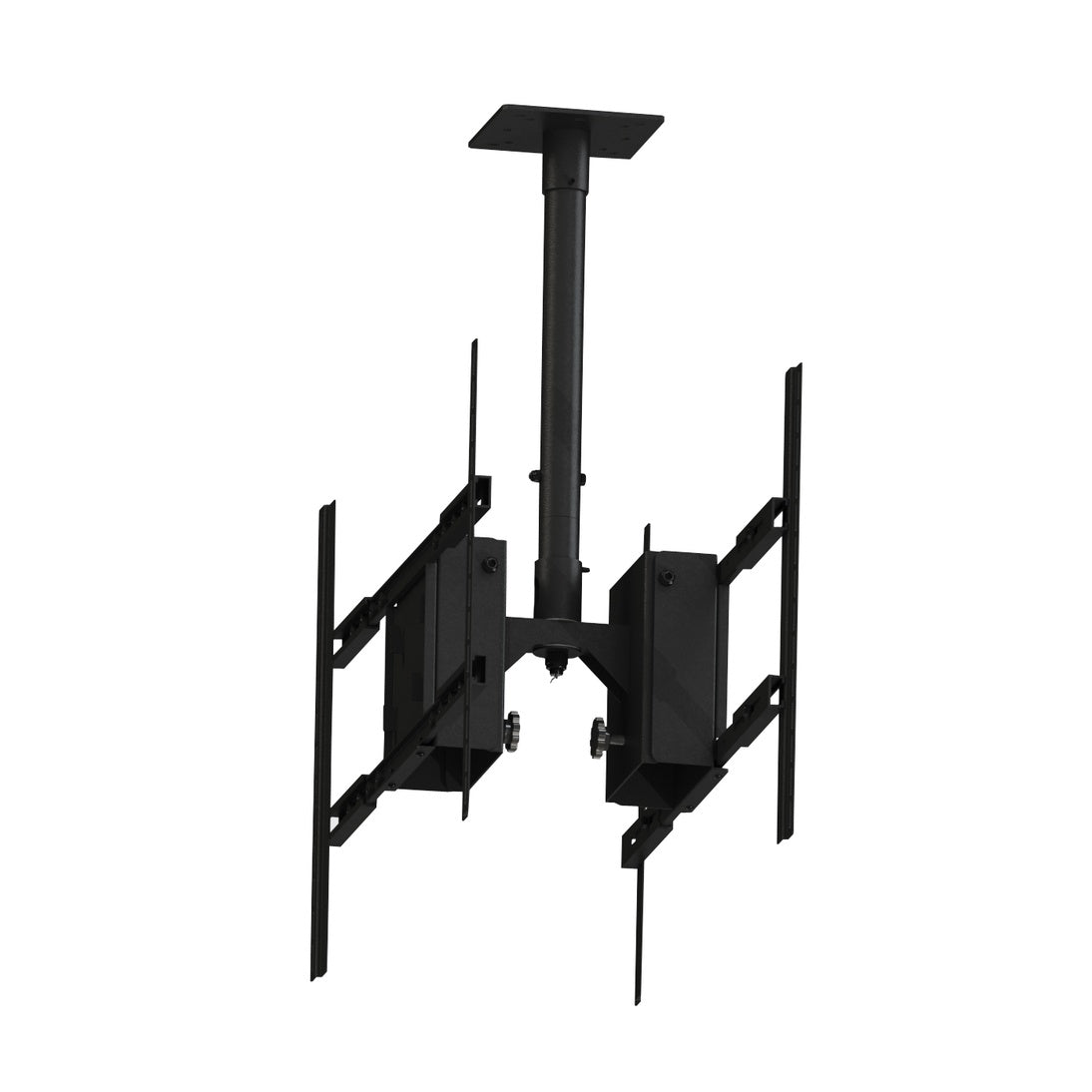

  • PDS-LCM2B dual back-to-back ceiling mount, ceiling plate and drop pole holding two opposed VESA brackets with tilt thumbscrews, front view
1 2

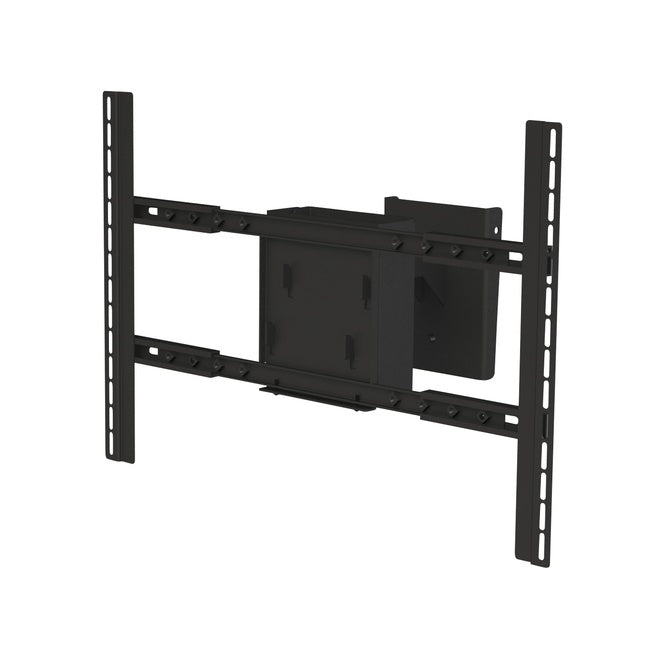

VMP Dual Ceiling Mount Adapter for PDS-LC

SKU PDS-LCM2B

$207.95
$372.95 $207.95
Save $165.00 (44%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

The VMP PDS-LCM2B is an adapter that lets the PDS-LCB ceiling mount (sold separately) hold two flat panel displays back-to-back instead of one. Together the pair supports most screens from 37 to 90 inches with a combined weight of up to 360 lbs. It is built from formed steel with arc welds and nylon filled nuts, and each side adjusts from 0 to 15 degrees of tilt to fine tune the viewing angle.

  • Adapts the VMP PDS-LCB ceiling mount (sold separately) to carry two flat panels back-to-back
  • Holds most 37 to 90 inch flat panel displays
  • Combined PDS-LCB and PDS-LCM2B load capacity of 360 lbs
  • Adjustable 0 to 15 degree tilt
  • Maximum flat panel mounting hole pattern of 860 mm high by 500 mm wide
  • Fits horizontal hole spacing from 215 mm (8.5 inches) to 500 mm (19.7 inches)
  • Fits vertical hole spacing from 100 mm (3.9 inches) to 860 mm (33.9 inches)
  • Primarily constructed of formed steel with arc welds and nylon filled nuts
  • Black powder coat finish
  • Manufactured by Video Mount Products (VMP)

Product details

Screen size 37-90"
Max weight 360 lb · 163 kg
Tilt 15° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 200 to 860 mm wide and 75 to 500 mm tall, shown to scale on an approximately 90 inch 16:9 display.
75-500 mm 3-19.7"
200-860 mm 7.9-33.9"

shown to scale on a ~90" screen (16:9)

200-860 mm wide · 75-500 mm tall(7.9-33.9" wide · 3-19.7" tall)

Supported standards200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches800×400VESA 800 by 400 mm, about 31 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details
