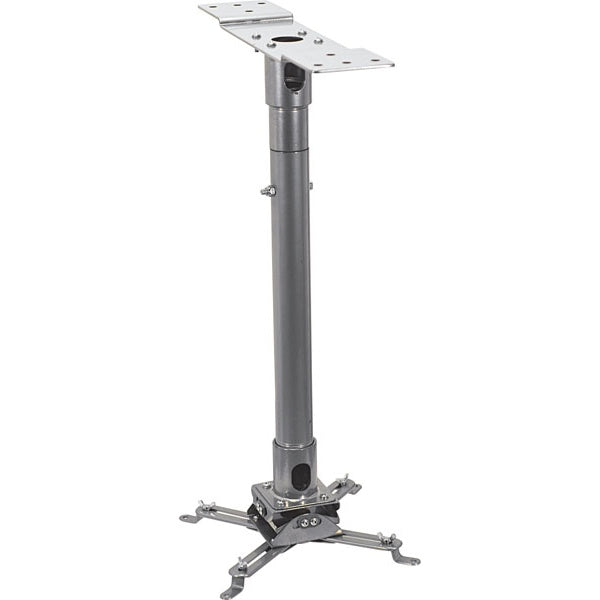

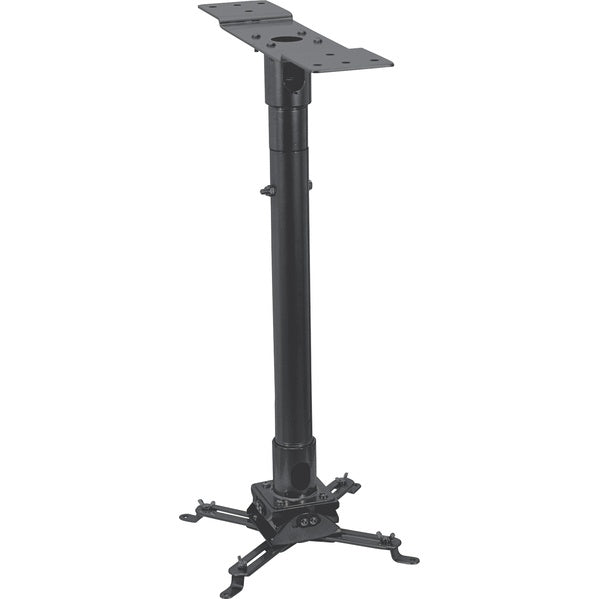

VMP - Low Profile Projector Mount

The VMP PM-LP is a yokeless low profile ceiling mount that keeps LCD and DLP projectors close to the ceiling while giving you full aiming control. It fits most projectors with mounting holes inside a 14.5 inch diameter and hangs from a 1.5 inch NPT mast that telescopes from 23 to 35 inches to set your throw height. Built primarily of formed steel with arc welds, it carries up to 75 lbs and routes cables through the center of the mast for a clean install.

• Fits most projectors with mounting holes inside a 14.5 inch diameter
• Low 2.625 inch mounting profile, measured including the mounting feet
• Adjustable tilt up to plus or minus 20 degrees
• Adjustable pitch up to plus or minus 15 degrees
• Adjustable yaw (rotation) of 360 degrees
• 1.5 inch NPT mast telescopes from 23 to 35 inches
• Cable management routed through the center of the mast
• Flush mounts to the ceiling on 16 inch centers or along a ceiling joist
• Flush mount plate and projector mounting screws included
• Load capacity of 75 lbs
• Constructed primarily of formed steel with a durable powder coat finish, in silver
