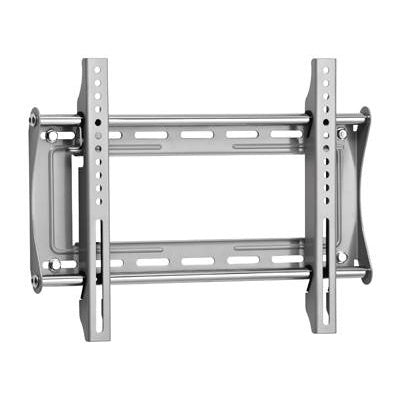

  • U2-F flat wall mount, silver low-profile bracket with two vertical VESA rails joined by two horizontal wall rails, front view
1 2

Omnimount 23" to 37" Flat Panel Flat Wall Mount

SKU U2-F

$79.95
$99.95 $79.95
Save $20.00 (20%)

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

Patented guide and unique hanging feature for hassle-free instalation.

  • Slim Profile only 1.65" Deep
  • Double Stud Mounting Bracket, can also be used on single stud.
  • Integrated flip lock for security.
  • Comprehensive installation hardware kit. Includes all hardware necessary to install the mount.
  • Universal mount. No adapter plates required.
  • Black or Silver powdercoat finish.
  • Supports 80lbs
  • 15.25 Maximum horizontal mounting hole dimension. 12.75" Maximum vertical mounting hole dimension.
  • VESA Mounting Standards:
    • 75 x 75 mm
    • 100 x 100 mm
    • 100 x 200 mm
    • 200 x 200 mm
    • 300 x 300 mm
    • To a maximum of 387.4 Wide and 323.85 High

Product details

Screen size 23-37"
Max weight 80 lb · 36 kg
Mount distance 1.64" from wall

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 36.6 to 387.4 mm wide and 100 to 323.85 mm tall, shown to scale on an approximately 37 inch 16:9 display.
100-323.85 mm 3.9-12.8"
36.6-387.4 mm 1.4-15.3"

shown to scale on a ~37" screen (16:9)

36.6-387.4 mm wide · 100-323.85 mm tall(1.4-15.3" wide · 3.9-12.8" tall)

Supported standards100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
