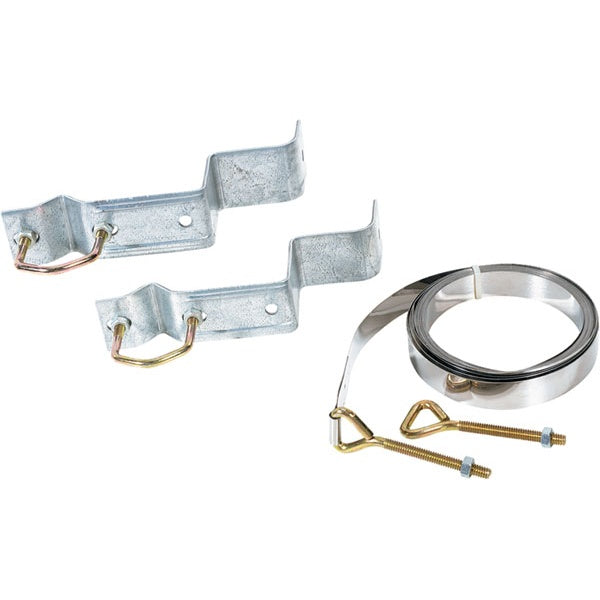

"Z" Type Chimney Mount

The Z-MOUNT is a strap-on chimney mount for securing an outdoor antenna or DBS satellite pipe to a square or rectangular masonry chimney. It clamps the mast with two supports and steel straps that wrap the chimney, so no holes are drilled into the brick. The kit ships as a pair, and VMP recommends spacing the two supports as far apart as possible for the steadiest hold on the mast.

• VMP model Z-MOUNT, a Z style chimney mount for antenna or satellite pipe
• Accommodates a 1.25 in. to 1.66 in. outer diameter antenna or DBS mast pipe
• Straps around square or rectangular chimneys with no drilling into the brick
• Includes two steel straps that tension around the chimney with a connect component
• Each support holds the mast in a V notch and clamps it with a U bolt and hex nuts
• Sold as a pair of supports with all straps, U bolts, nuts, and cable ties included
• Cable ties are provided to dress and secure loose antenna wiring
• Suitable for outdoor use on a masonry chimney
• Professional installation is recommended, and the mounting surface must support the combined weight of the mount, hardware, and antenna
