2 Screen Back to Back TV Ceiling Mount Head for - 1 1/2 Pipe - 200x200mm
SKU 22HE021
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

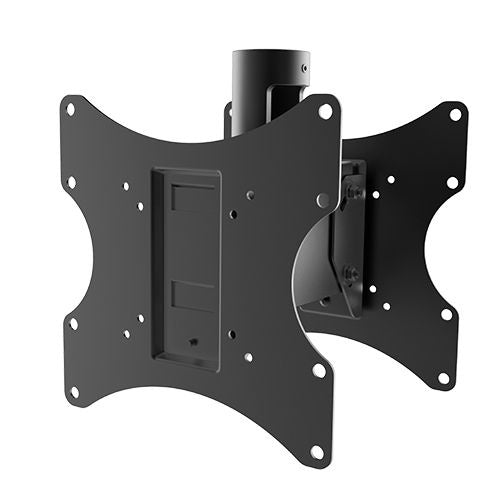

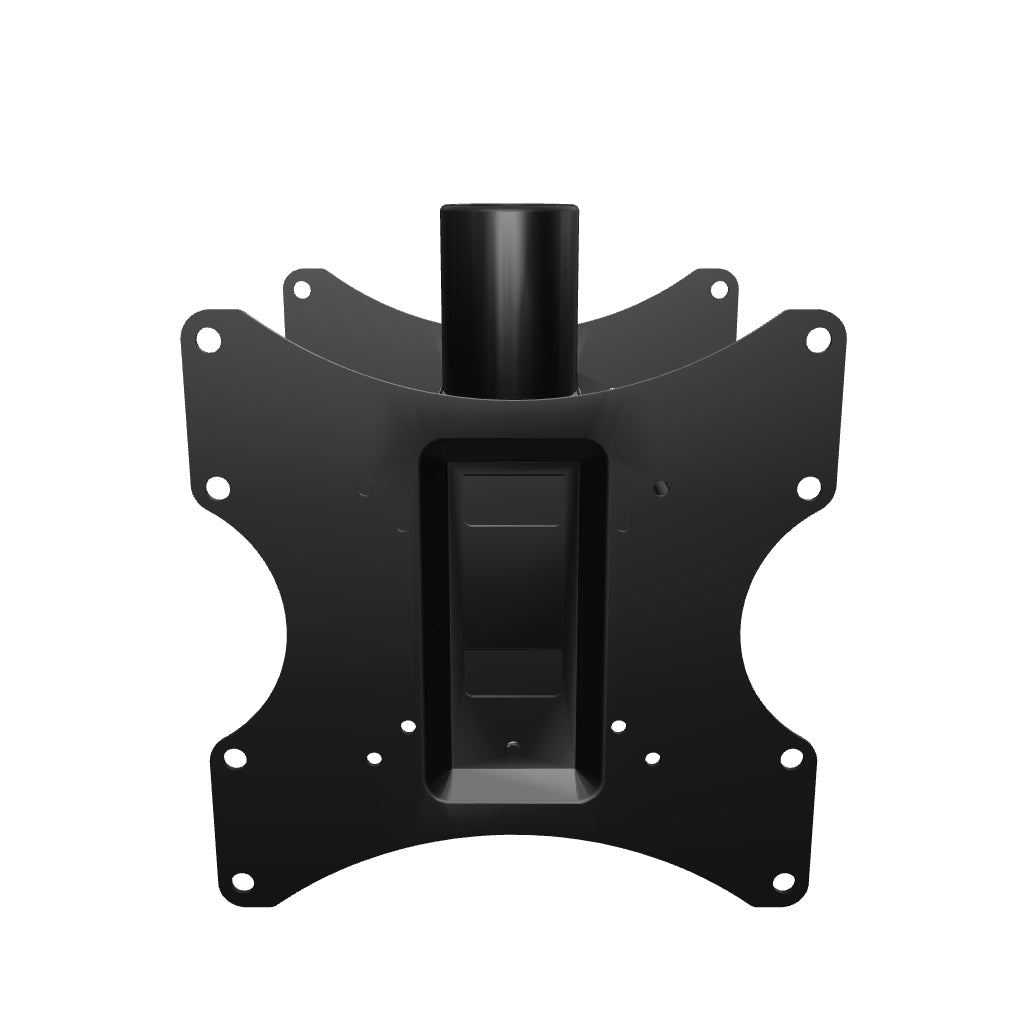

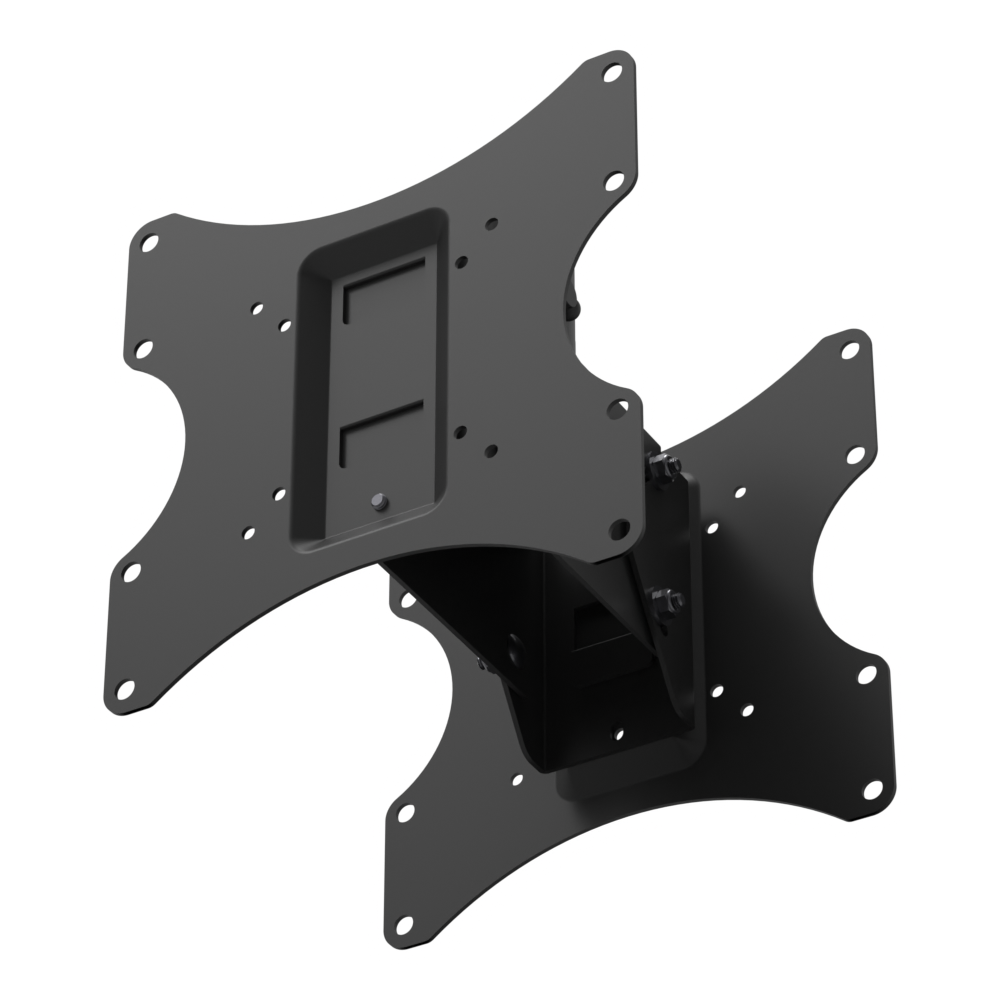

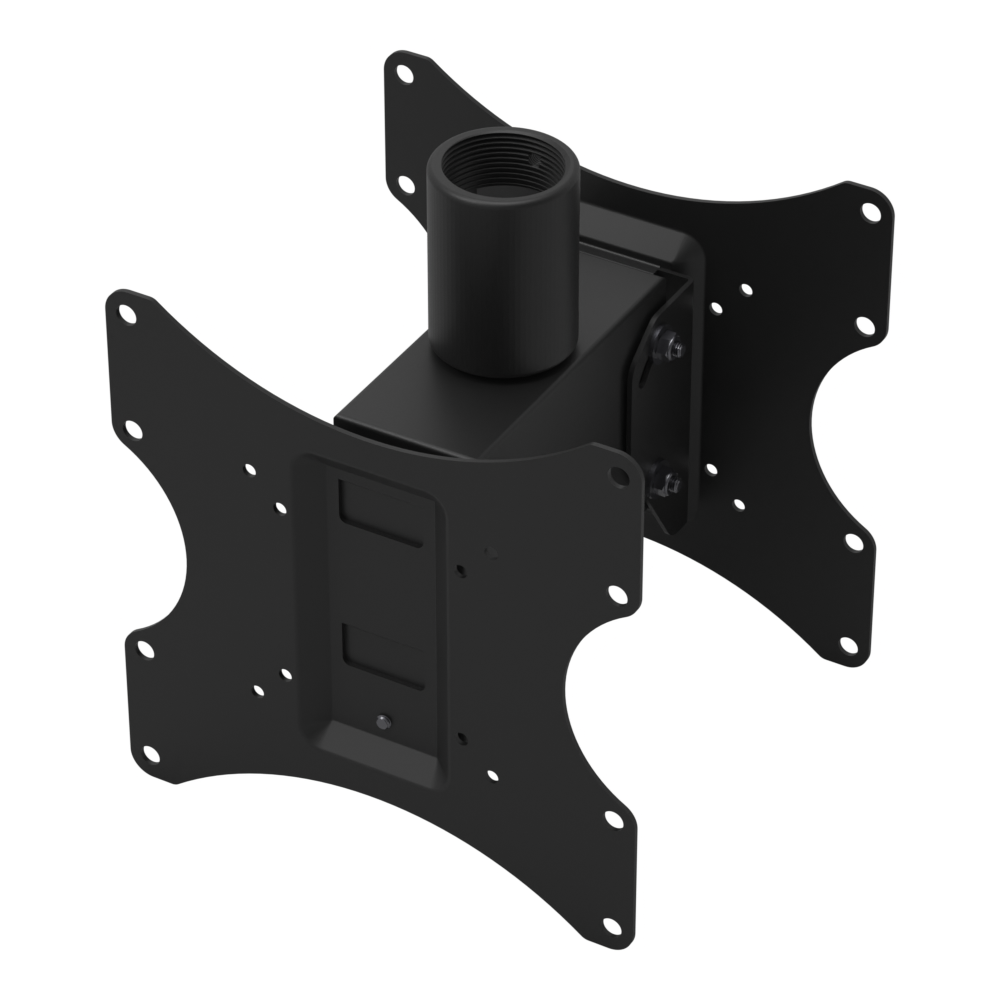

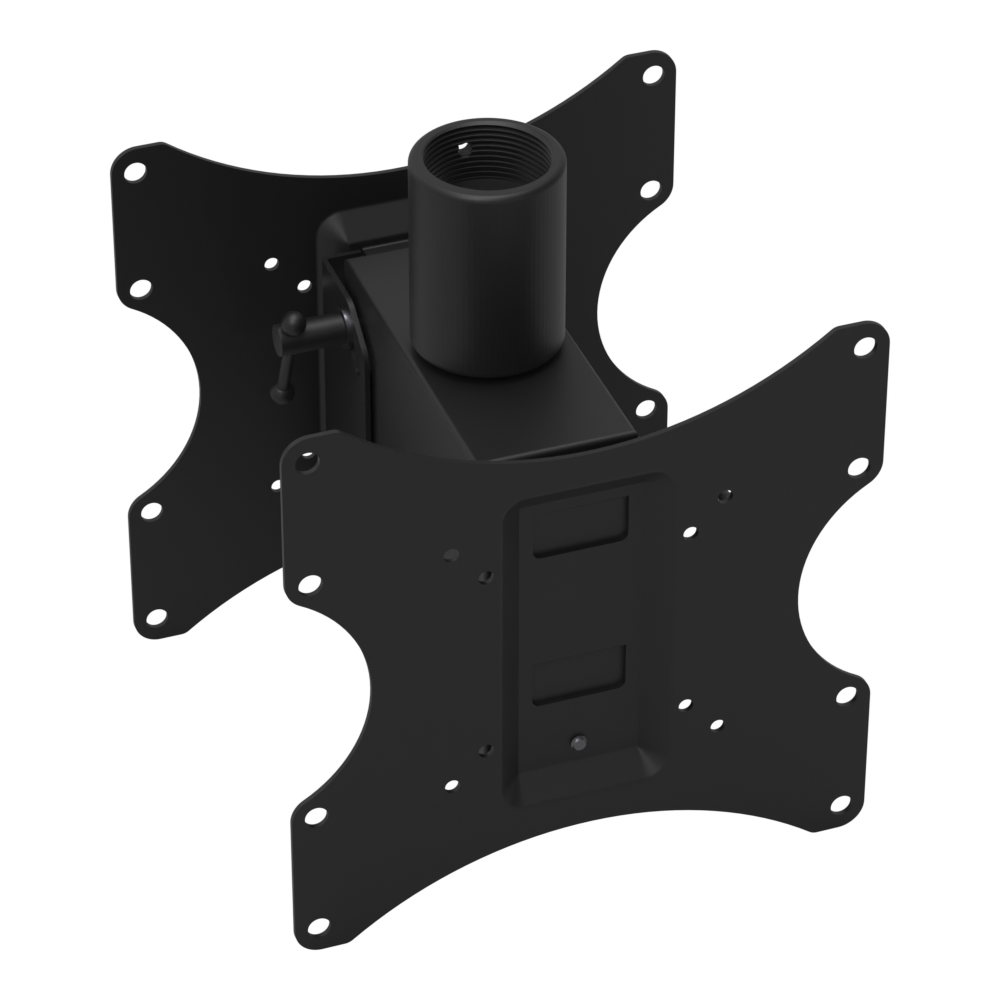

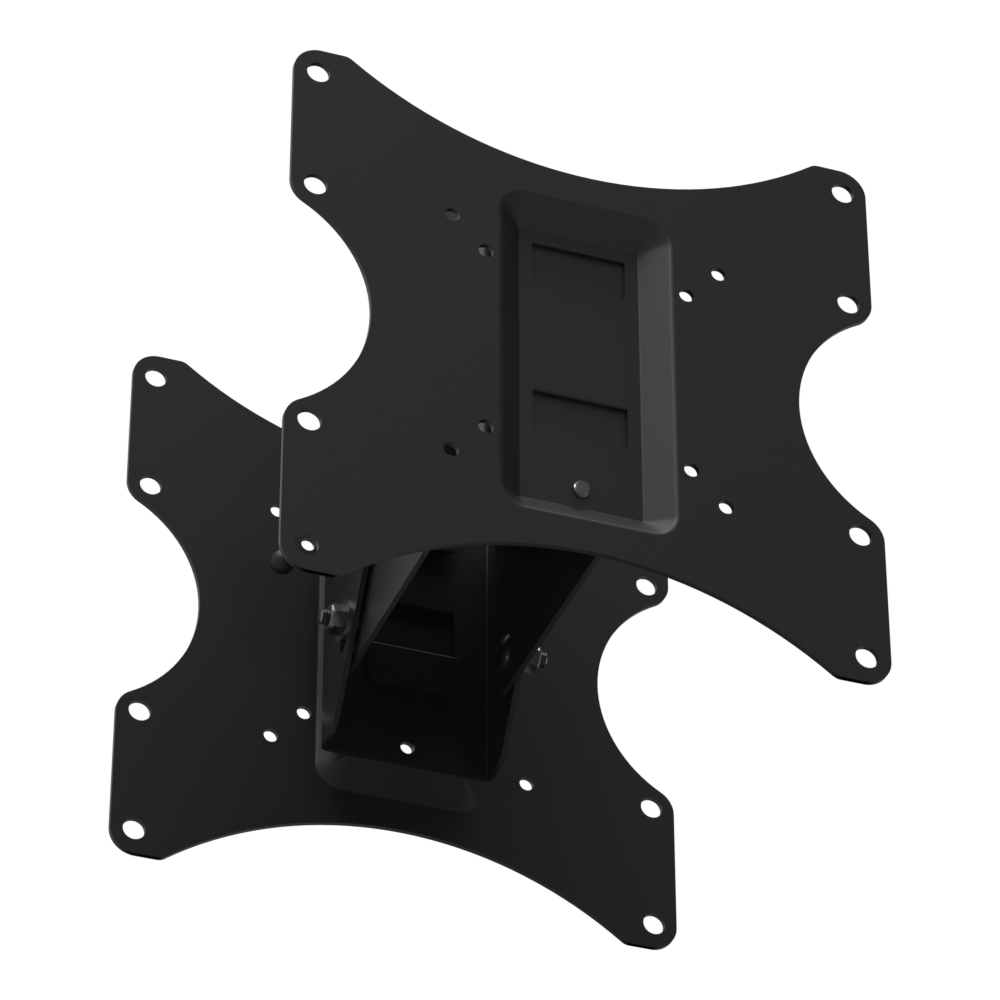

This is the two-screen back-to-back head for our 1-1/2 inch NPT ceiling mount system (1-1/2 inch, also written 1.5 inch). It threads onto a single 1-1/2 inch NPT pipe and holds two flat panels facing opposite directions, each on a VESA pattern from 75 x 75 up to 200 x 200. It is built for retail and commercial displays where people pass both sides, like checkout lanes, menu boards, and information kiosks.
- Holds two screens back-to-back on one mast

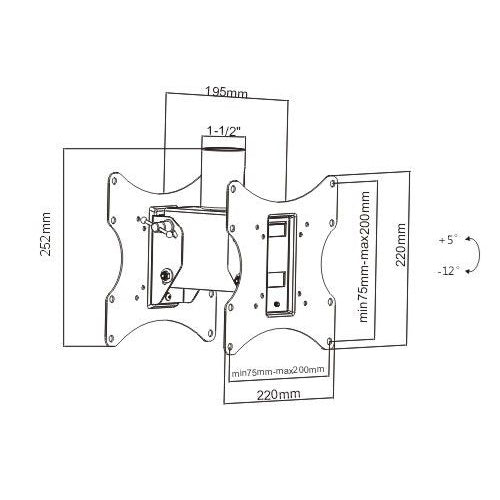

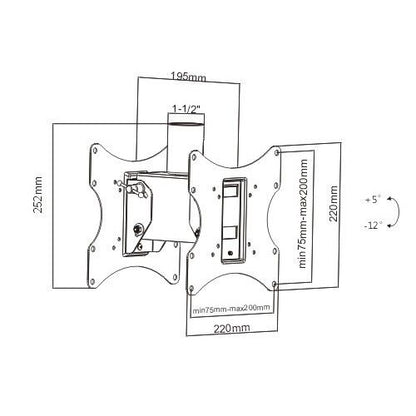

- Fits VESA patterns from 75 x 75 up to 200 x 200 mm on each side

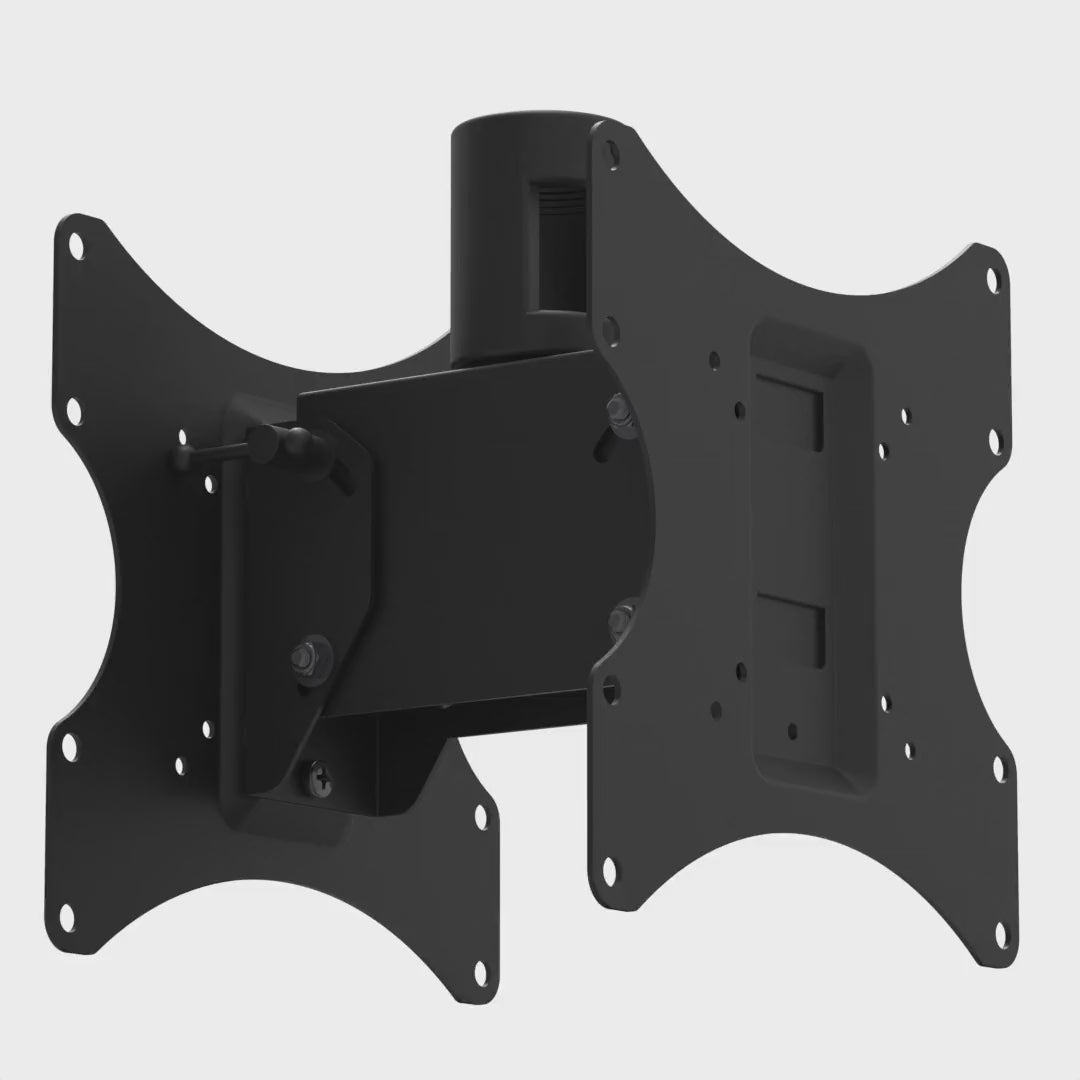

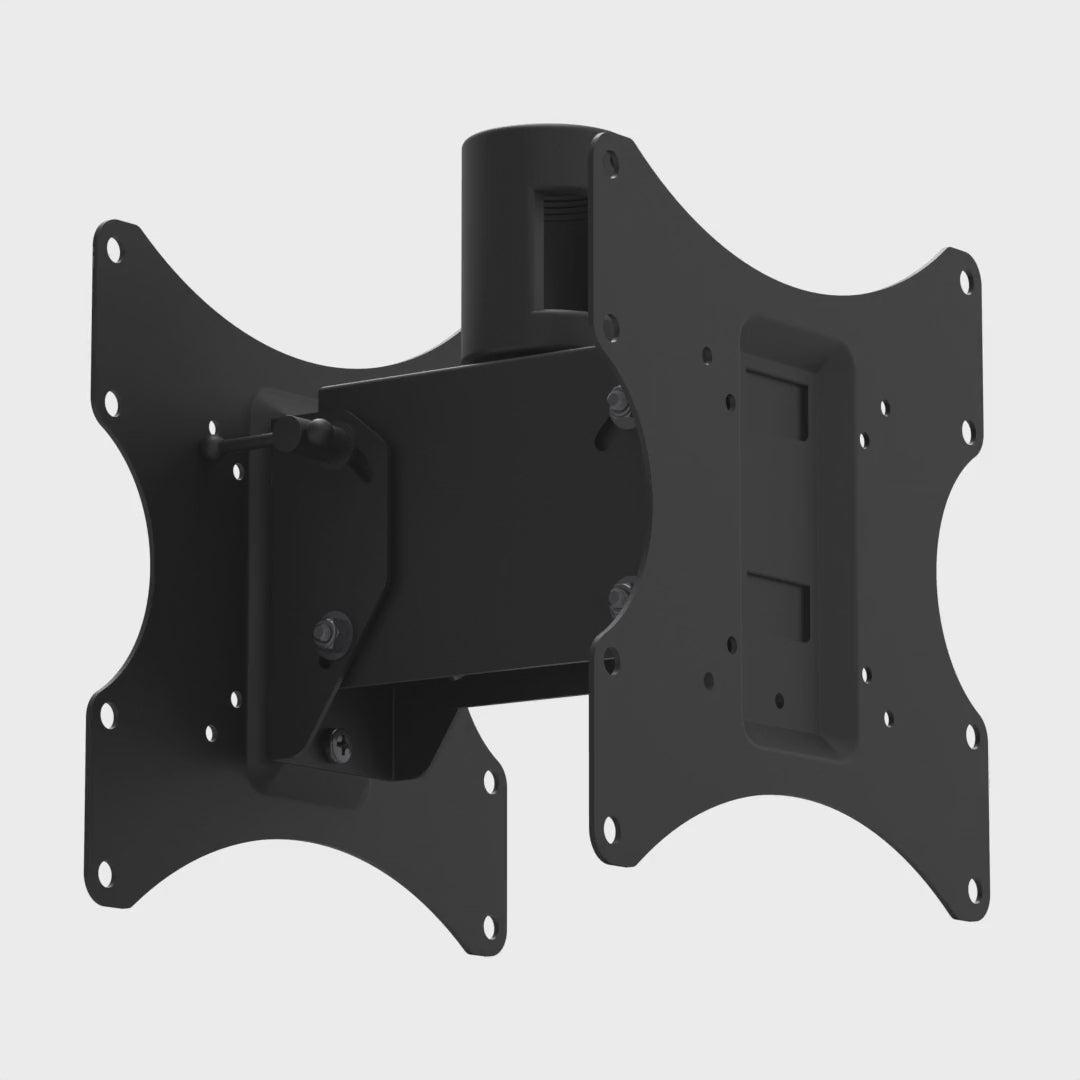

- Tilts 5° up and 12° down, rotates 360°
- Threads onto 1-1/2 inch NPT pipe
- Black powder coat finish, suitable for outdoor use

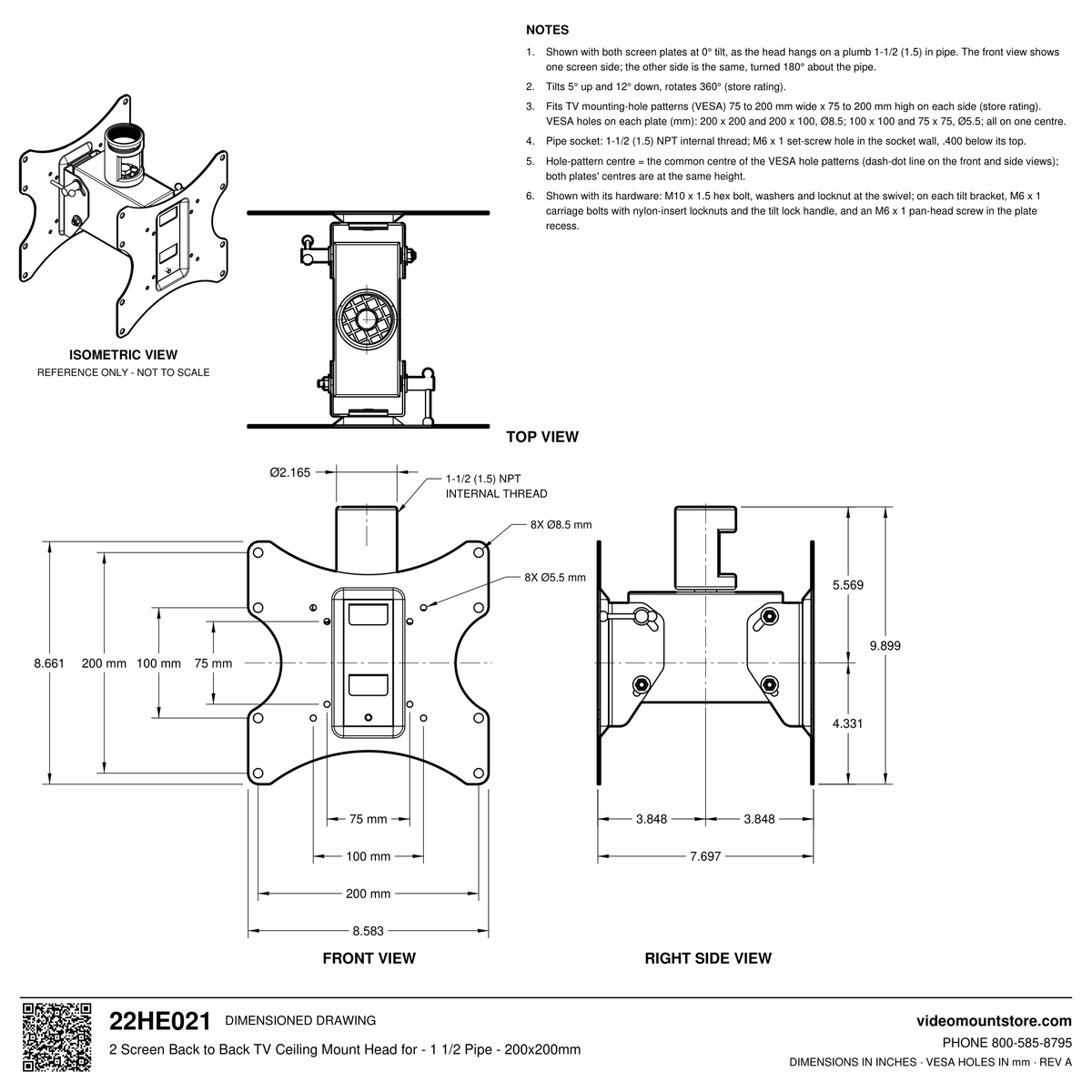

Threaded onto the pipe, this head adds 4-3/4 inches to your finished drop, measured to the center of the hole pattern.
This is the 2 screen back-to-back version of the 22HE001 head used on the 22CE006 mount. Pair it with a ceiling plate and mast, or call 800-585-8795 and we will spec the build with you.
Keep in mind: pick the head by the VESA hole pattern on each TV, not the screen size, and measure both sets of holes before you order. On the 22CE006 mount this same head is rated for screens up to 110 lb, but on a custom drop the real limit depends on your whole build, so call us with your screen weights and we will make sure the plate, mast, and pipe are sized for the load.
Call or email us if you need help planning a two-screen build, or possibly a different solution.
Expert Mounts manufacturer spec sheet
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~42" screen (16:9)
75-200 mm wide · 75-200 mm tall(3-7.9" wide · 3-7.9" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
