• Two tilting twin-rail TV heads mounted back to back on one pipe adapter, sold as a four-screen head assembly with no mast or ceiling plate.
1 2

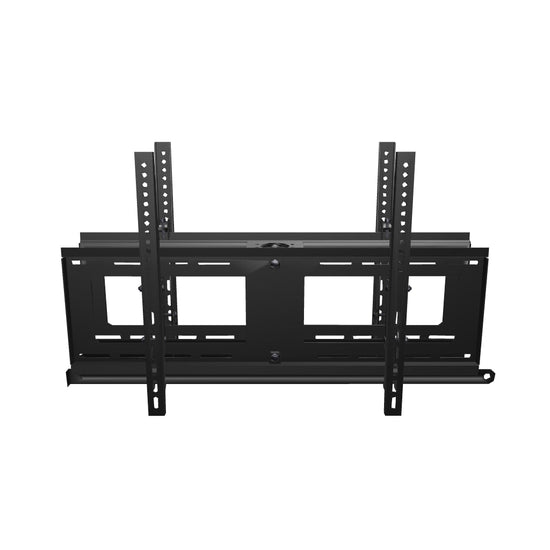

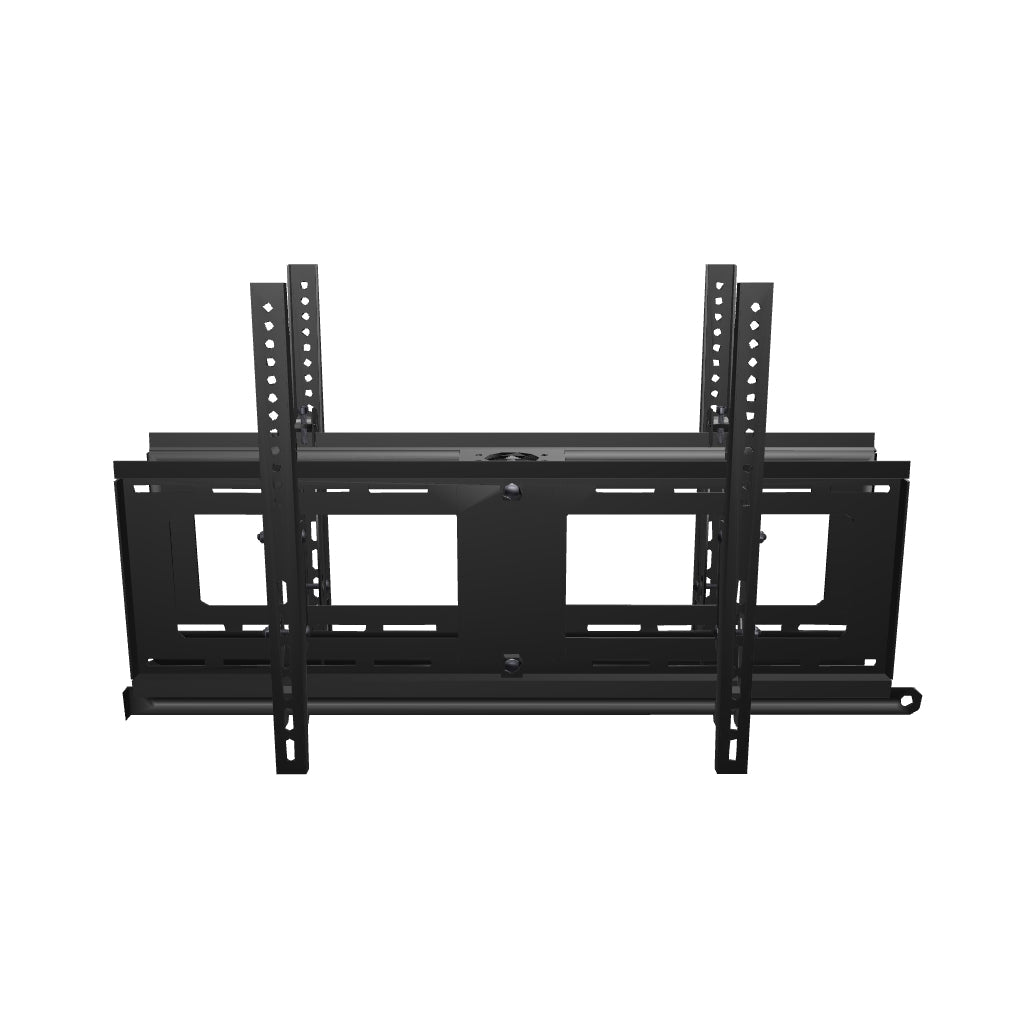

Back to Back TV Ceiling Mount Head for 32 to 86 inch, Tilt and Rotate

SKU 33CE028HEAD

$204.95
$204.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

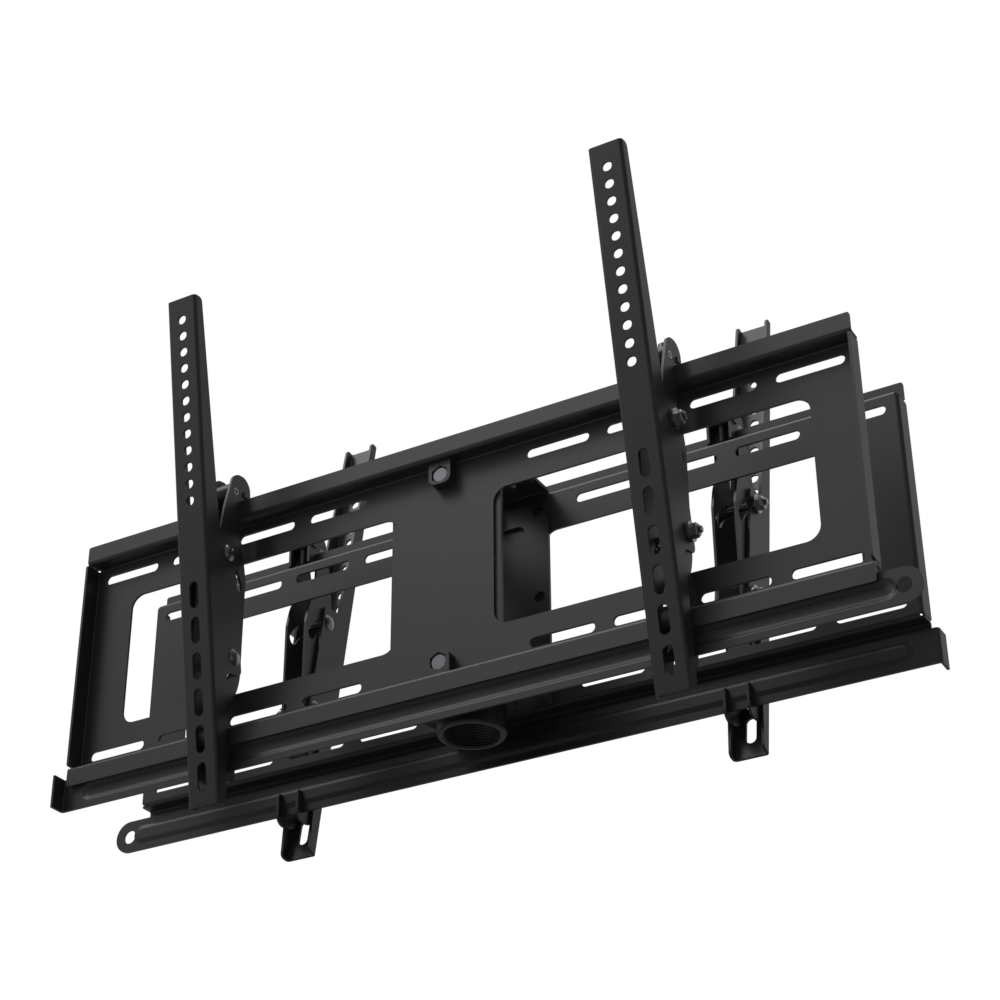

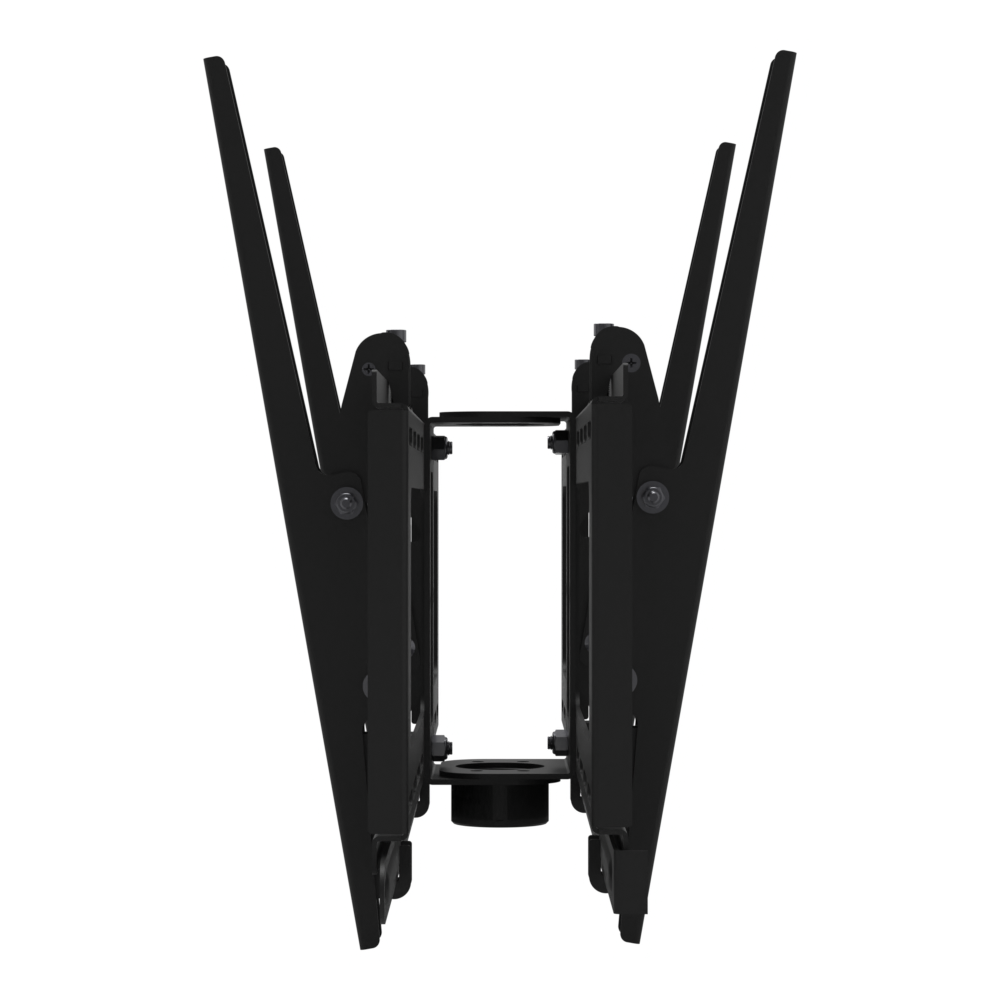

This is the back-to-back head from our 1-1/2 inch NPT ceiling mount system, sold as a separate part. It threads onto a 1-1/2 inch NPT pipe and holds two flat panels facing opposite directions, each with a VESA mounting pattern up to 600 x 400. If you are building a custom drop from your own plate and mast, this is the part that holds both TVs and gives each one tilt and rotation.

  • Holds two screens back to back, 250 lb combined
  • Fits VESA patterns up to 600 x 400 mm
  • Rails cover hole spacing from 50 to 700 mm wide and 75 to 400 mm high

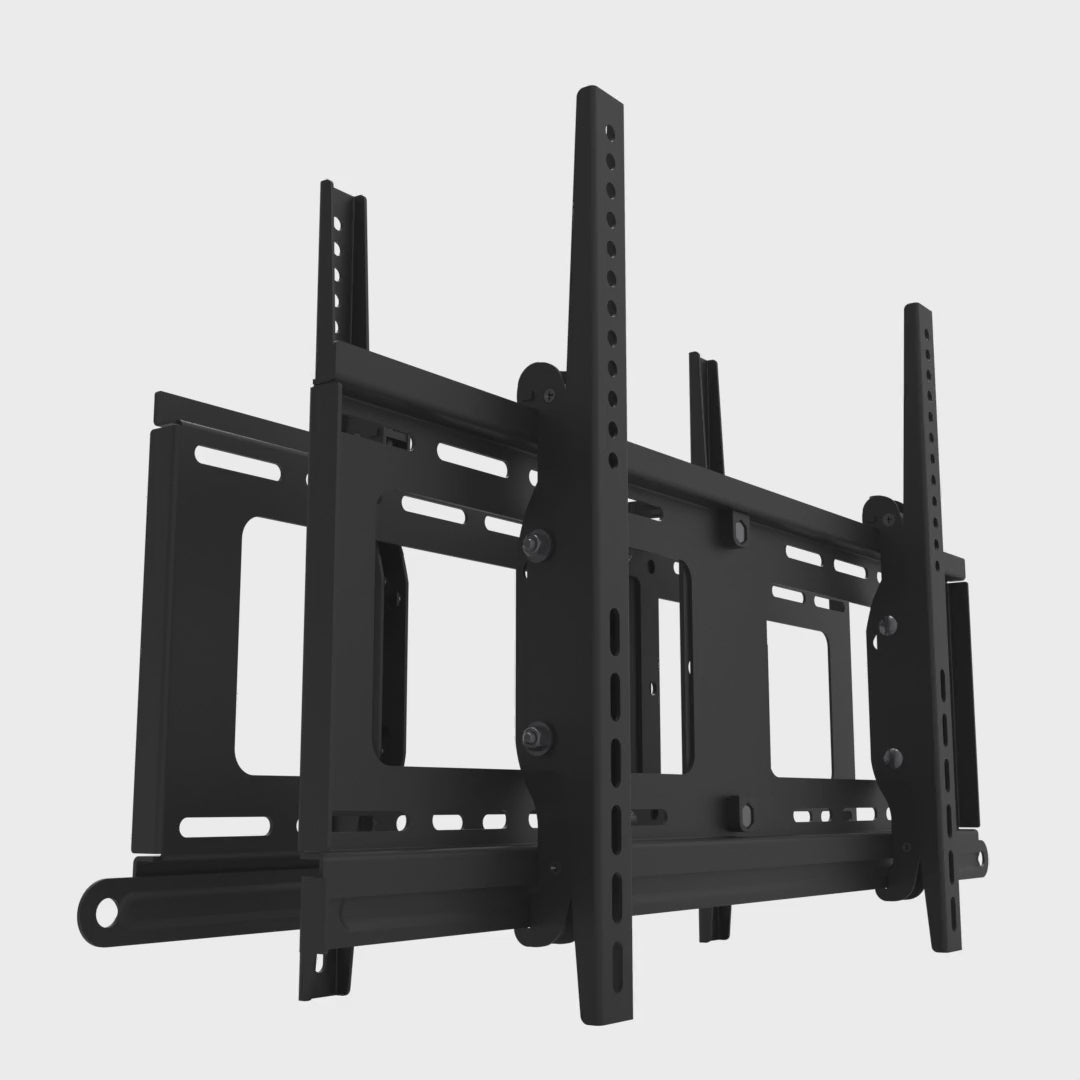

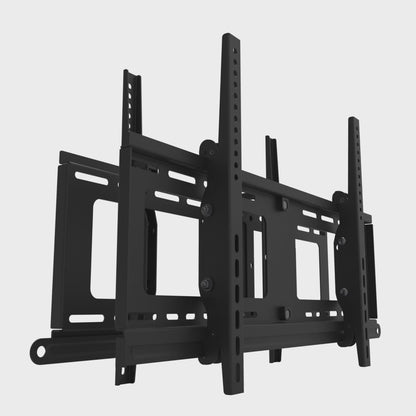

  • Each screen tilts 10° down and 5° up
  • Rotates a full 360°
  • Threads onto 1-1/2 inch NPT pipe
  • Heavy gauge metal construction

This is the same head that comes on the 33CE028 back to back ceiling mount.

Keep in mind: screen size is only a guide. What matters is the VESA hole pattern and the weight. On a custom drop the real limit depends on your whole build, so measure your TVs' mounting holes and call us if you are near the weight.

Call or email us if you need help picking the right head, or possibly a different solution.

Product details

Max weight 250 lb · 113 kg
Tilt 5° up · 10° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 50 to 700 mm wide and 75 to 400 mm tall.
75-400 mm 3-15.7"
50-700 mm 2-27.6"

50-700 mm wide · 75-400 mm tall(2-27.6" wide · 3-15.7" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.

View full details

Build a TV Ceiling Mount using our 1 1/2 inch pipe system

Ceiling Plate for 1 1/2 PipeCeiling plate 1-1/2 inch NPT black aluminum pipe, 12 inches long, threaded at both ends, set diagonally across the frame with the open bore toward the viewer.1-1/2 inch NPT pipe 33HE002 wide TV ceiling mount head seen from the screen side, showing the full width of the 702 mm plate, the VESA pad and the pipe socket.Mount head 33CE016 tilt-and-rotate TV ceiling mount, fully assembled with ceiling plate, adjustable-drop pole, and wide VESA bracket, front viewAssembled mount
