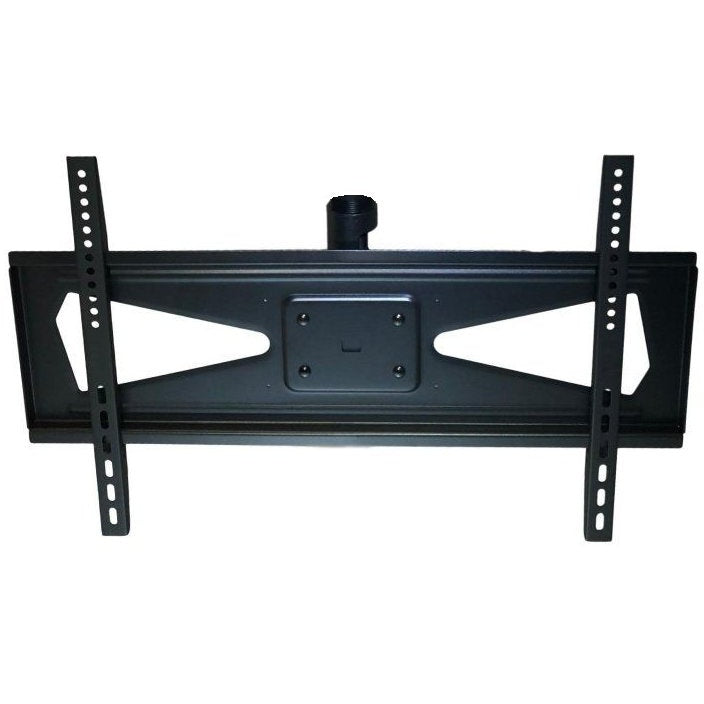

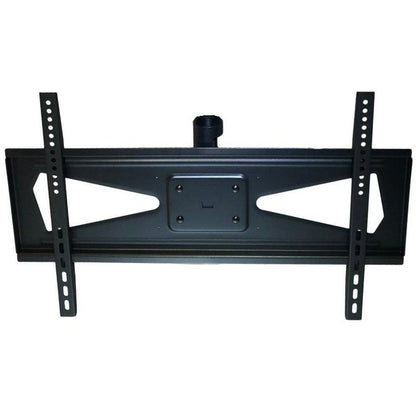

TV Ceiling Mount Head for - 1 1/2 Pipe - 600x400
SKU 33HE002
Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

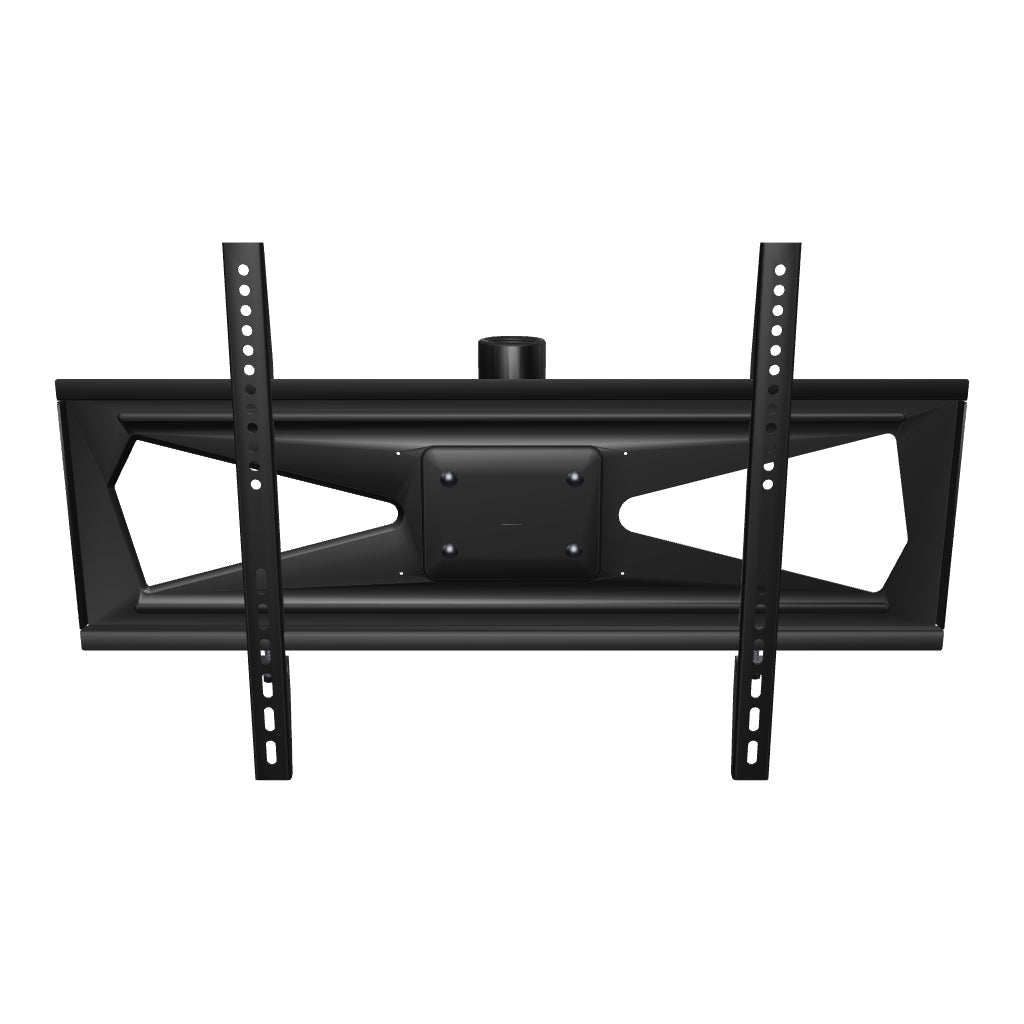

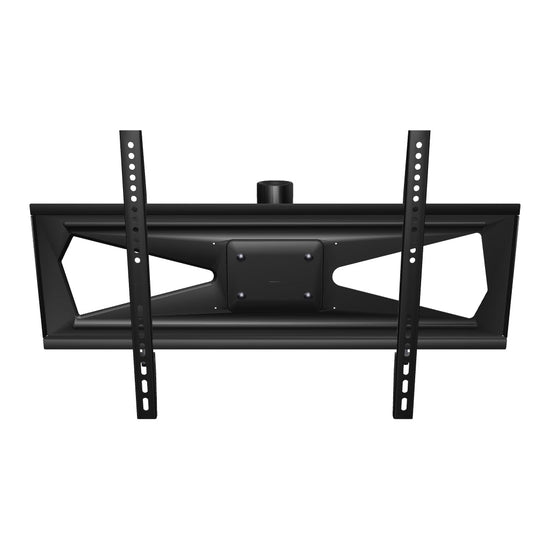

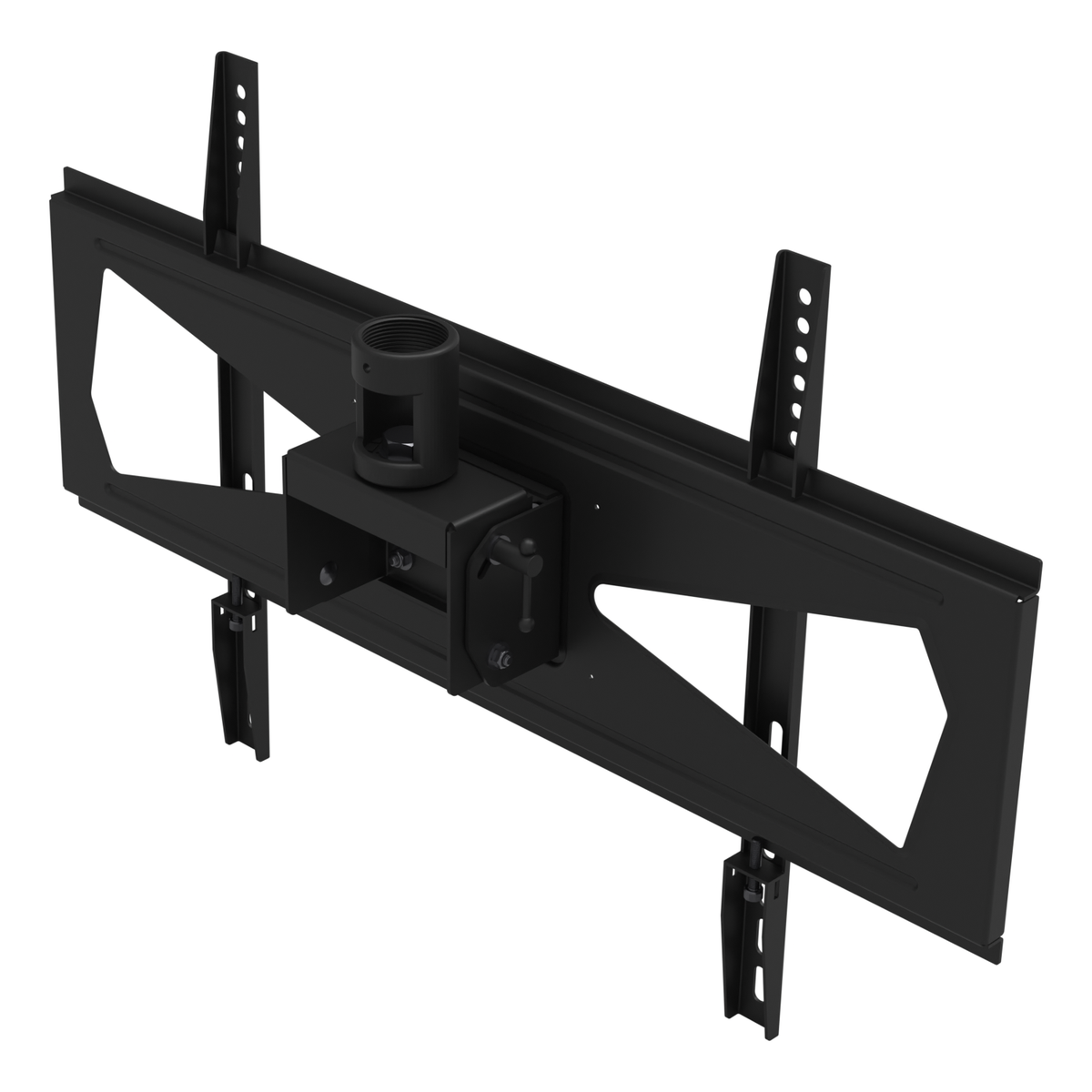

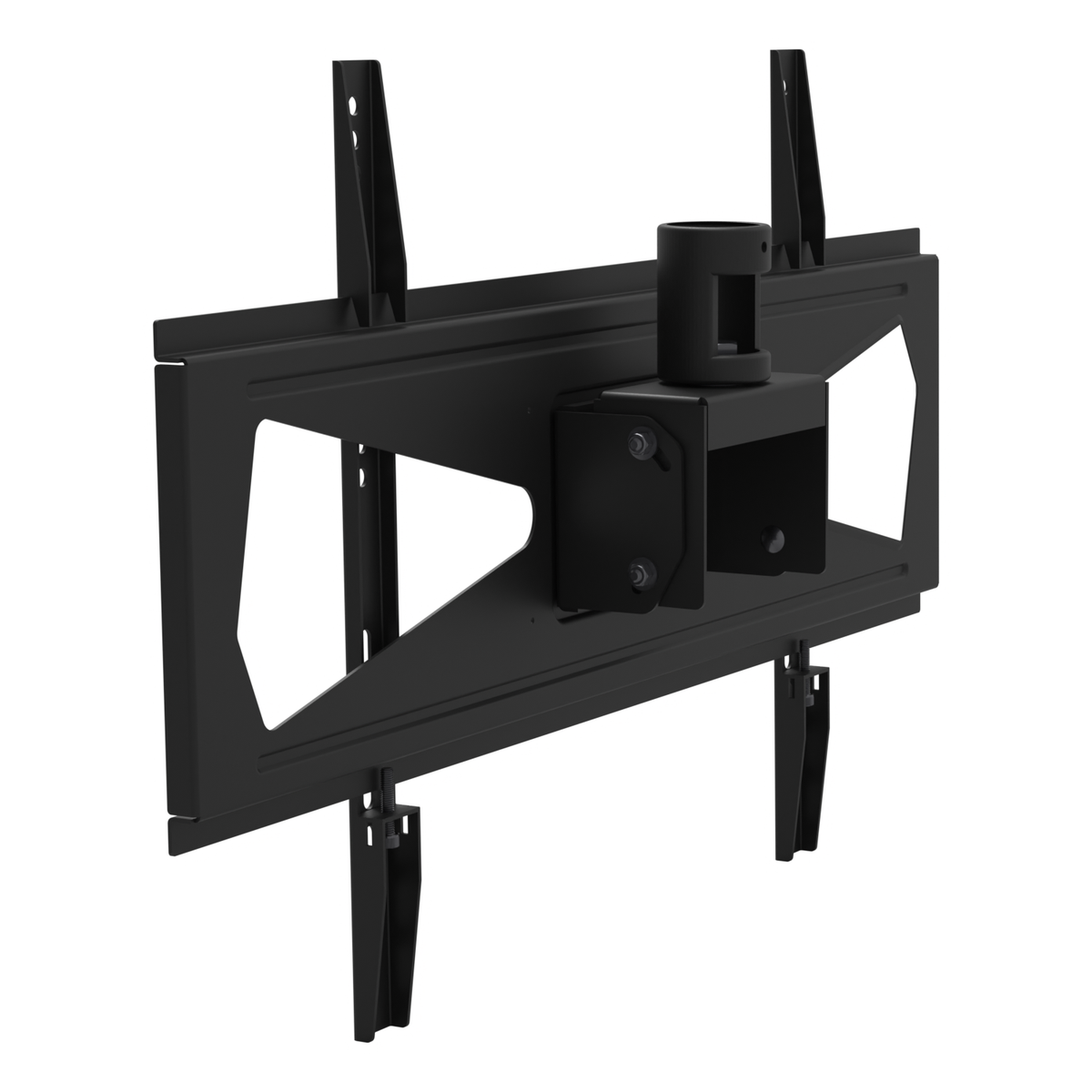

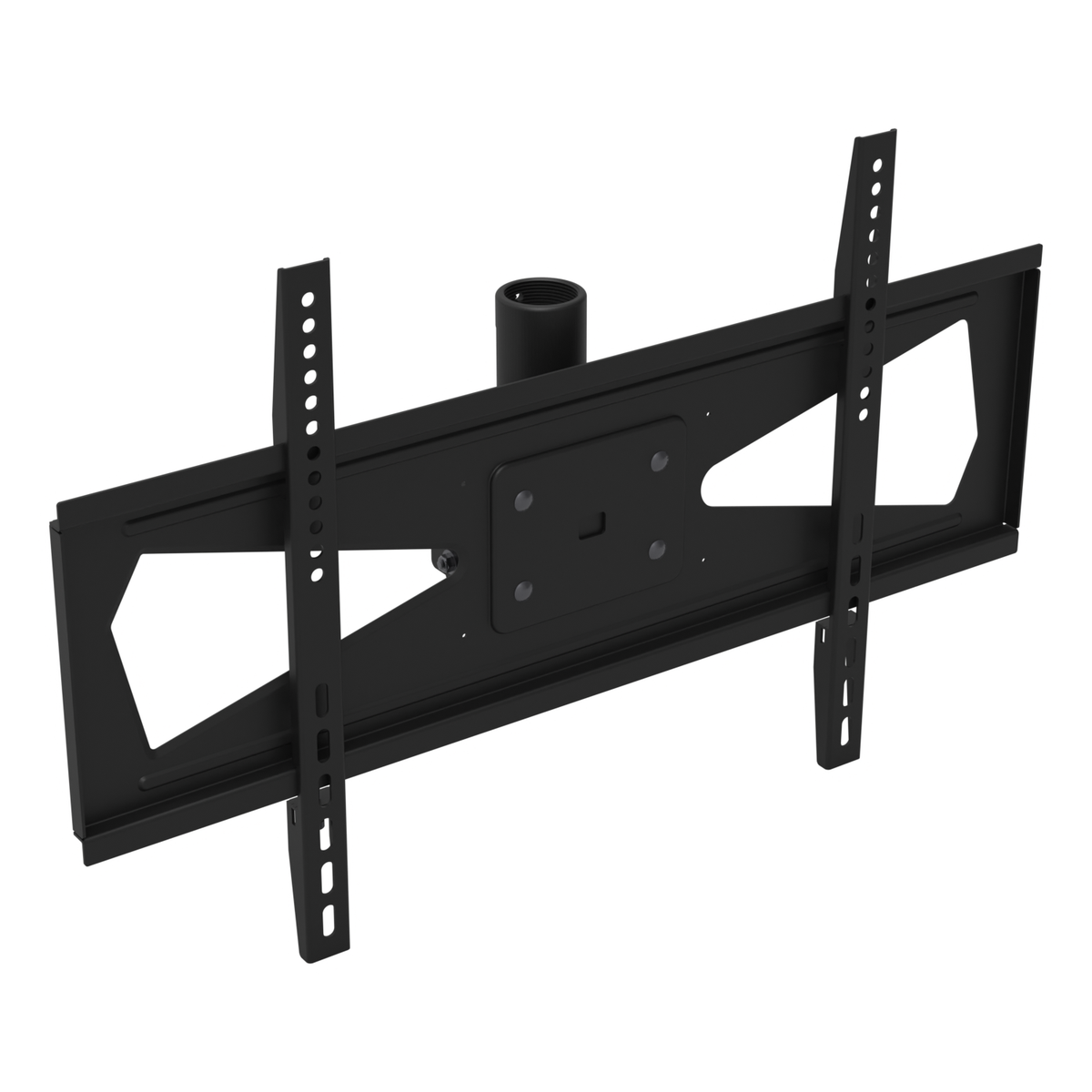

This is the wide-pattern tilt and rotate head from our 1-1/2 inch NPT ceiling mount system (1-1/2 inch, also written 1.5 inch), sold on its own. It threads onto a 1-1/2 inch NPT pipe and holds a flat panel with a VESA mounting pattern up to 600 x 400, the wider spacing many 65 to 70 inch commercial and digital-signage displays use. If you are building a custom drop from your own plate and mast, this is the part that holds the TV.

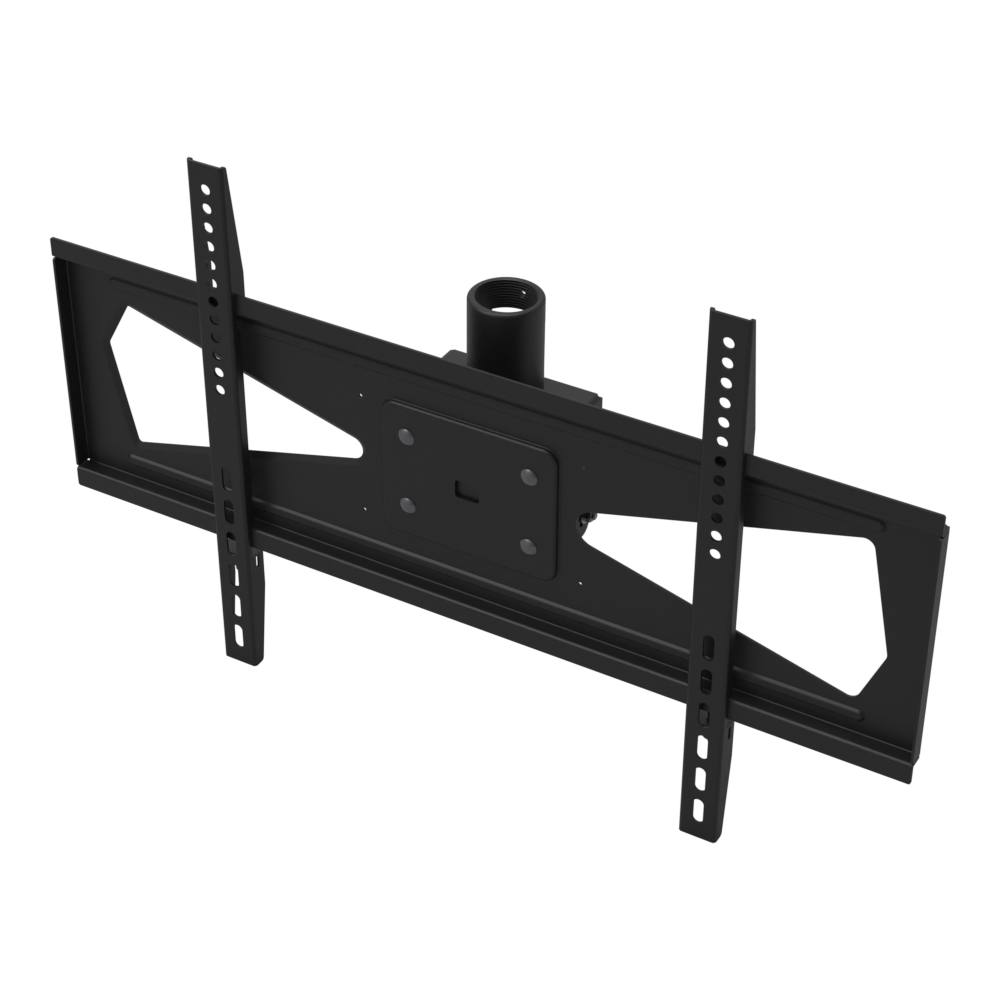

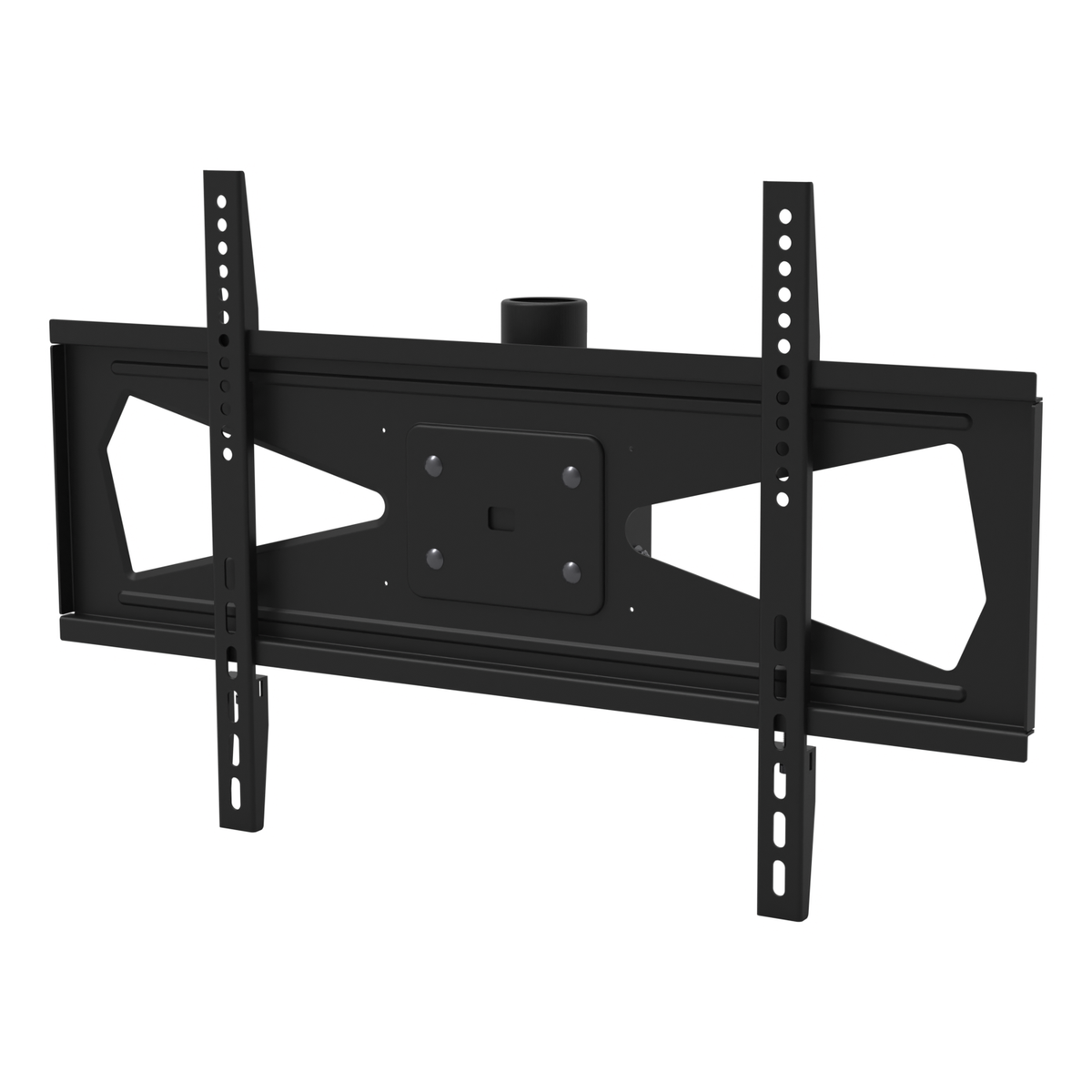

- Fits VESA patterns up to 600 x 400 mm

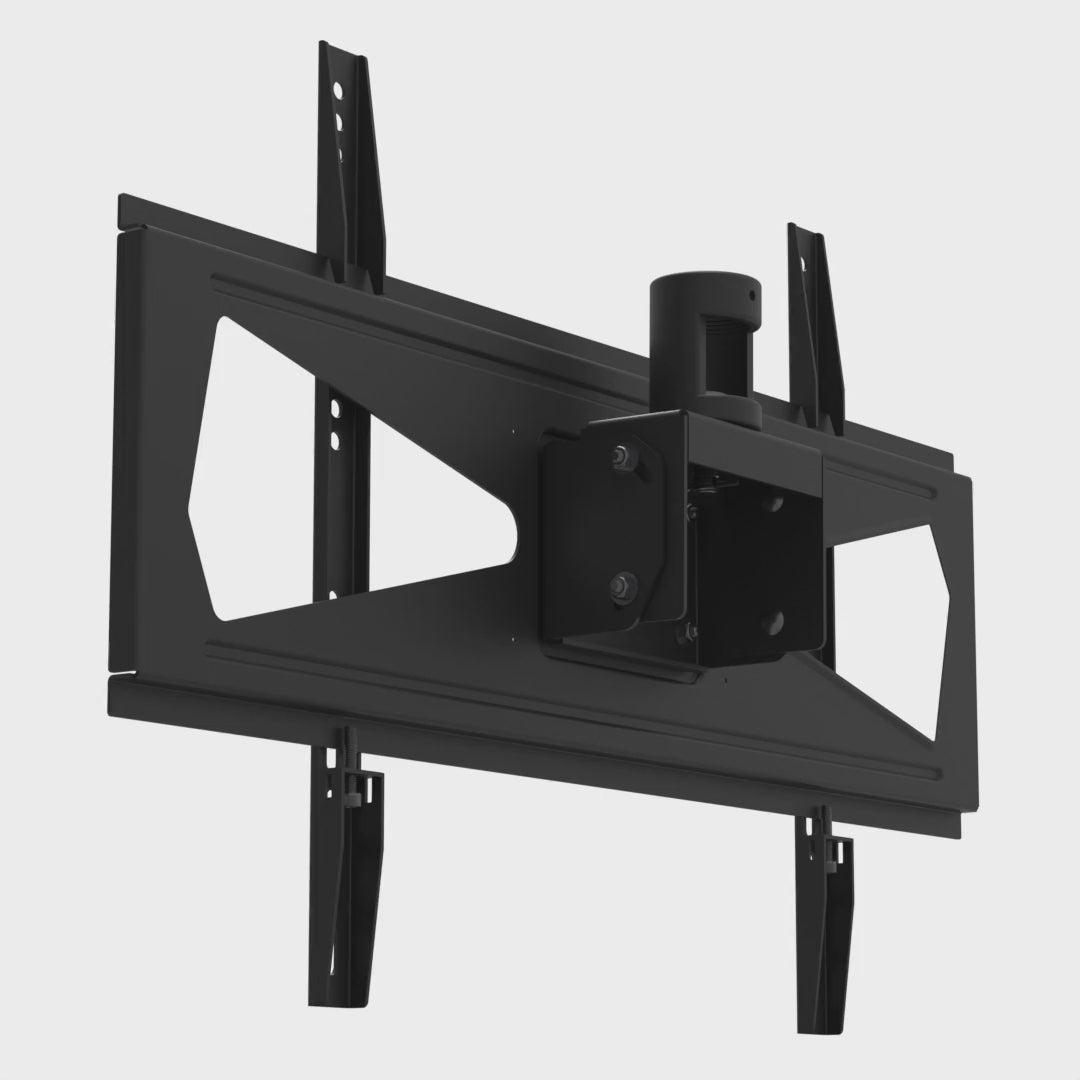

- Tilts up to 12° down and 5° up

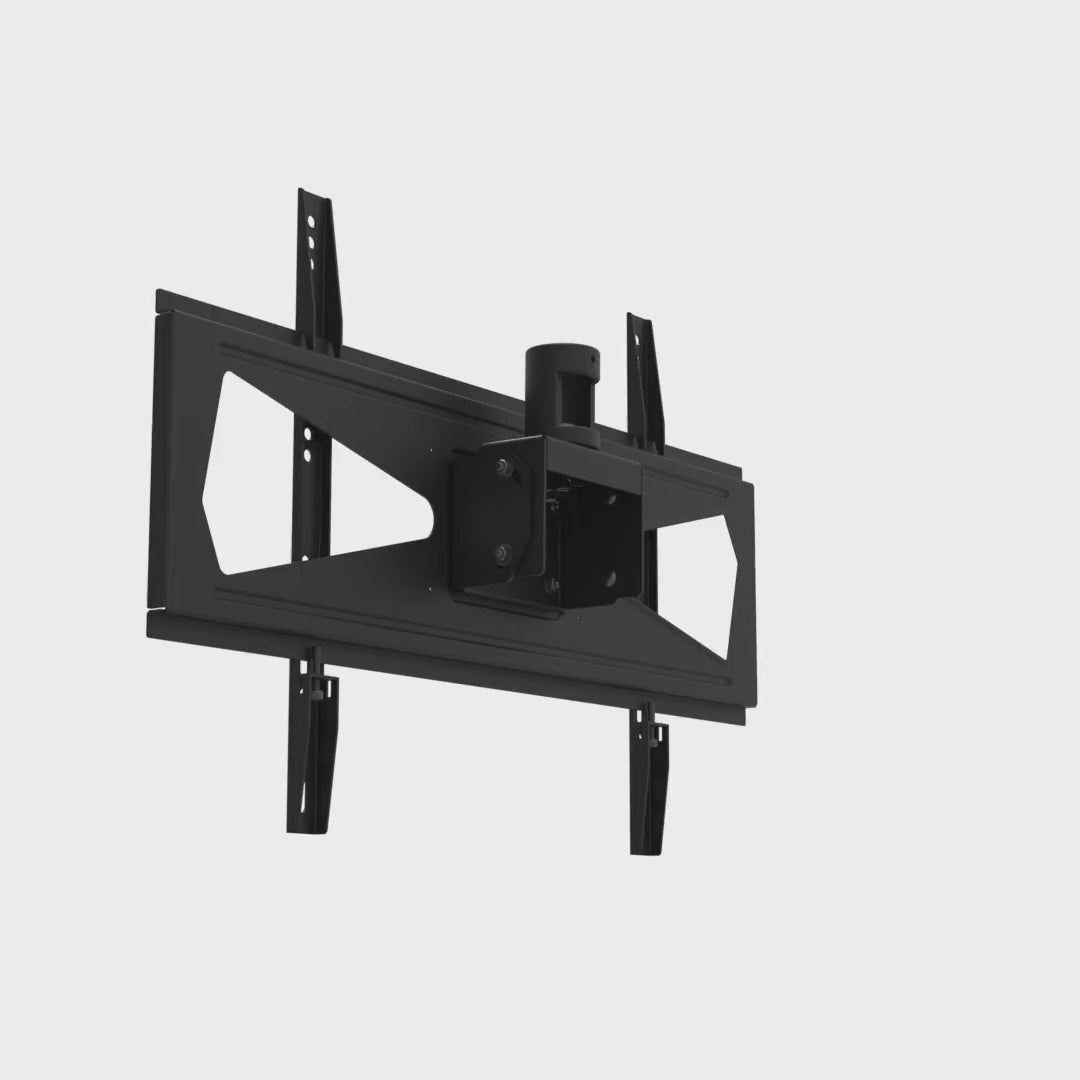

- Rotates a full 360°

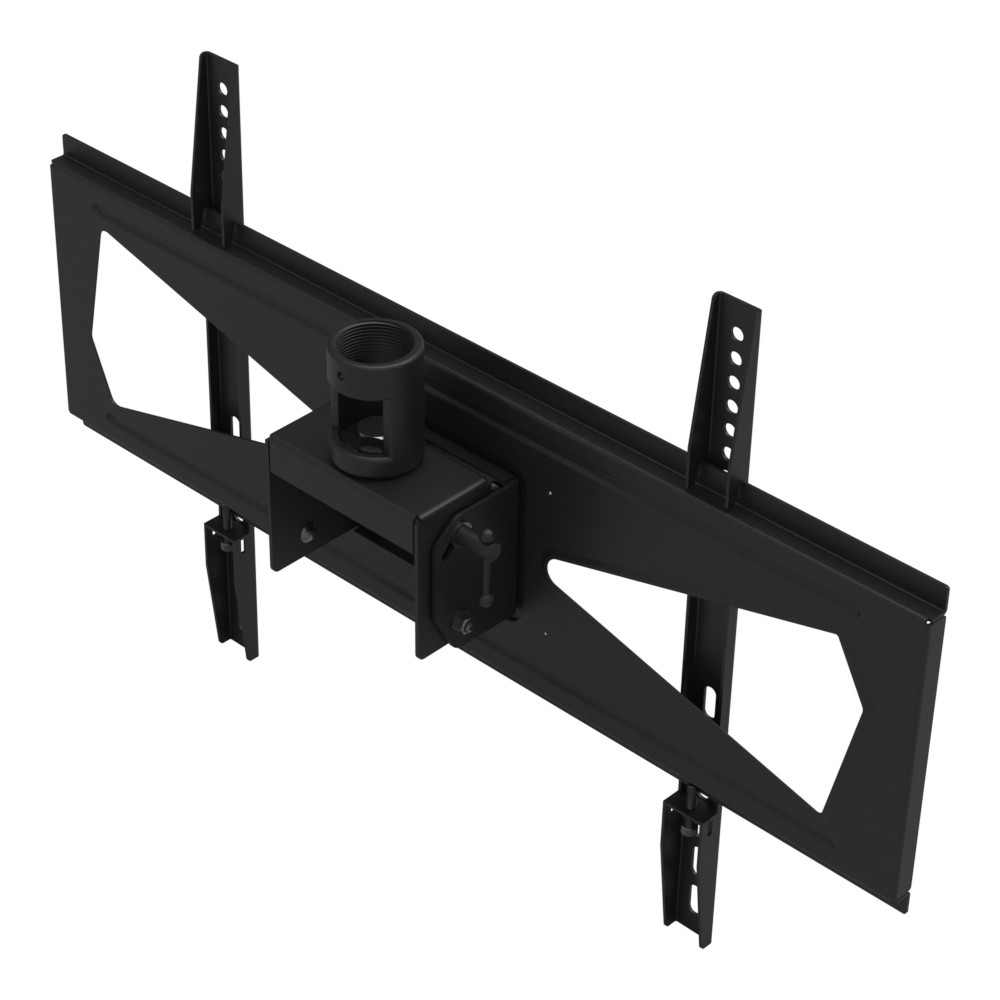

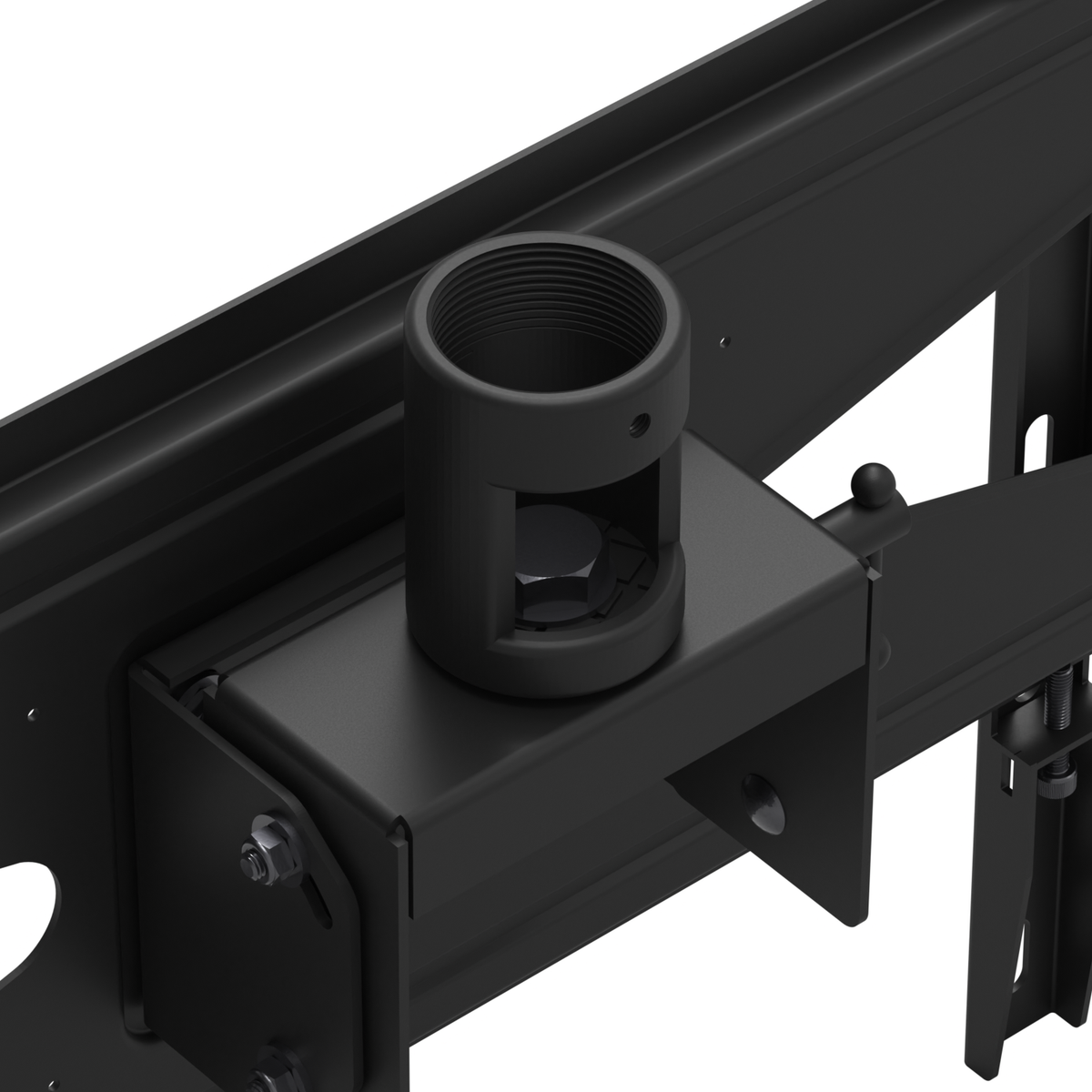

- Threads onto 1-1/2 inch NPT pipe
- Black powder coat finish, suitable for outdoor use
This is the same head that comes on the 33CE017 ceiling mount.
Keep in mind: pick the head by the hole pattern, not the screen size. Choose this 600 x 400 head over the 400 x 400 version only when your TV's mounting holes are wider than 400 mm. On the 33CE017 mount this same head is rated for screens up to 110 lb, but on a custom drop the real limit depends on your whole build, so call us if you are near it.
Call or email us if you need help picking the right head, or possibly a different solution.

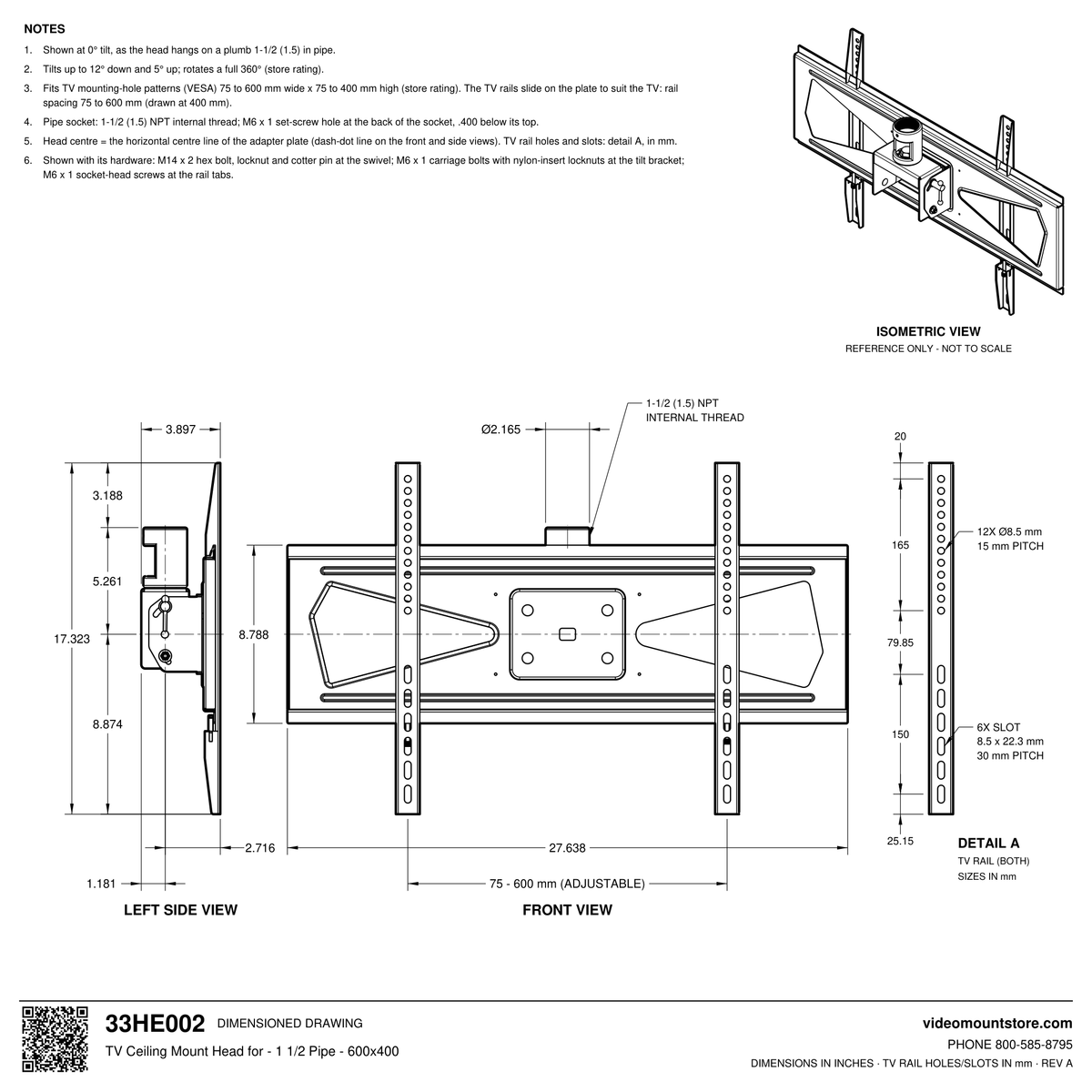

Expert Mounts manufacturer spec sheet
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~70" screen (16:9)
75-600 mm wide · 75-400 mm tall(3-23.6" wide · 3-15.7" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
