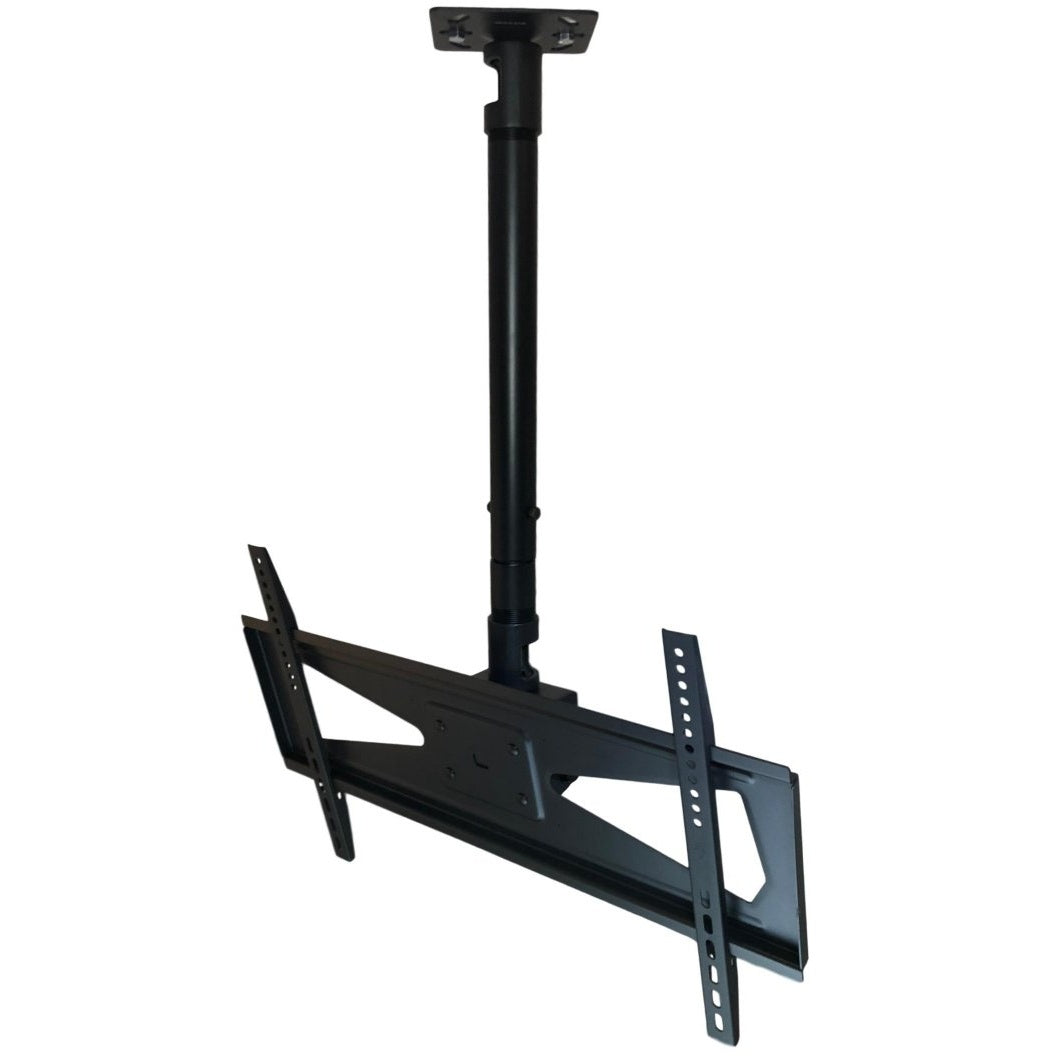

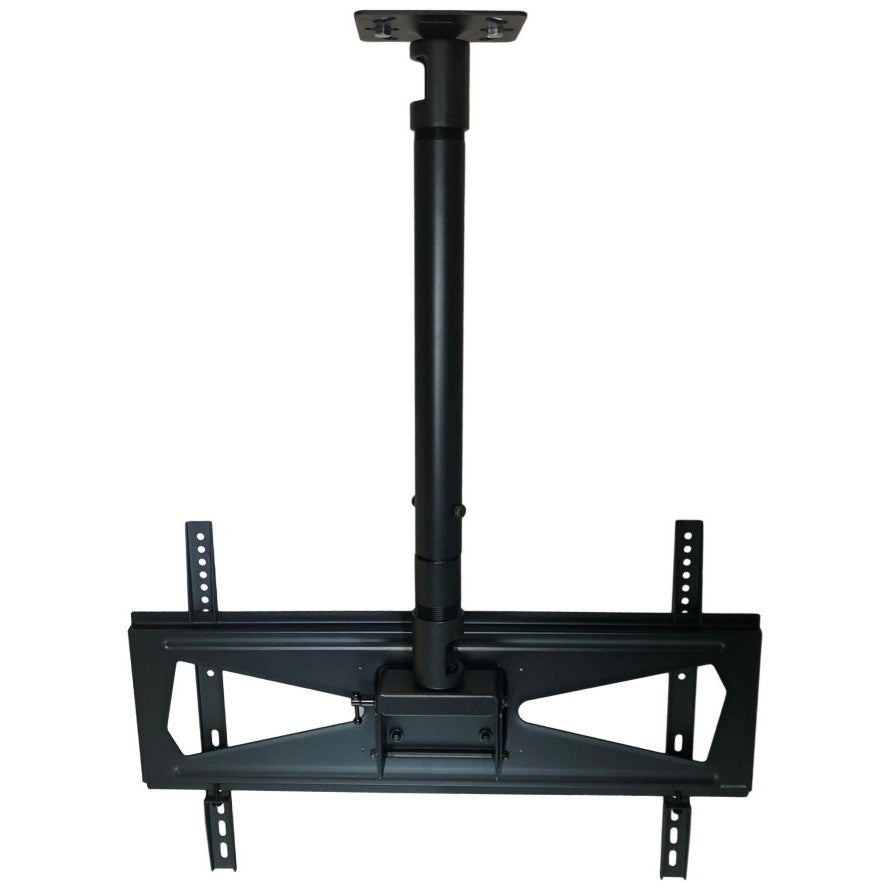

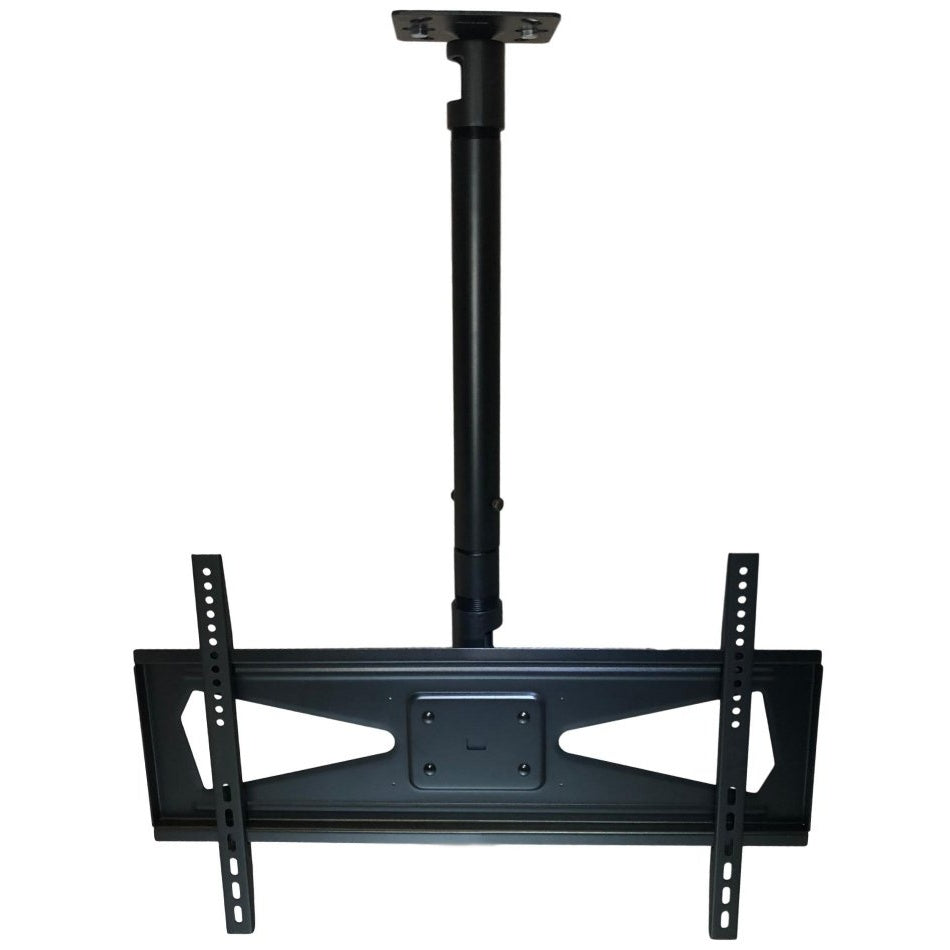

TV Ceiling Mount with Tilt, Rotate, Adjustable Mast for Screens Up to 70 with 600x400 Max Mounting Pattern

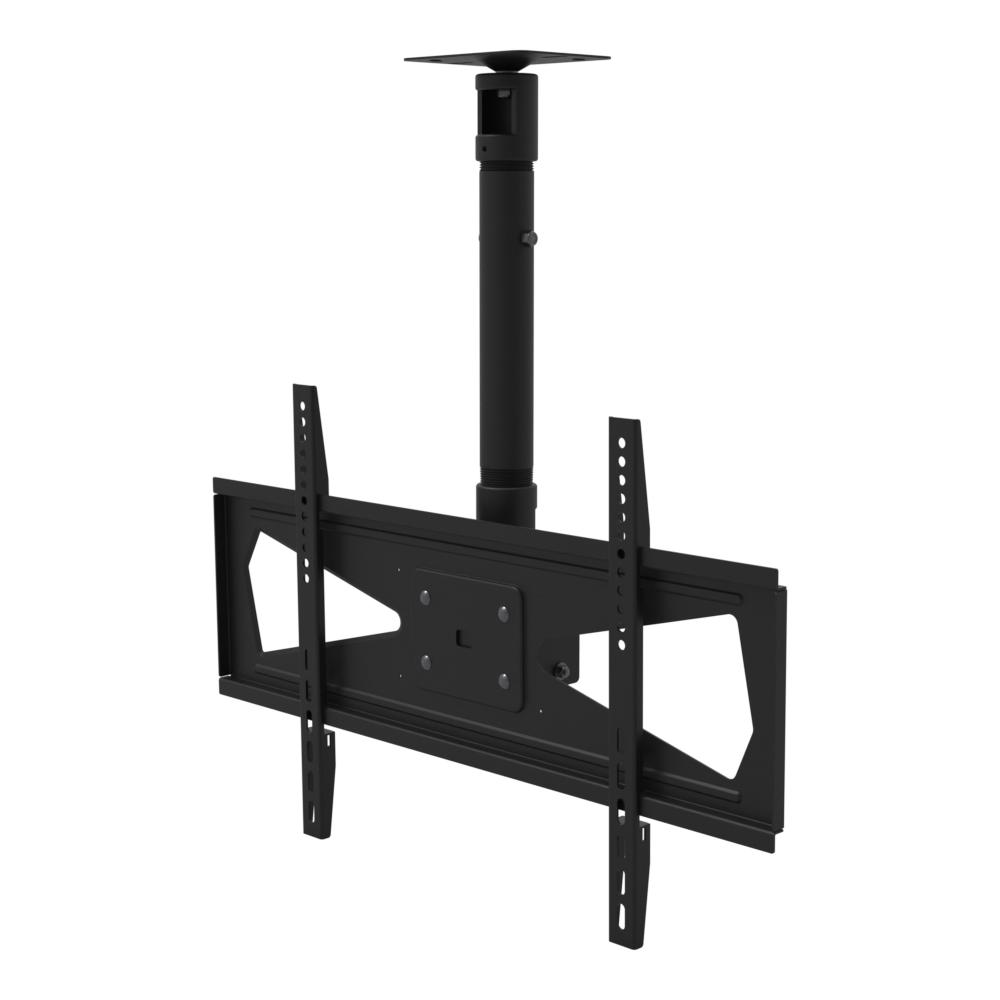

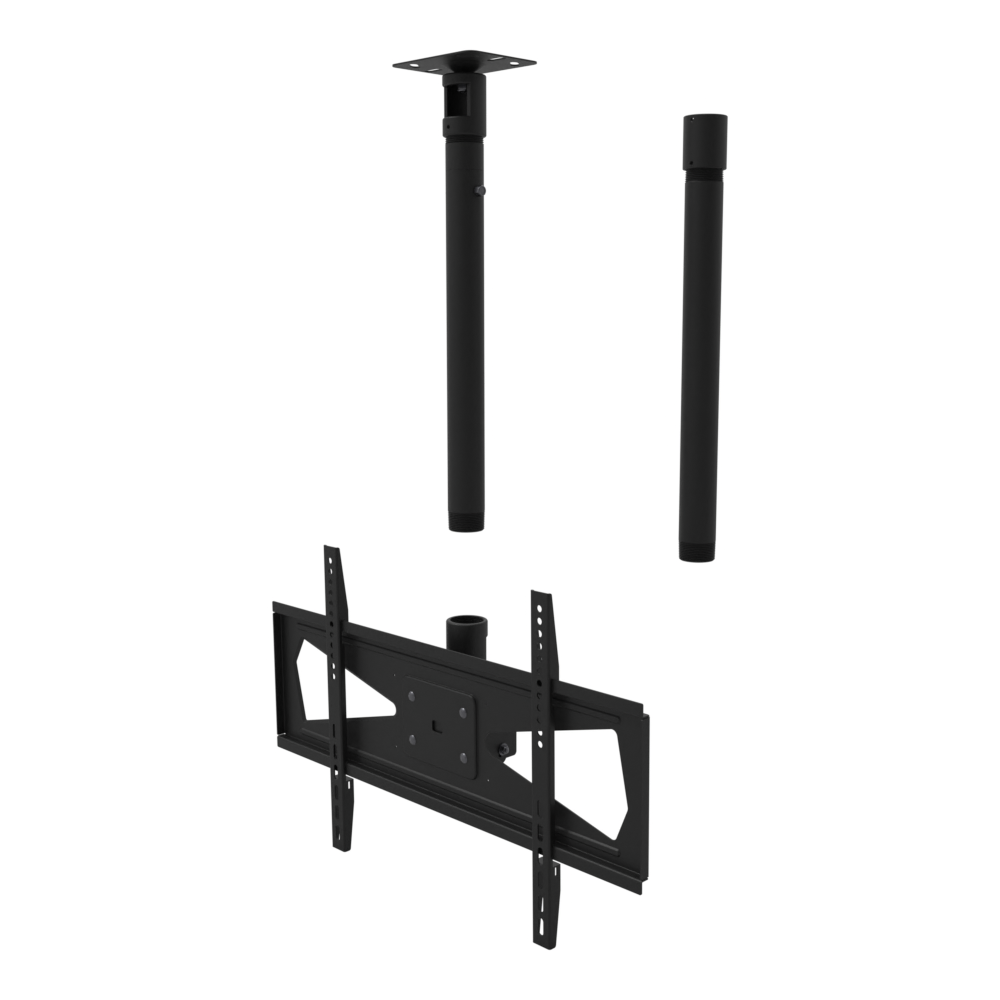

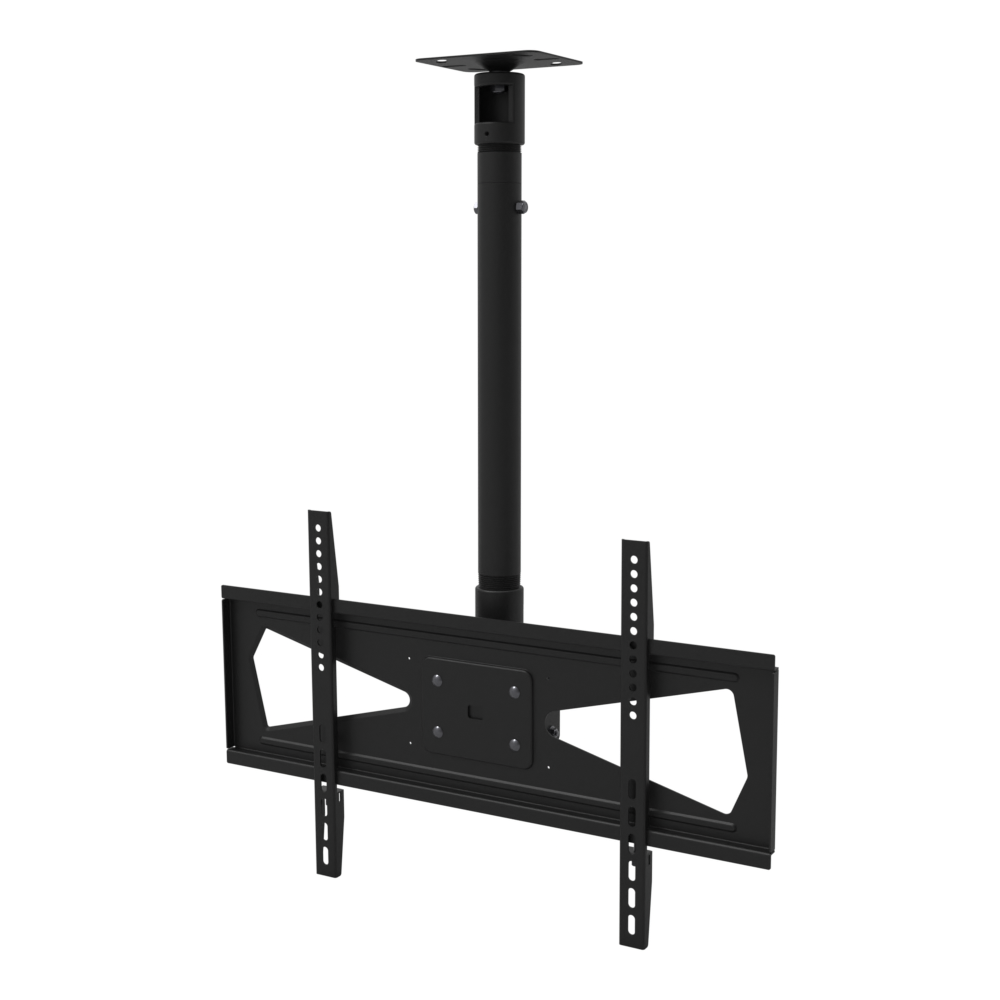

Flat Ceiling Recommended
The default choice that most people need — mounts flush against a standard flat ceiling.
Ceiling Plate for 1 1/2 Pipe →

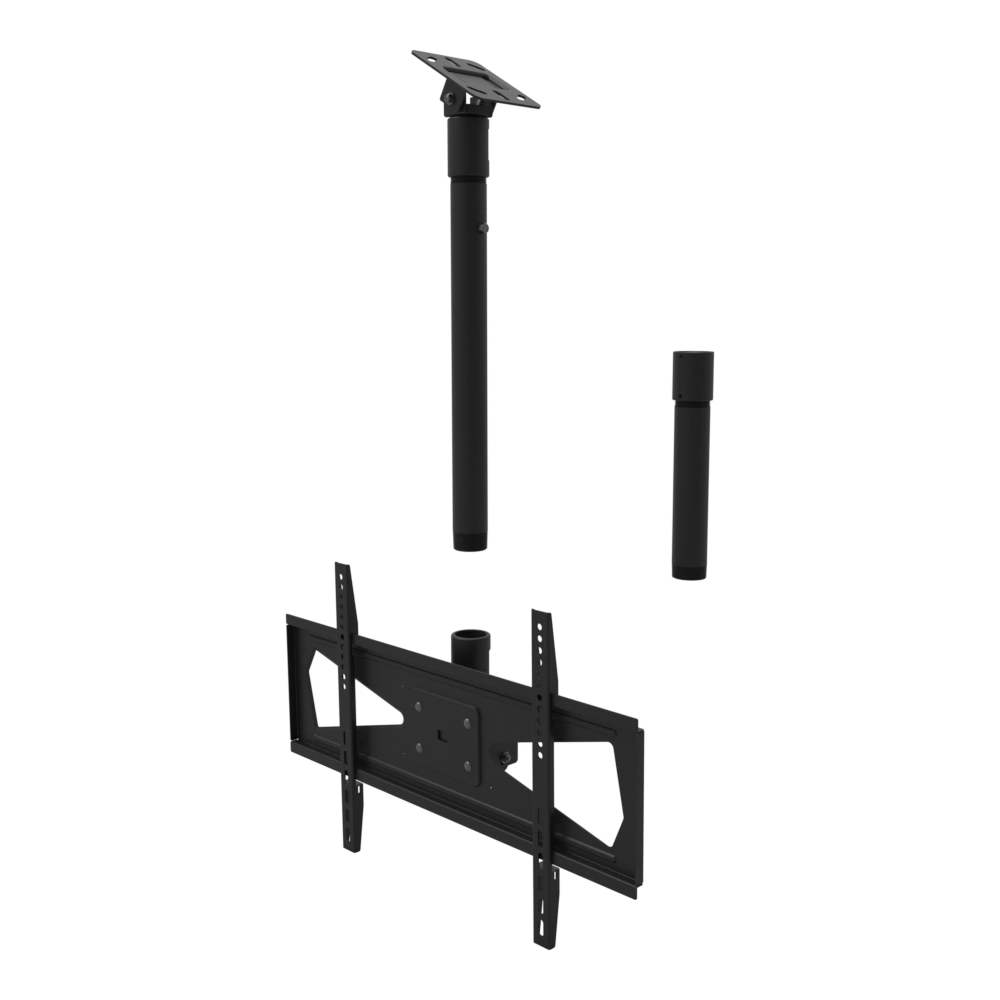

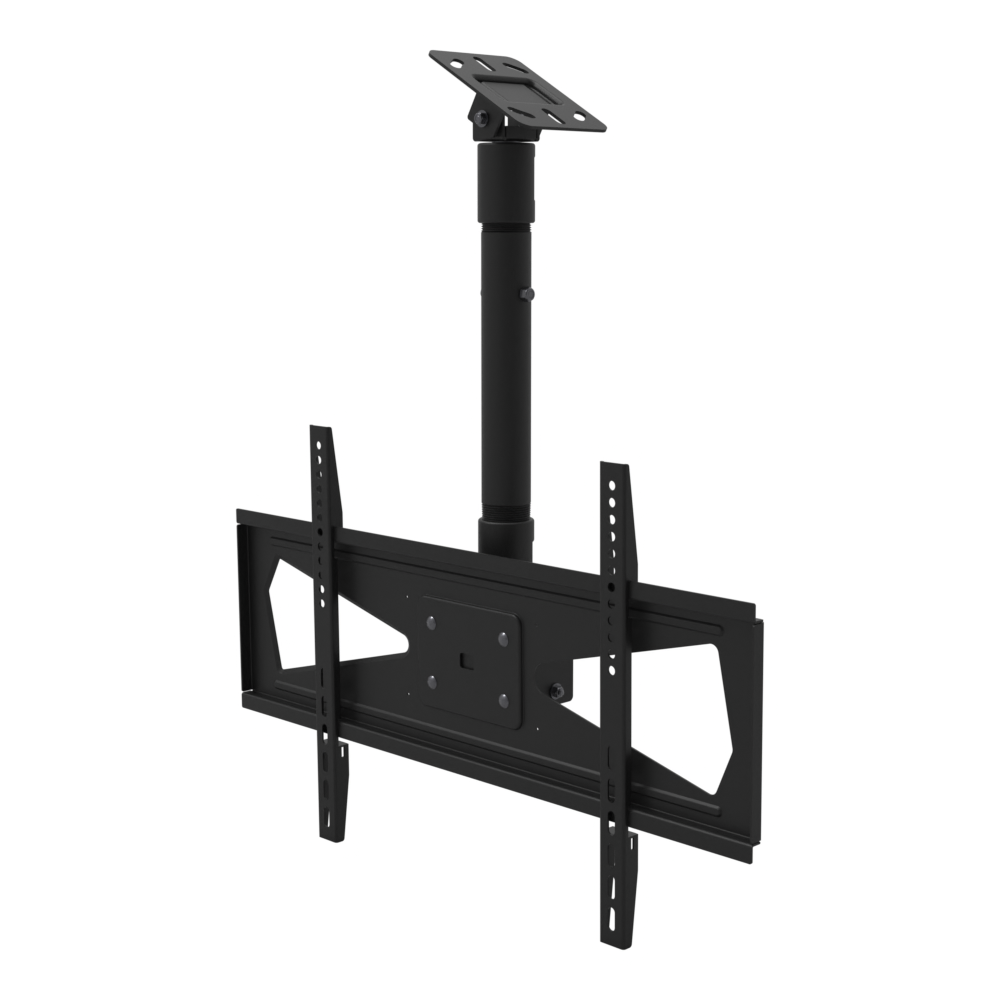

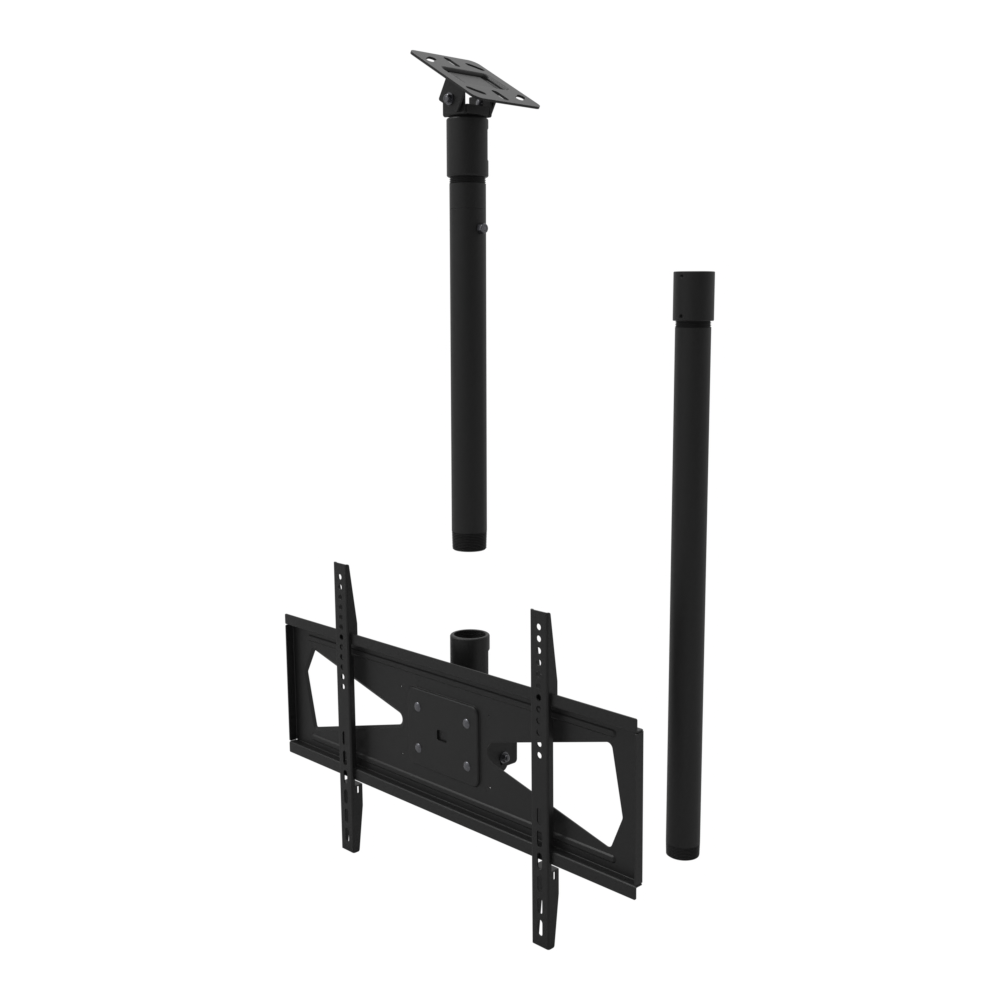

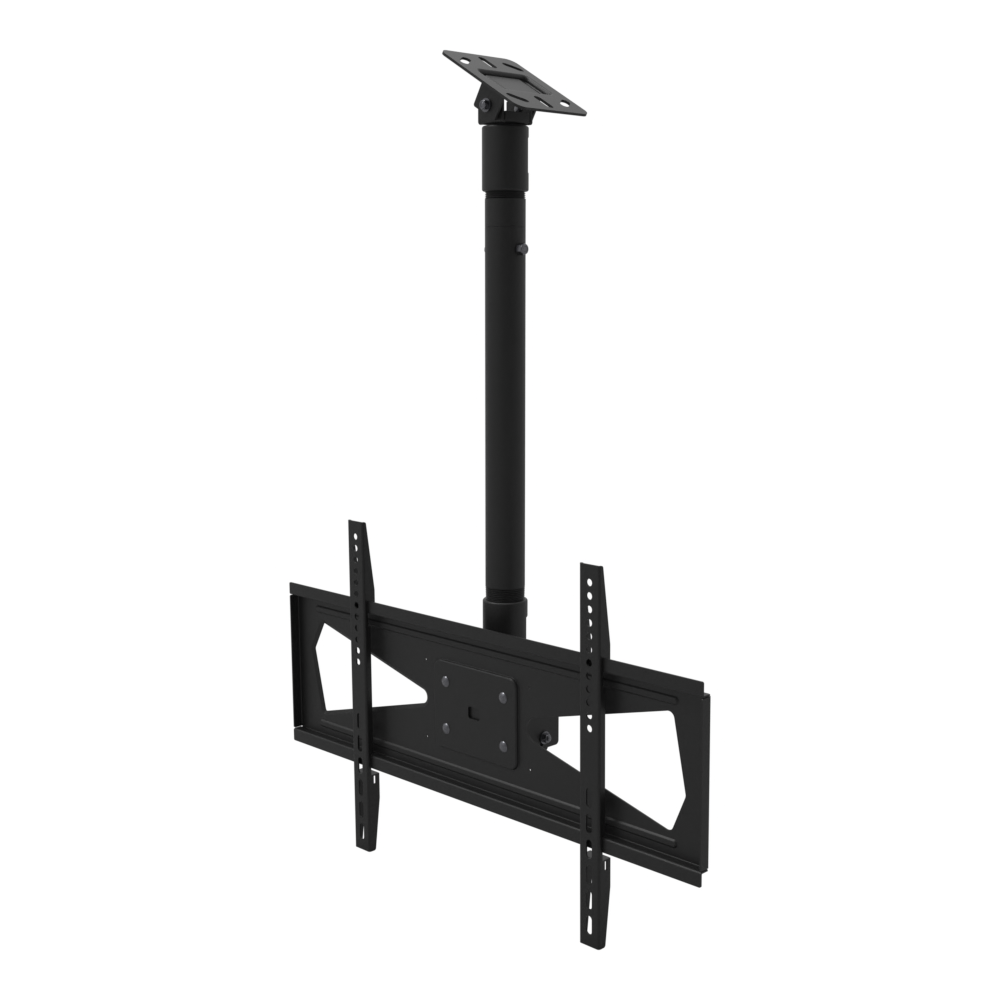

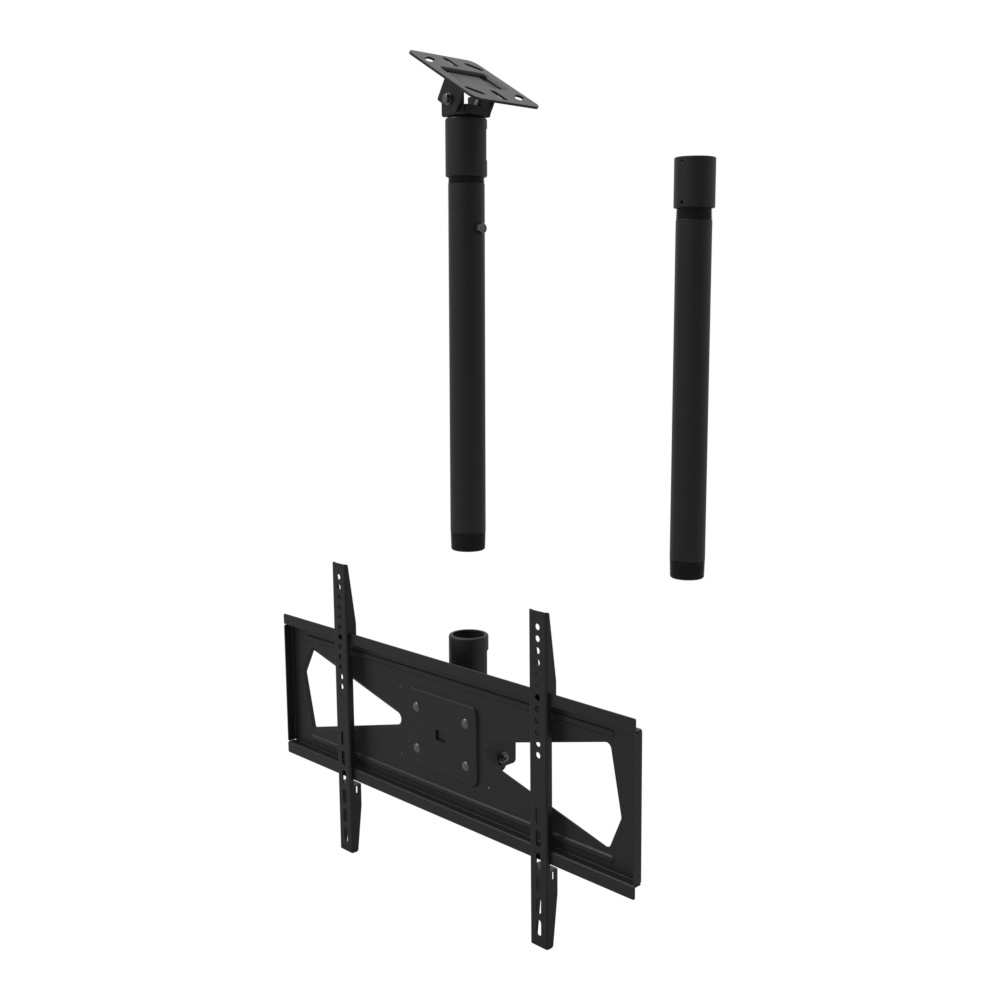

Angled Ceiling
Choose this to mount to a ceiling that is angled, sloped, or cathedral.
Angled Ceiling Plate for 1 1/2 Pipe →

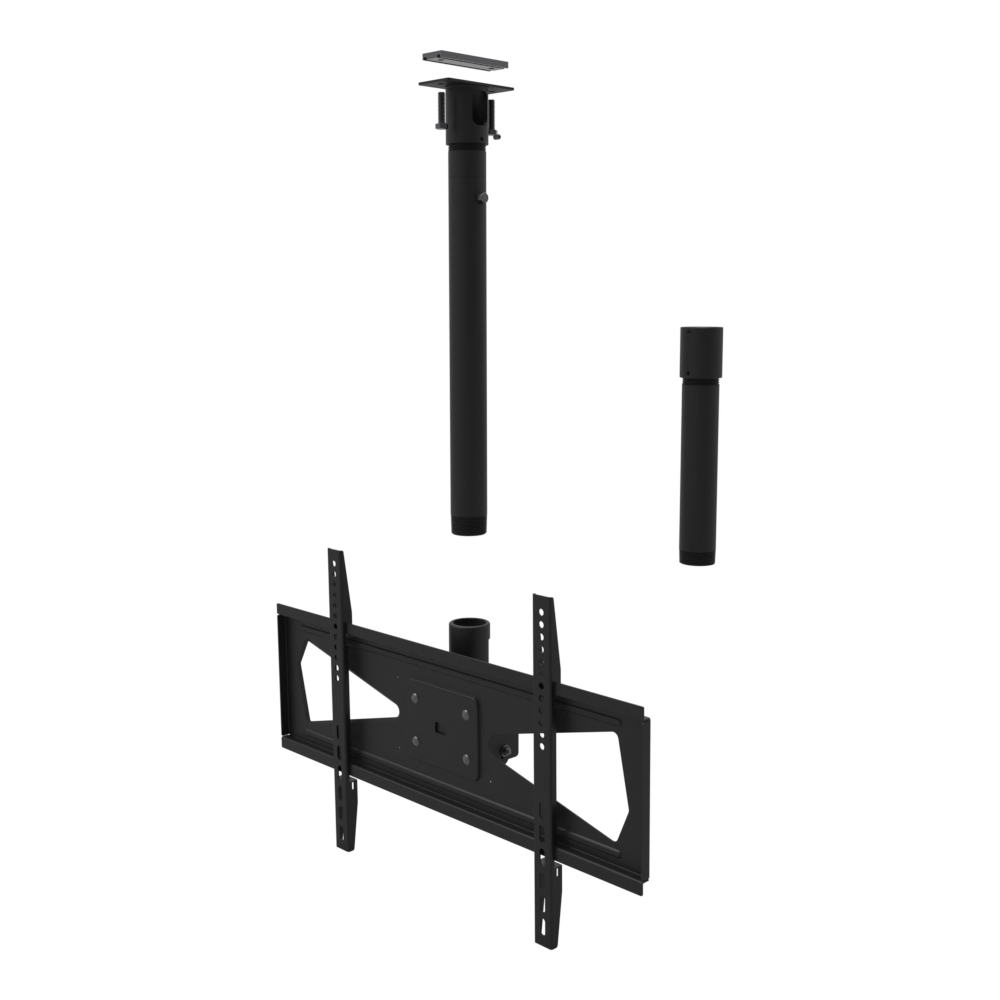

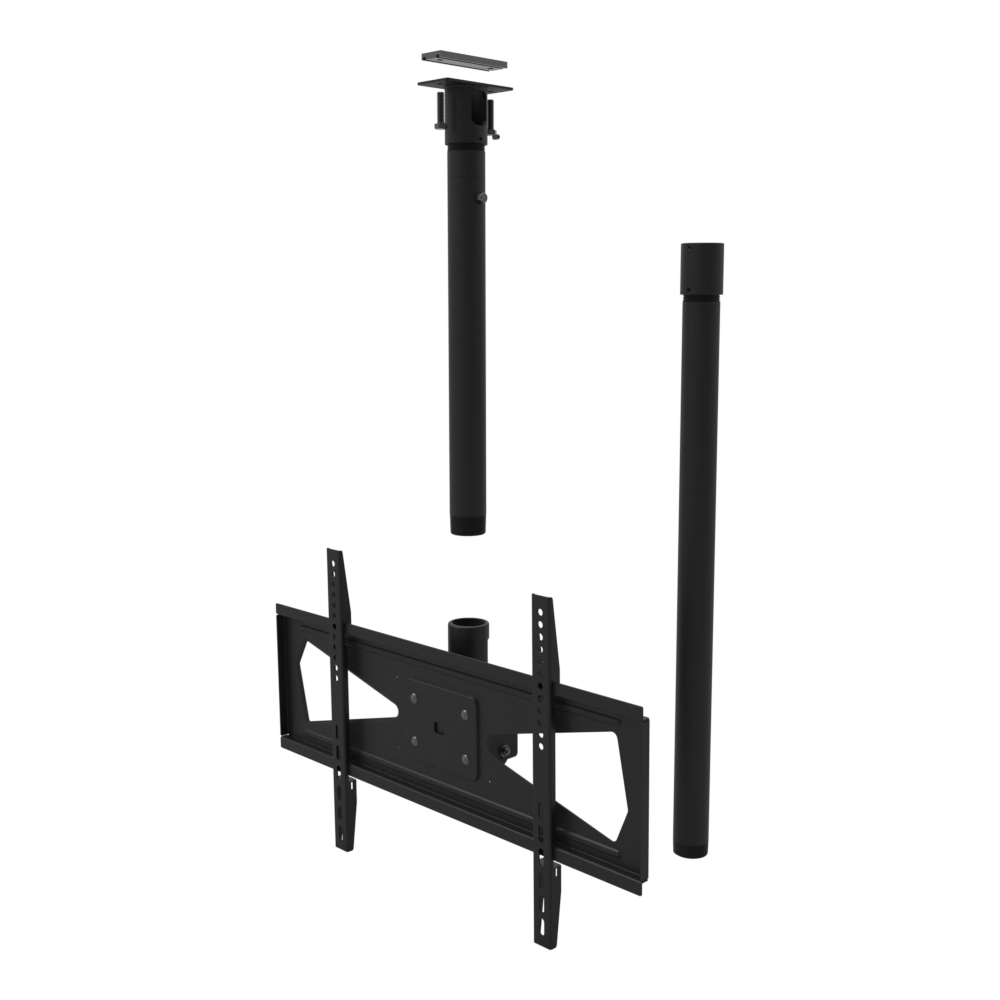

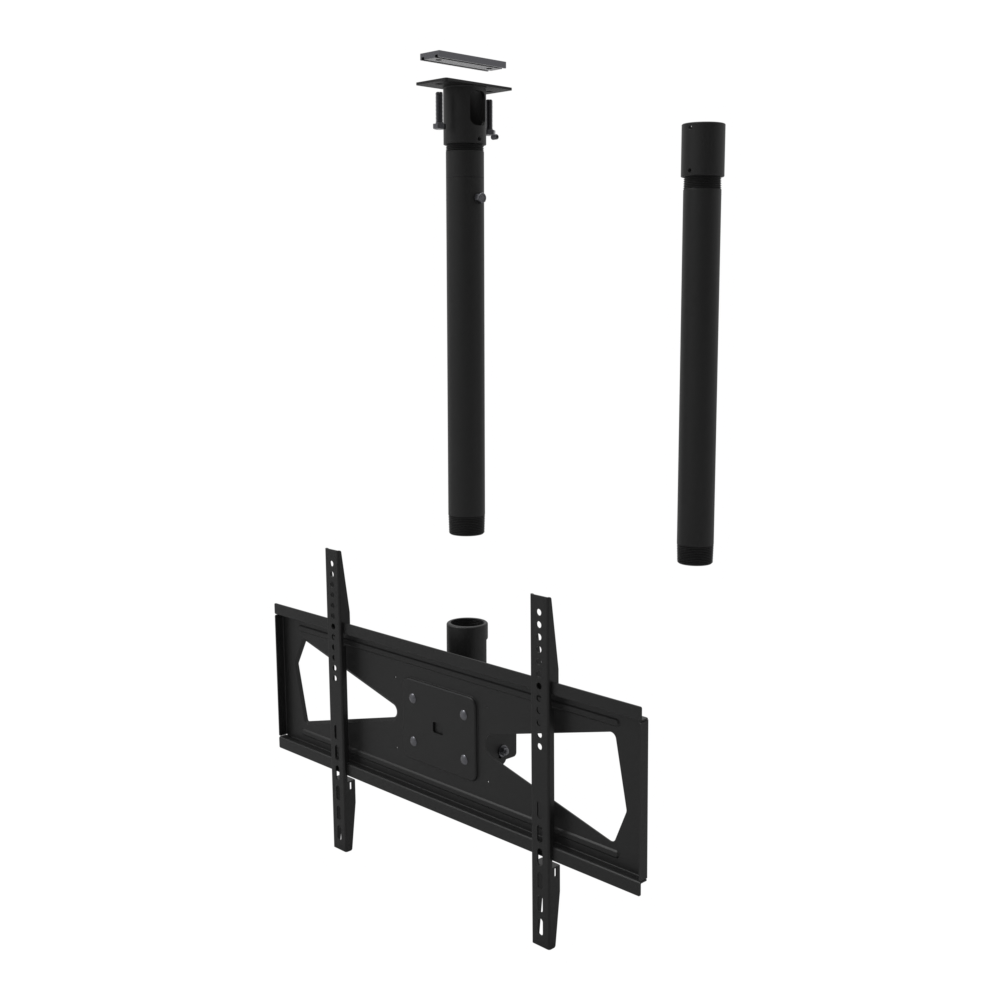

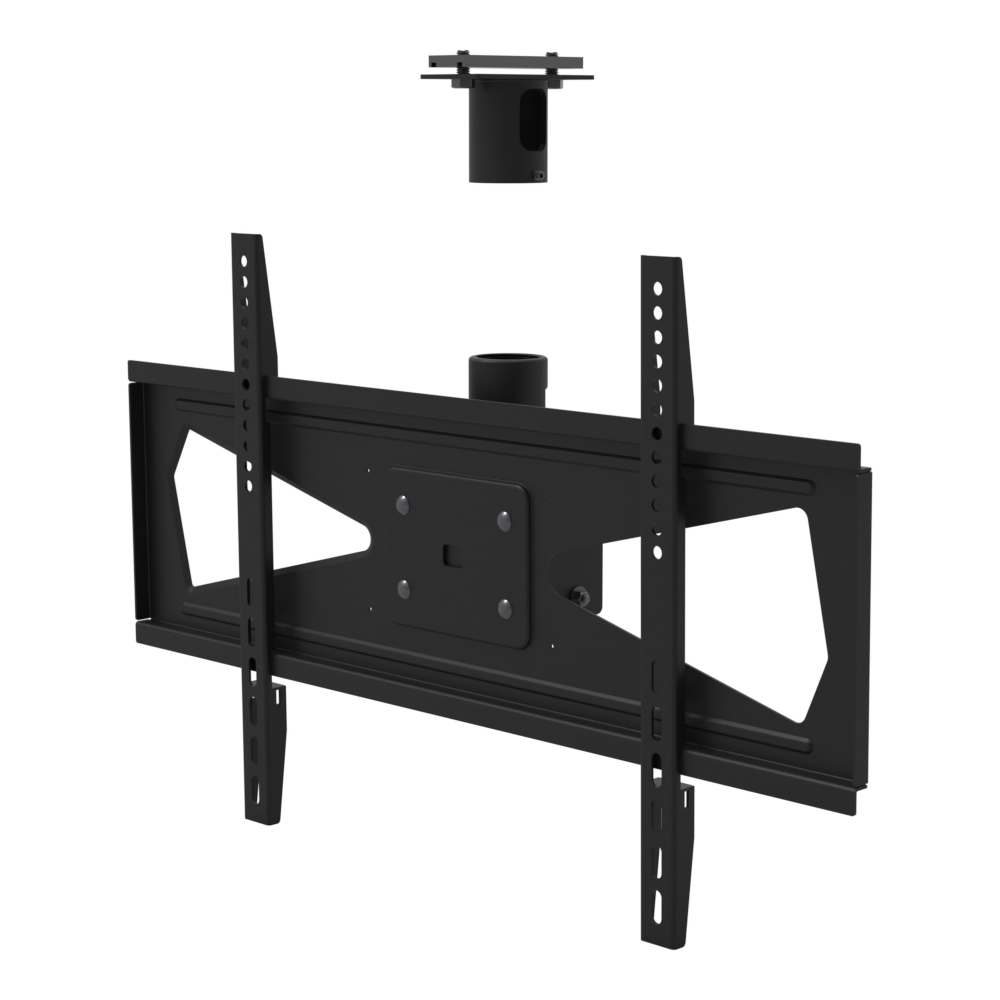

Unistrut Adapter
Mounts to Unistrut — the U-shaped metal channel commonly used in construction.
Unistrut Adapter for 1 1/2 Inch NPT Pipe →

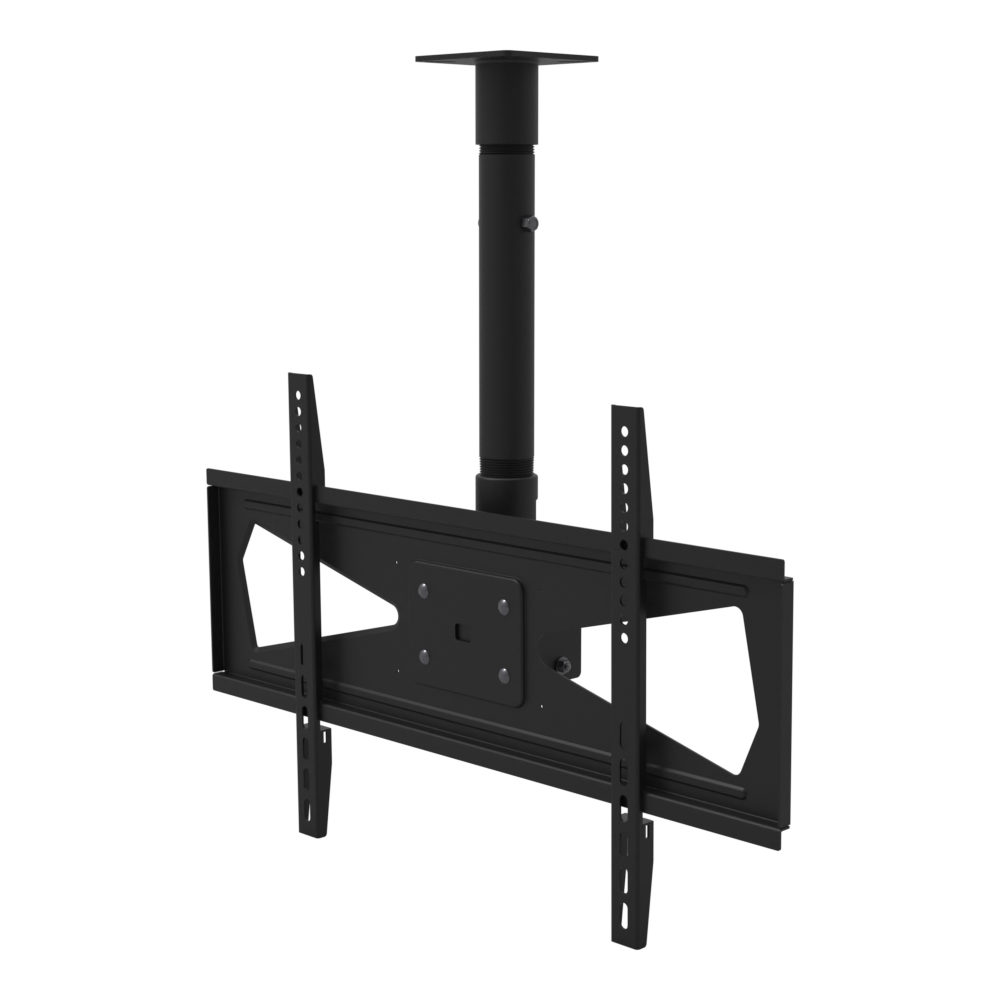

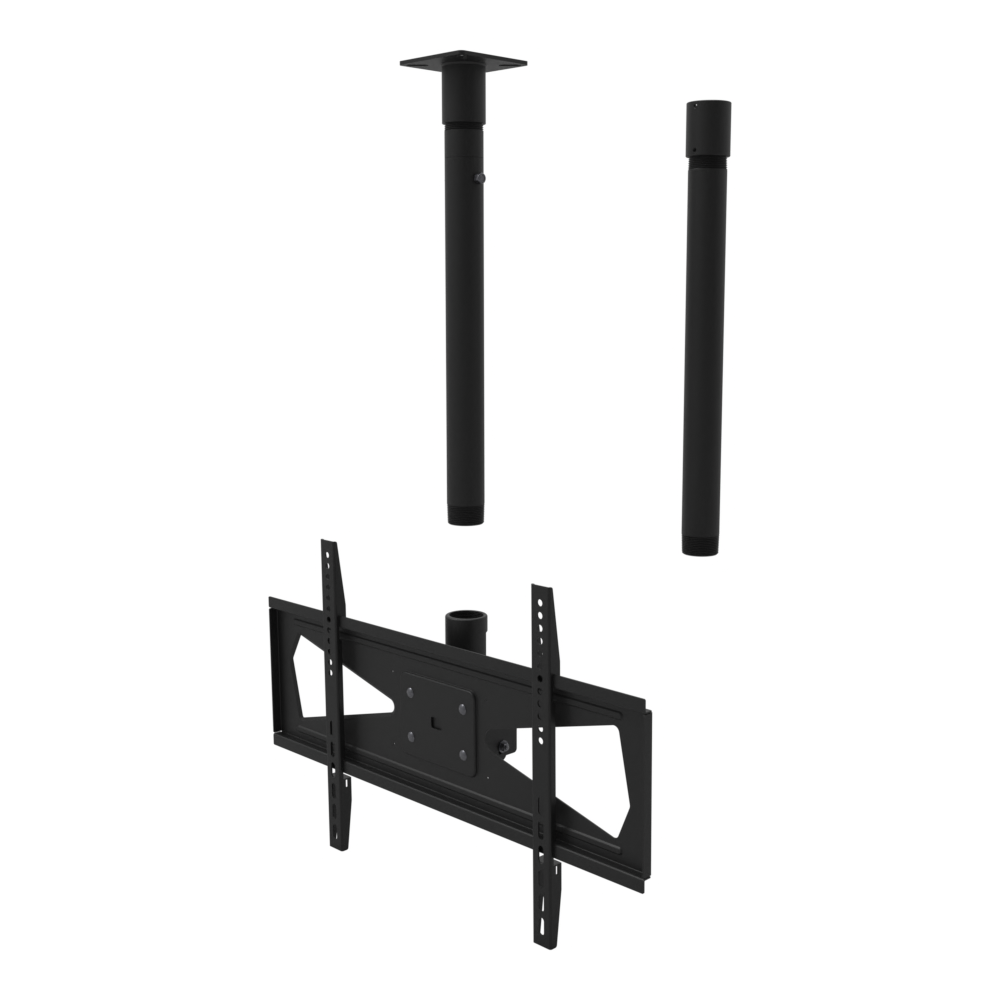

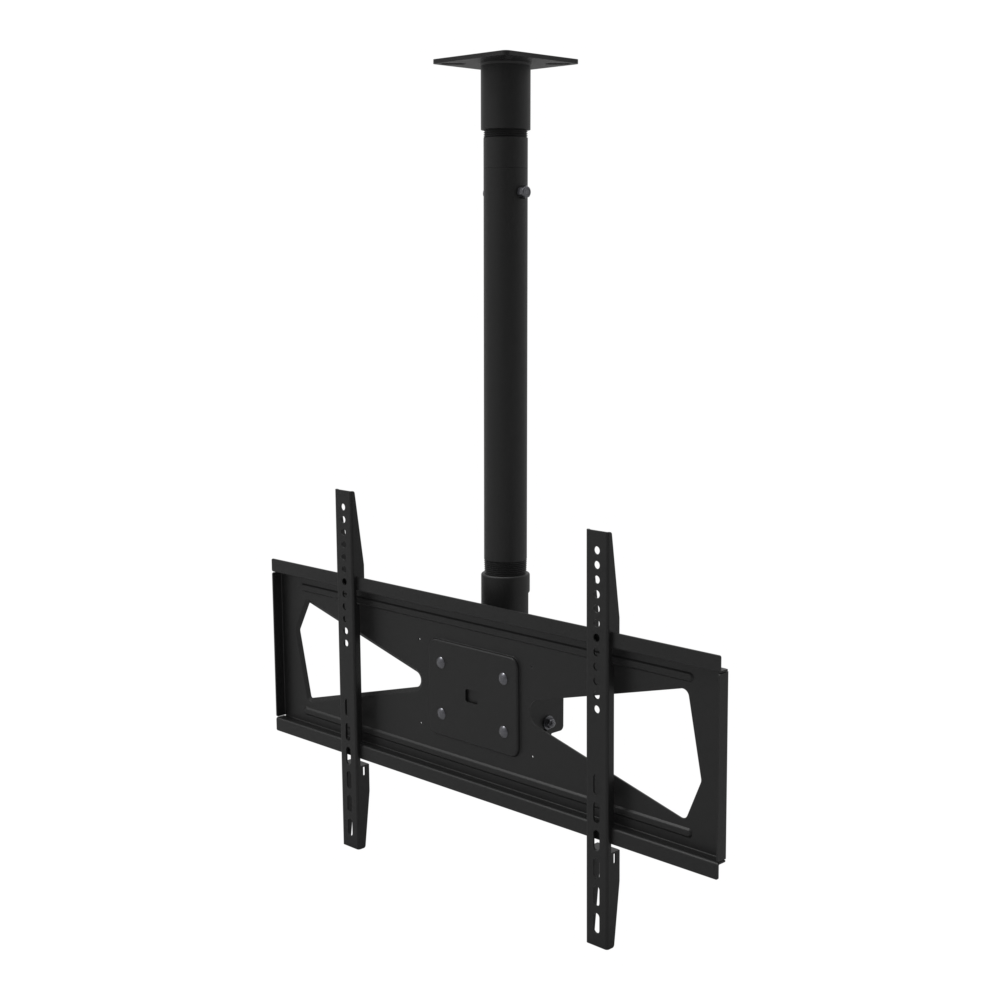

11CP001
Welded steel, made in USA, with a large pass-through hole on top so cables route cleanly.

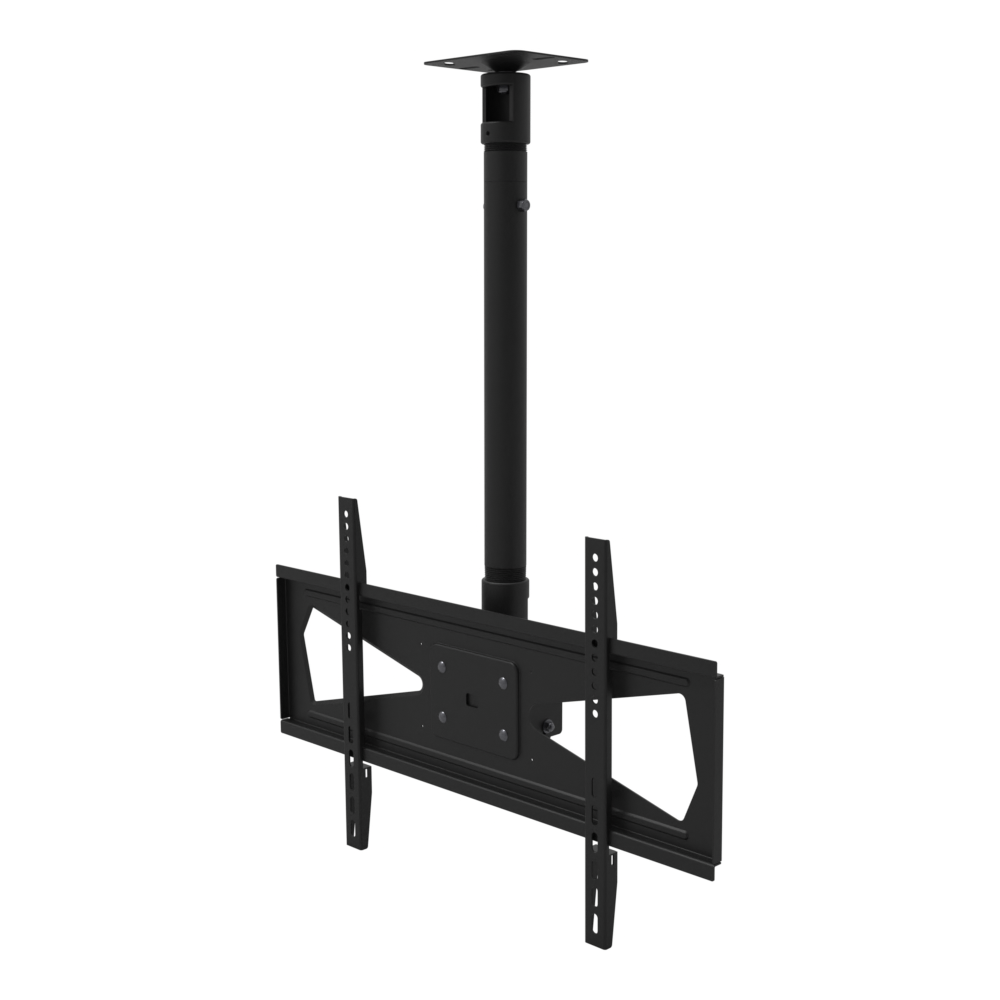

Ceiling Plate for 1 1/2 Inch Pipe →28 to 44 inches Recommended
20 to 28 Inches

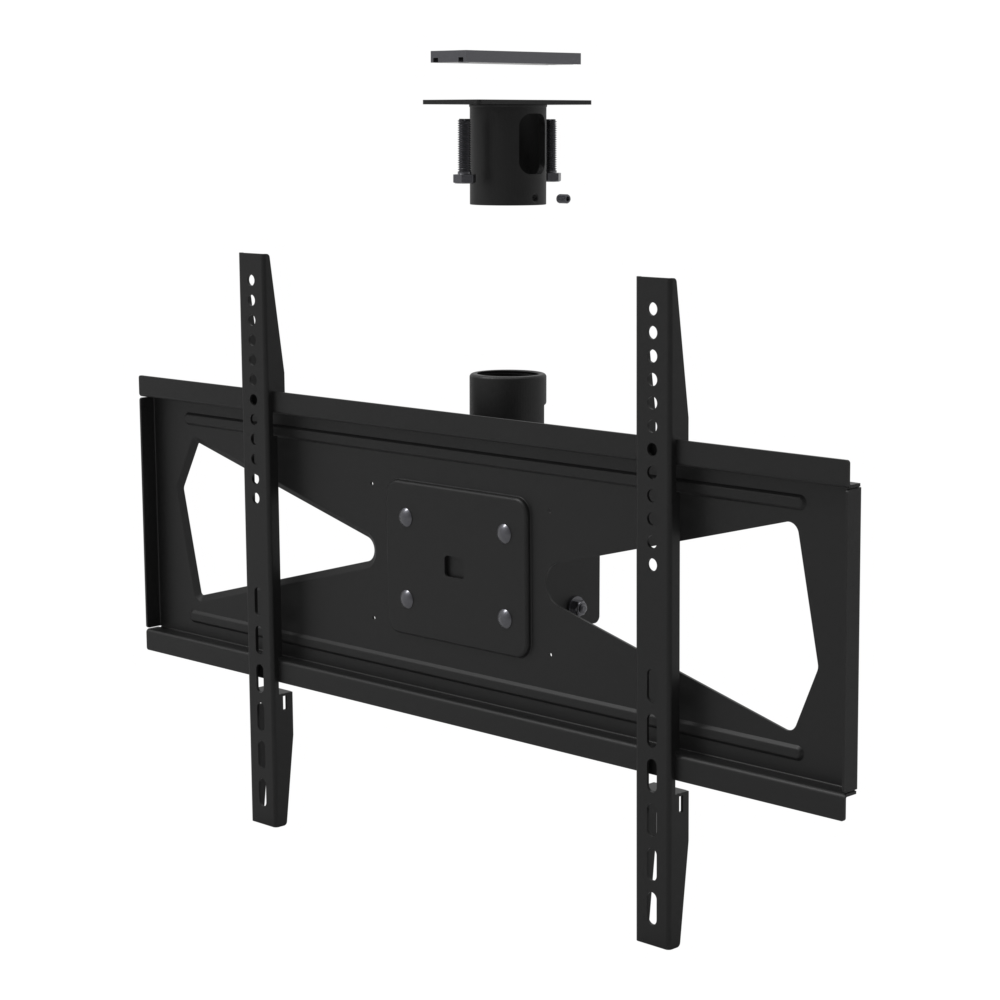

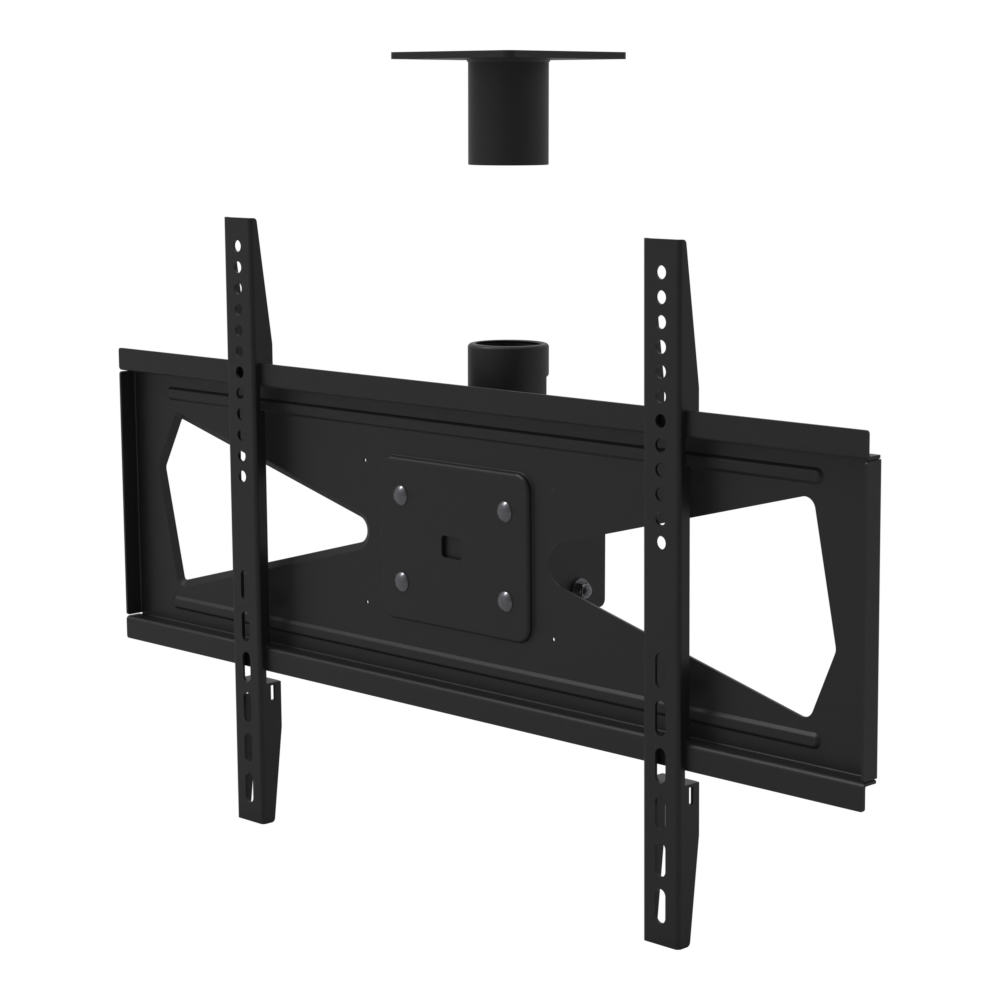

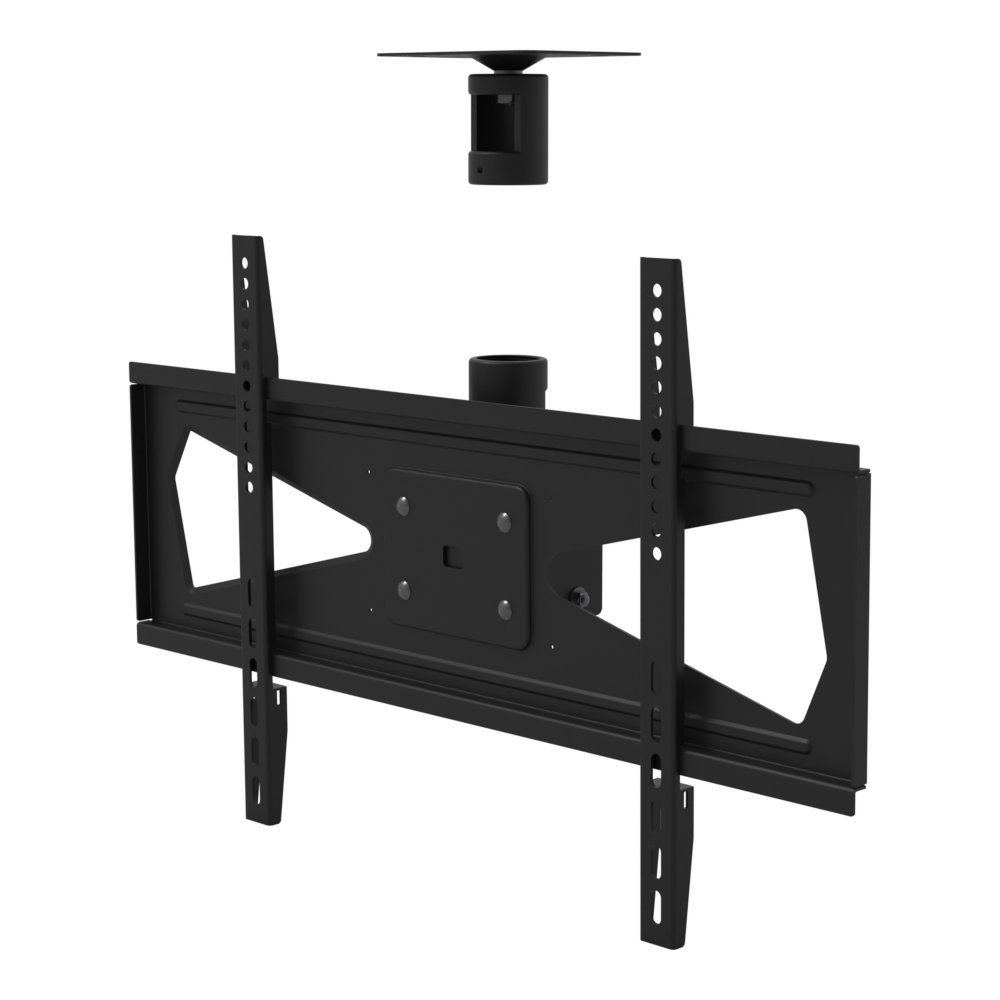

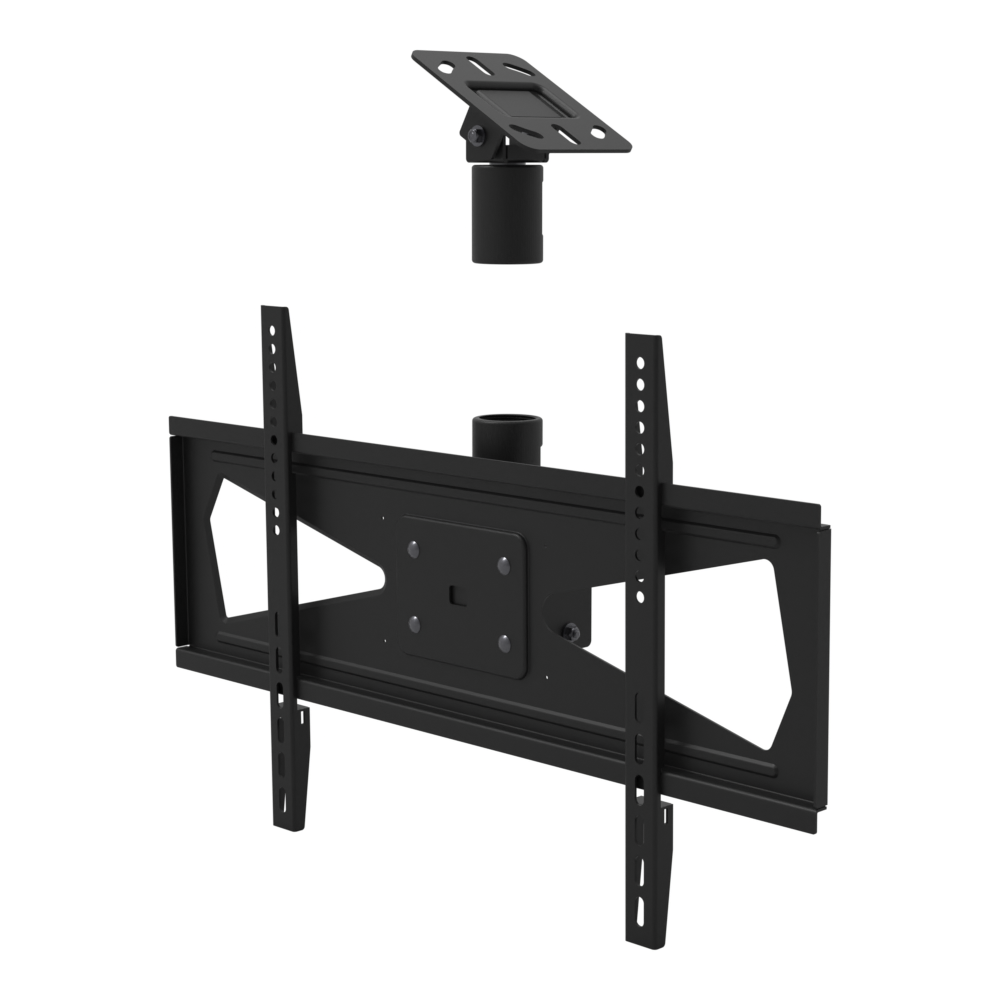

No Mast Heads up
This option is not a complete mount — you'll still need a mast or extension to connect the mount to the ceiling plate. Remember the mount + plate already add ~8″ of drop, so size your pipe accordingly.
Shop masts & extensions →Tax & shipping calculated at checkout
Ships same or next business day
Couldn't load pickup availability
Talk to a mount expert
800-585-8795
30-day returns
Easy & no hassle
Built to last
Heavy-gauge metal

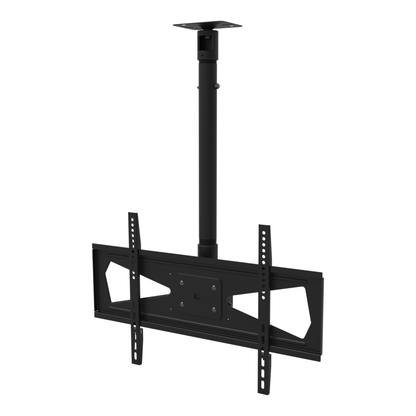

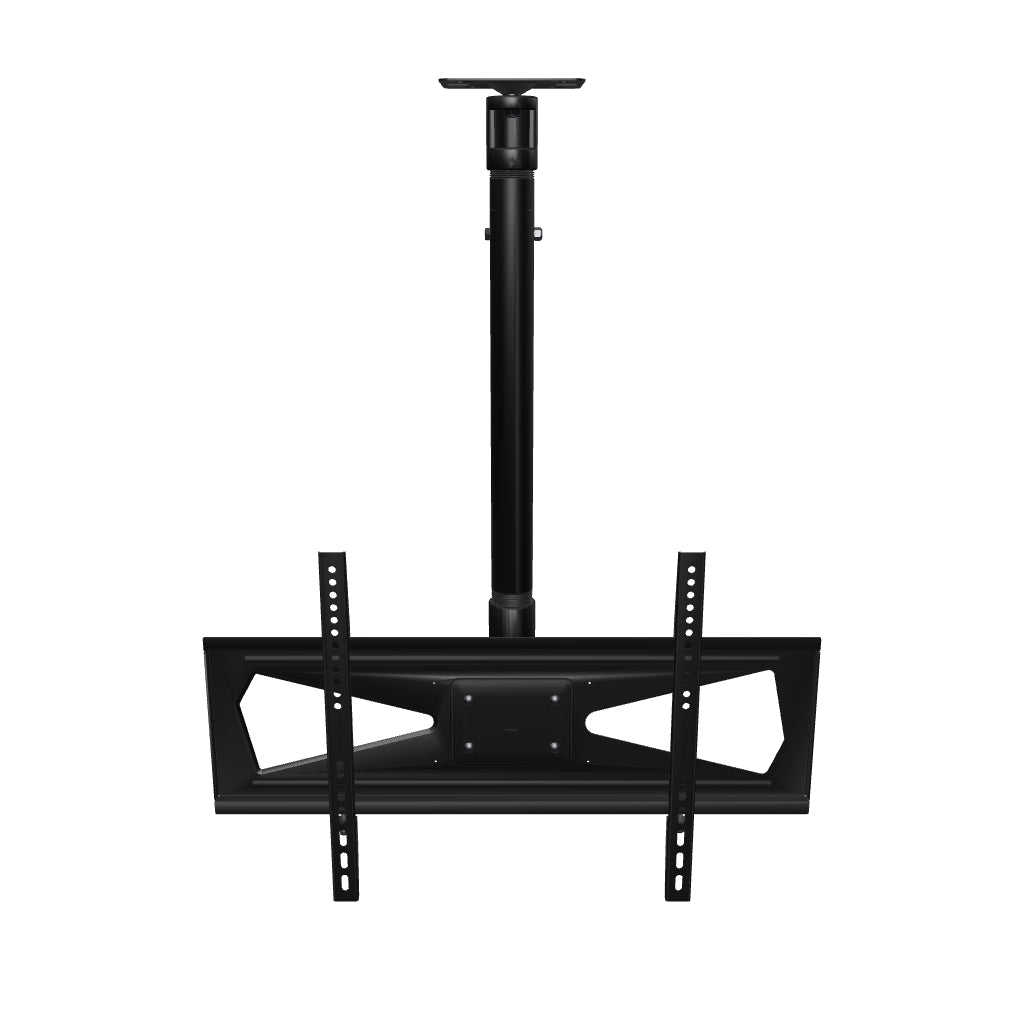

The big-pattern version of our configurable ceiling mount: fits TVs up to 70 inches with mounting patterns up to 600 x 400 — the pattern many larger commercial displays use.
- Fits screens 32 to 70 inches, up to 110 lb
- Fits VESA patterns up to 600 x 400

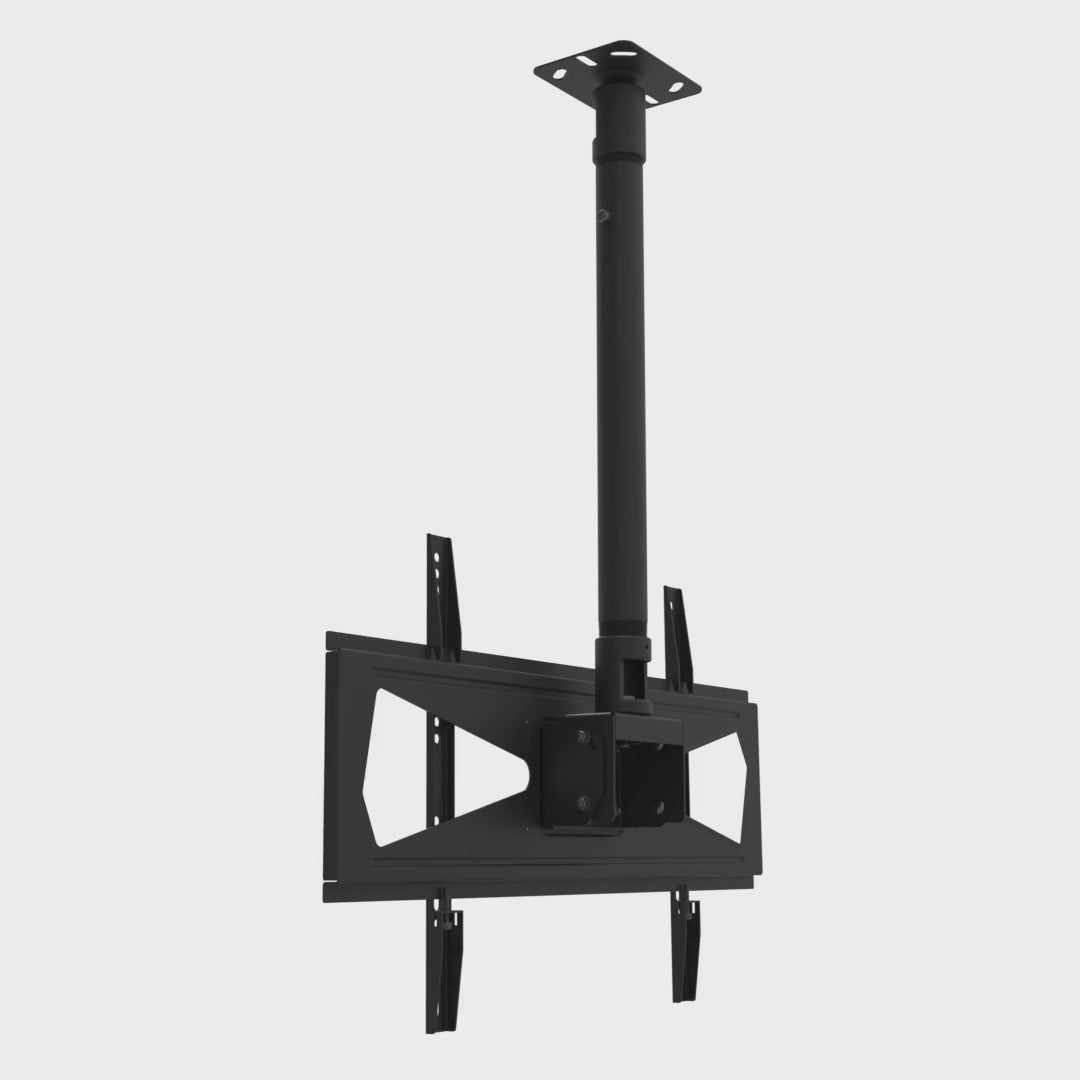

- Tilts up to 12° down (and 5° up)

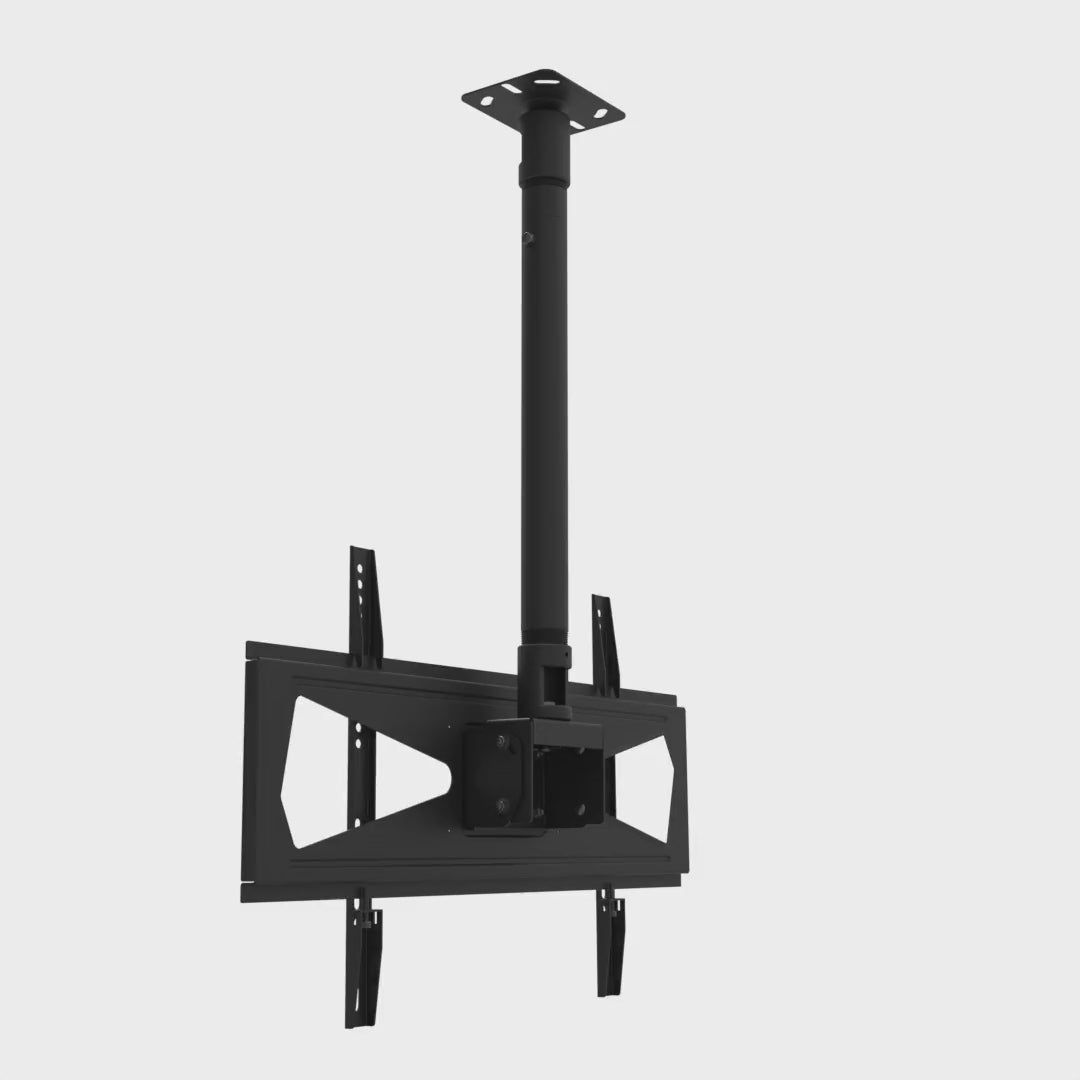

- Rotates 360°
- Constructed of heavy-gauge metal
- Uses the 1-1/2 inch NPT pipe system for the mast
Will it fit your TV? Screen sizes are a guideline to get you close to the right mount. The real test is the mounting pattern and the weight: if your TV’s mounting holes fit this mount and the TV weighs less than the rated capacity, it will work — even if the screen is larger than the listed range.
Choose this over the 33CE016 when your TV’s mounting holes are wider than 400 mm — common on 65–70 inch commercial panels and digital-signage displays.

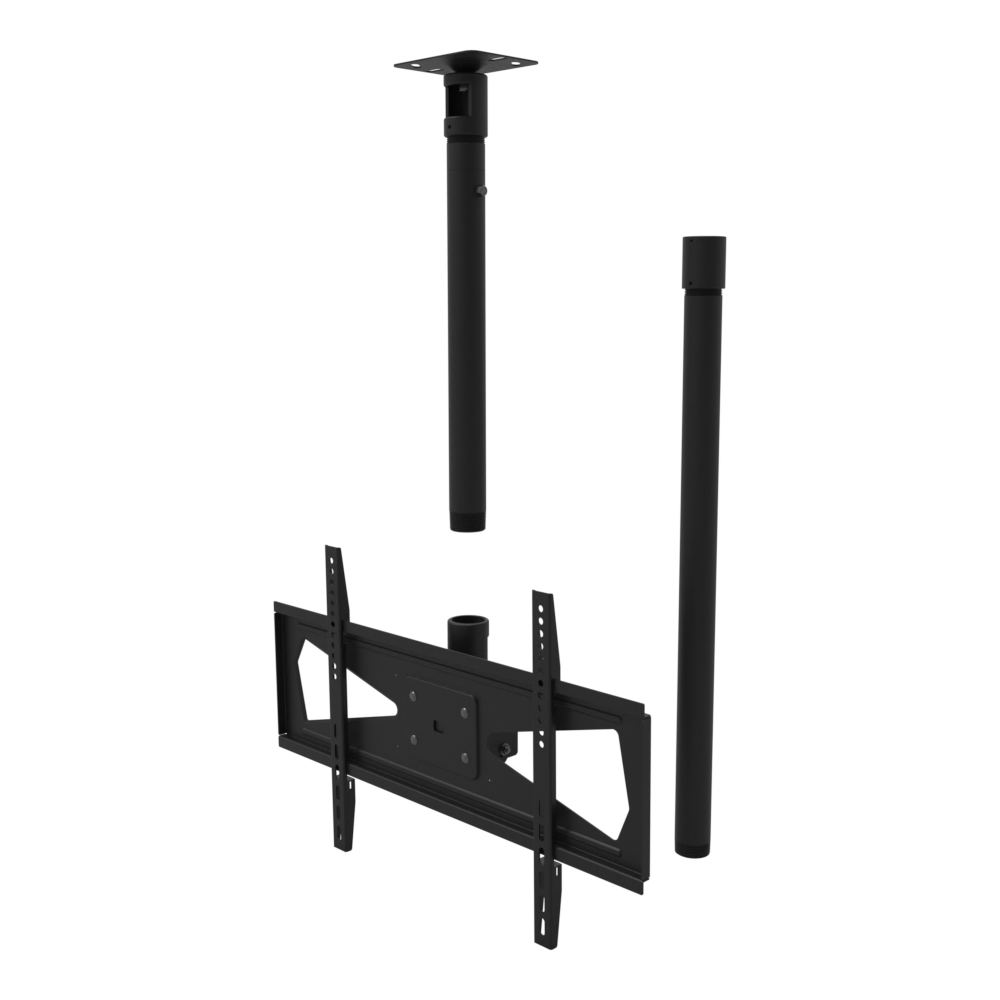

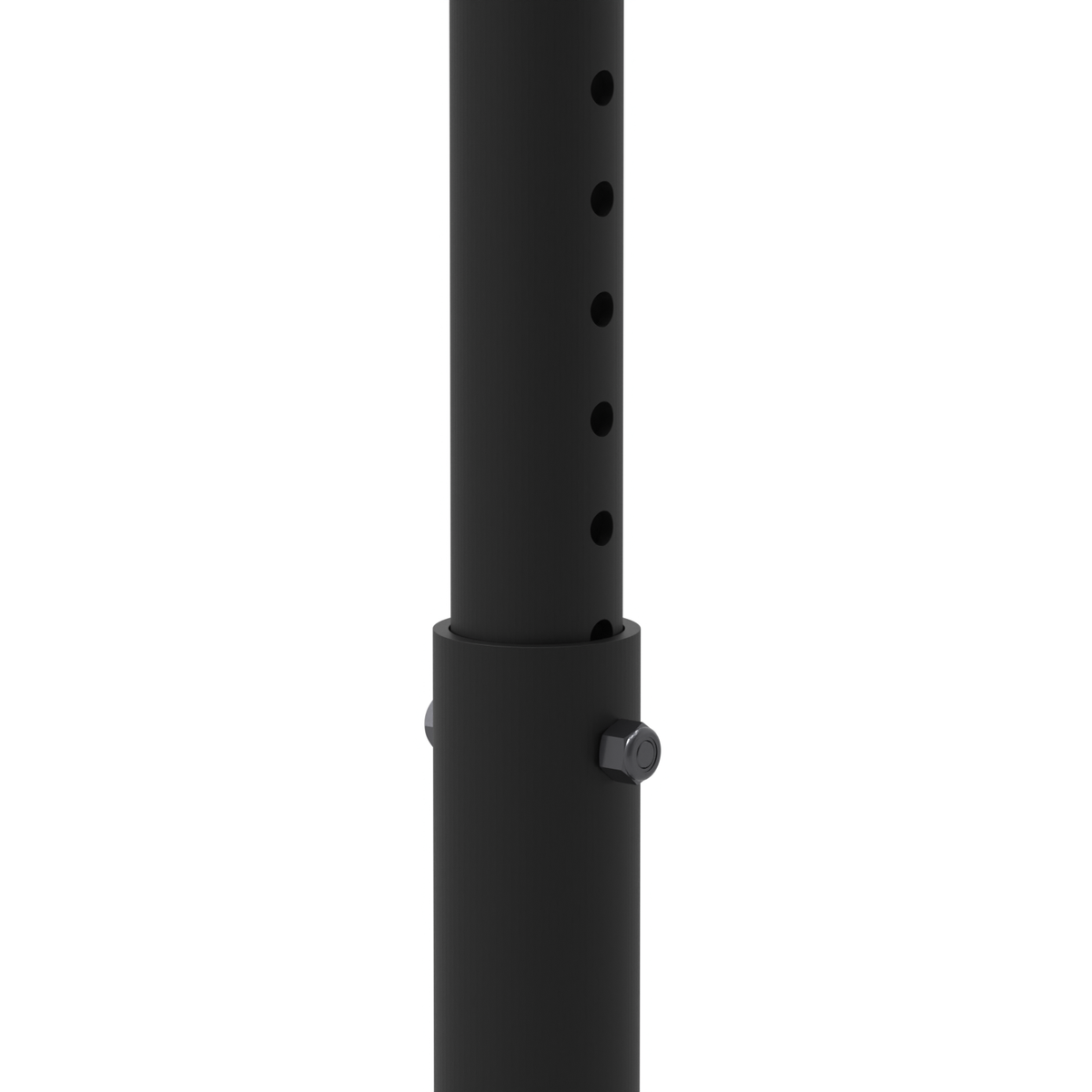

Built to order: choose the ceiling plate that matches your ceiling (flat, angled/cathedral, Unistrut, or heavy-duty) and the total drop you need using the options above. Need a longer drop than the listed lengths? The 1-1/2″ NPT pipe system extends to virtually any ceiling height — add an extension, call 1-800-585-8795, or send us a message and we’ll spec it for you.
Explore the full 1-1/2″ NPT ceiling system: ceiling mounts · ceiling plates · mount heads · extension pipes

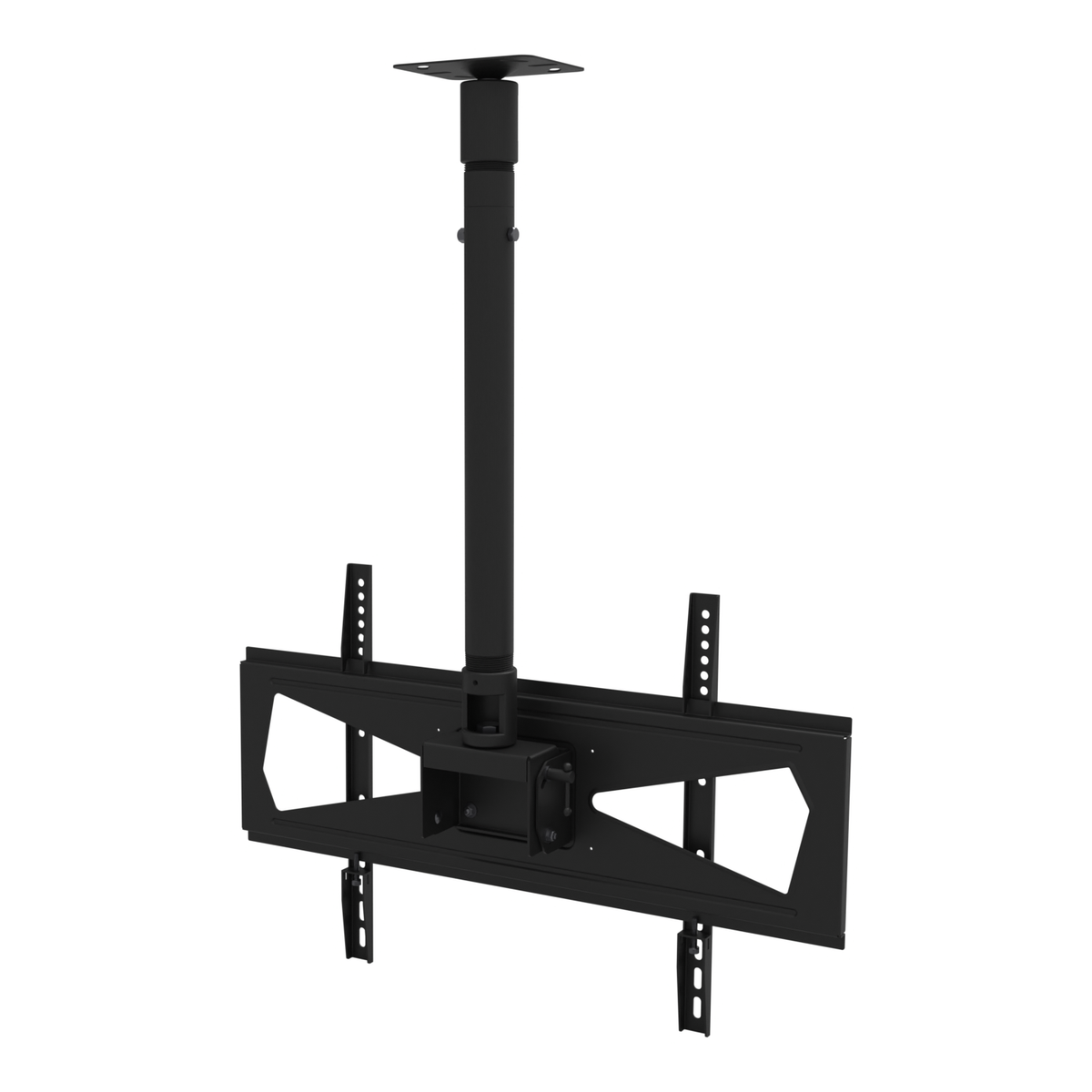

The tilt and rotate head on this mount is also sold on its own as the 33HE002 mount head, if you are building a custom drop from parts.
Expert Mounts manufacturer spec sheet
Product details
VESA mounting pattern
VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.
shown to scale on a ~70" screen (16:9)
50-600 mm wide · 50-400 mm tall(2-23.6" wide · 2-15.7" tall)
Common standards within this hole range - not an exhaustive list.
Will my TV fit?
round to the nearest inch - close is fine, we'll match it to the standard size
enter your TV's spacing to check
How do I find my TV's pattern?
Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".
Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
