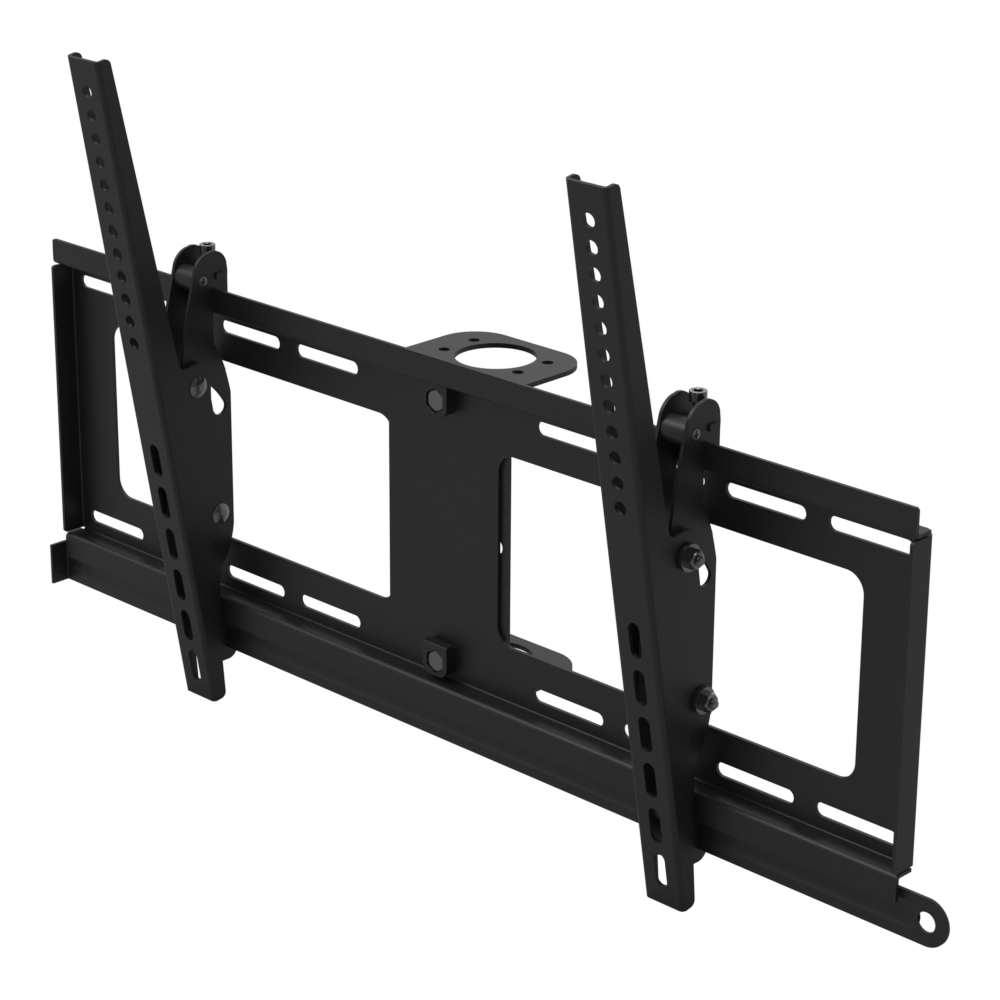

• Tilting twin-rail TV head sold on its own, set at 10 degrees, with its pipe adapter and lock bar and no mast or ceiling plate.
1 2

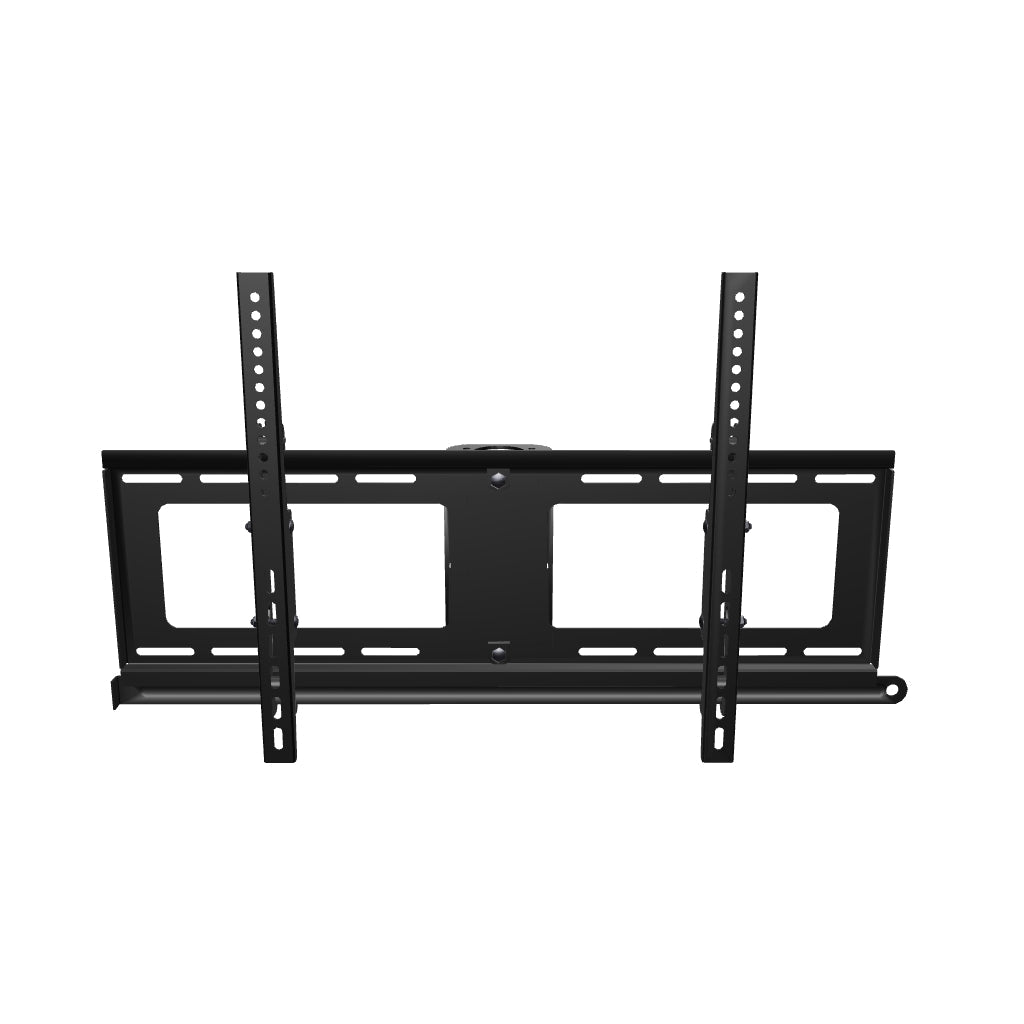

Stacking TV Ceiling Mount Head for 32 to 86 inch, Tilt and Rotate

SKU 33CE018HEAD

$109.95
$109.95

Tax & shipping calculated at checkout

Ships same or next business day

Talk to a mount expert

800-585-8795

30-day returns

Easy & no hassle

Built to last

Heavy-gauge metal

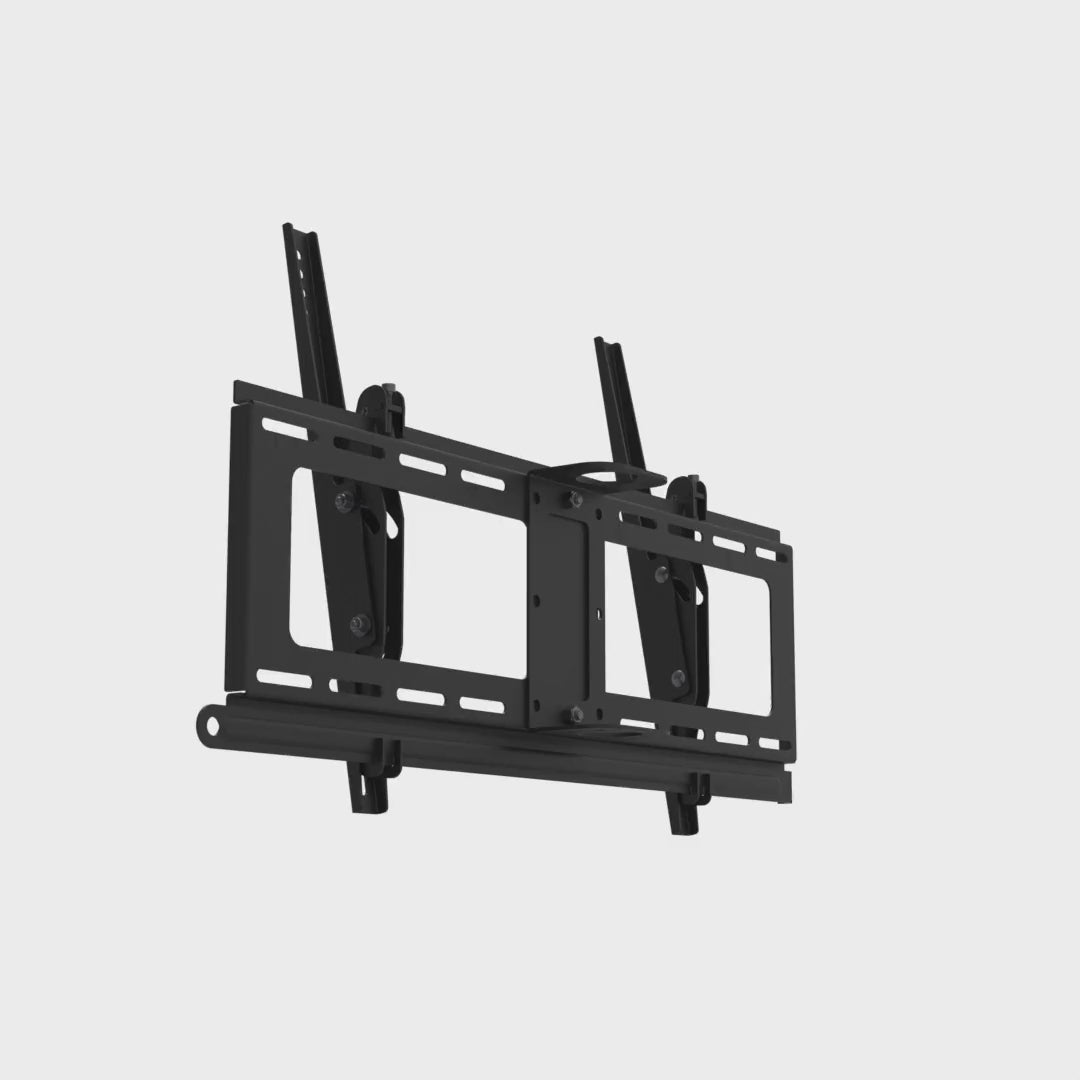

This is the stacking head from our 1-1/2 inch NPT ceiling mount system, sold as a separate part. It clamps onto a 1-1/2 inch NPT pipe at whatever height you set, so you can run more than one screen down a single pole. If you are building a custom stack from your own plate and pole, this is the part that holds each TV and gives it tilt and rotation.

  • Holds one screen, up to 176 lb
  • Fits VESA patterns up to 600 x 400 mm
  • Rails cover hole spacing from 50 to 700 mm wide and 75 to 400 mm high
  • Tilts 10° down and 5° up
  • Rotates a full 360°
  • Sets at its own height anywhere on a 1-1/2 inch NPT pipe
  • Heavy gauge metal construction

This is the same head that comes on the 33CE018 double stack ceiling mount. Add one per additional screen.

Keep in mind: screen size is only a guide. What matters is the VESA hole pattern and the weight. On a custom stack the real limit depends on your whole build, so measure your TV's mounting holes and call us if you are near the weight.

Call or email us if you need help picking the right head, or possibly a different solution.

Product details

Max weight 176 lb · 80 kg
Tilt 5° up · 10° down

VESA mounting pattern

VESA is the spacing between the four bolt holes on the back of your TV. Screen sizes are a guideline - any TV whose bolt pattern fits this mount and whose weight is under the rating will work, even if the screen is larger. Enter what you measure below and we'll match it to the nearest standard size and check the fit.

VESA hole pattern shown to scale on the back of a display VESA mounting holes 50 to 700 mm wide and 75 to 400 mm tall.
75-400 mm 3-15.7"
50-700 mm 2-27.6"

50-700 mm wide · 75-400 mm tall(2-27.6" wide · 3-15.7" tall)

Supported standards75×75VESA 75 by 75 mm, about 3 by 3 inches100×100VESA 100 by 100 mm, about 4 by 4 inches100×200VESA 100 by 200 mm, about 4 by 8 inches200×100VESA 200 by 100 mm, about 8 by 4 inches200×200VESA 200 by 200 mm, about 8 by 8 inches200×300VESA 200 by 300 mm, about 8 by 12 inches200×400VESA 200 by 400 mm, about 8 by 16 inches300×200VESA 300 by 200 mm, about 12 by 8 inches300×300VESA 300 by 300 mm, about 12 by 12 inches300×400VESA 300 by 400 mm, about 12 by 16 inches400×200VESA 400 by 200 mm, about 16 by 8 inches400×300VESA 400 by 300 mm, about 16 by 12 inches400×400VESA 400 by 400 mm, about 16 by 16 inches600×200VESA 600 by 200 mm, about 24 by 8 inches600×400VESA 600 by 400 mm, about 24 by 16 inches

Common standards within this hole range - not an exhaustive list.

Will my TV fit?

round to the nearest inch - close is fine, we'll match it to the standard size

enter your TV's spacing to check

How do I find my TV's pattern?

Find the four threaded holes on the back of your TV and measure between them - left-to-right and top-to-bottom, center to center. Round to the nearest inch. Or check your TV's manual, or search "[your model] VESA pattern".

Can't find it or not sure? Call us at 800-585-8795 or email sales@videomountstore.com - we can usually look up your TV's pattern faster than you can.
